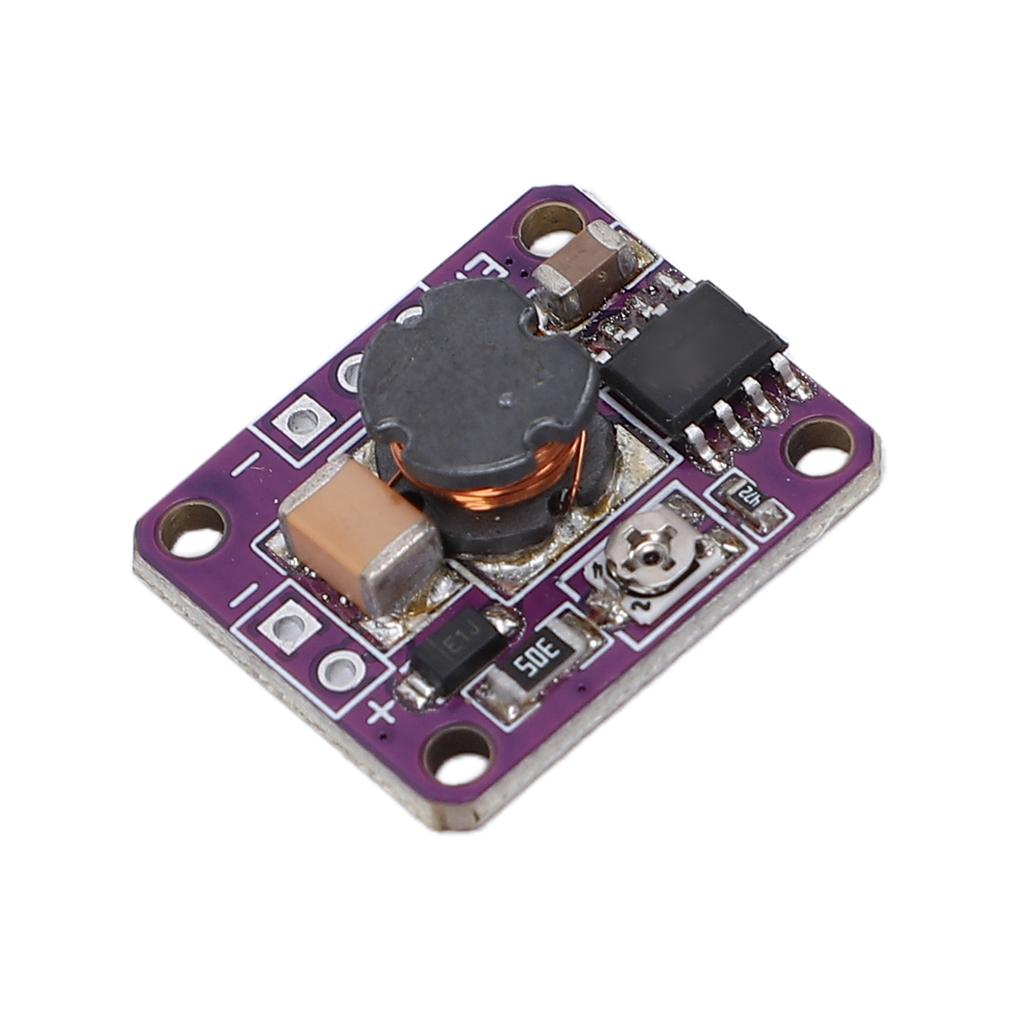

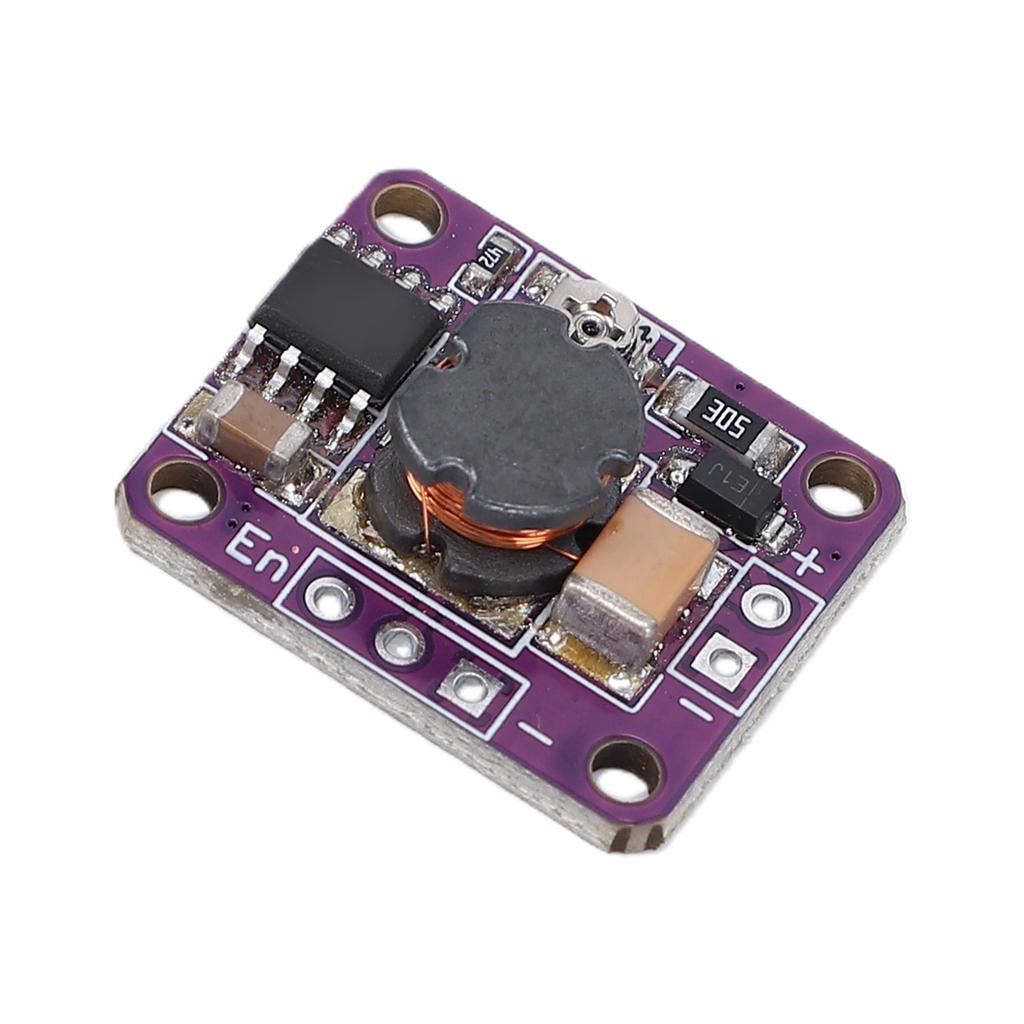

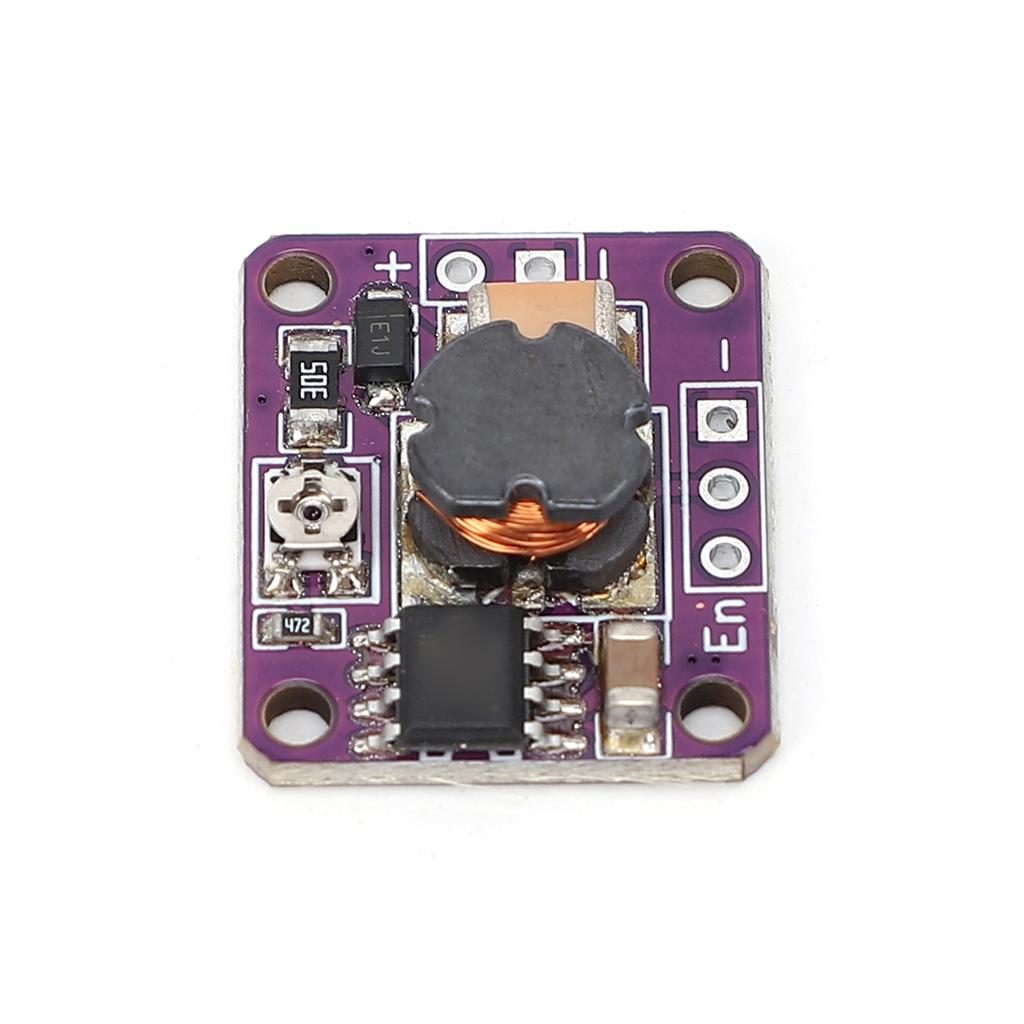

DC DC Boost Converter Module 3.6 20V to 150 500V Adjustable High Voltage Power Supply Board, Mini Step Up Converter

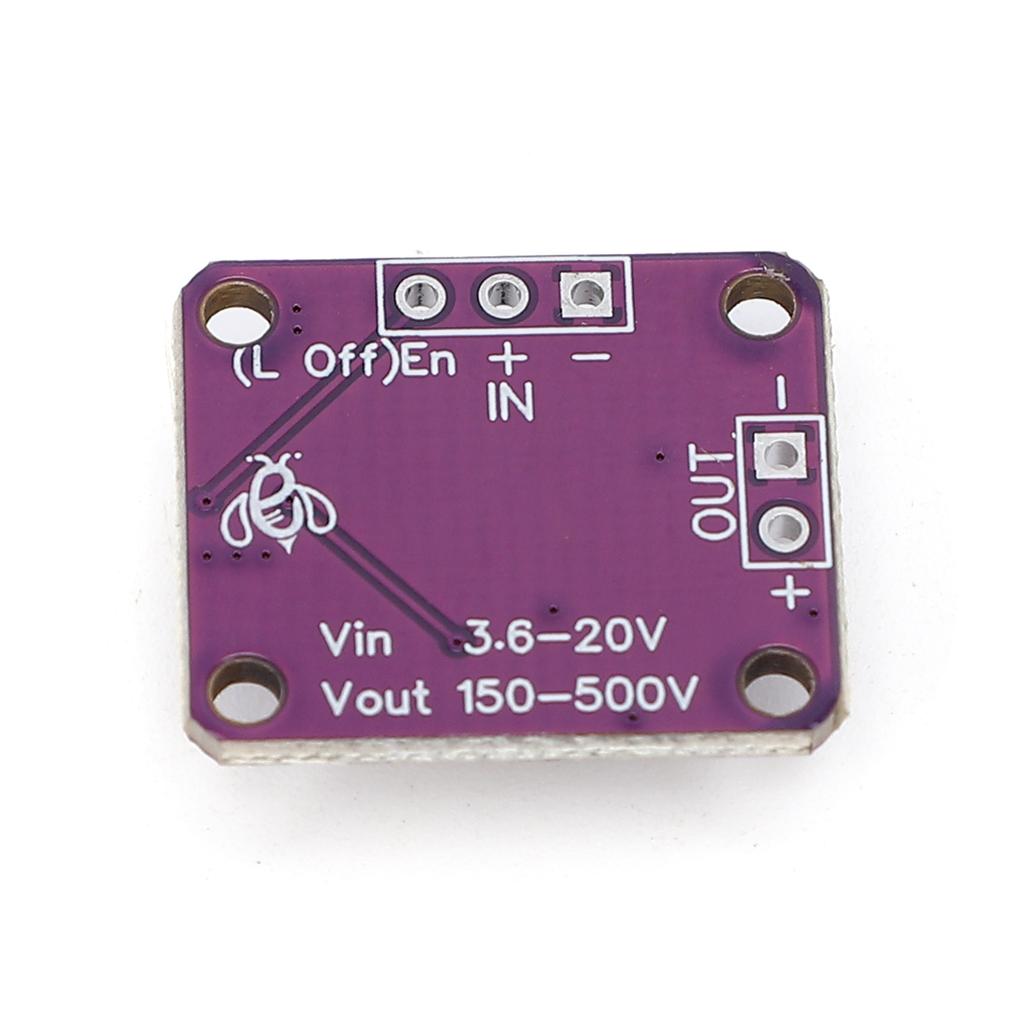

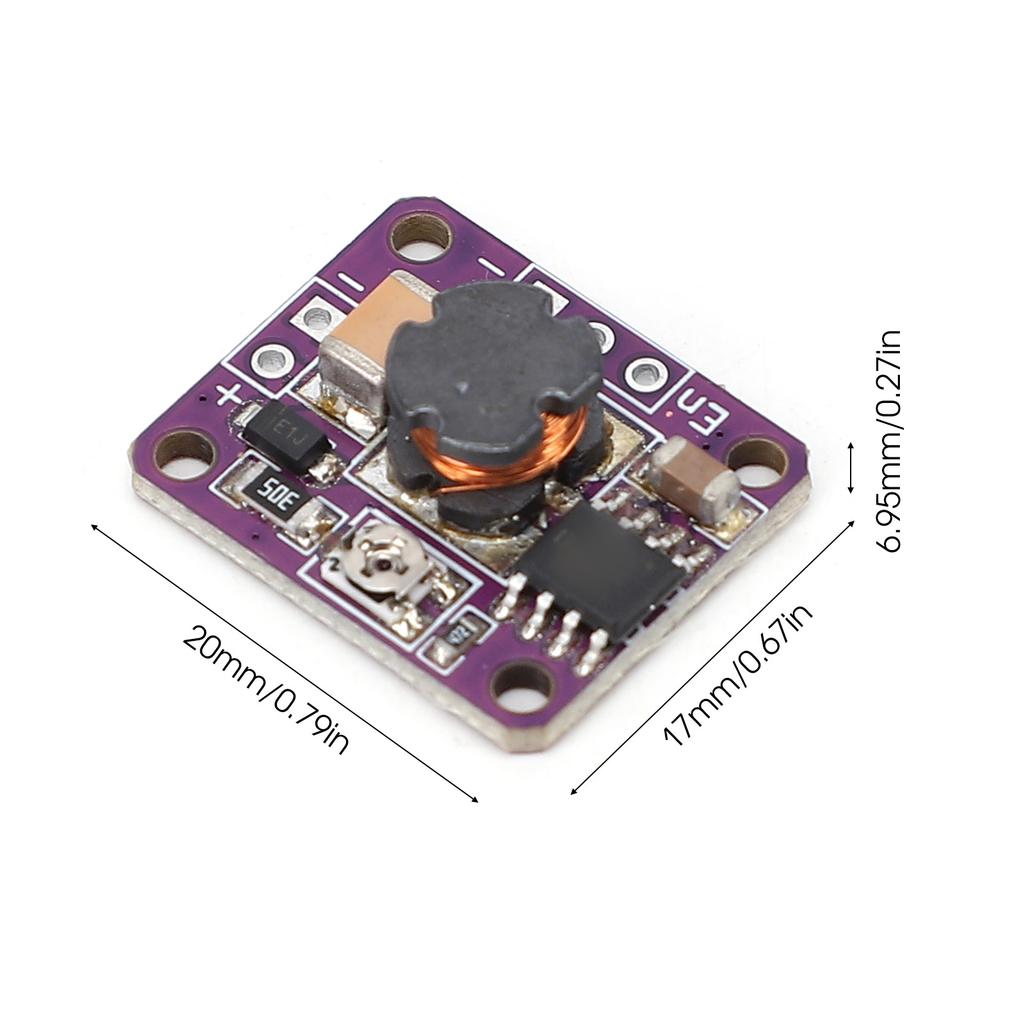

Feature: 1. Wide Voltage Boost and Precise High Voltage Adjustment: This boost converter module supports a wide DC input range of 3.6 20V (compatible with lithium batteries 12V power supplies), easily boosting the voltage to 150 500V DC. Equipped with a high precision adjustable potentiometer, the output voltage can be precisely controlled by fine tuning clockwise or counterclockwise with an insulated screwdriver, meeting the needs of various high voltage experiments. 2. Minimalist Pins for Easy Connection: The module features clearly defined functional pins: EN (high low level control), IN (3.6 20V supply), and OUT (150 500V high voltage). It can be used by direct wiring, making it ideal for electronic DIY projects, scientific research and development, and high voltage generator construction. 3. Compact and Portable, Efficient and Stable: Adopting a micro PCB design, it measures only 20mm*17mm with a thickness of 6.95mm and a total weight of just 2.7g. Its slim and compact form allows it to be easily embedded in various small devices or experimental setups, saving space and being convenient to carry. 4. Safety Warnings and Standardized Use: This module outputs 150 500V high voltage. Although the current is low (recommended <15mA), there is still an electric shock risk. Always disconnect the power before operation and never touch the output terminal. The input has no reverse polarity protection, so please strictly distinguish between positive and negative poles to avoid damaging the module. 5. Heat and Load Tips: It is normal for the module to generate heat during operation due to high frequency switching losses; do not touch the heating components. The recommended output current is less than 15mA, and it can stably drive 4 tubes with a 12V input. Please ensure proper heat dissipation and insulation protection during use for safe and stable operation. Specification: Item Type: Boost Converter ModuleMaterial: ABSInput Voltage: DC 3.6V 20V (Maximum 24V) Output Voltage: DC 150V 500V (Adjustable) Recommended Output Current: <15mA (Stable load of 4 tubes at 12V input) Enable Pin (EN): Default high level floating to enable output, low level to disable output Voltage Adjustment: Top adjustable potentiometer (Requires insulated screwdriver) Reverse Connection Protection: No input reverse connection protection, must strictly distinguish positive and negative poles. Package List: 1 x Boost Converter Module 1 x Plastic Box Note: Although the current is relatively low (recommended < 15mA), there is still a risk of electric shock. Always power off before operation and strictly avoid touching the output terminals. The module may become hot during operation do not touch it by hand.
