Feature:

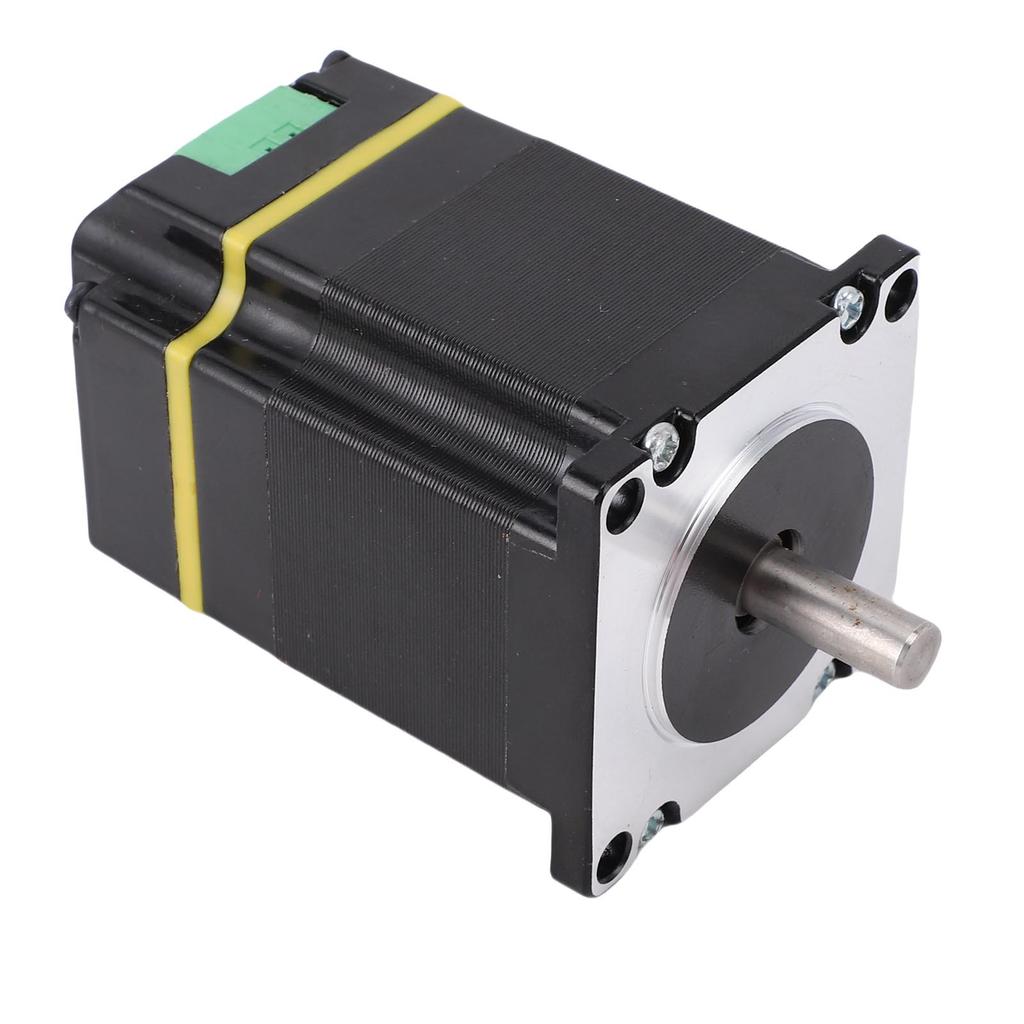

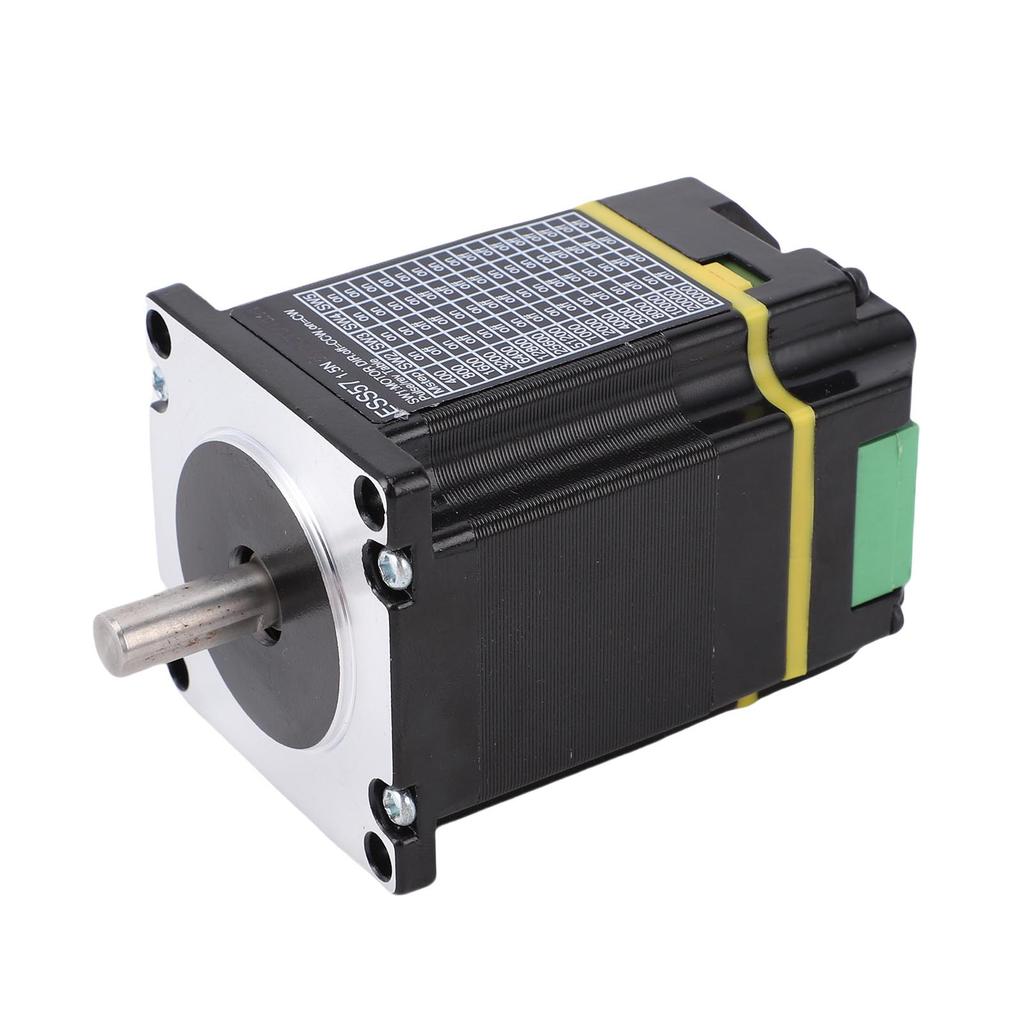

1. Closed Loop Stepper Motor: This integrated smart stepper motor combines pulse direction control interface, built in 1000 line encoder, driver, and closed loop controller for precise motion control in CNC machine and 3D printers
2. Performance: Engineered for rapid response and high locating accuracy, this servo motor delivers up to 1.5Nm torsion and 3000 RPM speed, with a wide voltage input range, suitable for demanding tasks in automation applications
3. Applications: This servo motor is applicable to a wide range of small and medium automated equipment and instruments, such as industrial robots, textile machinery, industrial sewing machine, wire stripping machine, marking machine, cutting machine, plotter, CNC tools, engraving machine, automatic assembly equipment, 3D printer, etc
4. Robust Construction: Featuring a fully enclosed die cast aluminum alloy frame, this servo stepper motor ensures improved heat dissipation and minimal vibrations at low speed, making it dependable for prolonged use in harsh environments
5. Precisie Step Servo: With a 1.8 degrees step angle, 4.2A current, and 1000 line magnet encoder resolution, this integrated servo motor maintains consistent performance in engraving machine, plotters, and other precise motion system
Specification:
Item Type: Servo Motor
Material: ABS, Aluminum Alloy
Encoder: Built in 1000 Line Magnet Offset
Motor Speed: 0 3000RPM (The higher the speed, the more torsion attenuation. It is recommended to use 0 1000RPM)
Output Current: Peak 6.0A (Current varies with load)
Logic Input Current: 7 16mA, Recommend 10mA
Pulse Frequency: 0 200KHz
Encoder Line Count: 1000
Insulation Resistive Value: more than 500M Ohm
Step Angle: 1.8 degrees
Current: 4.2A
Resistive Value(2+10percent ):0.4
Inductance: 1.2mH+20percent
Static Torsion: 1.2Nm (Maximum 1.5Nm)
Motor Length: Approx. 56mm 2.2in.
Package List:
1 x Servo Motor
2 x Terminals
Note:
There is a slight error in the size.
