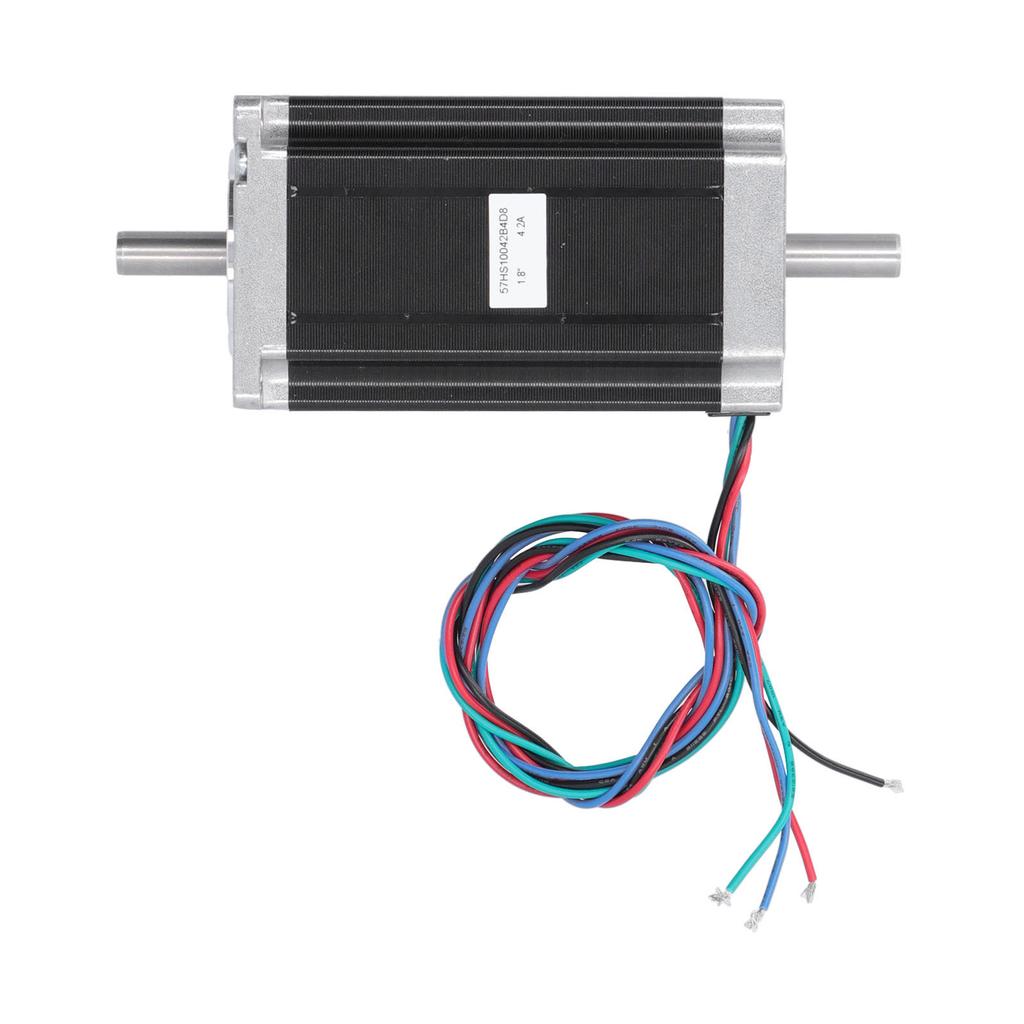

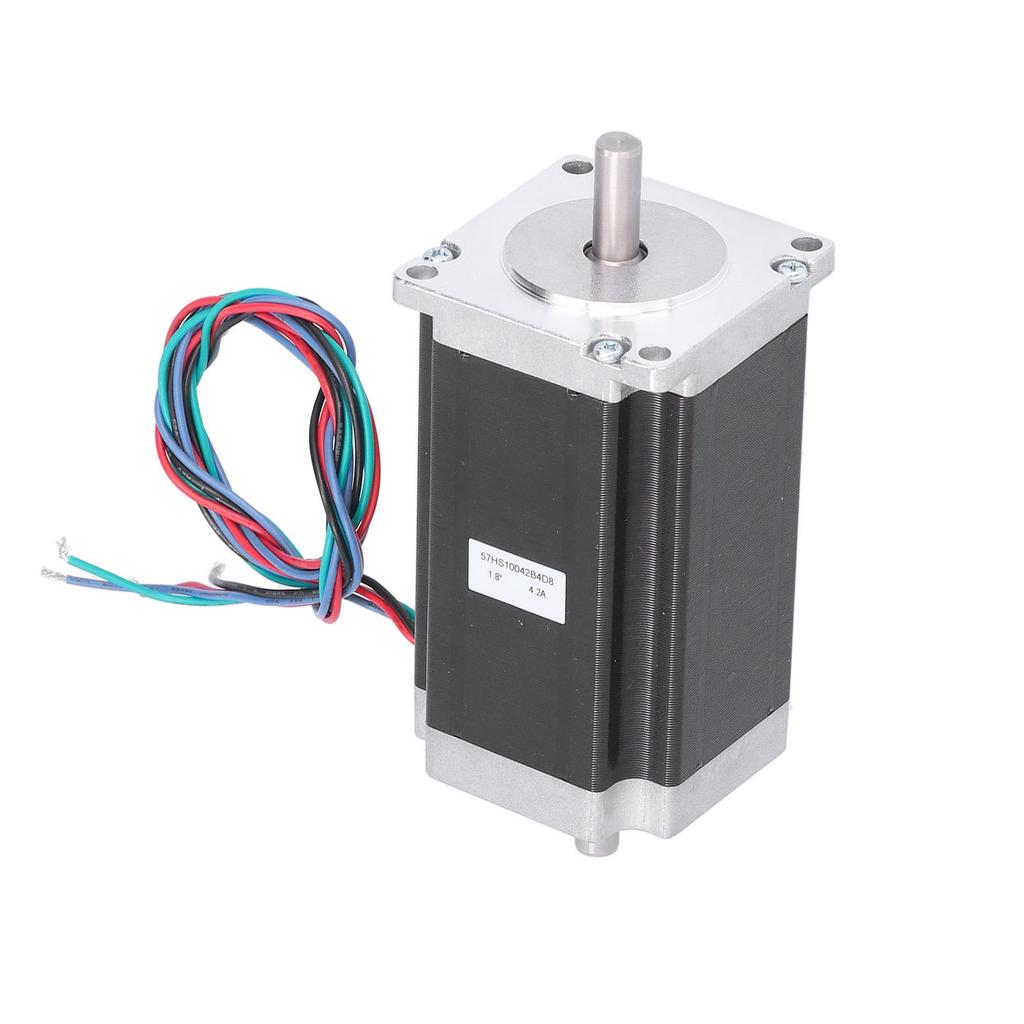

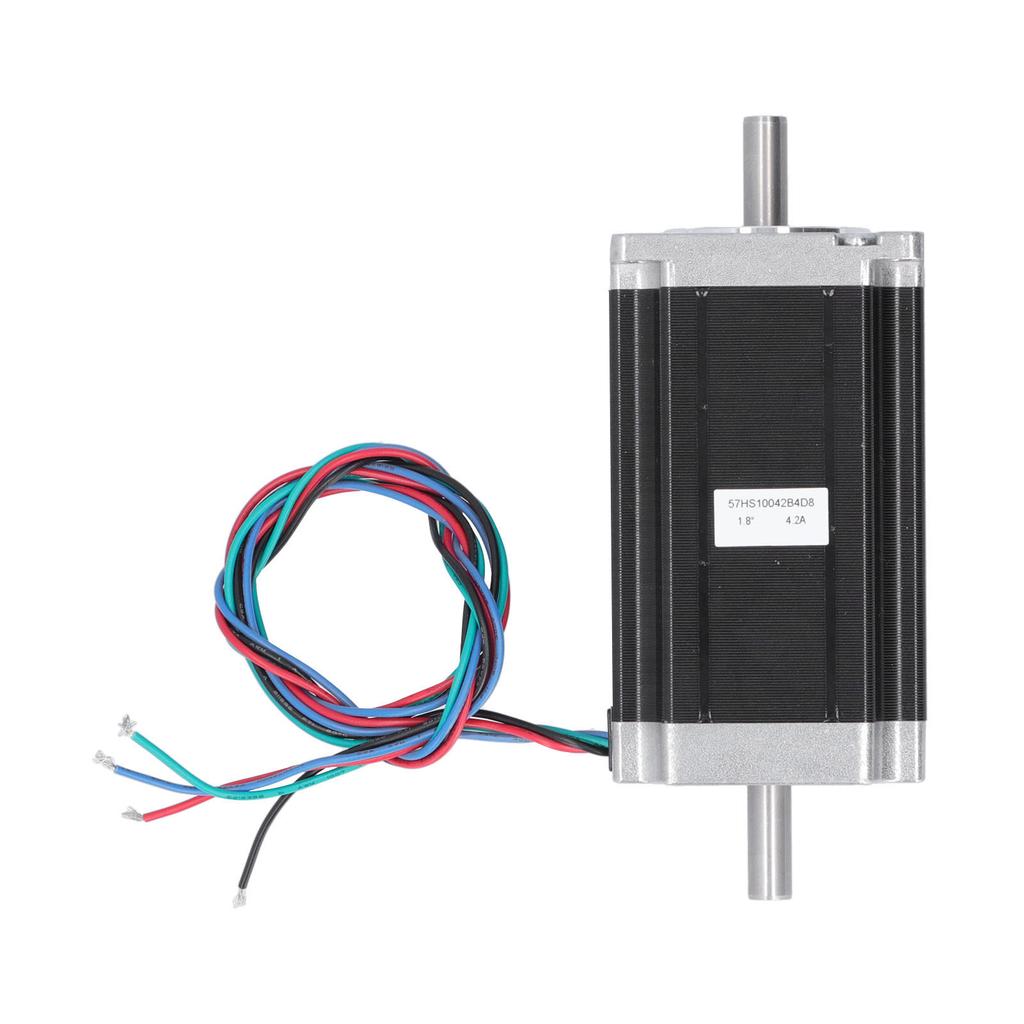

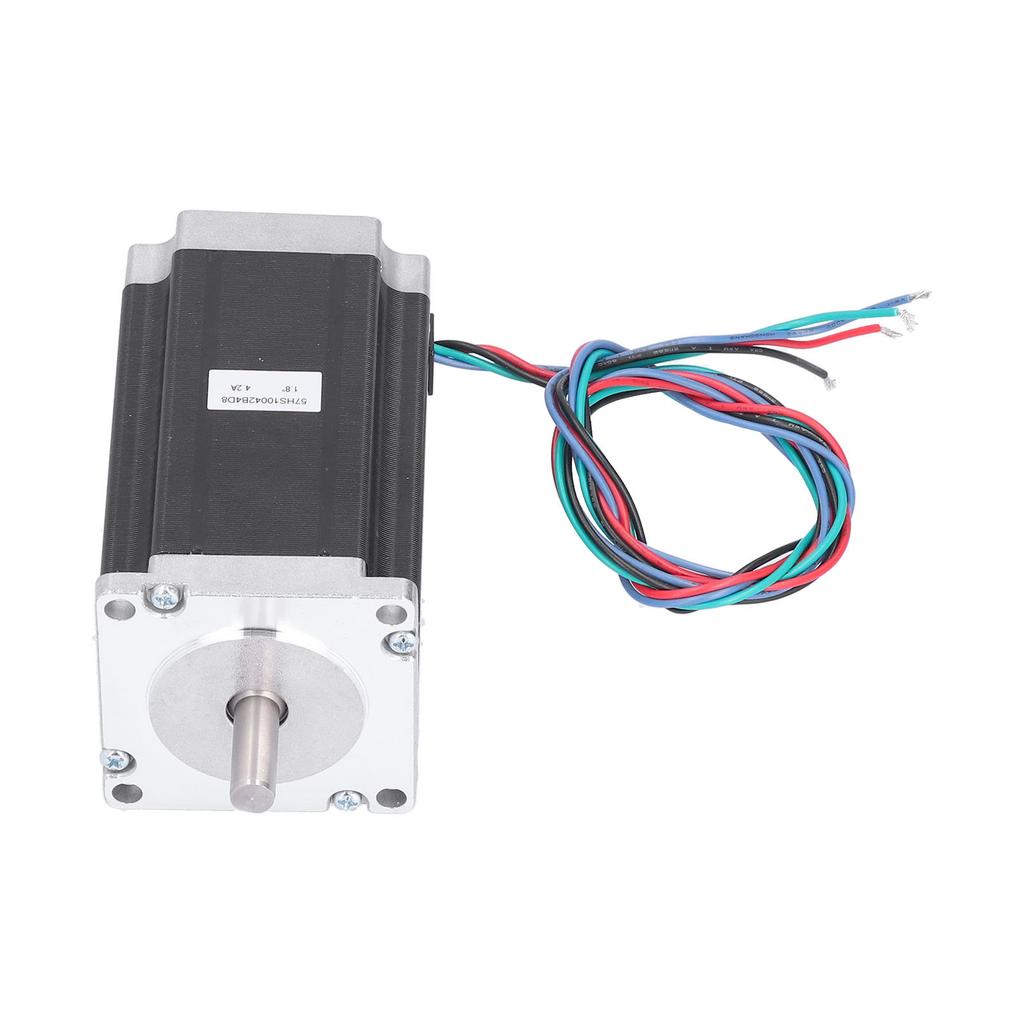

57 Stepper Motor 2.5Nm 4 Motor with 8mm Shaft CNC Mill Lathe Accessories 24V 4.2A57HS10042B4D8 Dual Shaft

Feature: 1. The stepper motor has a rated voltage of 24V, supports both DC and AC, and is often used in CNC milling machines. 2. This stepping motor uses excellent bearing, has low self inductance, and good responsiveness. 3. The inner rotor adopts advanced technology and is coated with imported rotor glue to reduce oxidation and motor noise. 4. The stepper motor can obtain lower resistance value, increase the thermal conductivity, and effectively reduce the temperature rise. 5. Adopt 4 design, and with 8mm Diameter shaft, easy to connect and use, has strong practicability. Specification: Item Type: Stepper Motor Material: Die cast aluminum, stainless steel, silicon steel sheet Purpose: Stepper motor Rated Power: 115W Product Type: AC and DC dual use motor Rated Current: 4.2A Static Moment: 2.5N.cm Positioning Moment: 10N.cm Momentum of Inertia: 680g.cm² Rated Rotating Speed: 800rpm Rated Torsion: 2.5NM Motor Length: Approx. 100mm 3.9in Shaft Diameter: Approx. 8mm 0.3in Step Angle: 1.8 degrees

Number: 4 Working Environment Temperature: 20 50 celsius Working Environment Humidity: 15percent 90percent . Package List: 1 x Stepper Motor Note: 1. Do not use it beyond the voltage or current range.2. Do not work beyond the rated speed.
