Label:Yes

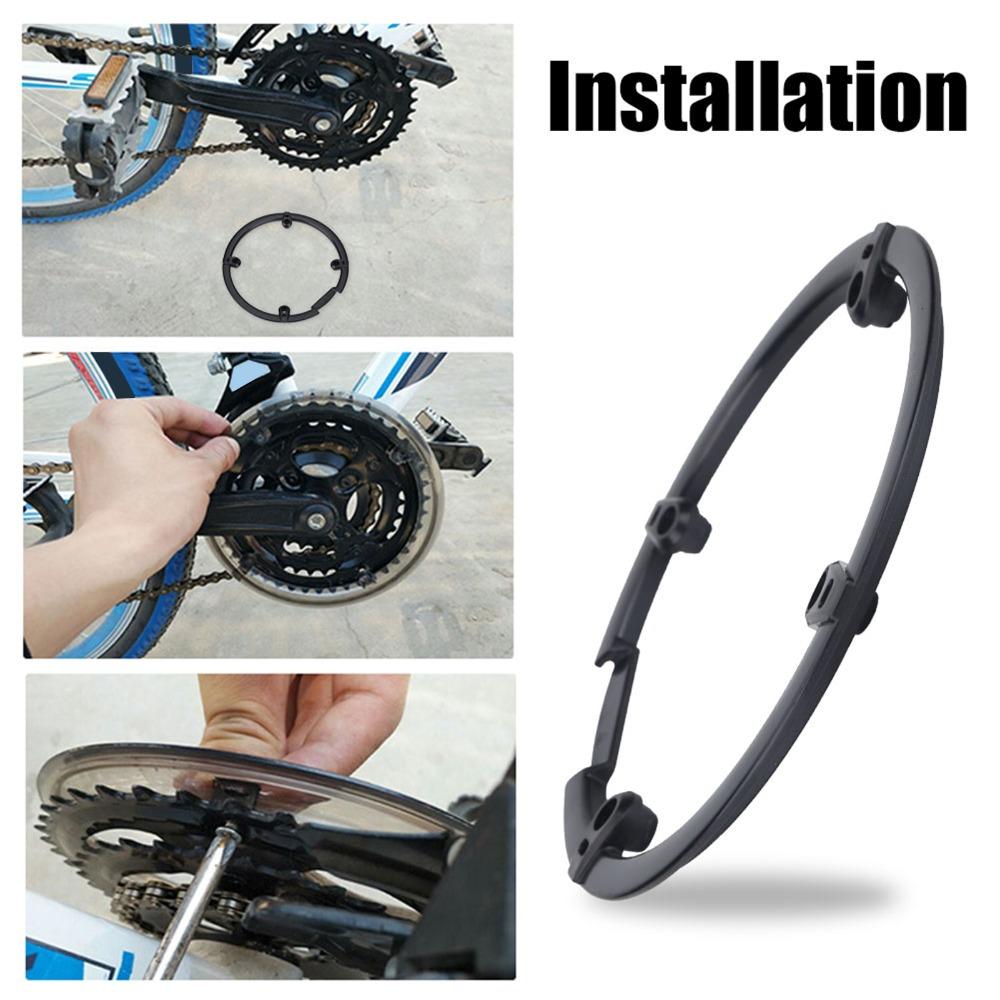

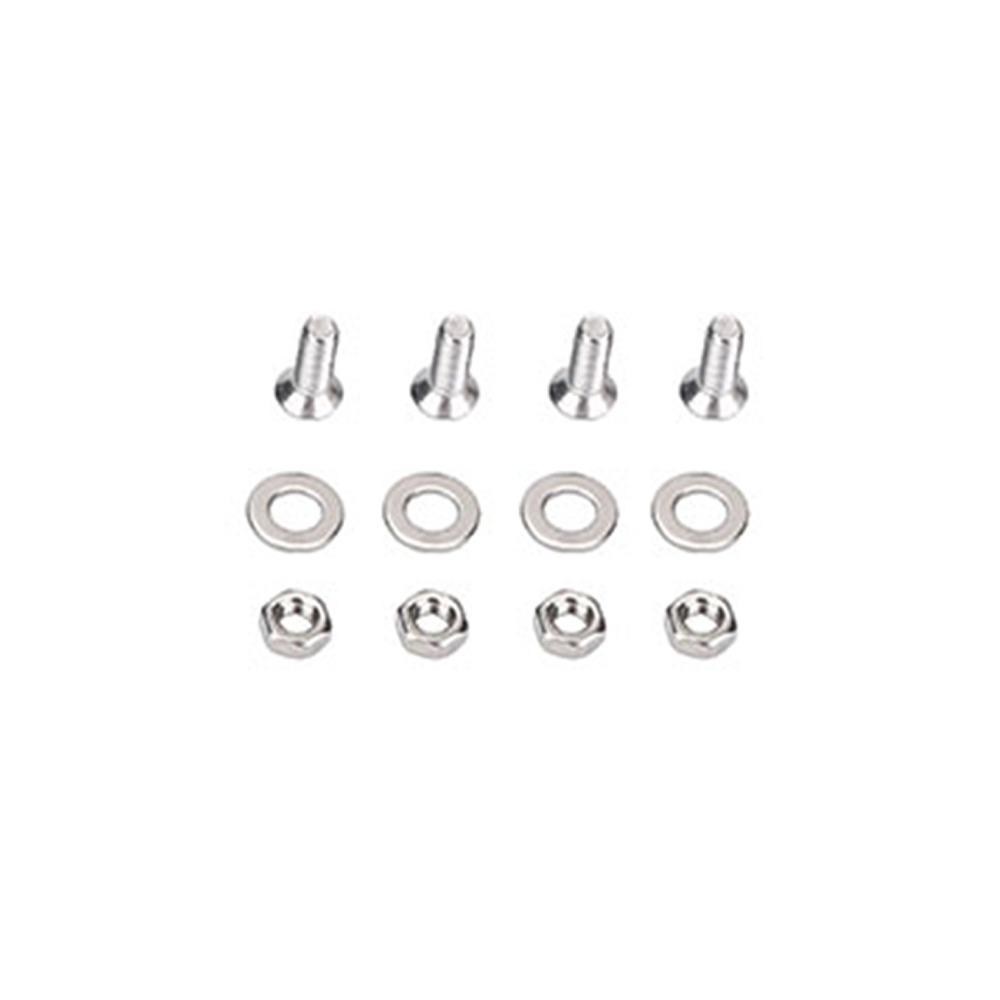

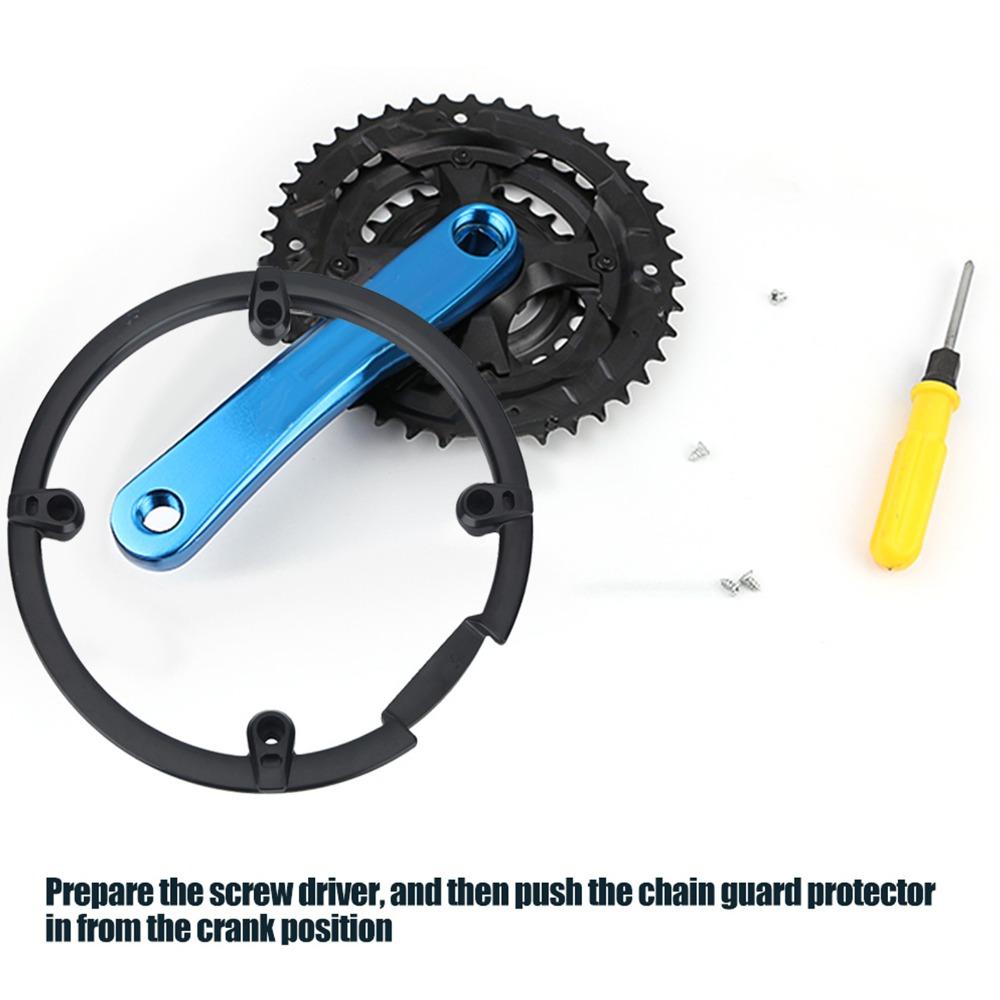

Mounting Parts Included: Package includes 1 crank ring cover, 4 screws, 4 nuts and 4 gaskets. The screw length is designed for this cover, so changing screw length may affect shifting setup. Installation should be done carefully with matching crank holes.
Plastic Cover with Low Weight: Made from black plastic, this crankset guard offers a light structure for regular cycling use. The simple round design matches many mountain bike and road bike styles while adding little extra weight to the drivetrain area.

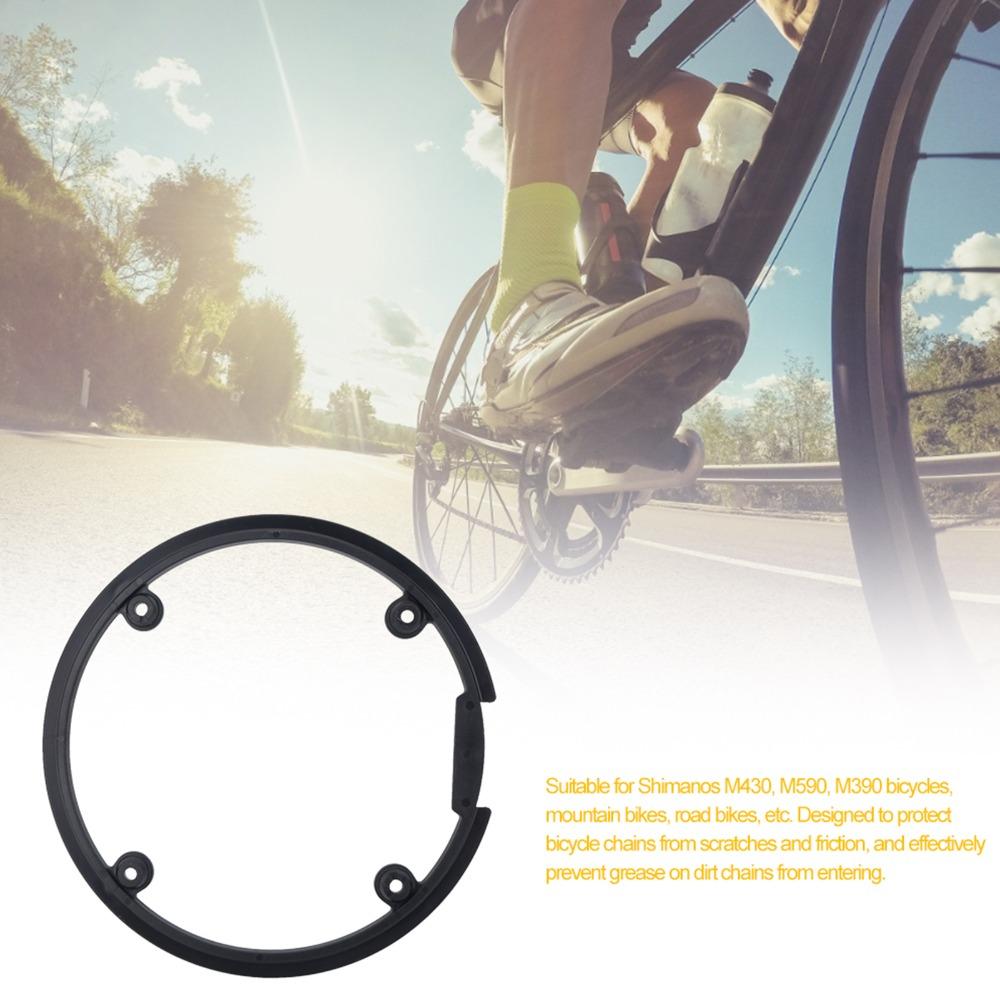

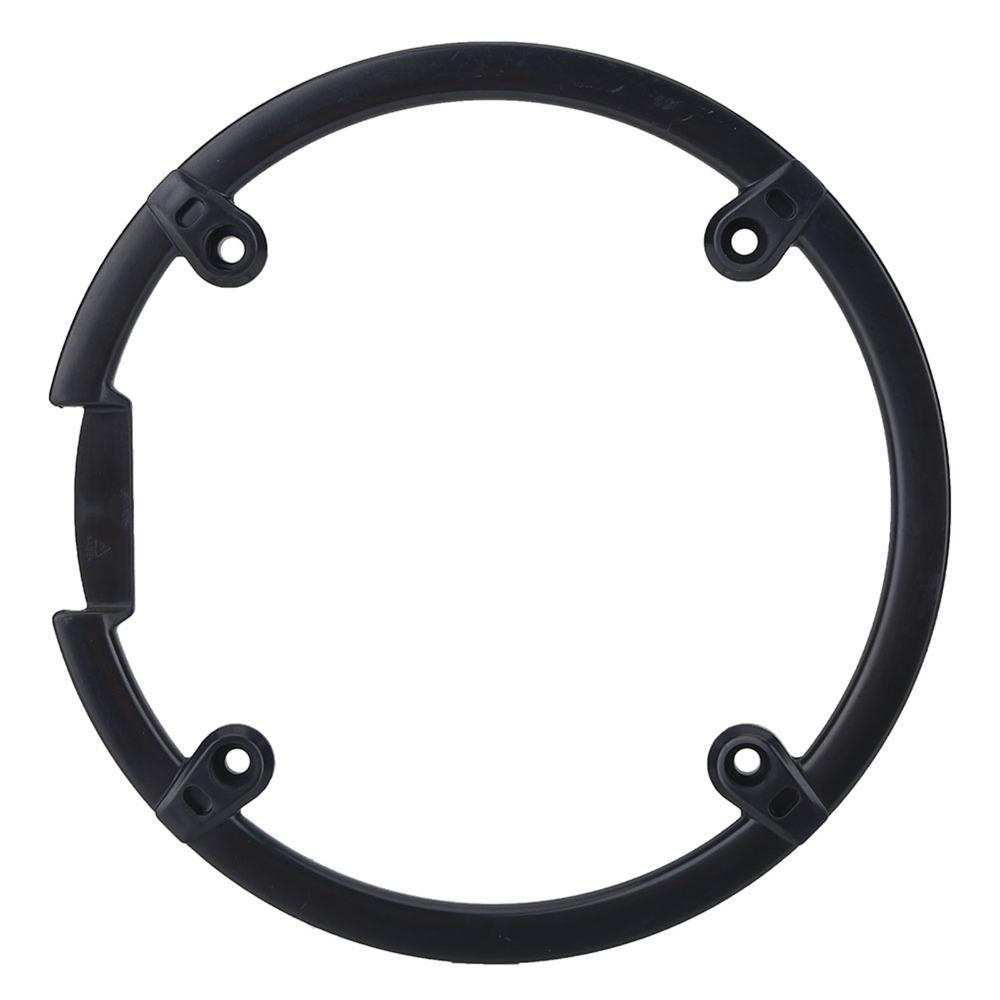

44T Chainring Guard: This black crank ring cover is designed for 44T chain wheels with matching 4 hole mounting positions. It is suitable for selected M430, M590 and M390 cranksets, helping add a practical outer cover for compatible bicycle chainring setups.
Check Hole Distance First: Diagonal pitch is about 15.5 cm / 6.1 in, adjacent pitch is about 11 cm / 4.3 in, and outer diameter is about 193 mm / 7.60 in. Please measure your crankset and chain wheel hole spacing before ordering to confirm proper fit.
Important Fit Notes: This product is only suitable for 430 M430, M590 and M390 guard disc use with chain wheels up to 44 teeth. Some chainrings may not have threads in the mounting holes and may need tapping. Some M590 cranksets do not have four screw holes, so please confirm before purchase.
Material: Plastic
Color: Black
Size:
Diagonal Pitch: Approx. 15.5cm/6.1inch
Adjacent Pitch: Approx. 11cm/4.3inch
Outer Diameter: 193mm/7.60 in
Suitable for :M430, M590, M390
Suitable for: 44T Chain Wheel (Hole distance must be matched)
Packing List:
1 x Crank Ring Protector
4 x Screws
4 x Nuts
4 x Gaskets
Notes:
1. Please make sure if the sizes of your crank set is applicable to this cover and make sure if your crank ring has 4 screw holes.
2. The length of the screw is just right, no need to change, any change will affect the speed change.
3. Please note that this product isonlysuitable for M430 and M590 and M390 guard discs, suitable for chain discs with a maximum of 44 teeth. When installing, it should be noted that when some chain rings leave the factory, there is no thread in the mounting hole, so you need to tapping it yourself.4. It should be noted that some 590 cranksets do not have four screw holes. This product cannot be installed with this type of crankset. Please confirm carefully before ordering.
