NK-L008 SDI-to-DP Video Converter with Loop-Through Output, Driver-Free, Supports SD/HD/3G-SDI Signals, 1080p HD BNC-to-DP Display Adapter, USB-Powered
Driver-Free Convenience for Broadcast Monitors: Setup your editing suite instantly with this sdi to displayport converter because it requires no software or drivers, making it a true plug-and-play adapter for professional reference monitors

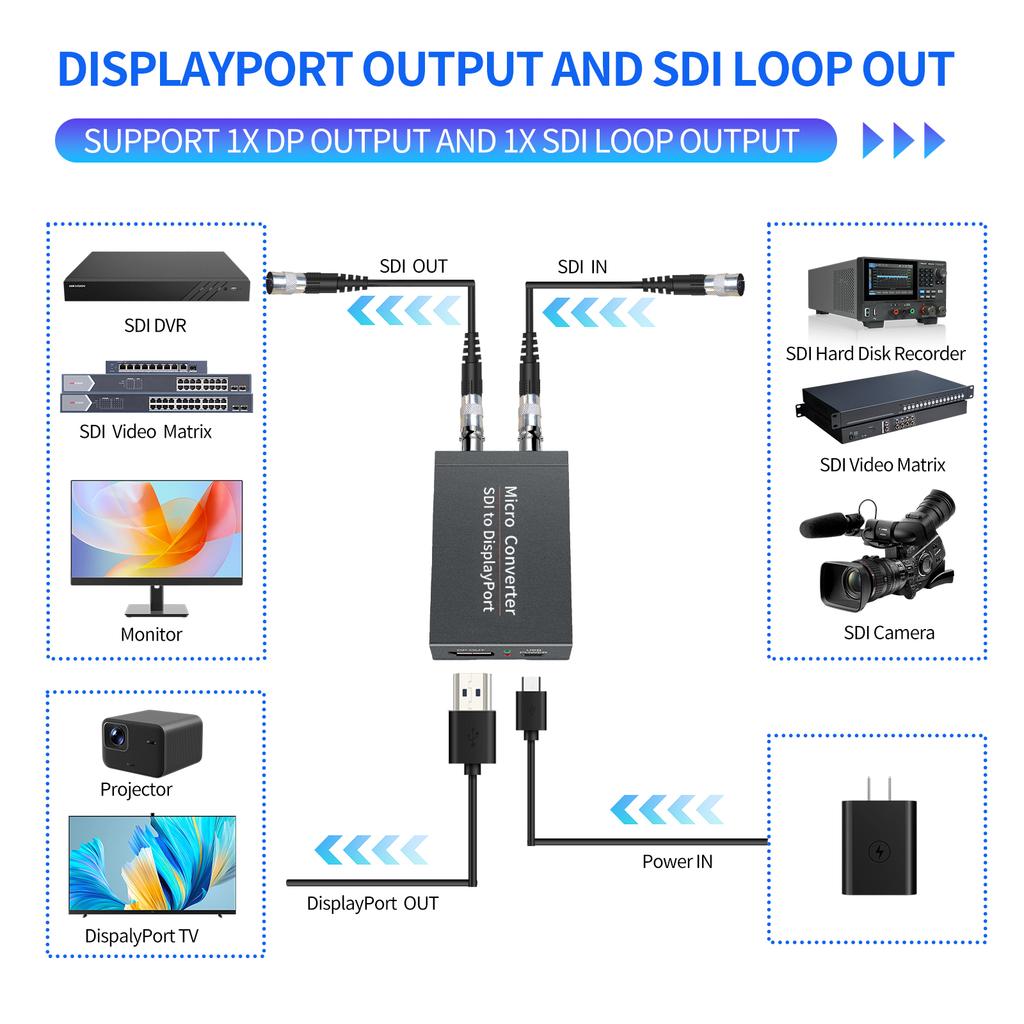

No More Extra Gear for Your Control Room: This video converter for live production features integrated sdi loop through that transmits the original signal to a secondary device, so you need no external splitter for a cleaner multi-monitor install
Effortless Power for Mobile Kits: Power this 3g sdi to dp unit from any standard USB port on a laptop or power bank, giving you a flexible, driver-free sdi adapter solution ideal for field production or mobile rack setups

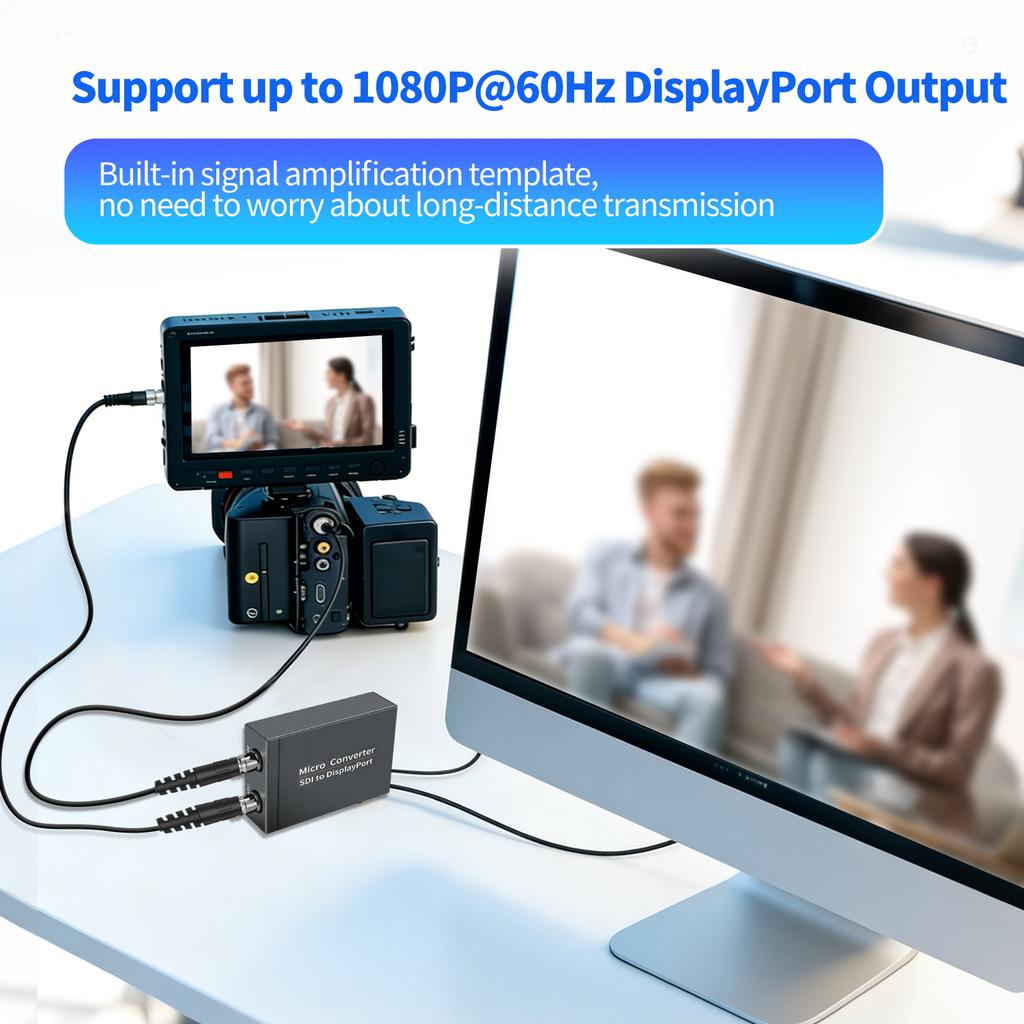

Sharp Clarity for Critical Editing Work: Connect your SDI broadcast camera via 75-ohm BNC to the converter and output pristine 1080p60 video to a DP monitor, delivering sharp images for an sdi to dp for editing monitor workflow
Stable Signal for Professional Studios: Housed in durable steel, this broadcast monitor converter supports SD, HD, and 3G-SDI signals (up to 2.97 Gb/s) for long-distance, stable transmission in a for control room setup or media studio
NK-L008 SDI-to-DP Video Converter with Loop-Through Output, Driver-Free, Supports SD/HD/3G-SDI Signals, 1080p HD BNC-to-DP Display Adapter, USB-Powered
Product Description:SDI to DisplayPort Converter with SDI Loop-ThroughSupports High-Bandwidth Multi-Standard SDI: This converter can process SD-SDI, HD-SDI, and 3G-SDI signals with data rates up to 2.97 Gb/s. It supports a variety of input resolutions, including 720p, 1080i, and 1080p, and is compatible with different refresh rates (24 Hz–60 Hz), ensuring compatibility with professional broadcast cameras and traditional SDI signal sources.SDI-to-DP + SDI Loop-Through Converter: Equipped with a DP output interface, it supports resolutions up to 1080p@60Hz. This device converts coaxial SDI signals into high-definition images, making it suitable for professional monitors, broadcast reference monitors, and desktop systems that require clear, sharp images for editing or monitoring.Integrated SDI loop-out port for signal distribution: Equipped with a dedicated SDI loop-out port, it transmits the original SDI signal to secondary devices (such as recorders, switchers, or monitors) without the need for an external splitter. This simplifies cabling in multi-monitor control rooms or live production environments.75Ω Coaxial Connectors and Stable Transmission: Utilizes industry-standard 75Ω BNC connectors to maintain signal integrity and minimize impedance mismatch. The converter supports long-distance SDI transmission (depending on cable quality), making it suitable for installation in server racks, media studios, or security monitoring centers.Flexible USB Power Supply: Powered via a standard USB DC 5V/1A port, it can be conveniently operated using a power bank, a laptop’s USB port, or a standard USB wall adapter. Its compact form factor allows for easy integration into both fixed desktop setups and mobile production kits.
Product Requirements:1. TVs, displays, monitors, etc., must support DP signal input.2. The SDI signal source device must support the following signal outputs: SD-SDI, HD-SDI, 3G-SDIInstallation and Connection Steps1. Use an SDI coaxial cable to connect the converter to the SDI signal source device.2. Use a DP cable to connect the converter to a TV, display, or monitor3. The converter will only begin operation once all connections are confirmed to be secure
Specifications:Material: Steel housingModel: NK-L008Power Supply: USB DC 5V/1ASupported SDI Signals: SD-SDI, HD-SDI, 3G-SDISDI Data Transfer Rates: 270 Mb/s, 1.485 Gb/s, 2.97 Gb/sImpedance Requirement: 75 ΩSupported SDI Input Resolutions: 720p @ 30Hz, @50Hz, @60Hz; 1080i @ 50Hz, @60Hz; 1080p @ 50Hz, @60Hz; 1080p @ 24Hz, @25Hz, @30HzSupported DP Output Resolutions: 720P/@50Hz, 720P/@60Hz, 1080i/@50Hz, 1080i/@60Hz, 1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60HzProduct Dimensions: 8.5 x 6.5 x 2.3 cmPackage Dimensions: 13 x 9.3 x 3.5 cmWeight: 182 g
Packing List:1 x Main Unit1 x Power Cable1 x Manual
