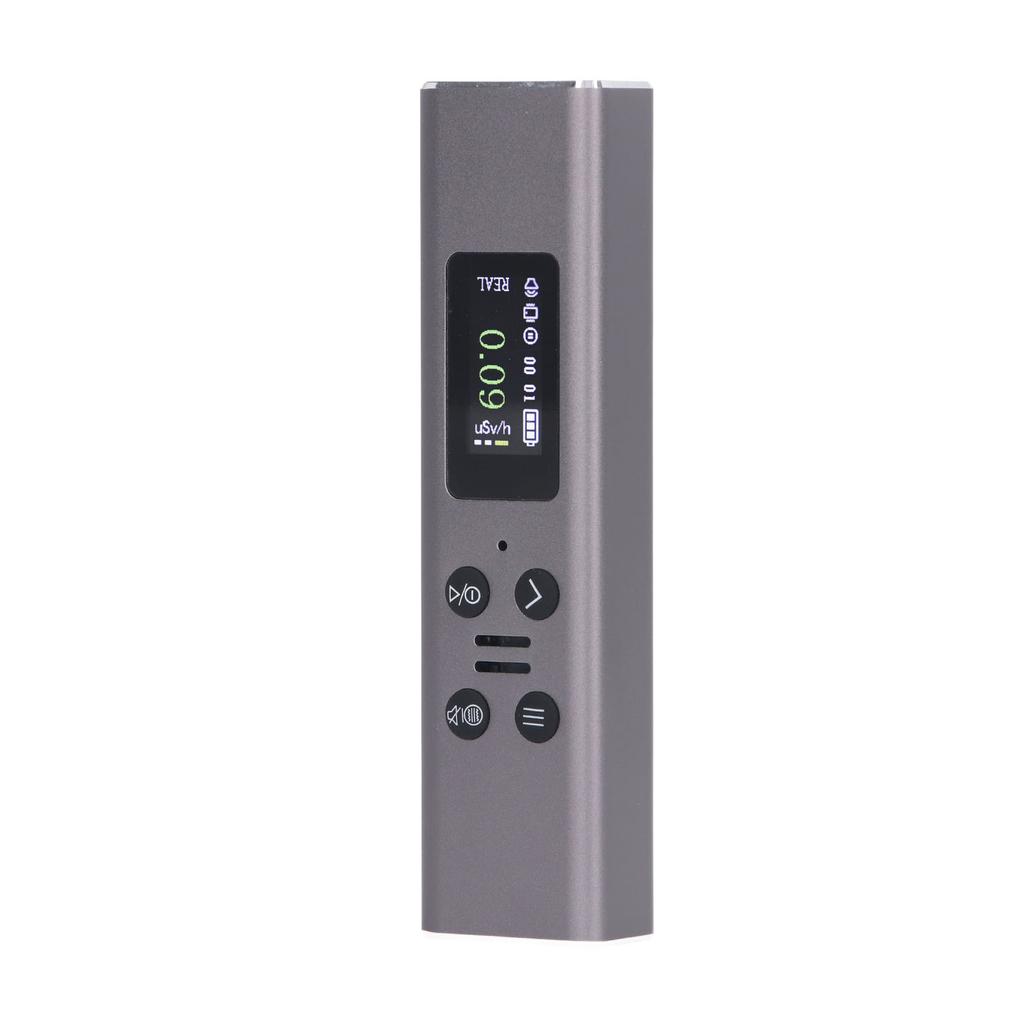

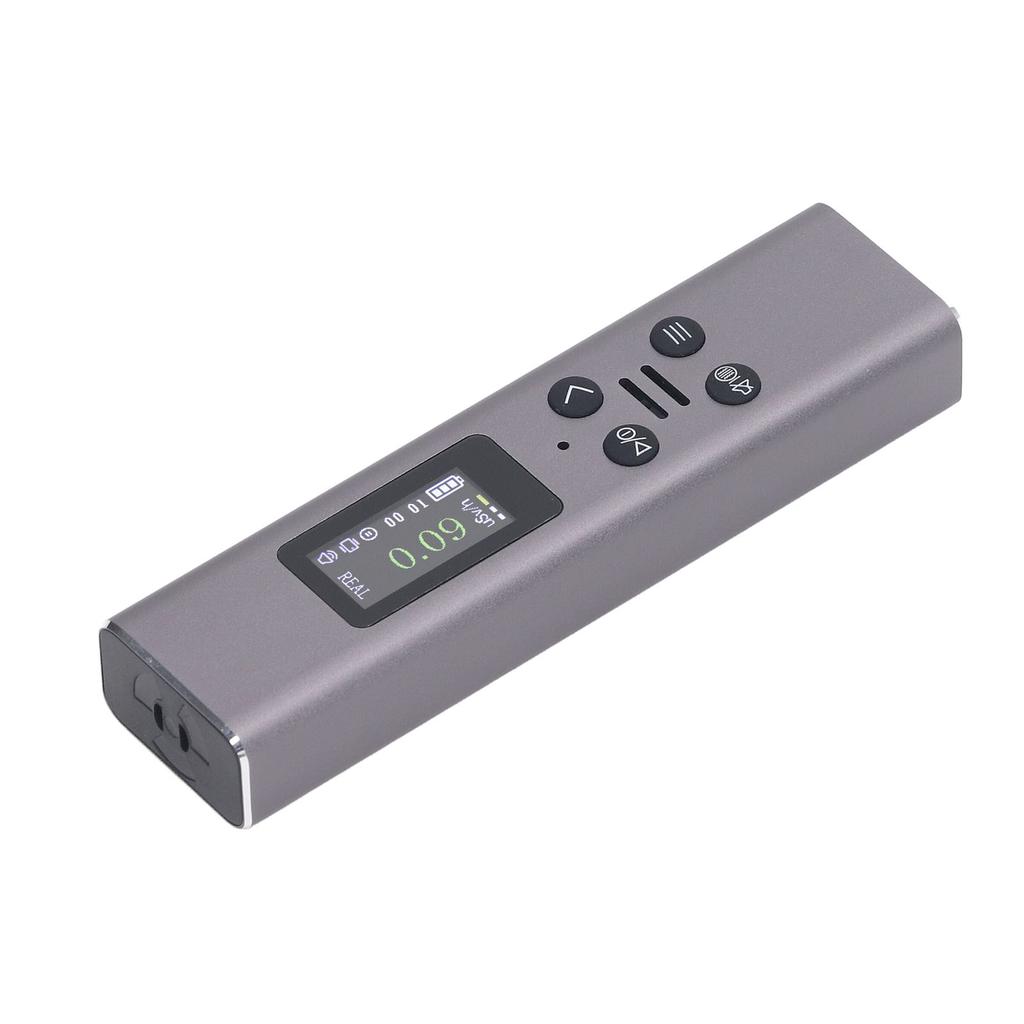

Feature:
1. MEASURING RANGE: The measurement range of the nuclear radiation detector is 00.08uSv h 9999uSv h, which can be measured β rays, Y rays, and X rays.
2. GEIGER COUNTER: The nuclear radiation monitor uses Geiger counter tube, which is sensitive to sensing and ensures the accuracy of measuring results.
3. CLEAR DISPLAY: Using a 0.96 inch TFT high definition screen to display instantaneous dose rate, cumulative dose, and average dose rate, with clear readings.
4. 3 ALARM REMINDER: This handheld nuclear radiometer has sound, flashing light, and vibration over limit alarm reminders, timely alarms to ensure security.
5. WIDE APPLICATION: This radiation dosimeter is suitable for household, hospital, nuclear power plant, laboratory, metallurgical industry and other scenes.

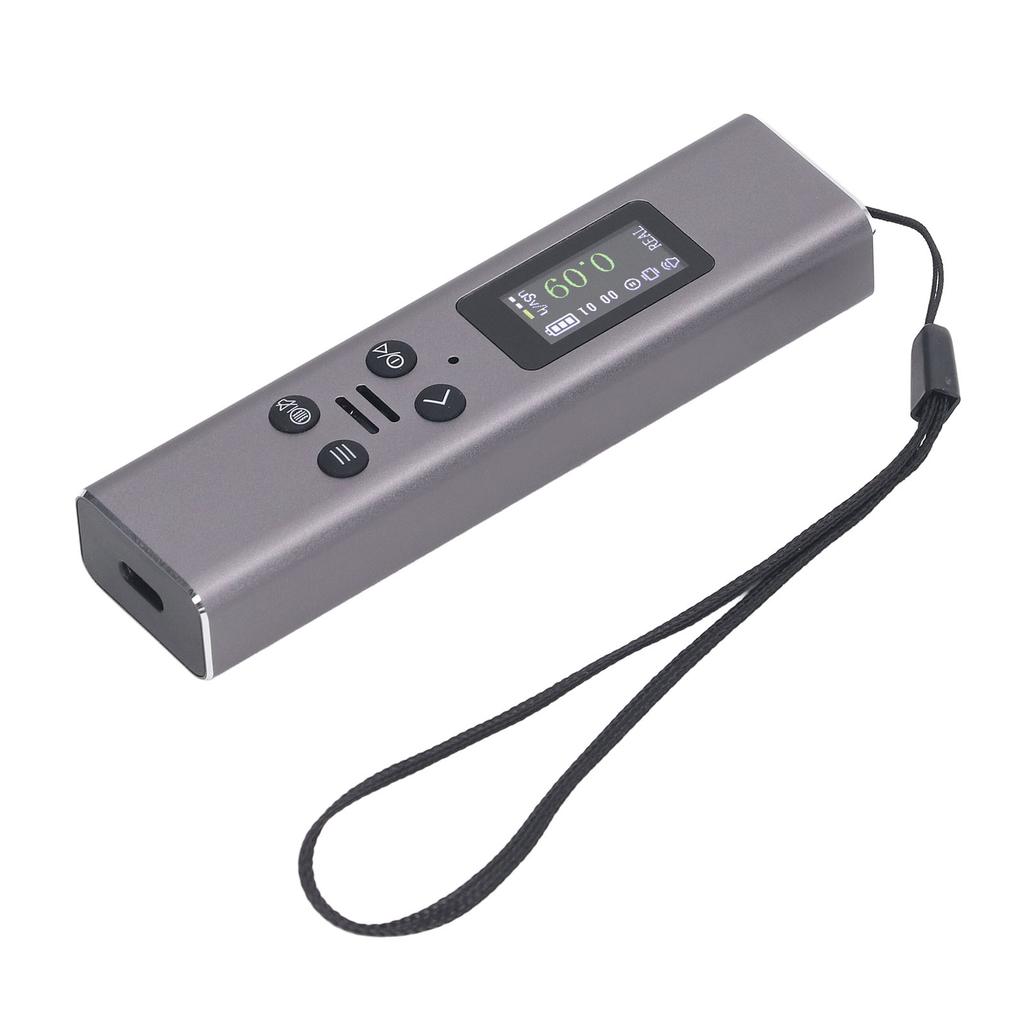

6. ALUMINUM ALLOY: The radiation dosimeter shell is made of aluminum alloy, with anodized finish, corrosion resistance, and lanyard design for easy carrying.
Specification:
Item Type: Nuclear Radiation Detector
Material: Aluminum Alloy
Detection Count: 48mm Geiger Counter Tube
Measuring Range: 00.08uSv h 9999uSv h
Working Environment: 10 50 celsius
Product Voltage: 5VDC
Display: 0.96 inch TFT HD LCD Screen
Humidity: less than 95percent RH No Condensation
Detection Ray Type: γ ray, x ray, β ray
Power Supply: 5V Lithium Battery (built in battery)
Battery Capacity: 400mAh
Range: 15 24 hours
Application: Home, hospitals, nuclear power plants, laboratories, processing enterprises, metallurgy, etc.Key Description:
1. Shutdown Pause Button: Long press for 2 seconds to shutdown or power on, short press during startup to pause real
time data, short press again to continue real time data. Short press this button on any interface other than the main interface to return to the main interface function (pause or real
time icon reminder)
2. Page Flipping Button: Short press to cycle through three functional interfaces, real time > maximum value+average value + total amount > bar chart (with interface navigation bar). Switching to the other two interfaces is a long term pause, unless switching back or short press 1 key to return to the main interface
3. Mute Vibrate Button Rest Screen: Short Press to Cycle Between Reminder Modes: Only sound reminder, only vibration reminder, sound and vibration reminder, turn off reminder. This button only works in interface 1 and interface 2, and has no function in other interfaces (as other pages do not display sound and vibration reminder icons, other interfaces do not set the function of this button). Long press to rest the screen, Short press any button to light up during screen rest period
4. Set Alarm Value: Short press to enter the alarm value setting. Short press once to set the maximum value alarm, and short press again to set the total amount alarm. Long press in these two interfaces to enter the settings, the alarm value will flash when setting, and short press the page turning button to select the alarm value. Short press again to save and exit. In the two interfaces of 4, if there is no operation for 5 seconds or if you press the 1 button briefly, you will save the current settings and exit the main interface.
Software Interaction Logic:
1. Startup interface hello, shutdown interface good bye
2. The alarm beeps and beeps for 1 second (triggered every time the alarm value is exceeded from low to high)
3. Vibration reminder, with a reminder time of 0.5 seconds (triggered every time the alarm value is exceeded from low to high)
4. The LED light of the host flashes, below the alarm value, it flashes green, once every 1 second, above the alarm value, it flashes red, once every 0.5 seconds
5. When the real time data on the main interface is lower than the alarm value, a green value will be displayed, and when it exceeds the alarm value, a red value will be displayed
.
Package List:
1 x Nuclear Radiation Detector1 x User Manual1 x Charging Cable
