Feature:
1. CORROSION RESISTANT MATERIAL: Stainless steel one time shaping body, no rust, corrosion resistant. Using permanent magnet motor copper, magnetic steel copper adds 1cm forward and reverse protection, connect reverse without burning the machine
2. INCREASE EFFICIENCY: Copper wire motor is durable with long service life, the overall shape is beautiful and simple, not easy to rust, good quality screws increase flow and efficiency
3. EXCELLENT PERFORMANCE: Good quality bearings possess low sound, no noise pollution, pagoda shaped water outlet is convenient for pipeline connection. Come with good insulation performance, surface corrosion resistant, wear resistant, and high mechanical hardness
4. MECHANICAL SEAL: Stainless steel spring has high strength, good sealing performance, low resistance, and sand control
5. WIDE RANGE OF USES: DC deep well pump adopts external hose or pipeline connection thread, stainless steel body, easy to carry. Ideal for homes, farms, irrigation gardens, fields, pond, pools, boats and aquaculture, grassland watering, wash shops, tanks, hot tubs, low lying flood areas and mining drainage, etc.
Specification:
Item Type: DC Deep Well Pump
Model: 2SYDC24V/S6-20-220
Rated Power: 220W
Maximum Flow: 6m³/h
Maximum Lift: Approx. 20meter / 65.6ft
Power Supply Voltage: DC24V
Outlet Diameter: Approx. 25mm / 0.98in
Motor Speed: 5000r/min
Material: Stainless steel, copper
Support use solar panels and batteries as power source to drive the pump
How to Use:
Fully immerse the pump in water when using1. Check if the power supply voltage matches the pump2. Check whether the red cable wire is connected to the positive (+), and the other wire should be connected to the negative (‑)3) Before using the pump, please put the pump in the water first, then power on4) After using or not using the pump, the battery should not be immersed in water for a long time. After use, please keep the pump away from water and dry in a ventilated place

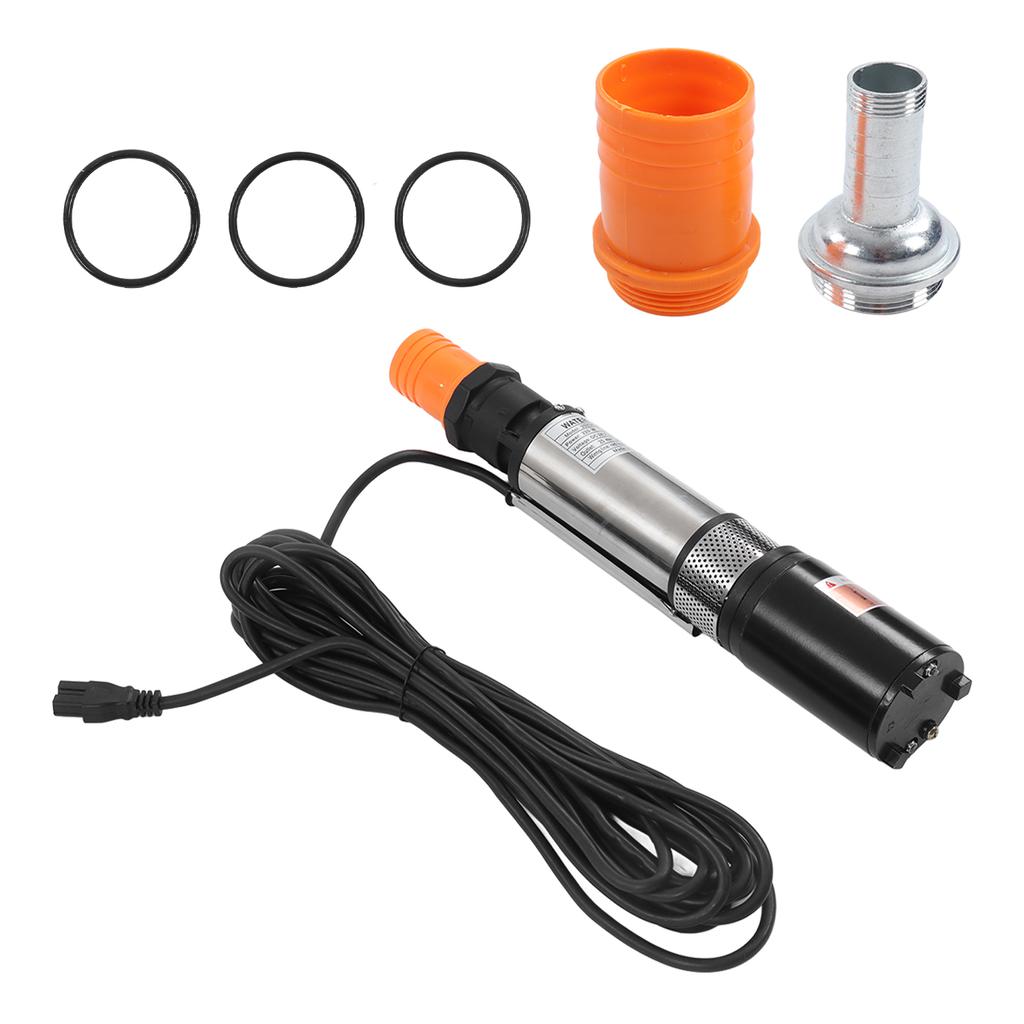

Package List:
1 x DC Deep Well Pump

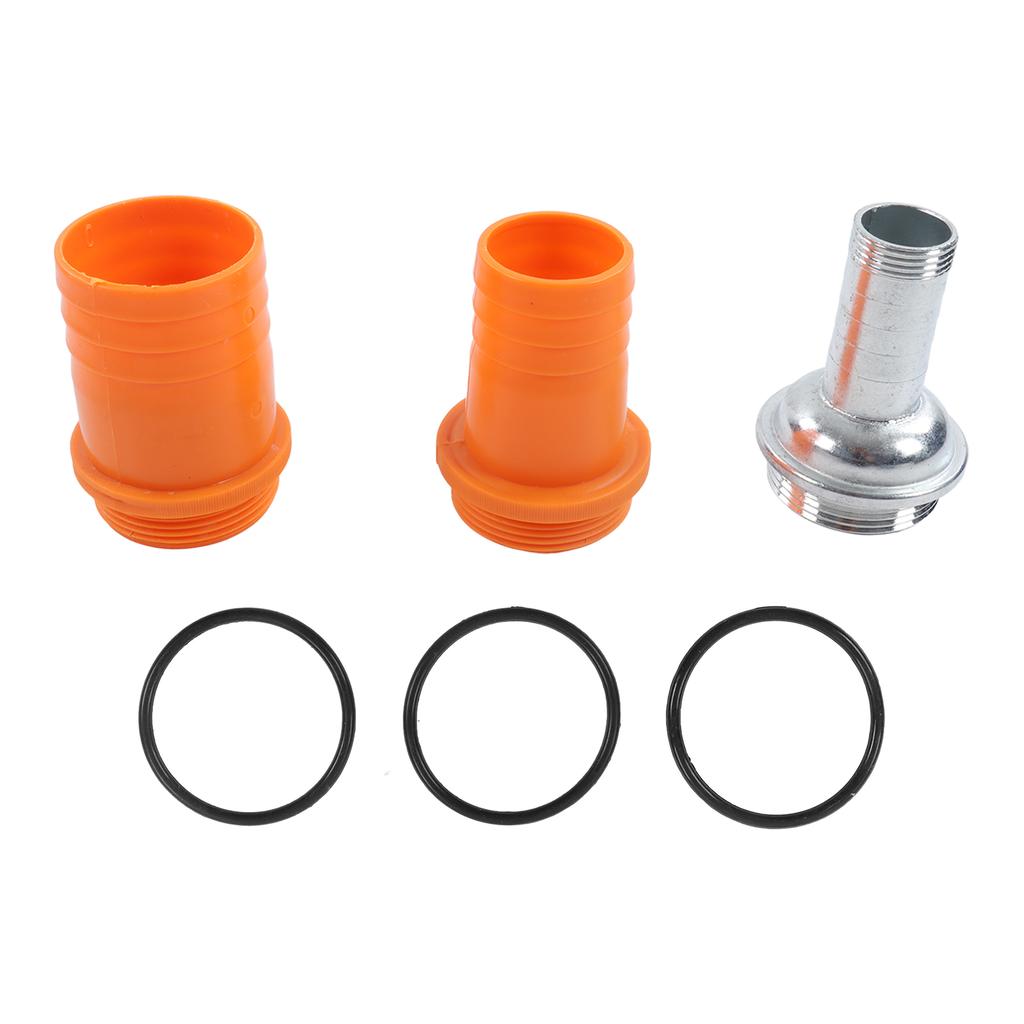

3 x Pipe Joint
3 x Rubber Washer
1 x User Manual
Note:
1. Prohibition of Idling: The idling of the pump motor should not exceed 1 motor, otherwise the oil seal may be damaged.
2. Do not pull the cable when putting in or pulling out the pump in water.
3. If there are debris such as sediment in the water source, please put the pump in a bamboo basket or other pollution proof equipment to prevent clogging.
4. The lift is too low, please check whether the connecting line is too long or smaller than the pump cable; open the bottom mesh to check whether the impeller is blocked; or the power is insufficient.
5. Prohibit the use of household power 220V.
