Feature:
1. Multi Function: The meter can measure various parameters such as voltage, current, power, charge and discharge capacity, watt hour, time, etc., can automatically identify the current direction, and monitor the battery capacity in real time
2. Multiple Protections: The monitor can set parameters to realize overvoltage, undervoltage, overcurrent, overpower, overtemperature and time limited protection, etc.
3. Support Mobile Phone Control: The measurement module can be connected to the mobile APP through wireless communication, use the mobile phone to view data and set parameters, upgrade the firmware of the measurement module, and support data export
4. TFT Color LCD Display: The monitor is equipped with 2.4in TFT color LCD, displays information is comprehensive and user friendly, the remaining battery capacity is highlighted graphically, which is more intuitive
5. Wide Compatibility: The monitor is compatible with various types of batteries, such as lithium iron phosphate battery, lithium ion battery, nickel metal battery
6. Application: This battery monitor is widely used in battery monitoring of RV, car, electric motorcycle, boat, etc.
Specification:
Item Type: Battery Monitor
Material: ABS
Model: KG110F
Voltage Measurement Range (External Power Supply): 0 120V
Voltage Measurement Range (Self Powered): 10 120V
Voltage Resolution: 0.01V
Current Measurement Range: 0 100A
Current Resolution: 0.01A
Temperature Measurement Range: 20 celsius to 120 celsius
AH Measurement Range: 0 9999.99AH
BT Communication Distance: 10m
Voltage Accuracy: + 2percent +3 digits
Current Accuracy: + 5percent +10 digits.

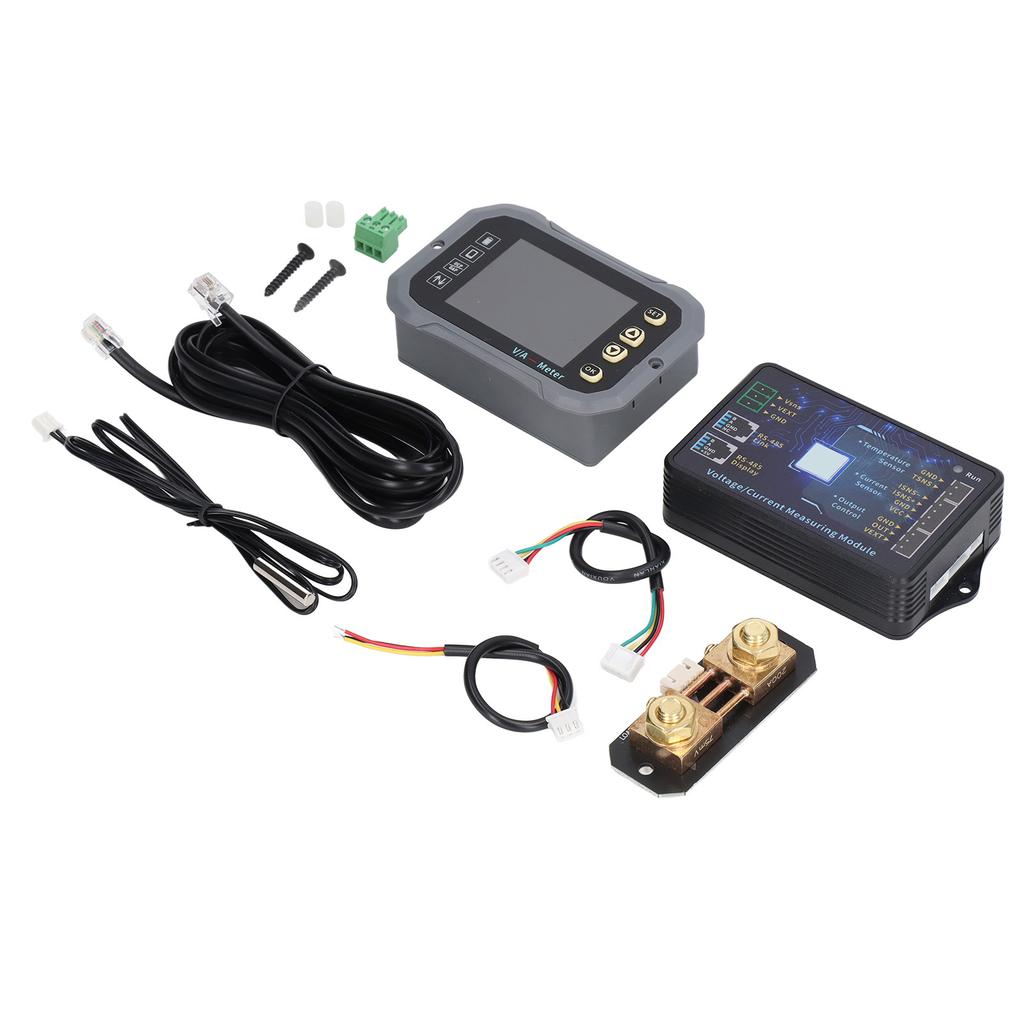

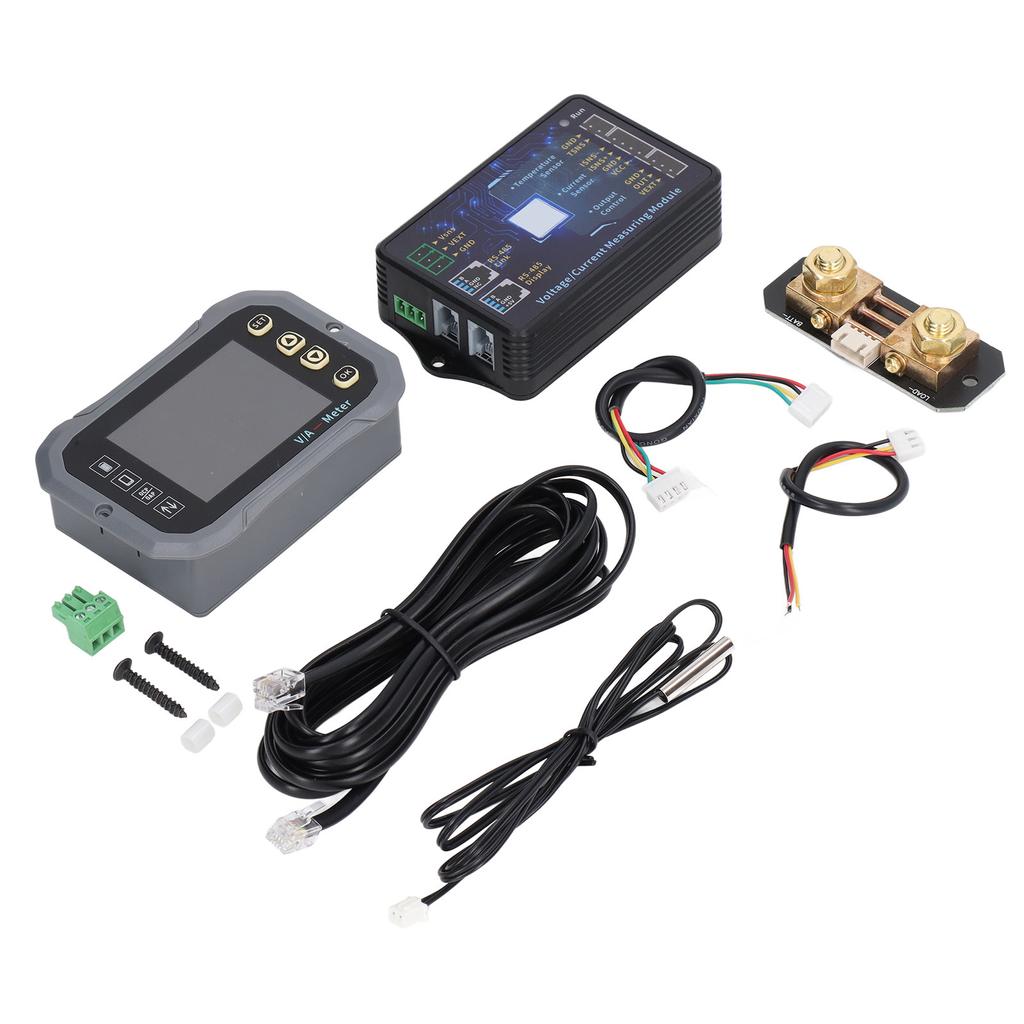

Package List:
1 x
Measurement Module1 x Color Screen Monitor1 x Sampler3 x Data Cable1 x Temperature Sensor1 x Terminal connector2 x Screw2 x White Accessories1 x Manual
