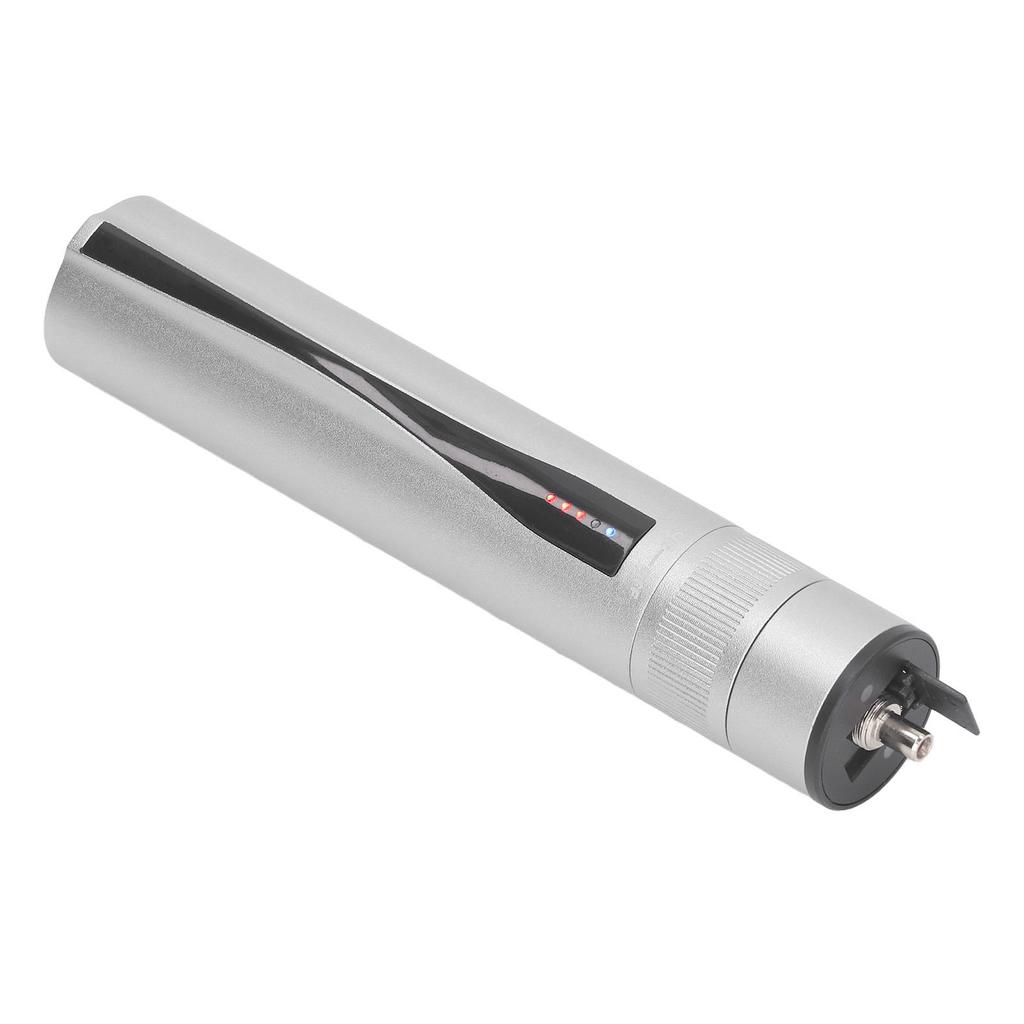

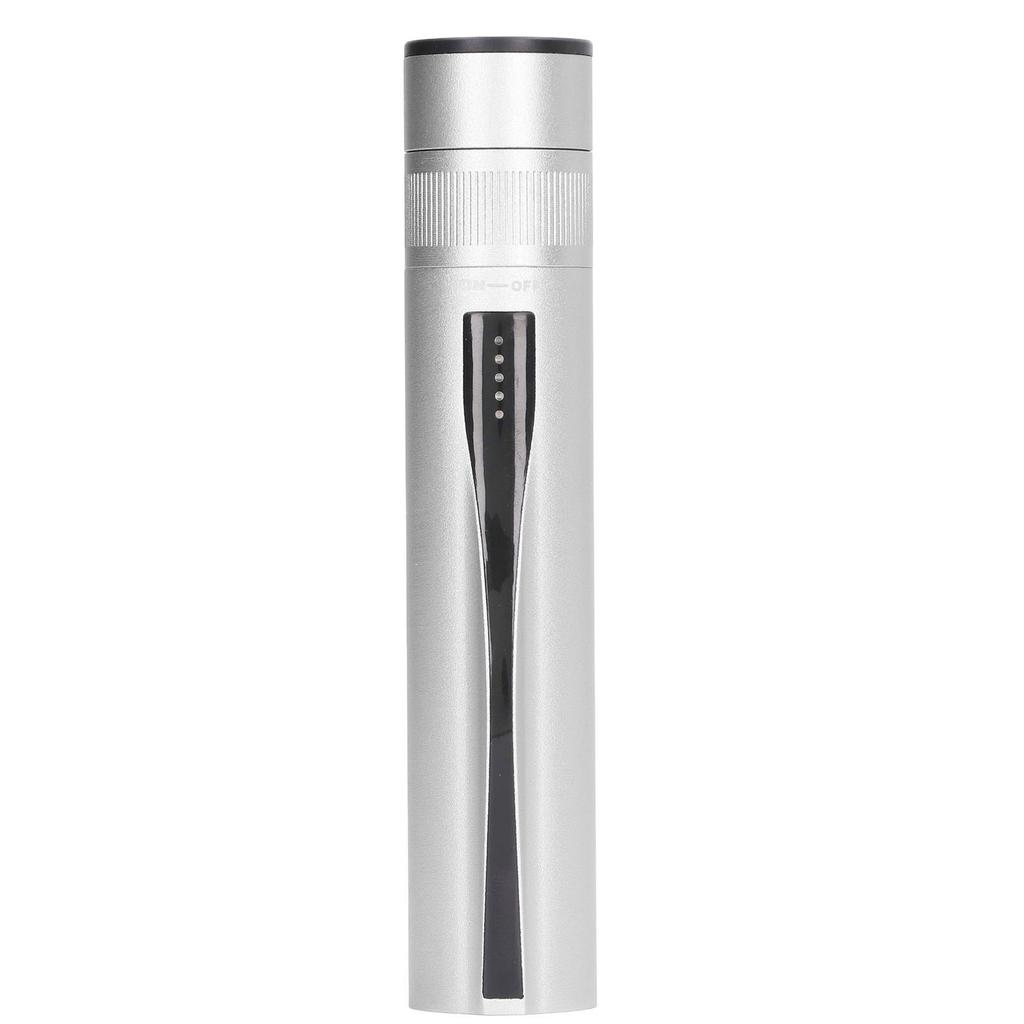

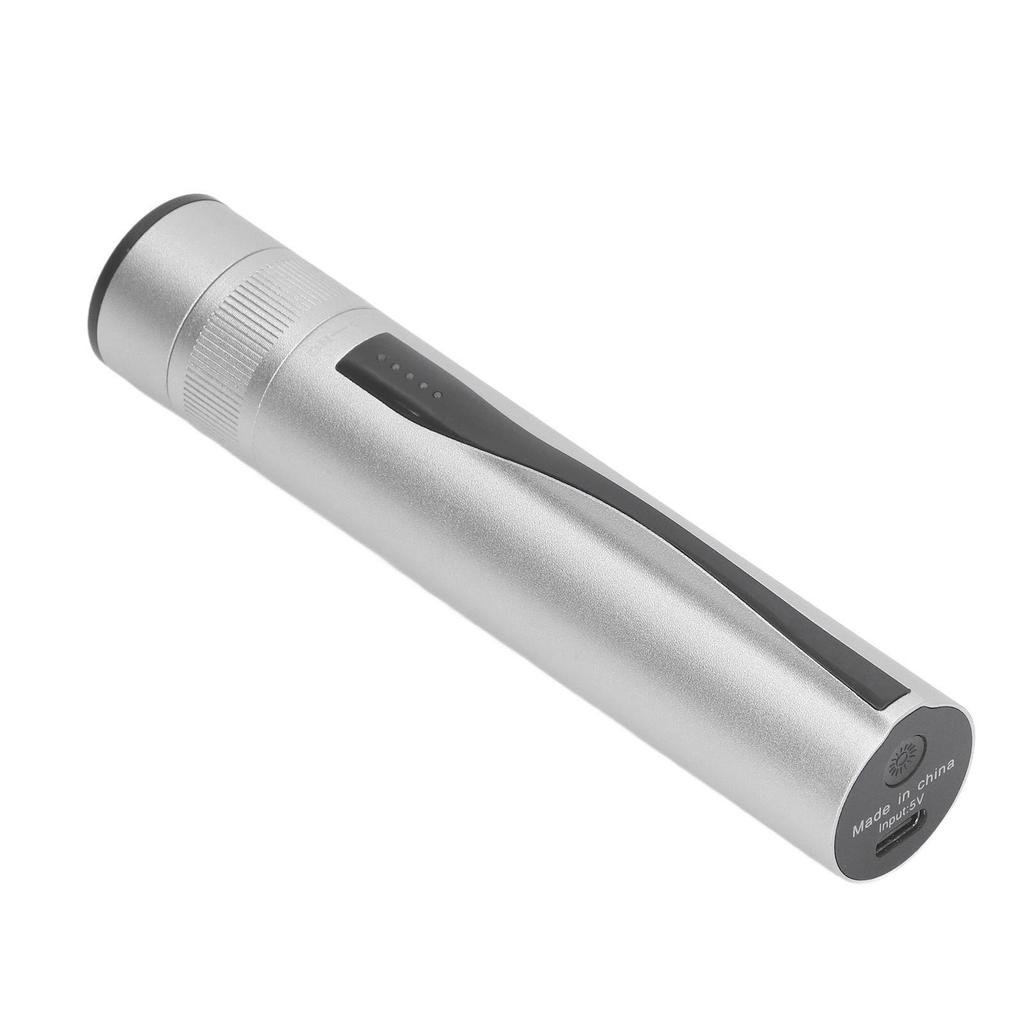

Visual Fault Locator Kit 5KM Fiber Optic Cable Source Tester with Lighting Function for Network Test

Feature: 1. FLEXIBLE LIFTING: Visual fault locator adopt ergonomic design and use rotary automatic lifting and switching function 2. POWER SUPPLY: Visual fault locator support a variety of power supply modes for charging banks, computers, adapters, and lithium batteries 3. WITH LIGHT: Fiber optic cable visual fault locator support lighting function, convenient for field, equipment room, night and other dark environment line inspection construction 4. APPLICABLE SCENARIO: Visual fault locator can realize the optical fiber fault detection function, which is an indispensable tool in optical fiber engineering construction, optical fiber network maintenance, optical fiber device production and research 5. COMPACT AND PORTABLE: Fiber optic visual fault locator has compact size, easy to put in the pocket, does not take up space

Specification: Item Type: Visual Fault Locator Output Distance: 5KM Working Current: ≤40mA Endurance: ≥40H Charging Time: Output Wavelength: 650nm Interface Type: Approx. 2.5mm / 0.1in universal adapter Power Supply Type: 1 x Lithium battery 1800mAh Charging Current: 600mA Charging Voltage: 5V Working Temperature: -20℃~+60℃(no condensation) Storage Temperature: -40℃~+85℃

How to Use: Key Description: 1. Start or Shut Down: Turn the rotation button CW and turn on, turn the rotation button CCW to shut down.2. Lighting Function: (B5) short press the light button, you can turn on or off the LED light.3. Status Switch: (B5) 650nm state, long press the light button for 2 seconds, turn on or turn off 650nm flashing function; When the 650nm is turned off, the operating state of the 650nm when turned off is automatically saved(steady on or blinking).4. Reset Function: Long press the light key for 6 seconds, the machine automatically restart and restore factory settings.

Package List: 1 x Visual Fault Locator 1 x USB Cable 1 x Portable Rope 1 x Ceramic Tube
