Feature:
1. Unit symbol display, it can obtain data more conveniently and record test results.
2. Easy to operate, just follow the instructions on the manual, you can easily get the test results.
3. Anti‑magnetic design, strong anti‑interference ability, can ensure high accuracy of test results.
4. Full protection function, anti‑high voltage ignition circuit design, can ensure the safety of the measurement process.
5. Small size, lightweight and portable, it can be easily held in various places for testing.
Specification:

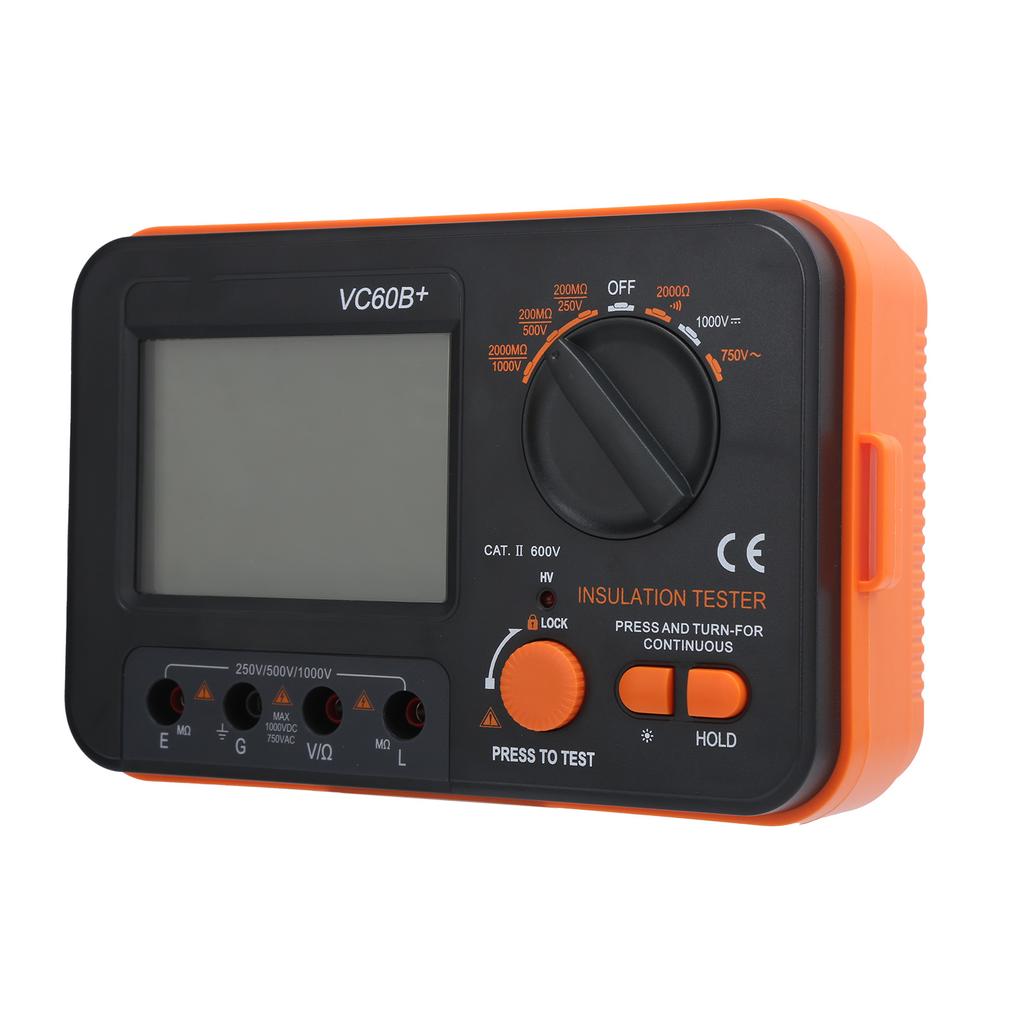

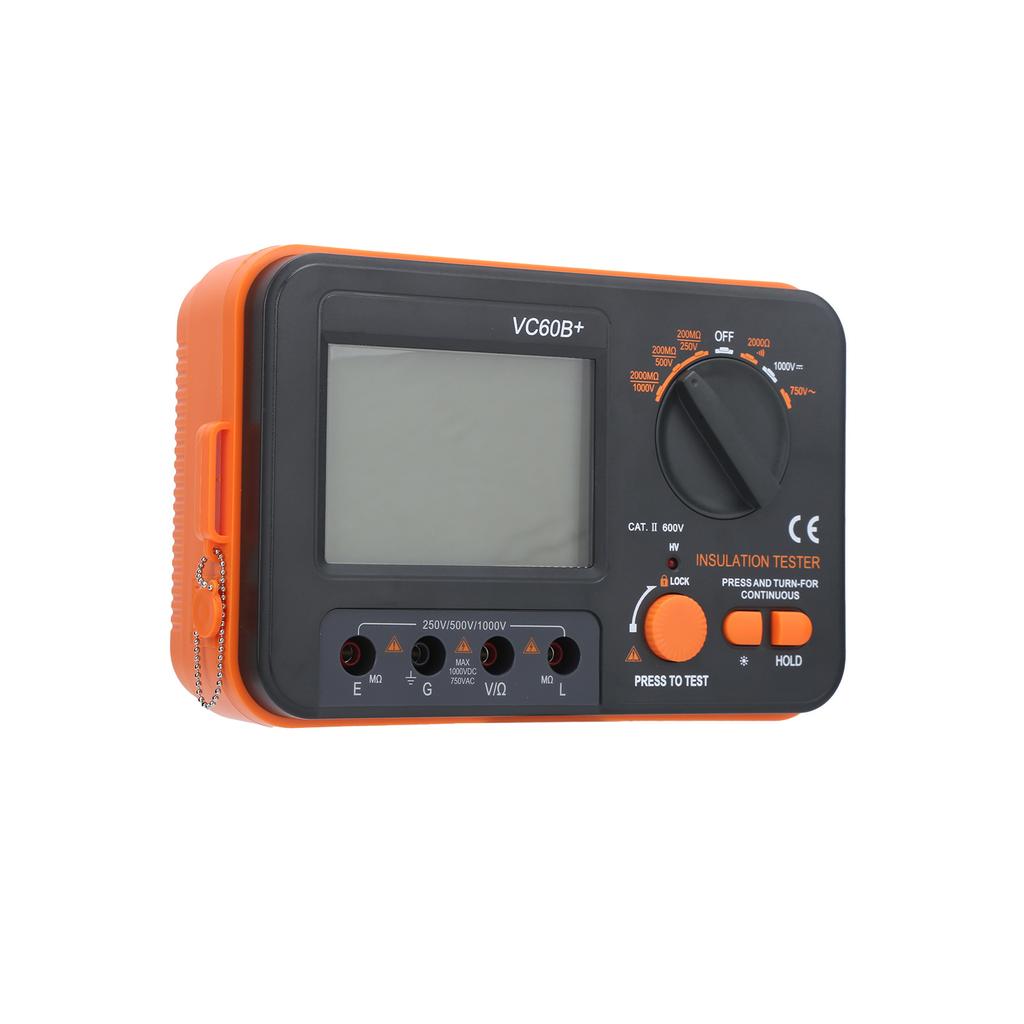

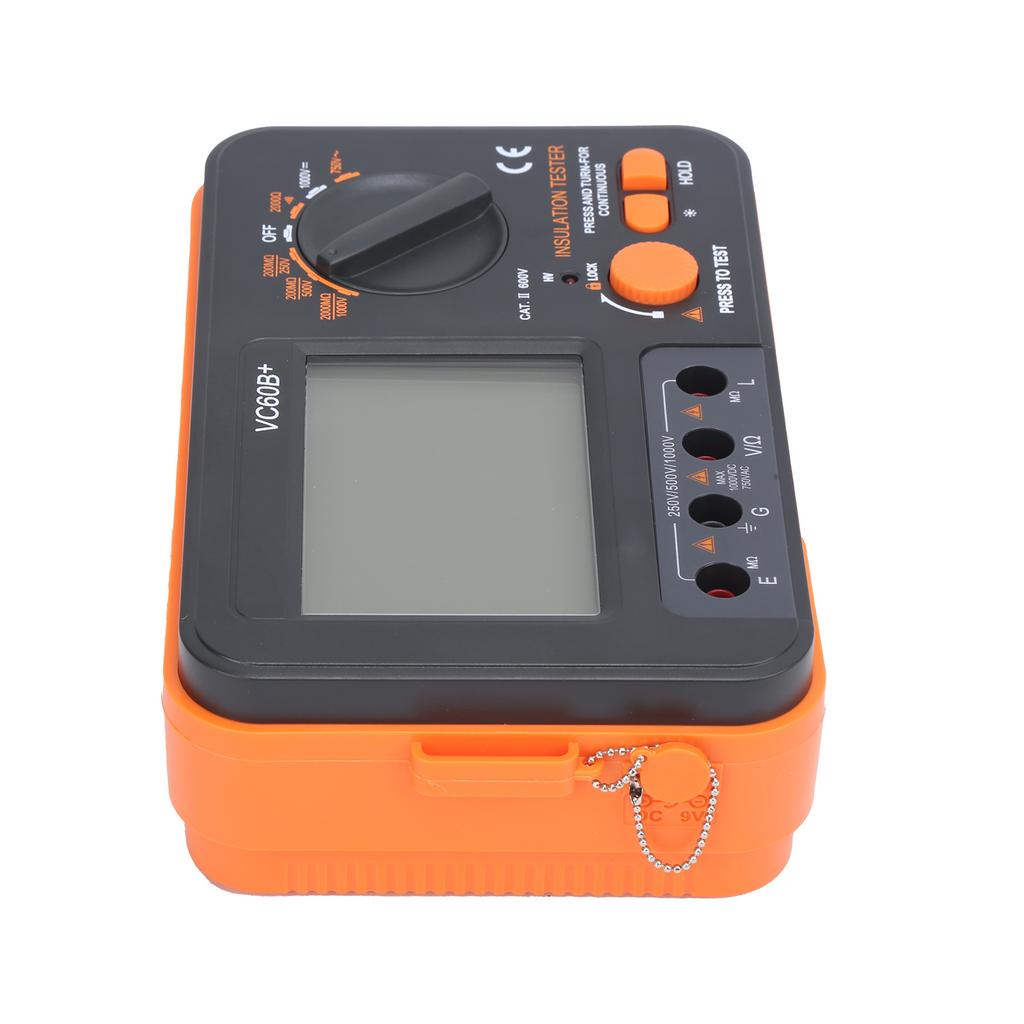

Item Type: Resistance Tester
Model: VC60B+
Material: ABS
Power Supply: 6xAA 1.5V Battery / External DC 9V Adapter Power Supply (Battery Not Included)
Purpose: It is suitable for resistance test.
Range Accuracy
Testing Voltage 250V 500V 1000V
200MΩ ±(4.0%+2) ±(4.0%+2)
2GΩ ±(4.0%+2)
2kΩ ±(0.8%+6)
DC 1000V ±(0.5%+6)
AC 750V ±(1.0%+6)
Special Function VC60B+
On-Off Alarm Less Than 50Ω±10Ω
Low Voltage Display About Less Than 7.5V
Data Retention √
Backlit Display About 10 Seconds
Functional Protection √
Input Resistance 10MΩ
Sampling Rate 3 Times/Sec
AC Frequency Response 50-200Hz
Operation Method Manual Range
Maximum Display 1999
LCD Size 75×52mm
Power Supply 6 1.5V "AA" Batteries/External DC 9V Adapter Power Supply
Power Consumption Quiescent Current about 3mA
How to Use:
1. Press the round test button, turn it to the right to lock it for continuous testing, and turn it to the left to release the continuous test.2. When the round test button is pressed, the high‑voltage red warning light is on, the high‑voltage display symbol appears on the screen, and the buzzer emits a "di‑di" sound.3. When the measured insulation resistance is less than 5% of the range or short circuit, the buzzer will emit a long sound to warn.
Package List:
1 x Resistance Tester (Battery Not Included)
2 x Test Lead
2 x Clip
1 x Strap
1 x Manual
Note:
When using the resistance tester, do not touch the metal part of the test lead with your hands to ensure safety.
