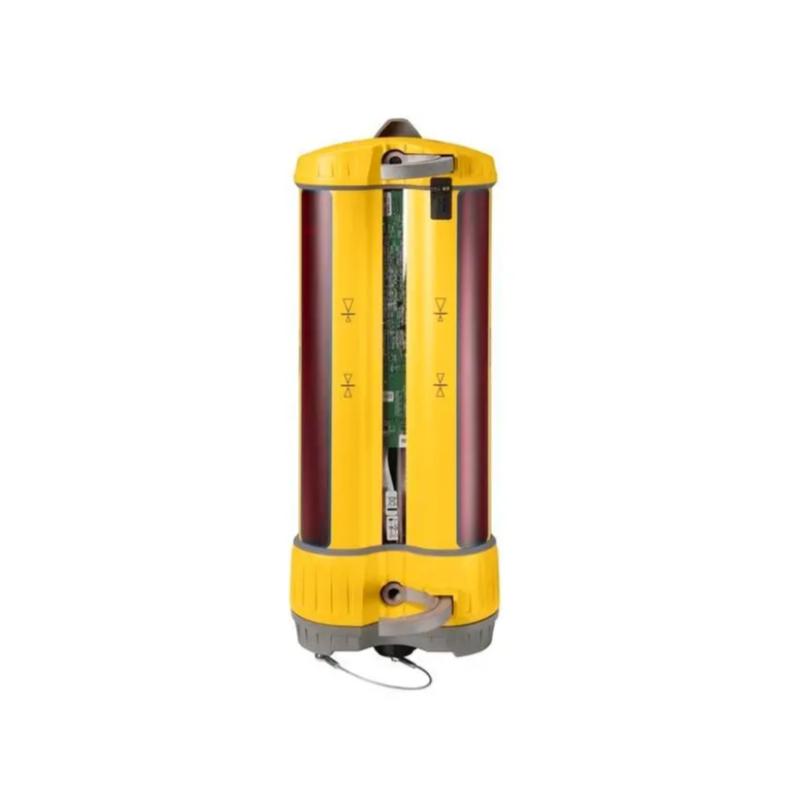

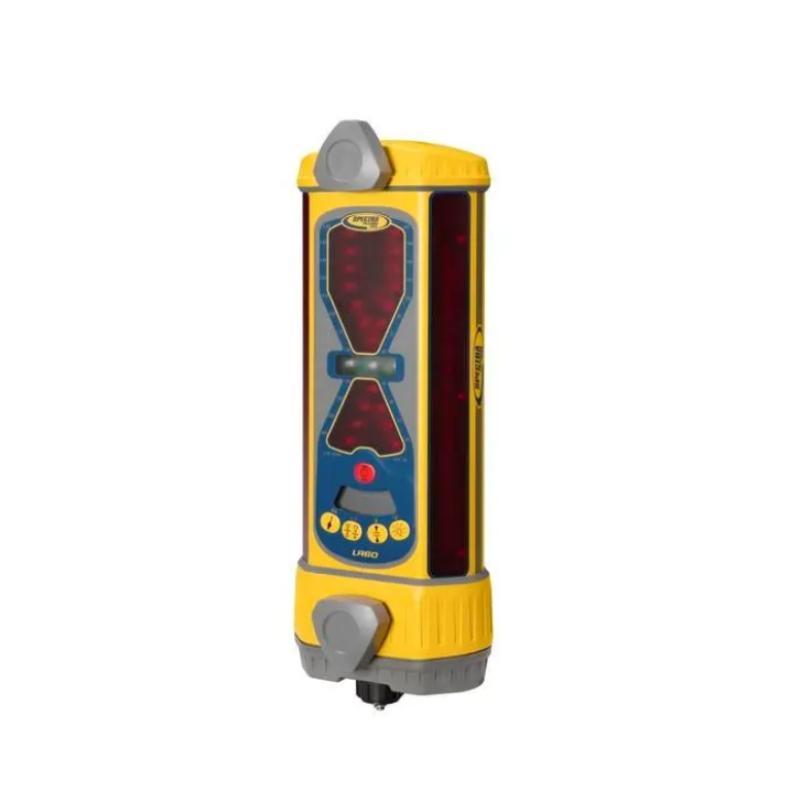

Spectra Precision LR60 Machine Detector.
The Spectra Precision LR60 Machine Detector is an advanced machine sensor designed for mounting on construction machinery (e.g., excavators, loaders, graders, bulldozers, and mini-excavators) to automatically or visually monitor working height and plumb.
It is designed to allow the operator to constantly and precisely control the level or depth of an excavation without having to leave the cab or engage an additional worker with a staff. It is equipped with a 360° sensor and bright, easy-to-read LEDs showing the position of the laser beam.
IP67 protection class (dust-proof and resistant to immersion in water). 2-year warranty.
360° reception range: Picks up the beam from any laser level rotating around the machine.
Built-in Plumb Indicator: Allows accurate level checking on the excavator, even when the arm is extended or retracted up to 360°.
2 reference point modes (On-grade):
Center On-grade: Equal range of information above and below the zero point (for dozers and scrapers).
Up to 8 indication channels: Offers precise height information along with Directional indicators when you step outside the beam.
4 selected accuracy levels tailored to the work phase (from roughing to finishing).
Easy-to-read LED display: Bright, multi-color LEDs are clearly visible from the operator's cab, even in direct sunlight.
Durable construction: The cast aluminum and polycarbonate housing is resistant to shocks, drops, and harsh weather conditions (IP67).
Dozers and scrapers: Ground leveling, leveling the ground for roads and halls.
Blades / Box levels: Precise terrain profiling.
4 selectable accuracy modes (from very fine to coarse)
LR60 Spectra Precision machine detector
Sales document (Receipt / VAT invoice)
Excavators and backhoe loaders: Controlling excavation depth, working at an angle using the arm plumb indicator.
Working range: 1 m – 460 m
Receiving range: full 360-degree laser reception from all directions
Power supply: NiMH rechargeable / alkaline batteries (depending on the set)
Battery life: approx. 45 - 75 hours (depending on the mode/battery)
Receiving window height: 22.2 m (8.75 in)
Number of display channels: 8 height / beam position channels
Protection class: IP67
Housing: Cast aluminum and polycarbonate, resistant to harsh construction conditions
Weight: approx. 2.7 kg.
