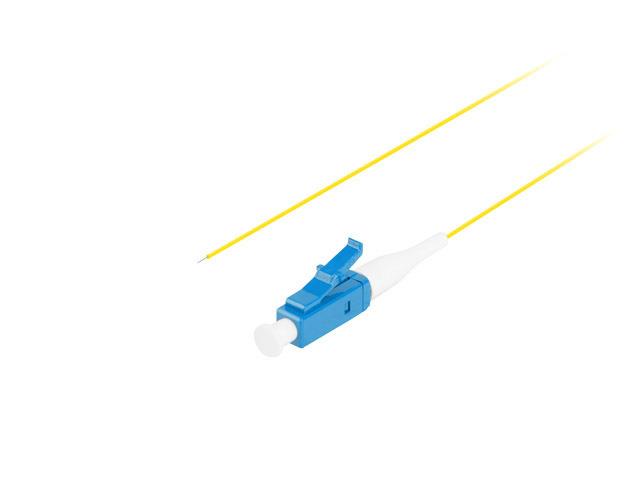

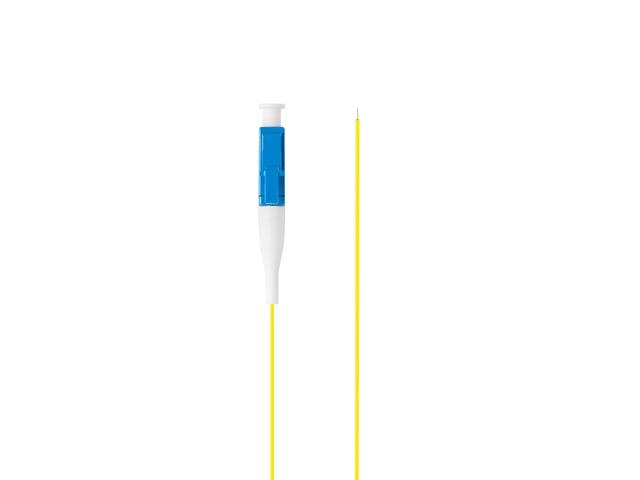

Lanberg SM LC/UPC EASY STRIP 9/125 G657A1 2M Yellow Fiber Optic Pigtail

PIGTAIL FIBER OPTIC SM LC/UPC EASY STRIP 9/125 G657A1 2M YELLOW LANBERG

SM OS2 fiber optic pigtail equipped with LC/UPC connector, 2m long and 0.9mm diameter. The pigtail uses the G657A1 fiber standard and the Easy Strip pigtail construction. The pigtail is made in accordance with applicable norms and standards.

Connector type: LC Polishing standard: UPC Fiber type: single-mode (SM) Fiber type: G657A1 Fiber diameter: 9/125 µm Cable construction: EASY STRIP Cable diameter: 0.9 mm Sheath: LSZH Insertion loss: 0.20 dB Return loss: & 60 dB Operating temperature: -40 – 85 °C Minimum bend radius: 10 mm Color: Yellow Length: 2 m

• Connectors LC

• Cable length 200 cm

• Color Yellow

• Recommended ambient temperature -40 - 85 °C

• Fiber type Single-mode

• Fiber type G657A1

• Return loss 60 dB

• Standard Polishing UPC

• Fiber Diameter 9/125

• Cable Construction Easy Strip

• Cable Diameter 0.9 mm

• Sheath LSZH

• Insertion Loss 0.2 dB

• Minimum Bend Radius 10

Manufacturer: Lanberg
