INSULATION RESISTANCE METER LCD installation tester

Insulation tester designed for high voltage testing.

The aim is to eliminate critical devices and elements that, directly or during operation, may cause weakening of insulation and electric shock.

• Insulation resistance measurement

• Live detection of tested resistance

• Short circuit protection of measured resistance

• Automatic identification of AC and DC

• Measurement data lock

• Polarization index

• Absorption coefficient test

• Automatic discharge

• Low battery reminder Battery

• Large LCD Digital Display

• External DC9V 1.5A Power Supply

• Over-Limit Alarm

• Red Alarm Light, Audible Alarm.

• High Voltage Alarm

• Test Voltage Display

⚡ Measurement range:

• 100V - 0.0~1.5GΩ

• 250V - 0.0~5.5GΩ

• 500V - 0.0~5.5GΩ

• 1000V - 0.0~5.5GΩ

⚡ Open circuit voltage:

• 100V - DC 100V / +20%, -0%

• 250V - DC 250V / +20%, -0%

• 500V - DC 500V / +20%, -0%

• 1000V - DC 1000V / +20%, -0%

⚡ Rated current:

• 250V - 0.5MΩ charging / 0.5mA~0.55mA

• 500V - 0.5MΩ charging / 1mA~1.2mA

• 1000V - 2.5MΩ charging / 1mA~1.2mA

• 2500V - 2.5MΩ charging / 1mA~1.2mA

⚡ Short Circuit Current:

• about 2.0mA

⚡ Accuracy:

• ±5% rdg ±3%dgt

30 - 600V (Resolution 1V)

⚡ Measurement Scale:

• DV- ±30 - ± 600V

• AV- ±30 - 600V (50/60Hz)

⚡ Resolution:

• DV- 1V

• AV- 1V

⚡ Accuracy:

• DV - ±5% rdg ±3%dgt

• AV - ±5% rdg ±3%dgt

• Display: Up to 999 characters (above e.g. 1000 indicates 1T).

• Overload Indicators: Overload indicators: OL appears when the insulation range is overloaded, LO when the voltage range is exceeded.

• Auto - range: Range shift to the upper range: 1000 Range shift to the lower range: 95 (Only in the insulation resistance range).

• Sampling rate: 0.5~ 10 times/sec.

• Maximum altitude: Less than 2000m (for indoor use).

• Usage conditions: Temperature 0~40C, humidity <= 85%.

• Storage conditions: Temperature -20~ 60C, humidity <= 90%.

• Overload protection: Insulation resistance: AC 1200V/ 10 s. Voltage: AC 720V/ 10 s.

• Voltage resistance: AC8320 (50/60Hz) / 5 seconds (between the electric circuit and the housing).

• Insulation resistance: 1000 m or more / DC 1000V (between the electric circuit and the housing).

• Power supply: DC12V (8 x 1.5V LR14 batteries).

• Operating time on Battery life: approximately 15 hours.

• Dimensions: 153 x 96 x 220 mm.

• Weight: 1032 g (without batteries and test leads).

• 1 x High Voltage Insulation Tester

• 1 x Red Test Lead

• 1 x Black Test Lead

• 2 x Crocodile Clip

• 1 x User Manual in Polish

• 1 x Case (cover)

• 8 x 1.5V LR14 Alkaline Battery

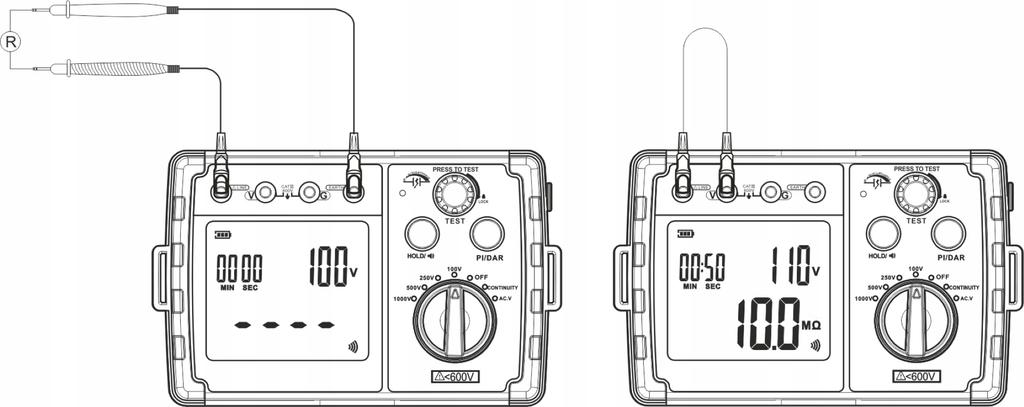

1. LCD display.

2. Timer button.

3. Backlight button.

4. Test button.

5. Time setting buttons.

6. Function switch.

7. Socket for the red high-voltage test lead.

8. Socket for the green protective lead.

9. Socket for the black test lead.

10. DC interface input (12V/1A)

11. Black test lead with alligator clip.

12. Green protective lead with clamp alligator clip.

13. Red high-voltage test lead with alligator clip.

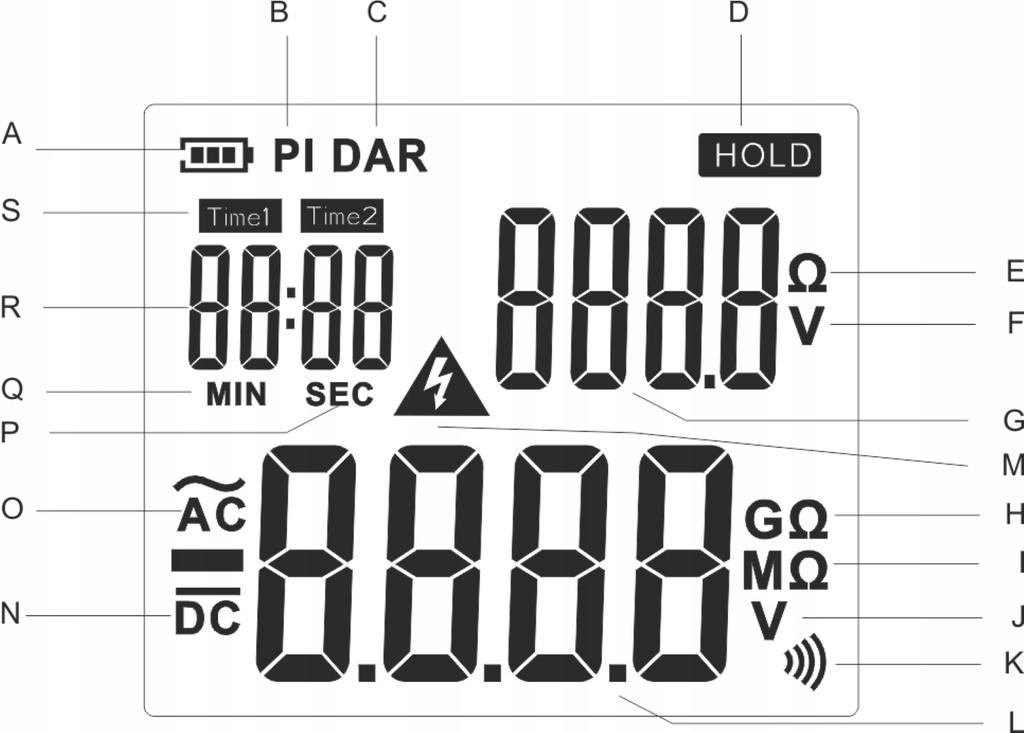

1. Symbol Battery.

2. Timer symbol.

6. Timer 1

7. Voltage/insulation resistance reading.

8. Resistance unit.

9. Voltage unit.

10. Voltage reading section.

11. High voltage warning.

12. Alternating current.

13. Minus symbol.

14. Direct current.
