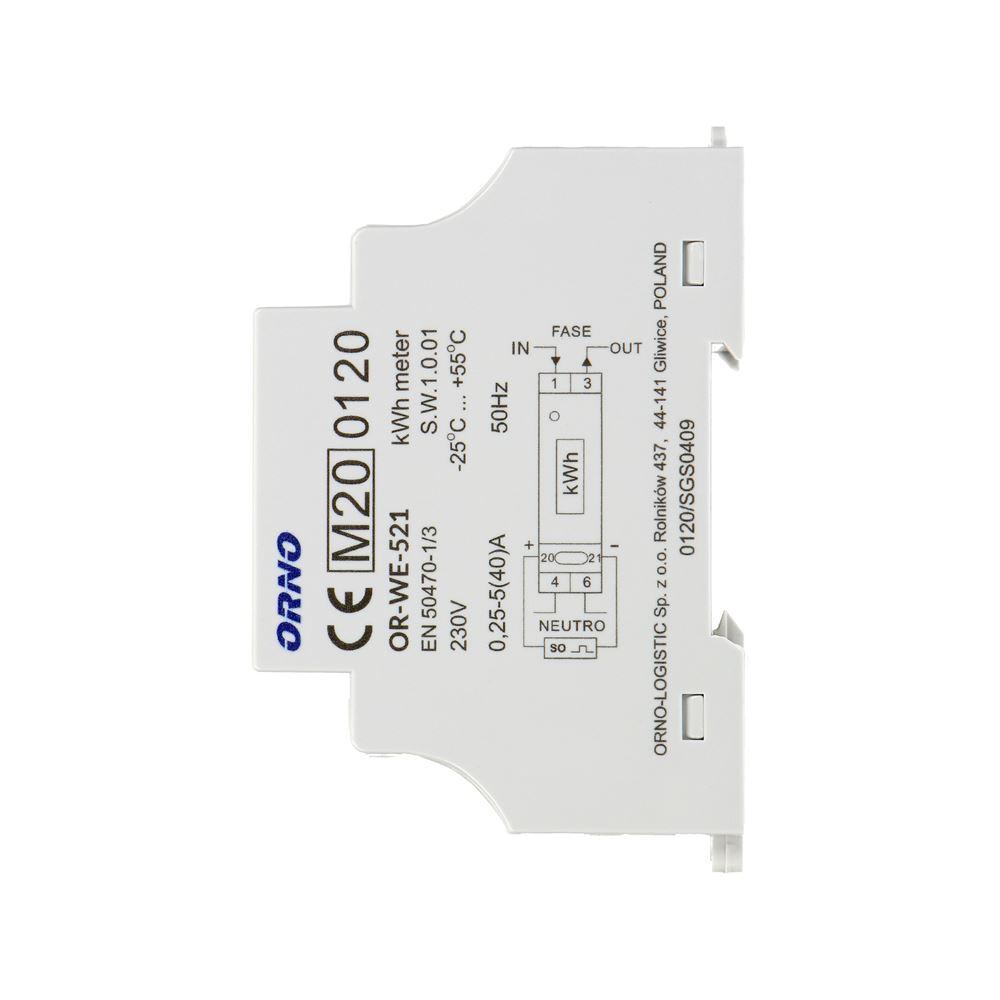

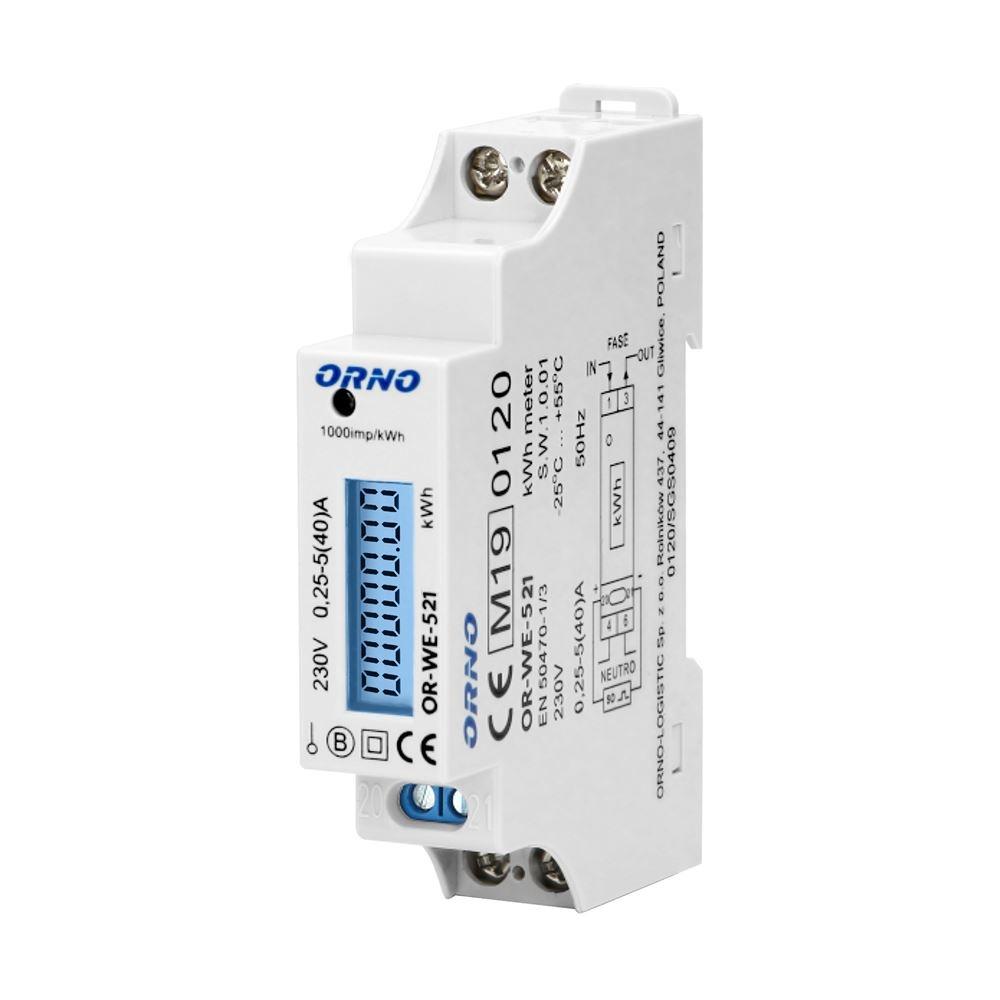

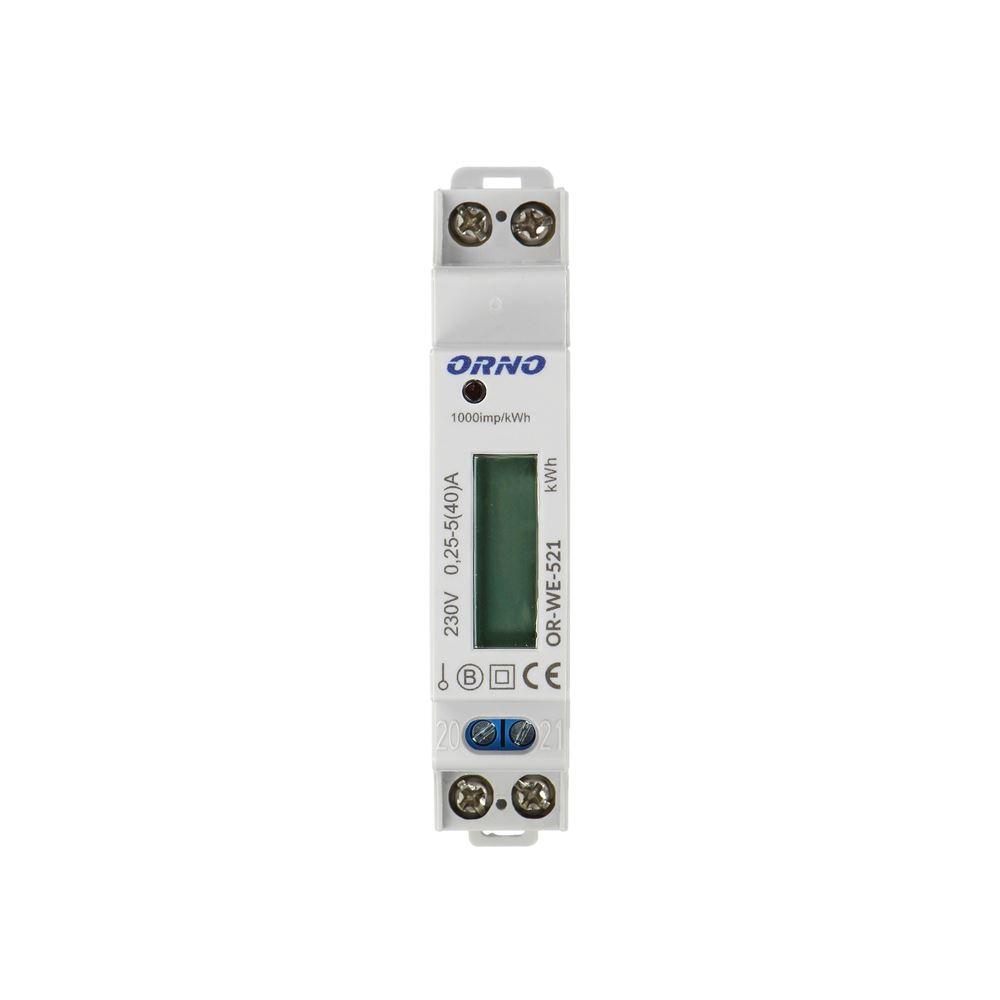

Orno OR-WE-521 MID 1-phase electricity meter

A device for measuring energy in metric units (kWh). A special electronic circuit, under the influence of flowing current and applied voltage, generates pulses proportional to the electrical energy consumed.

Energy consumption in a given phase is indicated by a flashing LED. The number of pulses is converted into energy consumed, and its value is displayed on the backlit LCD display (5+1). Energy measurement is performed in accordance with the EN50470-1:2006, EN50470-3:2006 standards, MID directive 2014/32/EU.

• Type single-phase

• Ports none

• Communication protocol none

• Supply voltage 230V~, 50Hz

• Base current (lb) 5A

• Maximum current (lmax) 40A

• Minimum current (lmin) 0.25A

• Pulse frequency 1000 imp/kWh

• Measurement accuracy class B

• MID (2014/32/EU) compliance yes

• Display 5+2

• Pulse output yes

• Multi-tariff no

• Number of modules 1

• IP protection class IP51

• Dimensions (width/height/depth [mm]) 18 / 110 / 60

• Other features with backlight
