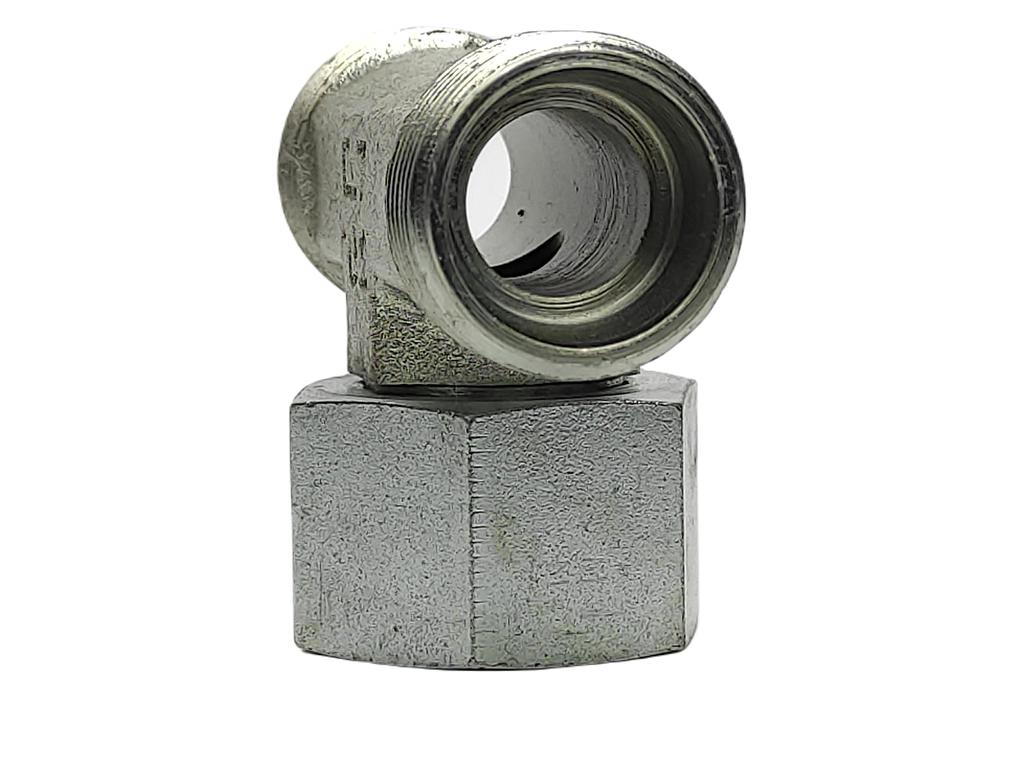

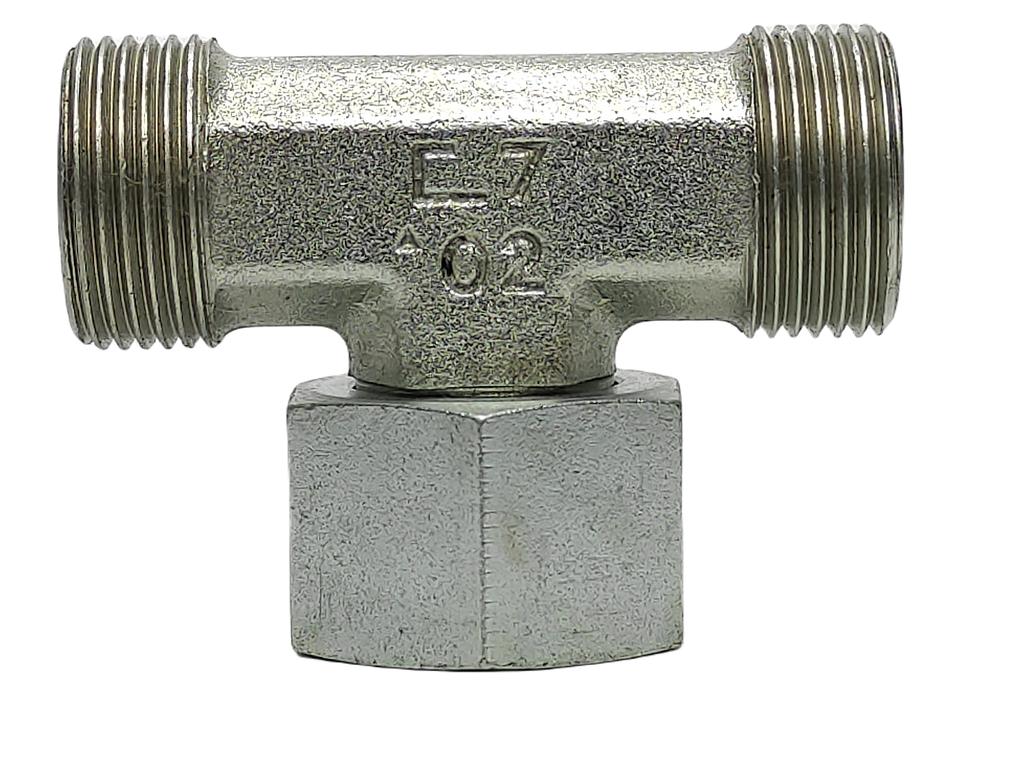

Hydraulic Tee M22 M22 M22 /B.B.A/

PN (bar): 400

L1 (mm): 28

L2 (mm): 21

Materialł: steel

S1 (mm): 19

S2 (mm): 27

T2 (mm): M22 x 1.5

T1 (mm): M22 x 1.5

D1, D2 (mm): 15

T3 (mm): M22 x 1.5

Connection 1: metric internal thread, 24° external cone with O-ring

Connection 2 + 3: metric cylindrical external thread, 24° internal cone

Type formula: X-ETV Description: Tee T-connector with nut adjustable Series: 15 L Connection thread: M22 x 1.5 Surface: not included Cr6 Version: T-piece with adjustable nut, symmetrical Standard: DIN 2353 Material: chromium(VI)-free coated steel
