36V 48V (15V-60V) to 12V 5A Step Down Converter
✔️ Output Overload/Short Circuit Protection: Inverter Shutdown for Overload Time
✔️ Protection thermal: Output current limitation after exceeding the maximum operating temperature, until it cools down.
✔️ Protection against incorrect input polarity: Output circuit protection (incorrect input polarity may damage the converter)
✔️ Protection when the maximum voltage is exceeded. Input: Output Circuit Protection
✅ Converter Type: DC/DC
✅ Voltage Change: Step Down
✅ Input Voltage Range: 15V-60V
✅ Output Voltage (Maximum): 12V
✅ Maximum Output Current: 5A
✅ Maximum Load Power: 60W
✅ Maximum Energy Efficiency: 95%
✅ Operating Temperature: -20°C to 60°C
✅ Class tightness: IP68
The universal DC-DC step-down converter is an irreplaceable device for voltage stabilization in various applications. Thanks to the ability to reduce the voltage from the range of 24V / 36V / 48V / 60V to a stable 12V with an output current of up to 5A, the device will work perfectly in various power supply systems.

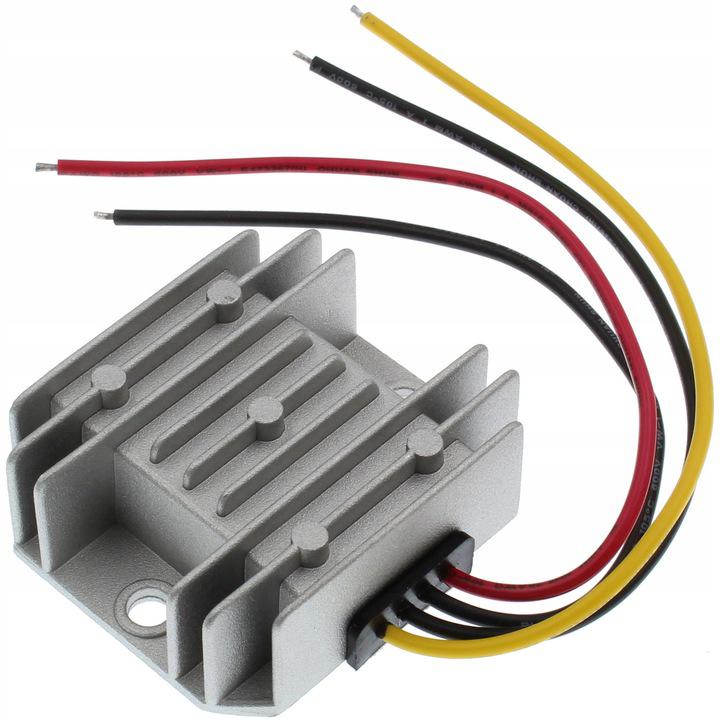

The housing made of die-cast aluminum acts as a heat sink, ensuring effective cooling and long-term operation of the device.
✨ High energy efficiency: The converter achieves a maximum efficiency of 95%, which ensures efficient use of energy and minimizes losses.
✨ Solid construction: The die-cast aluminum housing and epoxy resin sealing guarantee resistance to weather conditions and durability in difficult operating conditions.
✳️ Specifications:
✔️ Converter Type: DC/DC
✔️ Voltage Step Down: Step Down
✔️ Typical Input Voltages: 24V / 36V / 48V
✔️ Minimum Input Voltage: 15V
✔️ Maximum Input Voltage: 60V
✔️ Maximum Output Voltage: 12V
✔️ Output voltage ripple: 120mV p-p
✔️ Output voltage accuracy: 1.5%
✔️ Maximum output current: 5A
✔️ Recommended minimum current consumption: 0.5A
✔️ Maximum load power: 60W
✔️ Recommended minimum load power: 6W
✔️ Maximum energy efficiency: 95%
✔️ Maximum no-load current: 0.1A
✔️ Operating temperature: from -20°C to 60°C
✔️ Operating frequency: 50kHz
✔️ Connection: 4 integrated cables, 17.5cm long
✔️ Dimensions: 68mm x 60mm x 24mm
✔️ Mounting hole spacing: 54mm
✔️ Mounting hole diameter: 6.3mm
✔️ Tightness class: IP68
✔️ Housing construction: Cast aluminum, ribbed
✔️ Sealing: Epoxy resin
✔️ Cooling: The housing acts as a heat sink
✳️ Product Summary and Application
The 36V 48V (15V-60V) to 12V 5A Step Down Converter is an excellent solution for systems requiring a stable 12V voltage from a wide input voltage range. Thanks to its high energy efficiency, robust design, and comprehensive protection features, the device is suitable for many applications, such as powering electronic devices, lighting systems, and other industrial applications.
