CAMERA AHD, HD-CVI, HD-TVI, PAL HAC-HDW1200T-IL-A-0280B-S6 - 1080p 2.8 mm DAHUA
Megapixel camera with Progressive scan CMOS sensor and AHD / HD-CVI / HD-TVI / interface PAL. The AHD / HD-CVI / HD-TVI interface enables the transmission of analog video signals via coaxial cable at a maximum resolution of 8 Mpx (4K UHD).
There is no delay during transmission and the original, high image quality is maintained. When transmitting video using twisted-pair cables and impedance-matching transformers, it is important to consider the possibility of signal reflections and signal crosstalk.
The illuminator range specified by the manufacturer depends on environmental conditions (air clarity, ambient light, wall color, i.e., the scene's reflectance). The camera meets the IP67 ingress protection class.
The device is equipped with Smart Dual Illumination technology, which allows the user to choose between white light and IR (infrared) modes. When Smart Dual Illumination is activated, the white light automatically turns on only when an object is detected in the monitored area, effectively improving image quality.
• Standard: AHD,HD-CVI,HD-TVI,CVBS
• Sensor: Progressive Scan CMOS
• Matrix size: 2.1Mpx
• Resolution: 1920 x 1080 -1080p@HD-CVI/HD-TVI/AHD@ 25 fps, 960 x 576 -960H@PAL@ 25fps
• Lens: 2.8 mm
• Viewing angle: 102 ° (manufacturer's data), 104 ° (our tests)
• IR illuminator range: 40 m
• White light (LED) illuminator range: 40 m
• IR illuminator power adjustment: Automatic
• Video output: AHD/HD-CVI/HD-TVI/CVBS, 1Vpp/ 75 Ω
• Audio: Built-in microphone, Audio support via coaxial cable - only HD-CVI
• On-Screen Display: Yes
• Power Supply: 12 VDC/ 350 mA
• Power Consumption: ≤ 4.1 W
• Housing: Dome, Metal
• Color: White
• Protection Class: IP67
• Vandal-proof: No
• Operating Temperature: -40 °C ... 60 °C
• Weight: 0.48 kg

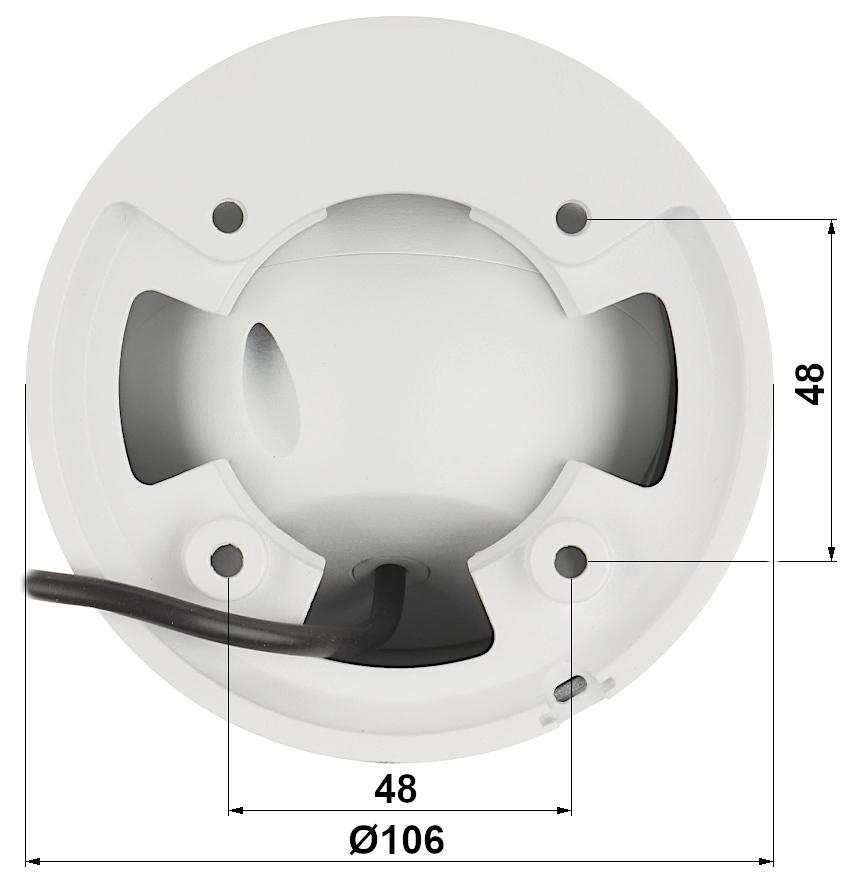

• Dimensions: Ø 106 x 99 mm
• Manufacturer / Brand: DAHUA
• Warranty: 3 years
• Smart Dual Illumination technology - in night mode, IR or LED illuminator works. White light will turn on automatically only when an object is detected in the monitored area, which effectively improves the image quality
• D-WDR - Wide Dynamic Range
• 3D-DNR - Digital Noise Reduction
• BLC/HLC - Backlight/Strong Light Compensation
• ICR - Mechanical Infrared Cut Filter
• AGC - Automatic Image Gain Control
• Automatic White Balance
• Privacy Zones - max. 8
• Mirror - Mirror image
• Sharpness - Sharpening image contours
Note! The cameras we sell do not include power supplies, with some exceptions. You can check this in the photos available in the auction.
