Overheat Protection RV Furnace Limit Switch for Suburban RV Furnaces SF-25/30/35/SF-25F/30F/35F

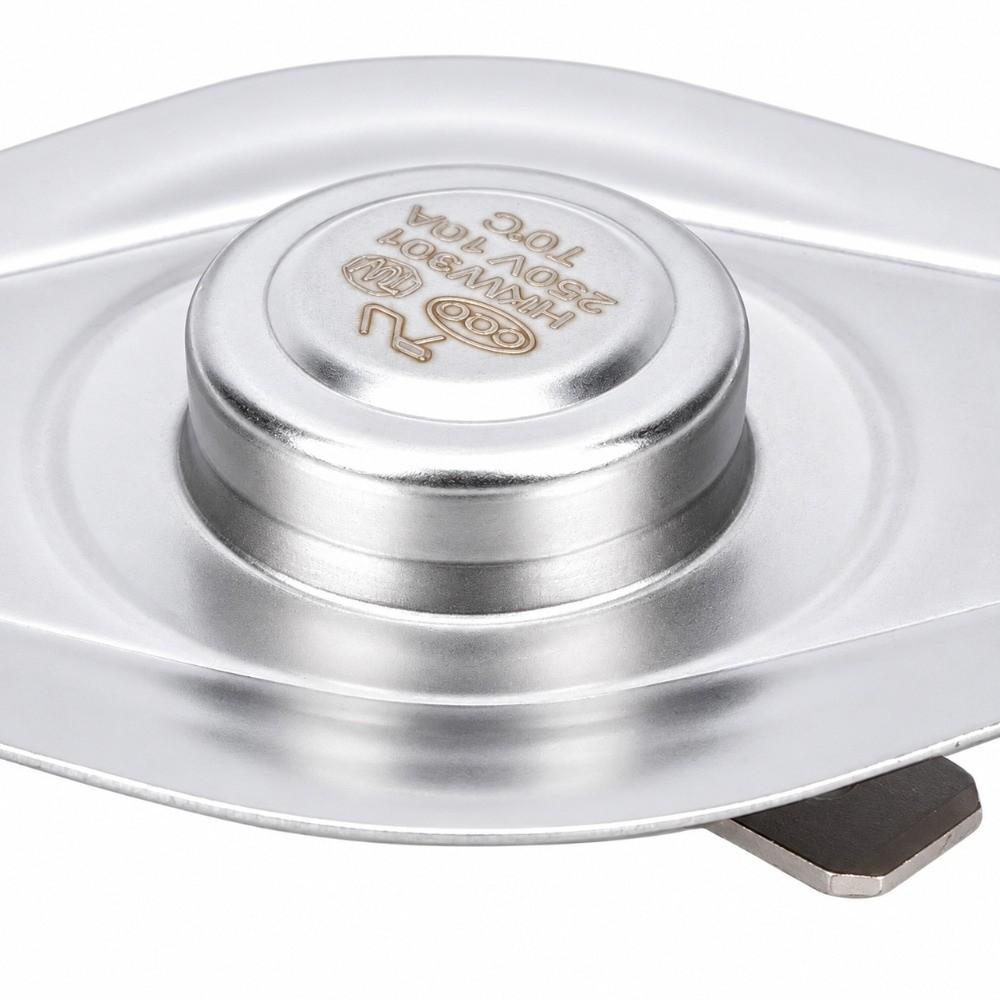

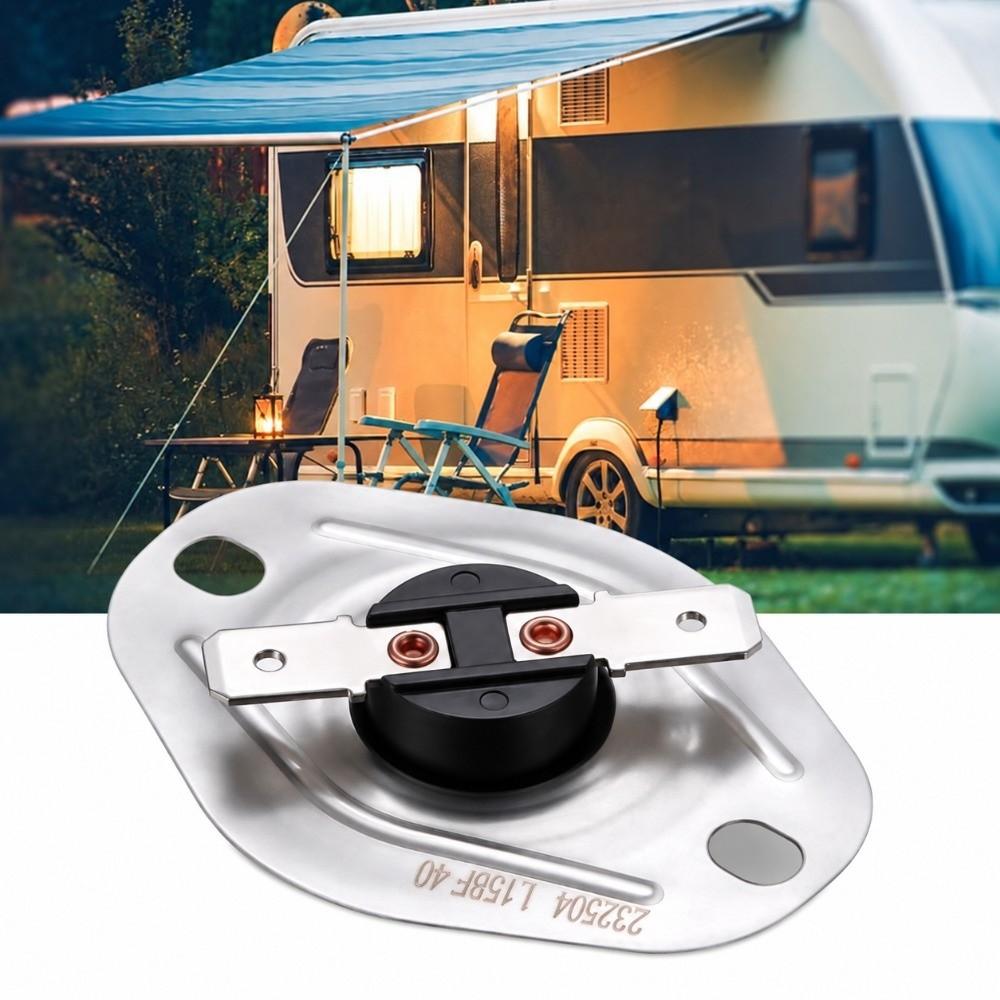

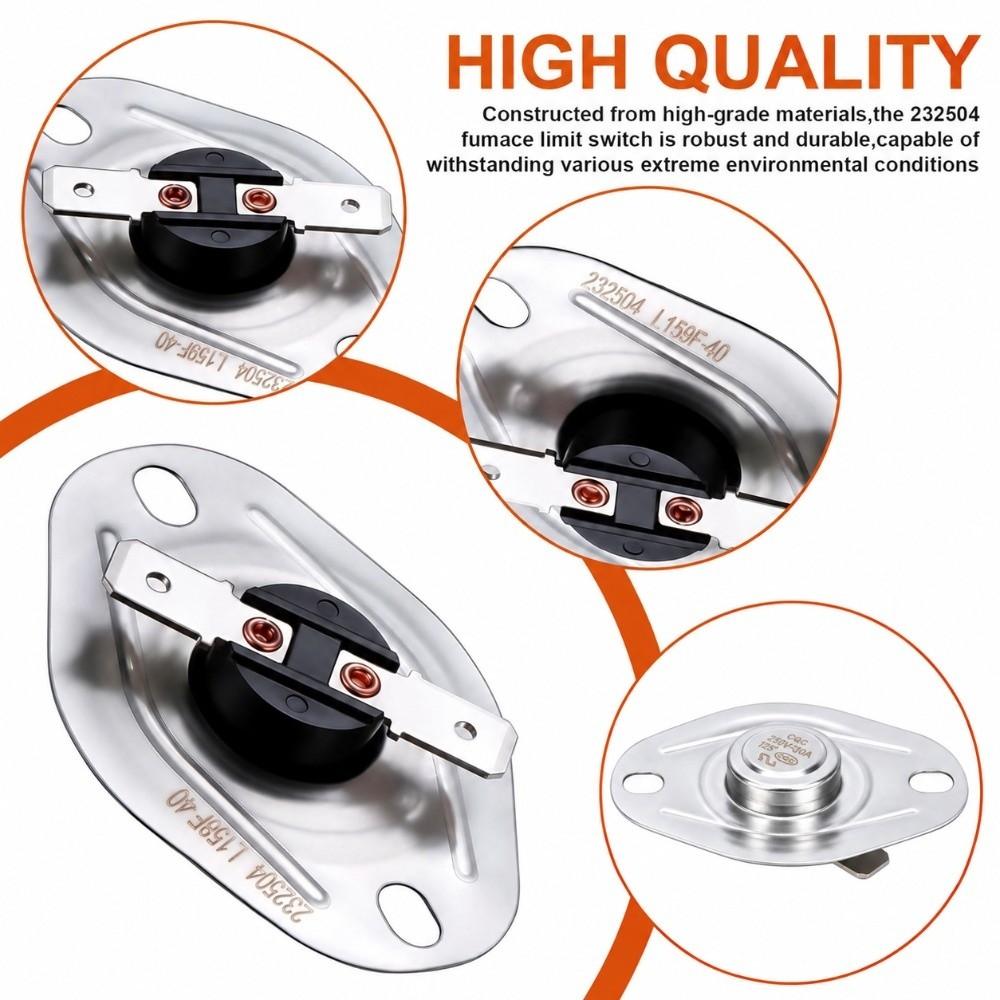

Label:Yes Normally Closed Contact Design: Features a normally closed contact type with a plug-in connector for convenient installation. The rated current is 16-20A and the rated voltage is 250V for compatible furnace systems. OE Reference Number 232504: The switch is made to replace the part with reference number 232504. It is intended for use in compatible RV camper heating systems as a direct replacement for a worn or faulty limit switch. Compatible with Suburban RV Furnace Models: This limit switch replacement is designed for compatible with Suburban RV furnace models SF-25/SF-30/SF-35/SF-25F/SF-30F/SF-35F. Please verify your furnace model and part number before ordering. Temperature Settings: The switch cuts out at approximately 158°F (cut-out temperature) and cuts back in at approximately 118°F (cut-in temperature). These temperature settings correspond to the switch specifications for supported furnace models. Metal Construction and Dimensions: Made from metal with a silver finish, the switch includes a mounting bracket measuring approximately 2 inches, a terminal tab length of about 1.3 inches, and a height of approximately 0.5 inches. The package includes 1 limit switch.

Item Type: Limit Switch Color: Silver Material: Metal OEM: 232504 Contact Type: Normally Closed Rated current: 16-20A Rated voltage: 250V Cut out temperature 158F, Cut in temperature 118F Installation Method: Replacement Connector Type: Plug In Fitment: Replacement for Suburban RV Furnaces SF-25/30/35/SF-25F/30F/35F Mounting Bracket Length: 2 Inch Terminal Tab Length: 1.3 Inch Height: 0.5 Inch

Package List:1 x Limit Switch

Notice: 1. Before performing any maintenance, make sure the main power of the RV is completely turned off (disconnect the battery from the external power source) and close the gas valve. 2. Please double check the part number of your item, matching information is for reference only. Notes: 3.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 4. Please allow slight manual measurement deviation for the data.
