Product Description

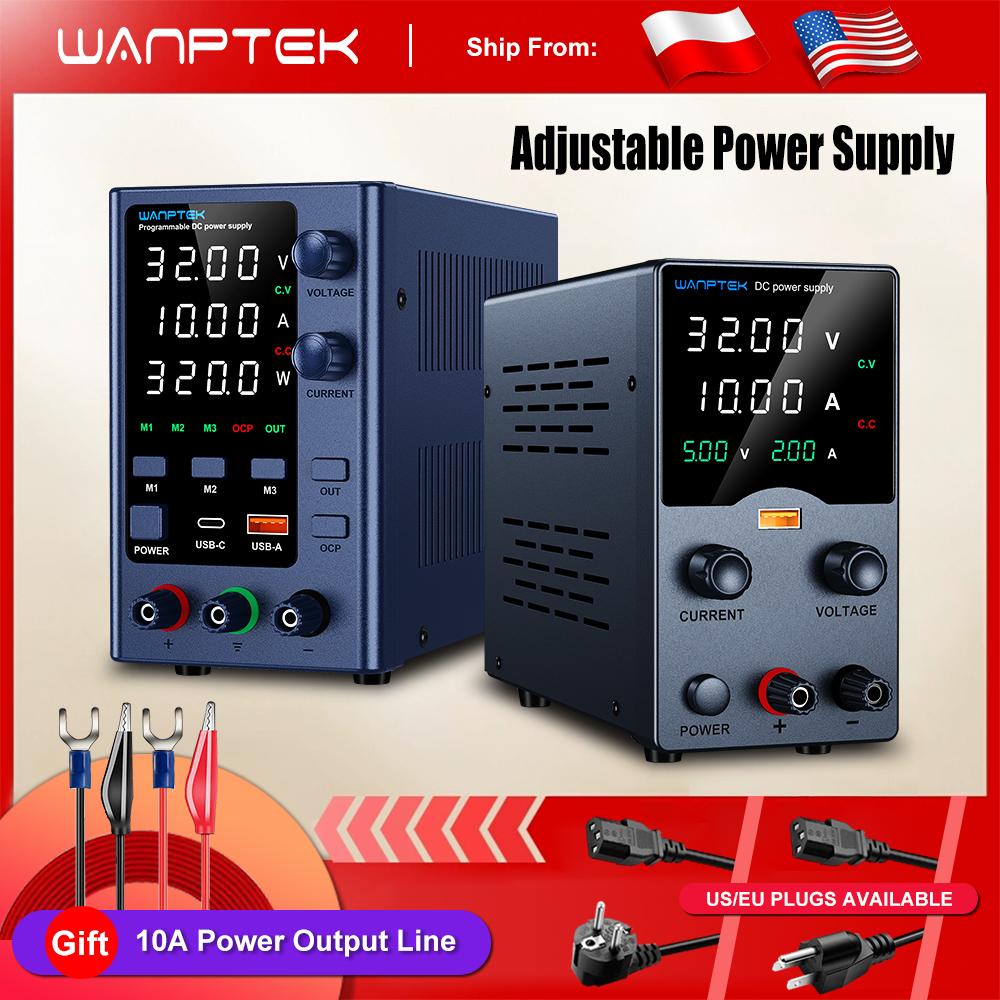

Wanptek's new series products. This model is a miniature switching DC power supply. The output voltage and current can be controlled and adjusted by variable resistors respectively, so it provides more convenience and accuracy in the adjustment of voltage and current. The panel also provides high-precision two/three-window digital tube display of voltage, current and power, so that users can intuitively see the current use status and various parameters of the machine
1.Small size, light weight and high power density. weight of only 2.6 pounds. You can easily take the DC power supply to work.
2.Constant pressure and constant current switch automatically.
3.LED display of voltage, current and power, high precision and features of voltage stabilization, current limiting, and simple operation.
4.Adjustable Output Voltage & Current: output voltage and output current can be continuously 5.adjusted between 0 and nominal value with fine regulating and coarse regulating
6.it has over voltage protection(OVP), over current protection(OCP), over temperature protection
7.Temperature controlled fan cooling, low noise, long life.
8.Dual voltage input and convenient choice.
9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .
10.Output current ranges from 0 to rating current with continuous adjustment .
Application areas
1. Production line testing.
2. Repair mobile phones, computers, and appliances.
3. Product aging and electroplating.
4. Battery charging.
5. Laboratory, scientific research, and teaching.
6. All other occasions that require a DC stabilized power supply.
More parameters
Protection mode OVP over-voltage protection, OCP over-current protection, over-temperature protection, short-circuit alarm stop output.
Working environment
Input voltage: AC 230V/115V±10%; 50Hz/60Hz
Operating temperature: 0℃～40℃;Relative humidity:<80%RH
Storage temperature:-10℃～70℃;Relative humidity:<70%RH
Voltage stabilisation CV
Voltage stability: 0.5%±3mV
Load stability: 0.5%±3mV
Ripple voltage: ≤0.5% Vp-p
0 to rated voltage continuously adjustable
Current stabilisation CC
Current stability: 0.5%±3mA
Load stability: 0.5%±3mA
Ripple current: ≤0.5% Vp-p
Recovery time: ≤500μS
Temperature coefficient: ≤100ppm/°C
0 to rated current continuously adjustable
Meter display
0.4-inch white four digital tube with three displays
Display accuracy: 0.5%±5 words
Display resolution: voltage 0.01V, current 0.001A
Product Characteristics
Product size: 190mm (L) X 90mm (W) X 145mm (H)
Package size: 265(L) x 135(W) x 195(H) mm
Bare weight: 1.15Kg
Weight with packing accessories: 1.5Kg
Frequently Asked Questions
Q: Is this power adapter suitable for repairing mobile phones and laptops?
A: Yes.
Q: Can this power supply charge a 25V car battery?
A: It can charge a 25V battery, as the power supply can reach a maximum voltage of 30V. (Caution! When charging, the power supply's set voltage must exceed the battery voltage. Otherwise, it may backfeed into the power supply and cause damage!)
Q: Can it be used for electroplating?
A: Yes, it can be used for electroplating.
Q: Does this power supply support 110V input voltage?
A: Our power supply supports dual voltage operation at 110V/220V.
Your package includes
1 * DC power adapter
1 * Output cable (bonus item)
1 * User manual
1 * Power cord (optional: AU/US/EU/UK, etc.)
Use: Other
Origin: Mainland China
High-concerned chemical: none
Rated Capacity: 40-1000VA（include40VA）
Output Frequency: 50Hz/60Hz
Output Type: SINGLE
Certification: CE
Brand Name: wanptek
Type: Power Supply
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Output Current: 0-10A

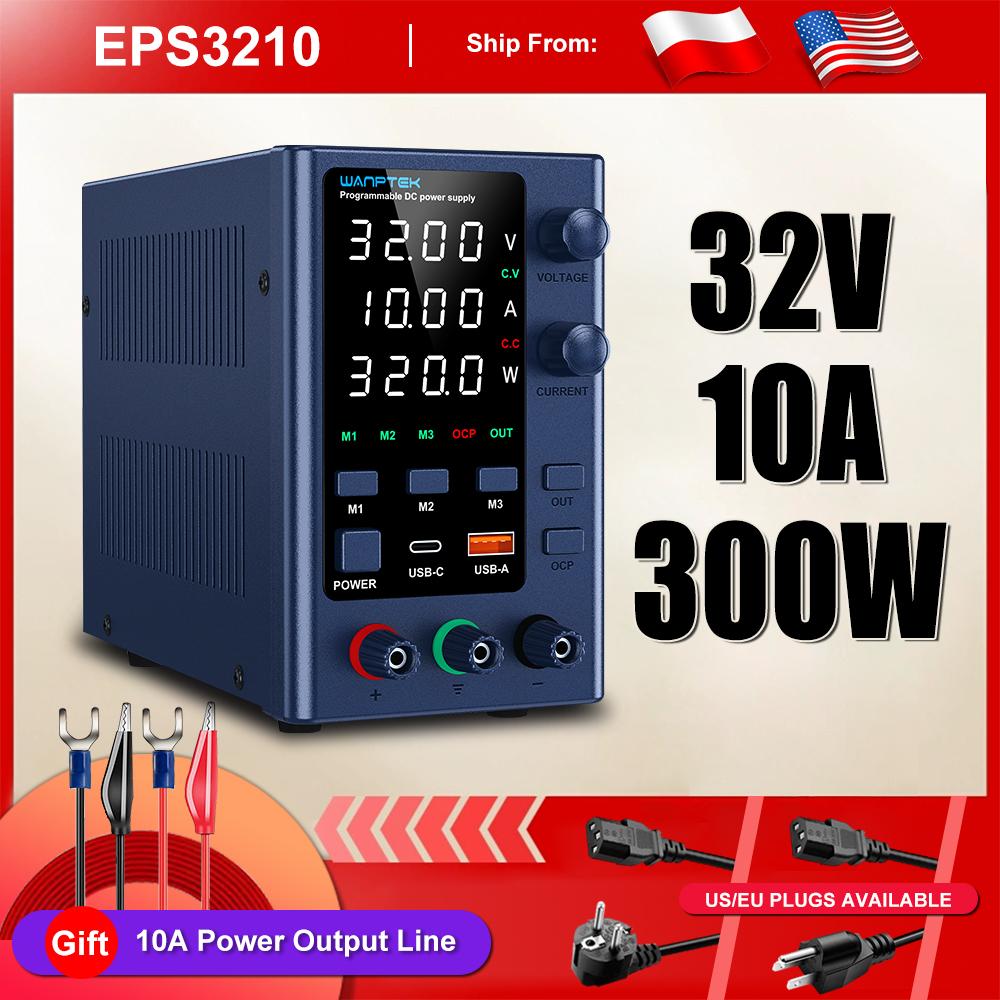

Model Number: GA3010H EPS3210
Output Power: 150-500（include500）
