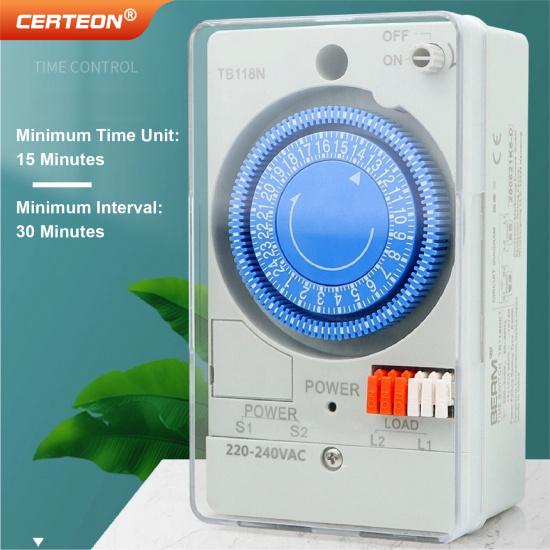

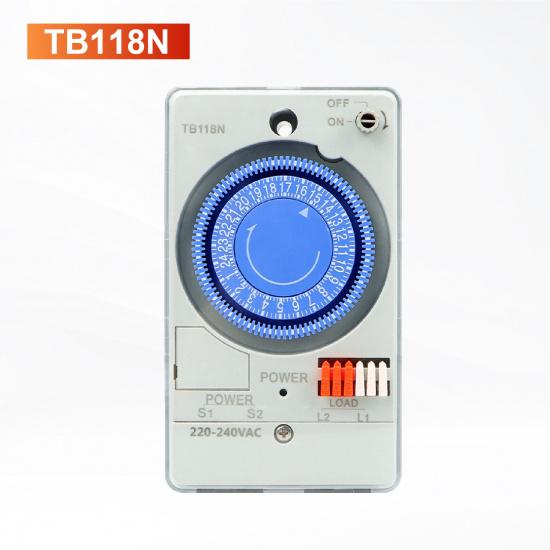

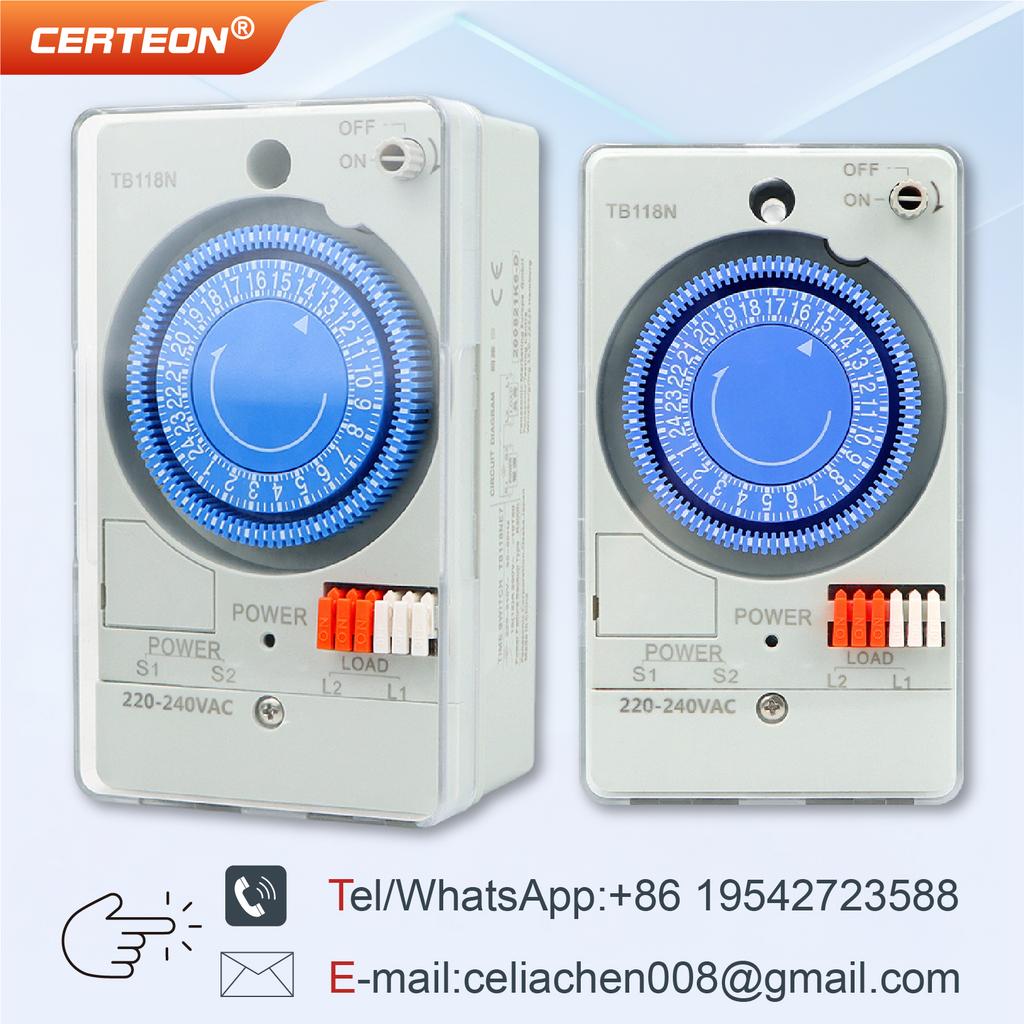

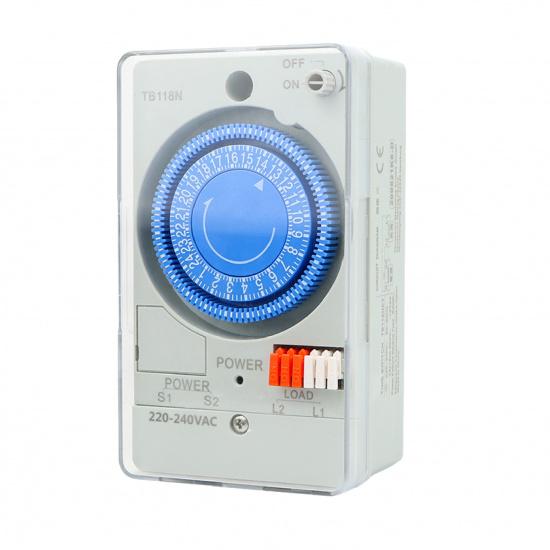

TB118N Mechanical Timer Switch 24 Hour Time Control Switch 220-240VAC Street Light Billboard Water Heater 300H Backup3

1.NOTE Due to page display limitations, some product configurations and operating methods may not be fully displayed. If you have any special requirements, please contact us for more information. Default Configuration Rated Voltage: 220–240V AC Rated Frequency: 50–60Hz, universal Drive Type: Quartz motor Power Failure Backup: Up to 300 hours Operation Method: Lever plug-in/pull-out setting Number of Operations: 6 operations as standard, up to 48 operations maximum Compatible Wires: 600V PVC-insulated wire Single Wire: Ø1.2–2.0mm Stranded Wire: 1.25–2.5mm² Do not use soldered wires. <hr style="text-align: center;width: 100.0%;" width="100%" align="center"/>2. Technical Parameters <hr style="text-align: center;width: 100.0%;" width="100%" align="center"/>3. Key Features24-Hour Repeat Cycle Control Supports programmable daily ON/OFF scheduling for convenient and reliable automatic recurring operation. Precise Quartz Motor Timing Equipped with a quartz motor for accurate, stable, and consistent time control with minimal timing deviation. Up to 300 Hours of Power Failure Backup The built-in Ni-MH battery provides up to 300 hours of backup during power outages, helping retain programmed settings for reliable operation. Simple Mechanical Dial Operation The convenient plug-in and pull-out lever design makes time setting quick, intuitive, and easy to operate. Reliable and Stable Performance Designed for safe, durable, and consistent timing control, making it suitable for a wide range of residential, commercial, and industrial applications. <hr style="text-align: center;width: 100.0%;" width="100%" align="center"/>4. ApplicationsSuitable for automatic power control of street lighting, neon signs, water heaters, garden irrigation systems, motors, advertising billboards, stair lighting, and other electrical equipment requiring scheduled ON/OFF operation. Ideal for residential, commercial, and industrial applications. <hr style="text-align: center;width: 100.0%;" width="100%" align="center"/> 5. FAQsQ1: Will the timer retain its settings during a power outage? A1: Yes. The built-in Ni-MH battery provides up to 300 hours of power failure backup to help retain your programmed settings. Q2: What is the minimum time setting interval? A2: The smallest setting unit is 15 minutes, while the shortest ON/OFF switching interval is 30 minutes. Q3: Is the timer easy to install? A3: Yes. The timer supports installation using M4 bolts or 25mm screws. It also supports parallel installation with reserved space for the cover switch.

Hazmat: None deliveryOptionStandard: Yes name: TB118N Mechanical Timer Switch 24 Hour Time Control Switch 220-240VAC Street Light Billboard Water Heater 300H Backup3 PlugType: Universal source: asc brand: No Brand preorder: No
