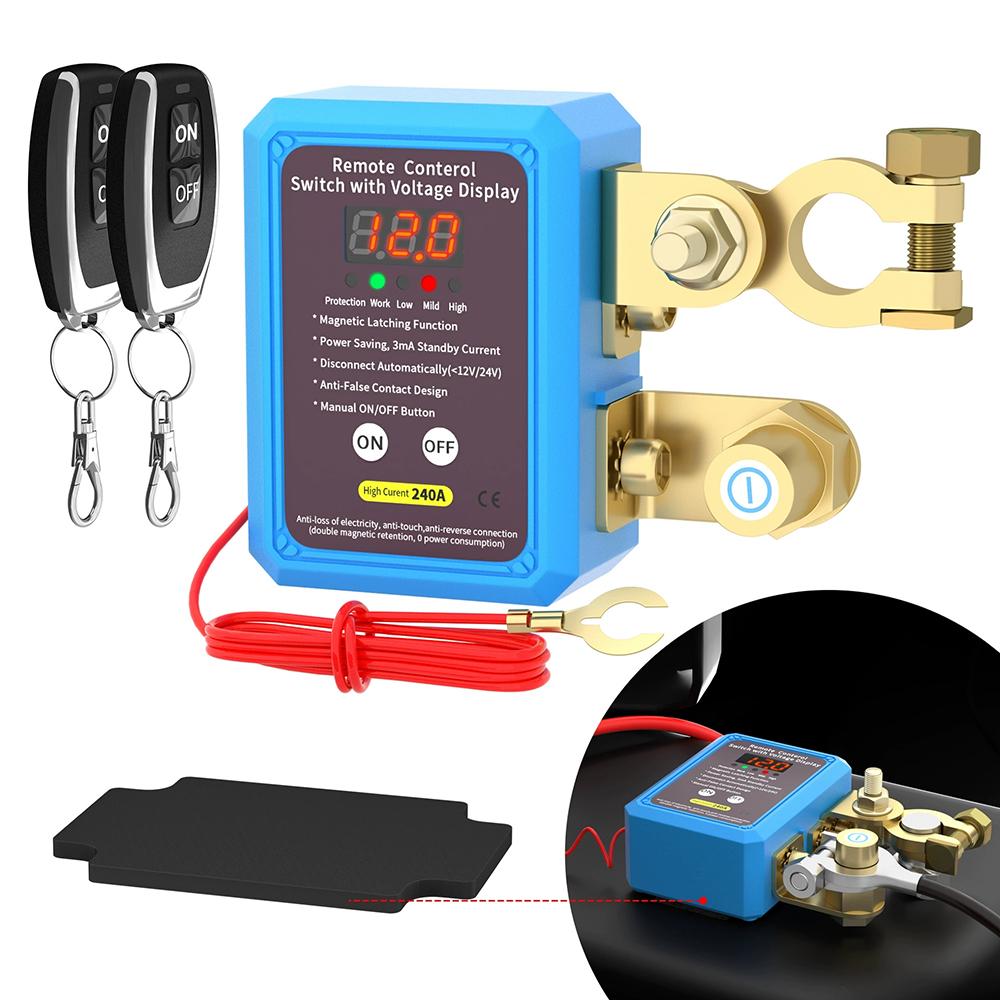

12V/24V 240A Wireless Dual Remote Battery Disconnect Relay Master Kill Cut-Off Switch for Auto Car Truck Boat Trailers RVs ATVs

Product specification and characteristics 1.Operating voltage range: 6-30VDC 2. Adaptive 12V vehicle system and 24V Vehicle System 3.Automatic alarm of defective threshold and automatic battery disconnect 4. Frequency 433.92 Mhz, matching self-locking mode 5. Indicator display (ON and OFF) 6.700uA ultra-low standby power consumption 7.Driving process and ignition error trigger protection

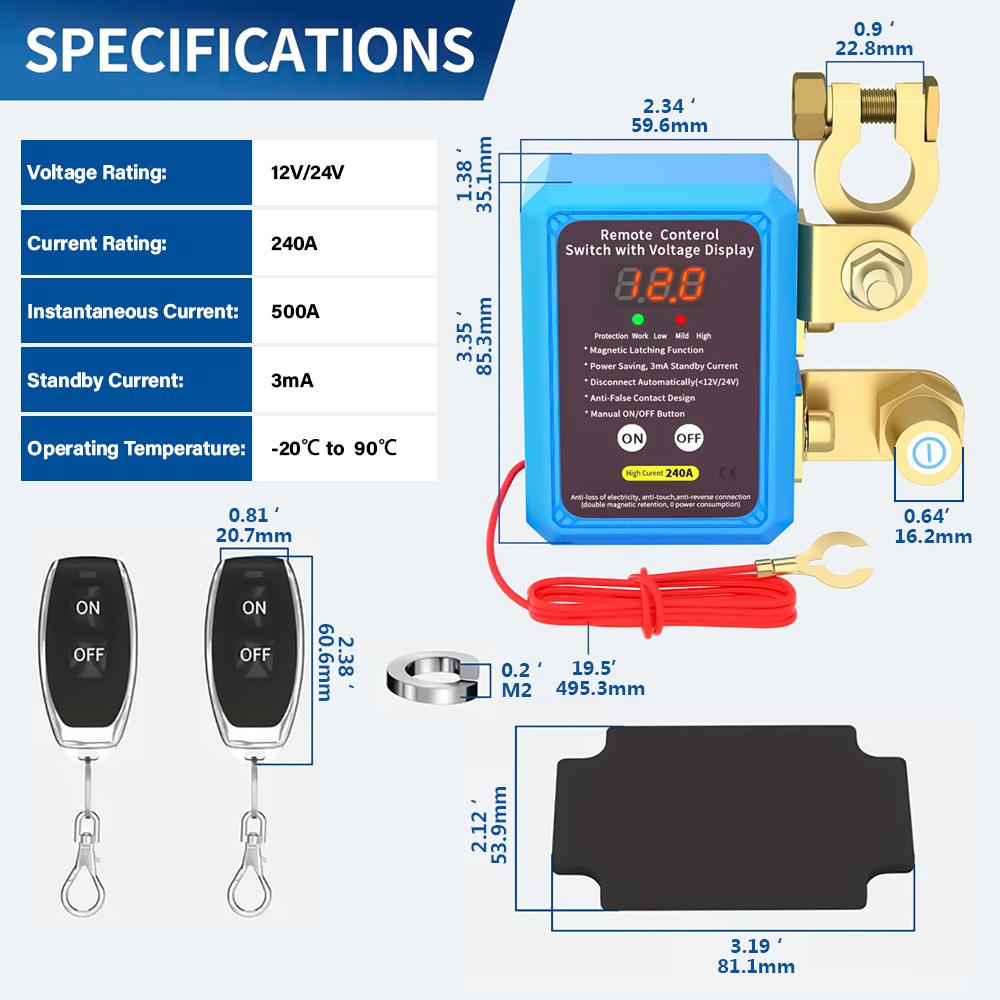

Product parameters 1. Operating temperature: -20 degrees-+ 100. 2. Switch rated current: 250A 3. Switching instantaneous current: 500A 4. Loss protection threshold: 11.8 V+-0.2V/23V+-0.2V 5. Loss of power delay 60 seconds alarm 120 seconds automatic disconnect 6. Standby current: 3mA Item Weight : 420g Item Height : 3.51cm Item Width : 5.96cm Item Length : 8.53cm

Notes: 1. The working voltage range of remote control and equipment can be normal pairing 2. The working voltage range of manual button ON/OFF can be connected and disconnected equipment. 3.Supply voltage less than 6V or more than 3V, the equipment automatically shuts down and disconnects. 4.The voltage range is 6-18V and the self-identification is 12V vehicle system, which works in response to the 12V system threshold 5.Voltage Range in 18-30V self-identification for the 24V vehicle system, response to the 24V system threshold work 6.When the battery voltage is relatively high, the system enters the trip-triggered protection state. 7.When the battery voltage is relatively low, the system enters the protection state of ignition misfiring. 8.Power supply voltage below the protection threshold voltage (11.8 V/23.2 V) for 60 seconds alarm prompt, 120 seconds to automatically disconnect the device to protect the battery. 9.If the voltage is higher than 13.3 V (12V system)/26.2 V (24V system) , the RF remote control will fail to prevent the remote control button from accidentally touching the remote control during driving, which will lead to power failure. Remote control matching instructions 1.Interlock mode (applicable to vehicle system control)-continuously press the manual key ON the code for 3 seconds and
