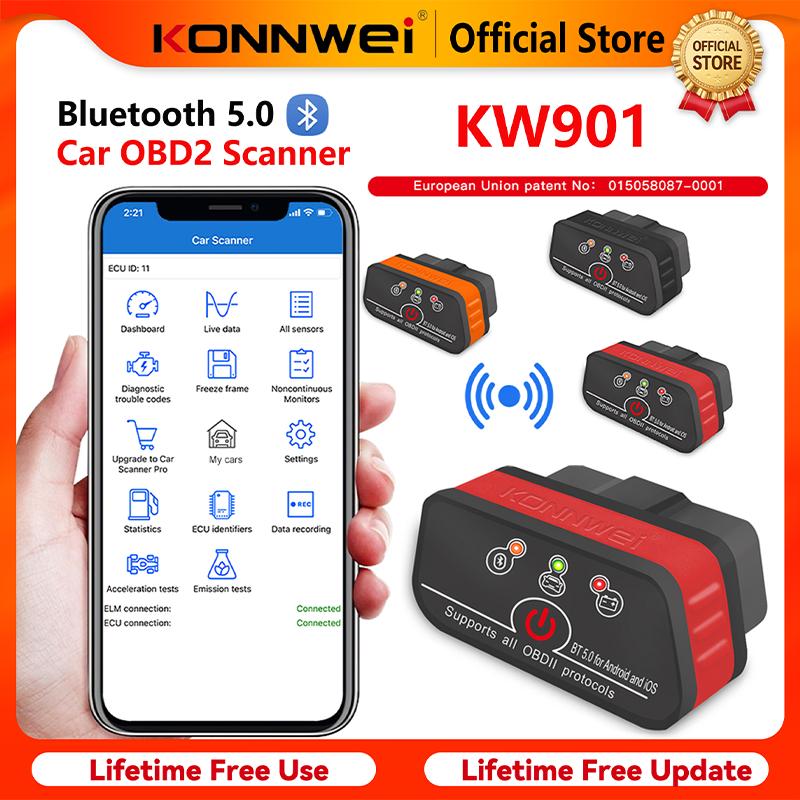

Welcome to KONNWEI Official Store!!!KONNWEI KW901 ELM327 V1.5 Bluetooth 5.0 OBD2 Scanner for Android/IOS OBD 2 Car Diagnostic Tool Code Reader pk Vgate ICAR2 ICAR 2
Purchase Notes!!!
Some customers have feedback that the bluetooth will not connect when they connect to IOS, please follow the tips：
If your mobile phone is IOS, please connect to Bluetooth directly in the software, Don't connect to Bluetooth in phone settings.

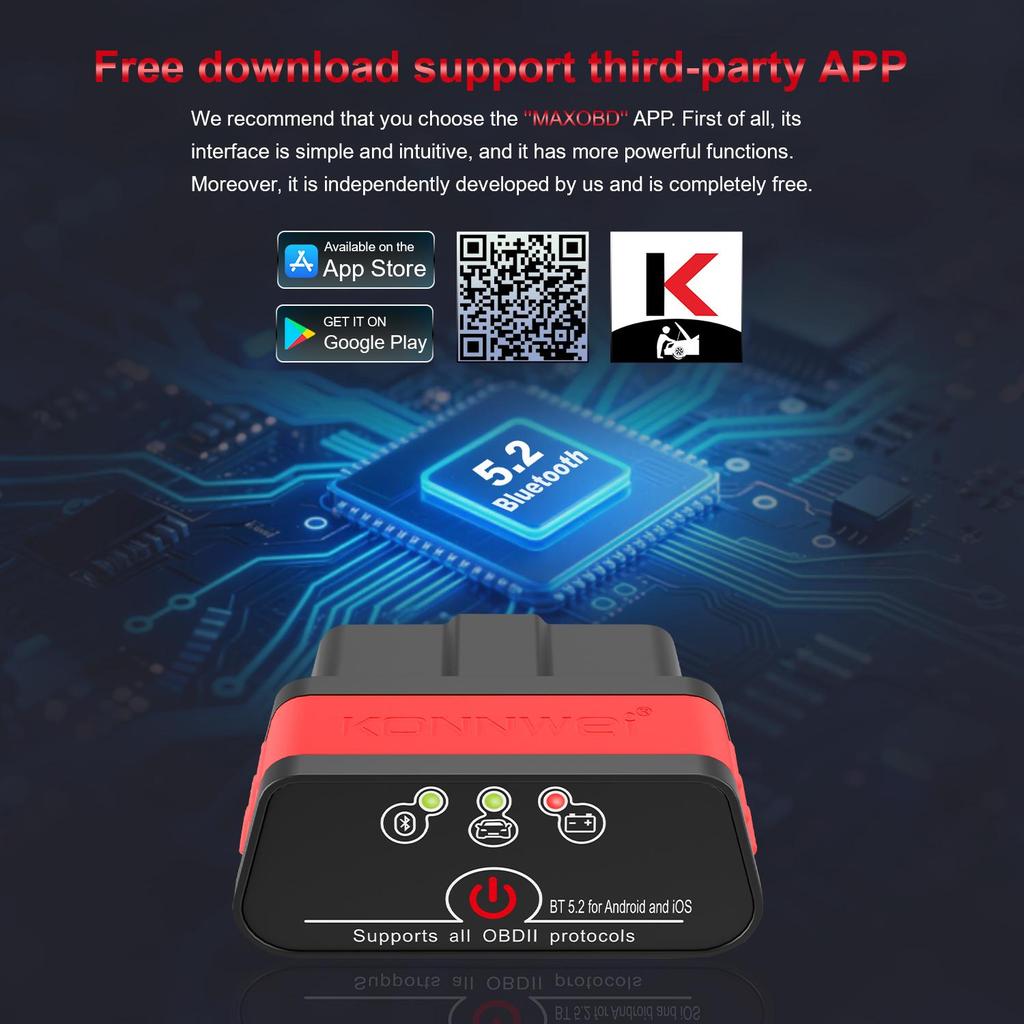

Need to download the "MAXOBD" or "Car Scanner" app, supporting Android and ISO systems
App usage and updates are permanently free!!!
Supported languages:
Chinese,Russian,English,Spanish,French,Italian,German,Polish
Support 120+ Manufacturers13,596+ Models 1996 - Newest Vehicles
Vehicle NOT Supported: 24V Heavy duty diesel car
For IOS Connection method:
1. Plug in the KW901 to the OBD2 interface, and open the IPhone's Bluetooth first.
Don't connect to Bluetooth in phone settings. Please connect to Bluetooth directly in the software.
2. Open the software (like OBD Auto Doctor)
3. Enter the 'OBD Auto Doctor", choose "Extras".
4. Then click "Connectivity", choose "Bluetooth", and click "Device", choose "Konnwei".
5. Connect Bluetooth in the"Connectivity", return to the home page, click the the icon on the upper right corner.
6. Wait for about ten seconds, it can connect successful.
For Android/ISO Connection method:
Top 8 Reasons To Get KONNWEI KW901 BT5.0 Scanner
* Small size, compact structure. Plug and never unplug.
* Stable wireless connection via Wireless BT5.0.
* No wires or batteries (adapter is powered by the 12V Vehicles battery)
* Ultra low cumsumption in sleep-mode, less than 10MA.
* Supports ALL OBDII protocols, widest coverages.
* True ON-OFF button, you can press button to turn off the elm327 if not in use.
* Multiple system support, for Android or IOS.
* Vehicle Coverage: Works on all OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles (Petrol cars from 2001 and diesel cars from 2003/2004 in Europe)

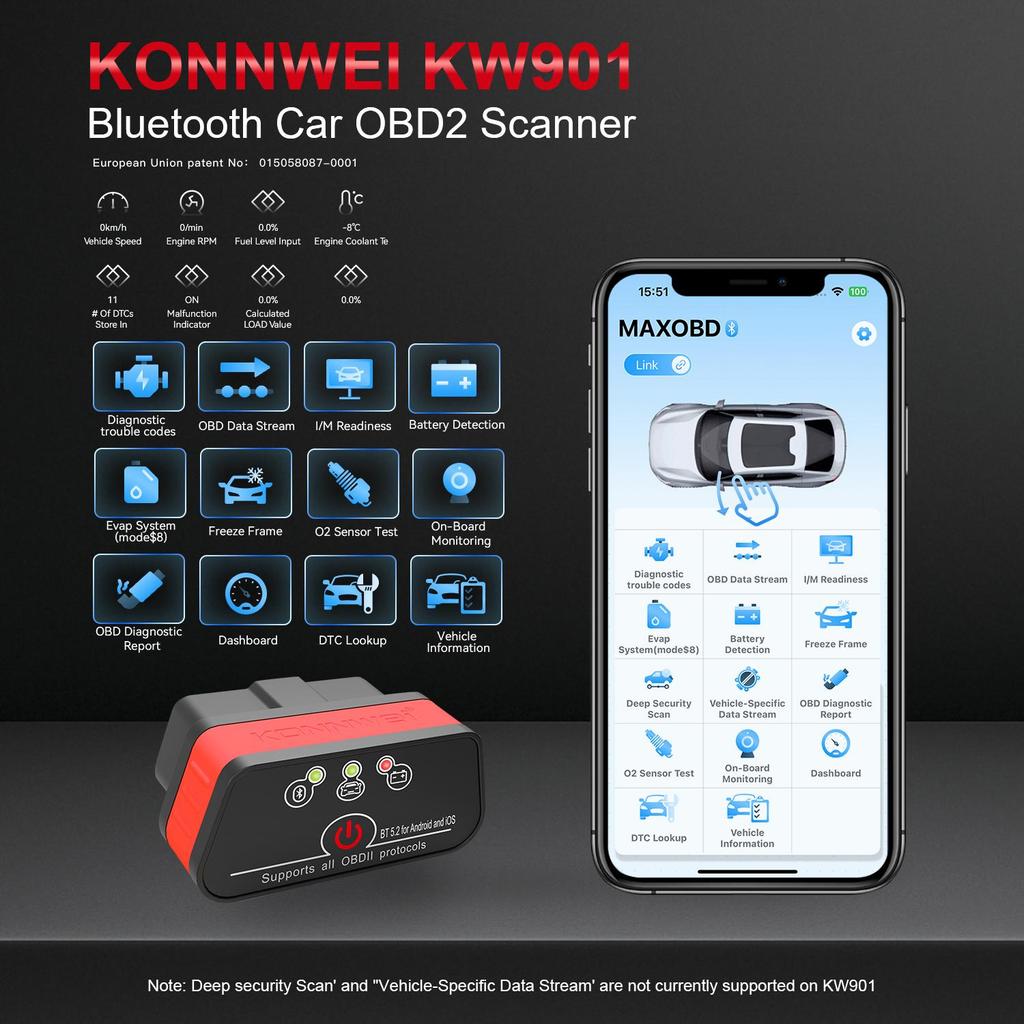

Functions:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning. (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light)
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
OBD-II protocols supported:
SAE J1850 PWM(41.6 Kbaud)
SAE J1850 VPW(10.4 Kbaud)
ISO9141-2(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(fast init,10.4 Kbaud)
ISO15765-4 CAN(11bit ID,500 Kbaud)
ISO15765-4 CAN(29bit ID,500 Kbaud)
ISO15765-4 CAN(11bit ID,250 Kbaud)
ISO15765-4 CAN(29bit ID,250 Kbaud)
SAE J1939 CAN(29bit ID,250* Kbaud)
Product Packing

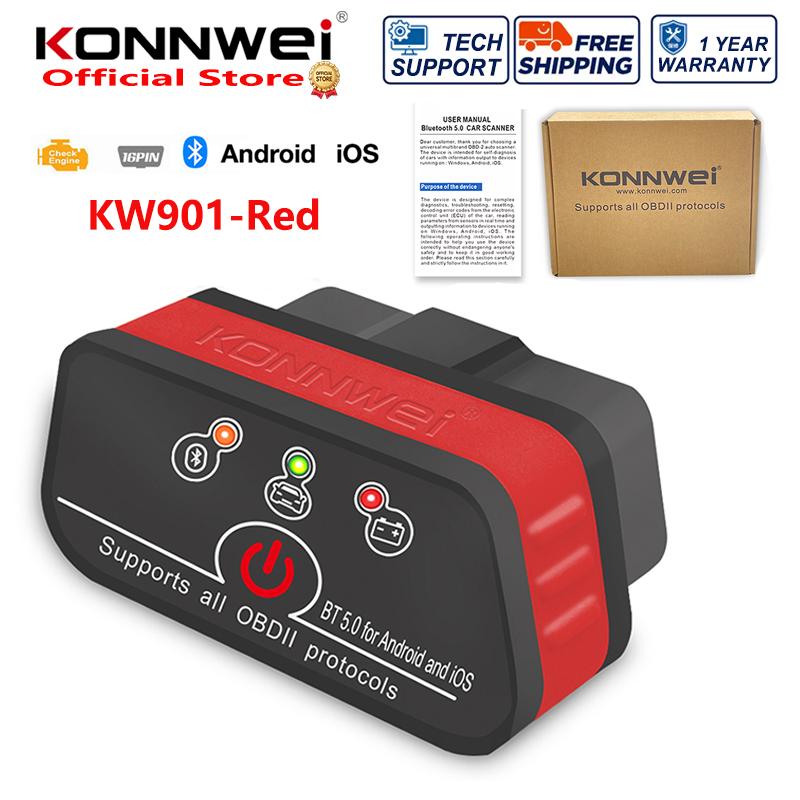

1pc x KONNWEI KW901 BT5.0 ELM327 Diagnostic Interface
Since 2006, We have been a high-tech enterprise specializing in the R&D, production and sales of automotive OBD2 scanners, car battery testers, full-system automotive scanners and other automotive electronic products. Our factory has its own R&D team, capable of providing customers with brand customization and developing new products. We have always adhered to the tenet of "providing customers with the most satisfactory products and services" and are committed to offering KONNWEI's technologies and services to the world with an innovative and pragmatic philosophy.
