Straight Panel Socket 16A 5P 400V Power Quick-Connect IP54

INNOLINQ straight panel socket 16A 5P 400V QUICK-CONNECT with grounding and IP54 cover

Very durable, providing excellent protection socket with grounding and cover intended for panel mounting (e.g. in distribution boards, boxes).

The 16A socket has been designed for outdoor use as well as for use inside buildings. Thanks to increased mechanical resistance, the panel socket is resistant to impact, damage, and pressure.IP54 tightness ensures protection against the ingress of dust, dirt, and sand, as well as waterproofness.

Sockets and plugs with covers will find a wide range of applications in the most demanding conditions. They can be used both indoors and outdoors: on construction sites; in industry; on ships; in factories; in workshops; on farms; in gardens, parks or stage installations.

• Product type: straight panel socket

• Rated current: 16A

• Rated voltage: 200/346 - 240/415 V~

• Frequency: 50/60 Hz

• Number of poles: 5P

• Pole types: 3P+N+PE

• Protection degree: IP54

• Housing material: polyamide

• Contacts: brass

• Position of protective contact: 6 h

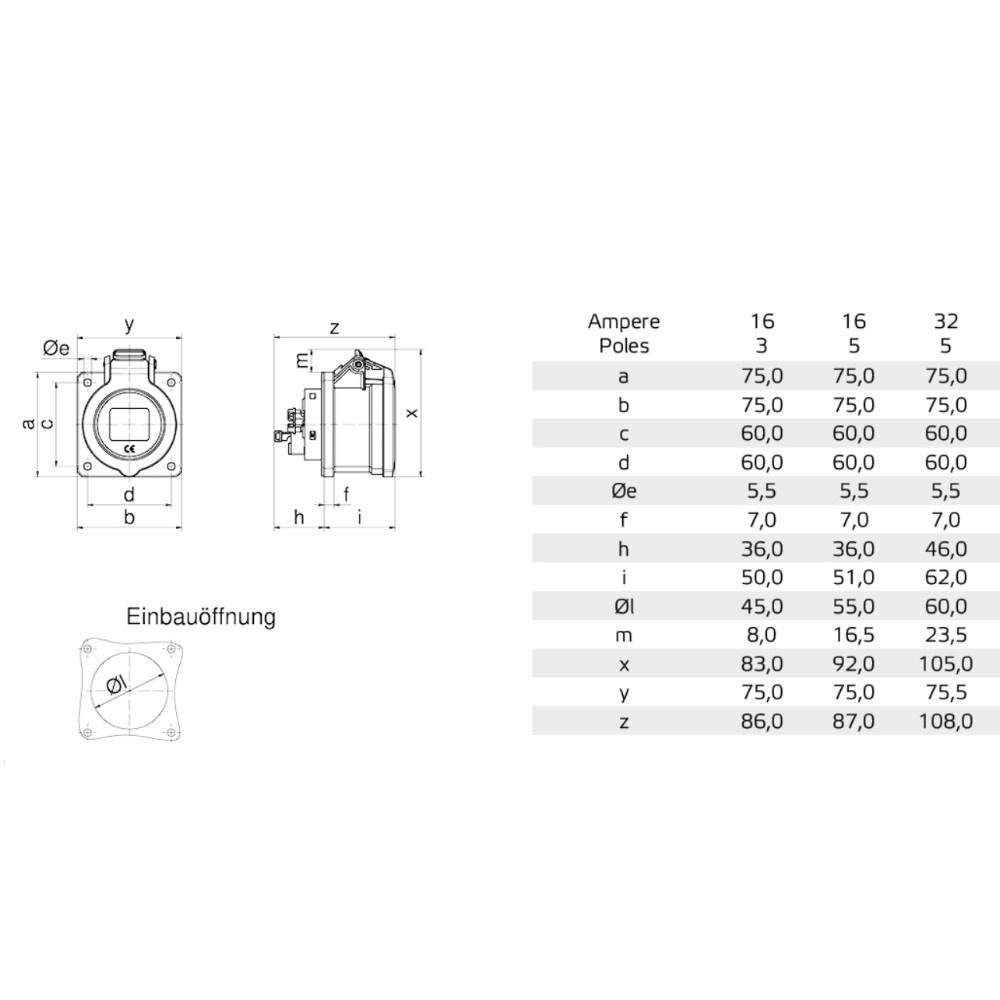

• Dimensions: 75 x 87 x 92 mm

• Mounting hole spacing: 60 x 60 mm

• Connection system: Quick-Connect, screwless spring terminals with KONTEX-ULTRA contact

• Maximum wire cross-section: 4 mm2

• Color:red cover RAL 3000, grey housing RAL 7035

• Manufacturer's code: 1320011

• Manufacturer: Bals
