Reversing Kit Renault Trafic Opel Vivaro Fiat Ahd

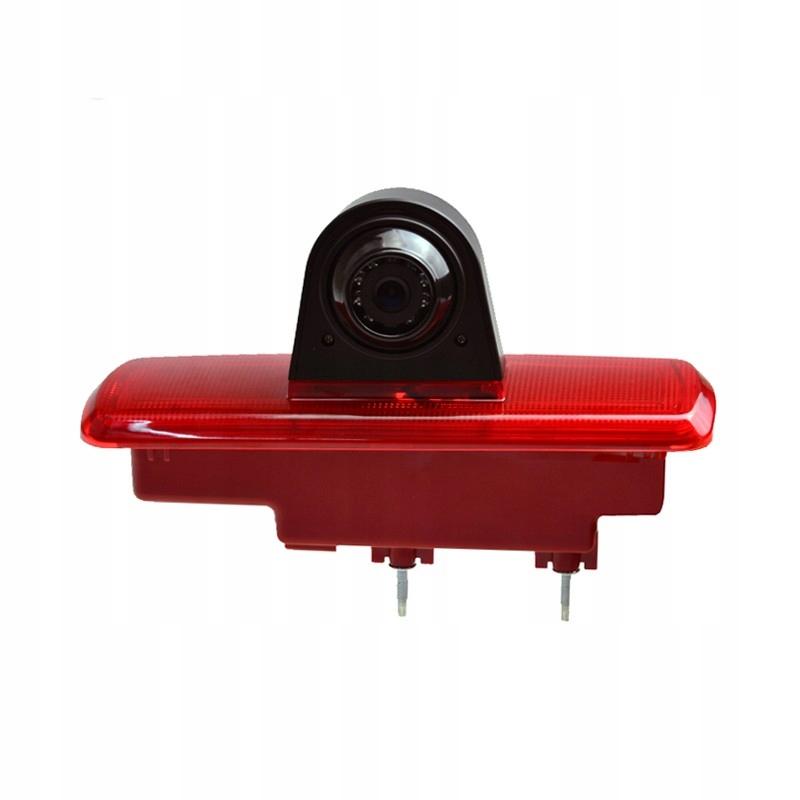

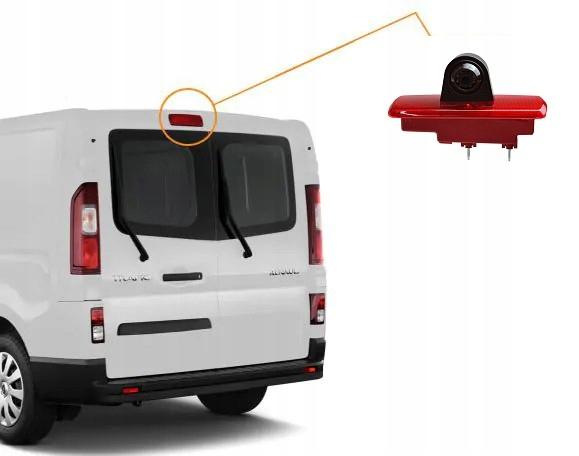

Reversing set consisting of a free-standing monitor with a diagonal of 7' and a high-resolution reversing camera (AHD), which guarantees a very good quality image. The camera is installed in the brake light of the following cars:

• FIAT Talento 2016-

• NISSAN NV300 2016-

• OPEL Vivaro 2014-

• RENAULT Trafic 2014-

Furthermore, and what is very important, the camera is one whole with the entire body, which significantly affects its strength and reliability.

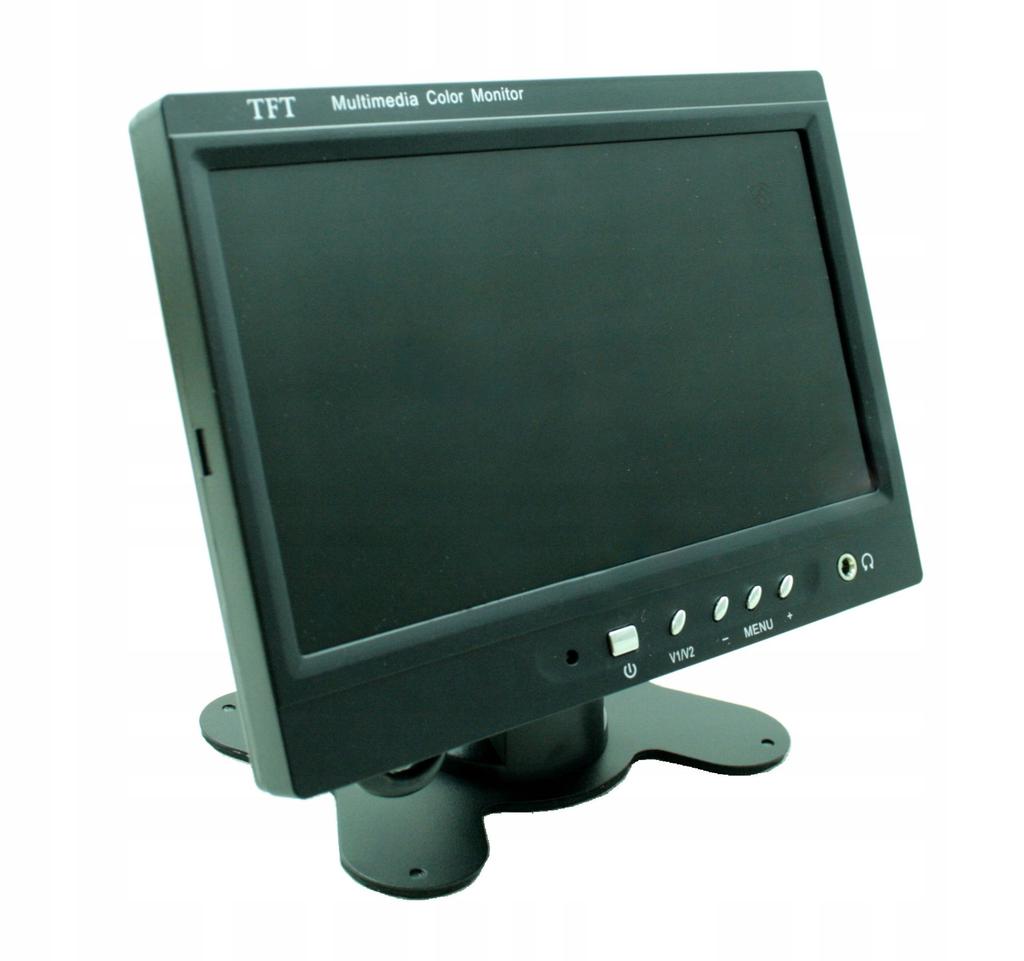

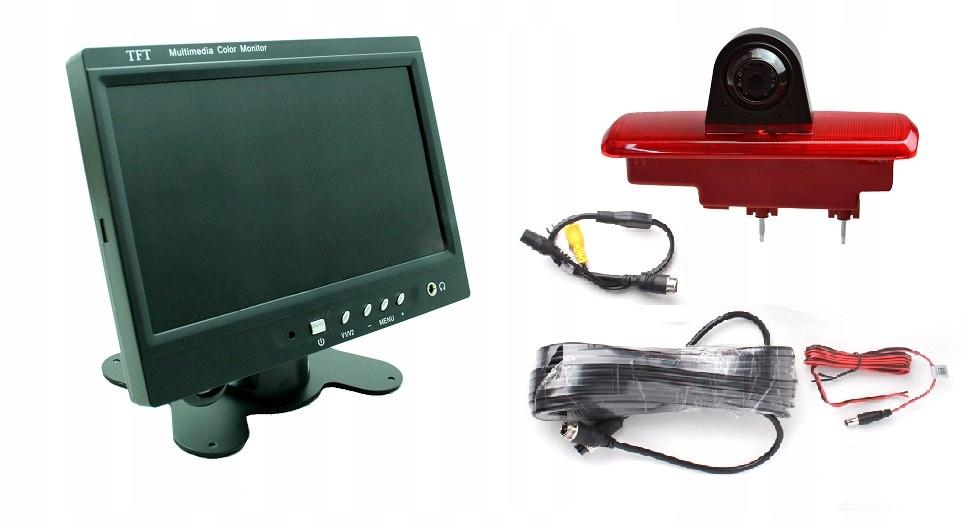

• 7' monitor

• reversing camera

• 10m video cable (screwed type F-M S-video)

• 2m M-DC power cable with fuse

• F-S-Video screwed connector / F-DC + F-RCA

• M-RCA connector - M-RCA

• TV system: PAL / NTSC (auto)

• Supported camera standards: CVBS (analog cameras), AHD 720p/1080p (high definition cameras)

• Display size: 7"

• Resolution: 1024 x 800

• Aspect ratio: 4:3 / 16:9 (selectable)

• Contrast: 500:1

• Brightness: 450 cd/m2

• Inputs: 2 x S-Video (SVHS)

• Power supply: DC 12-24V

• Power consumption: approx. 5W

• Camera options: Mirror function, Electronic distance scale, Adjustment, On-Screen Menu, Image Rotation, Remote Control, Brightness and Contrast Adjustment, Timer 0 ~ 240min

• Operating Temperature: -20 ~ +70

• Dimensions: 172mm x 125mm x 23mm

• TV System: NTSC

• Power Consumption: 335 mW

• Camera Options: Mirror Function, Electronic Distance Scale

• Minimum Illumination: 0.3 Lux

• Operating Temperature: -30 ~ +80

• Power Supply: DC 12V

• Viewing Angle: 170°

• Resolution: 1920 x 1080 (AHD)

• Transducer: H66, color 1080p Sensor

• Water resistance: IP69K
