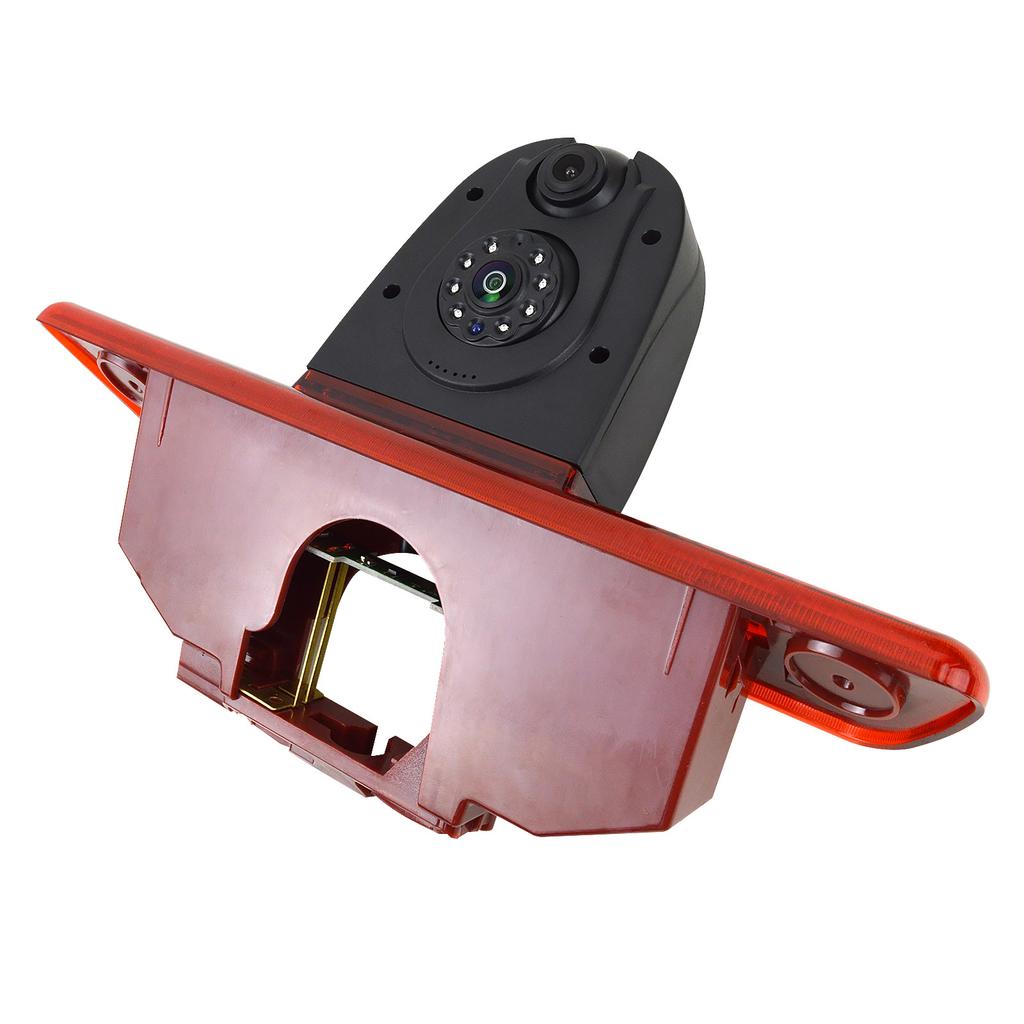

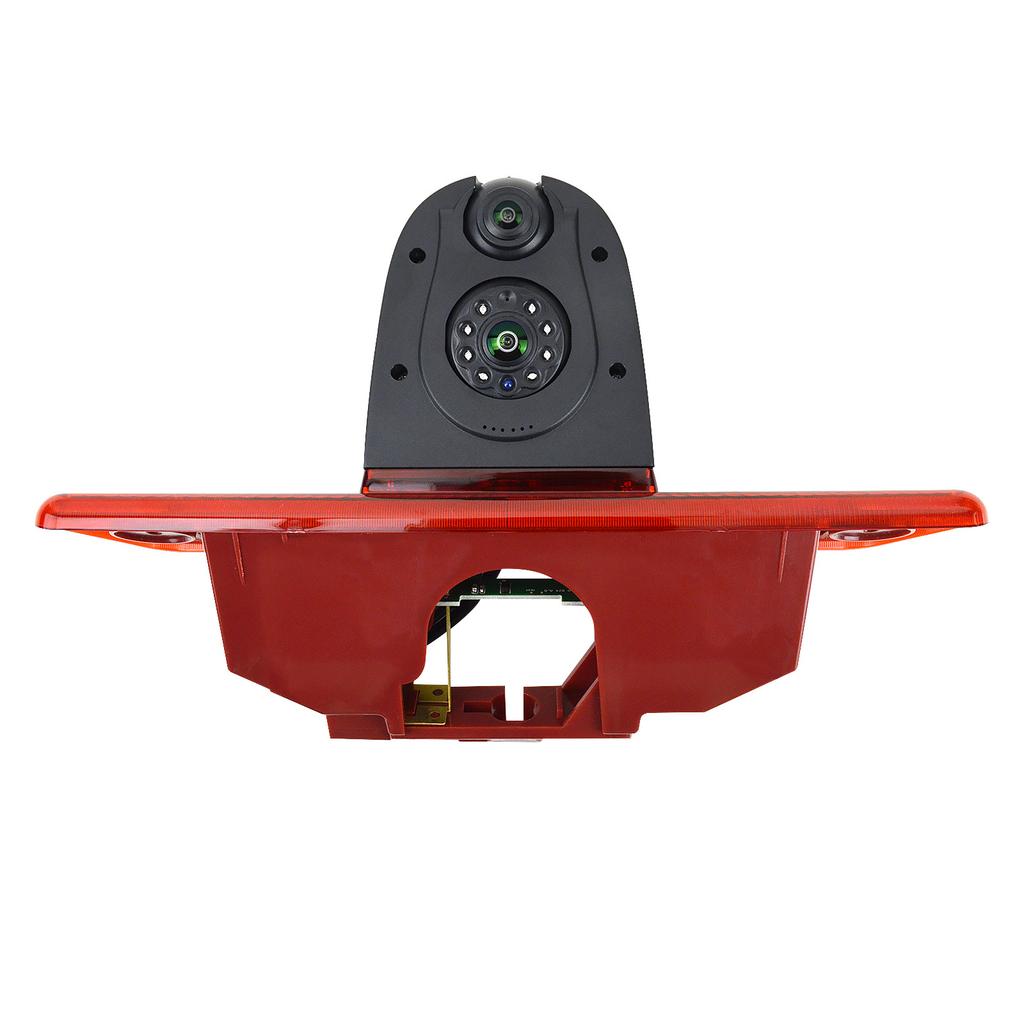

Double reversing camera built into the STOP lamp cover for FIAT DUCATO CITROEN JUMPER PEUGEOT BOXER
• FIAT DUCATO
• CITROEN JUMPER
• PEUGEOT BOXER
• 90-degree camera for viewing backwards, e.g., instead of a mirror when driving forward.
• 120-degree reversing camera directed more downwards for parking, equipped with IR infrared LEDs.
The cameras can operate in the CVBS NTSC system for older monitors or in the AHD system with a resolution of 1080P for monitors supporting this technology.
The function is switched using a loop.
The camera is mounted in the brake light - use the original lamp - replace the lens with a new one with a camera module.
Standard cameras equipped with a brake light in LED technology may cause additional problems during installation - for example, the brake light may not turn off completely or may flash, so replacing the lens itself is much safer, because the light remains original - factory.
The set includes a double 15-meter 4-PIN cable. If your monitor has RCA connectors, you should purchase additional adapters available at our offer.
• Sensor: 1/3" CMOS
• Lens: f: 2.8mm
• Tightness: IP68
• Vibration resistance: 10G
• Connector: 4-PIN
• System: CVBS NTSC/AHD1080P
• Viewing angle: 90/120 degrees
• Built-in IR: 6 pcs
• B.L.C: Back light Compensation (Auto)
• White balance: Auto White Balance (Auto)
• Power supply DC 12V (+/-10%) <3W
Depending on the monitor used, it is possible to view one or the other camera (switched using the buttons on the monitor), but usually it is permanently on 90-degree camera view for viewing as if in a mirror.
If reverse gear control is connected to the monitor, the monitor will automatically switch to a wide-angle rearview camera when reversing.
Split-screen monitors are also available that display both cameras simultaneously. In such a monitor, you can also use buttons to change the view to individual cameras and control automatic switching using reverse gear.
Very simple camera installation. Simply remove the factory brake light cover and replace it with a new one with a camera module, connect the 4-PIN cable (video and power) to the monitor. If the monitor There is no 4-PIN connector, an RCA reduction should be used.
In rare cases, in some vehicles, the power supply to the reversing light is not stable - there are signals from the computer testing the bulb, which may cause interference in the image or no image at all.
In such cases, an anti-interference filter should be used or, in extreme cases, a relay supplying clean voltage from another point of the installation.
