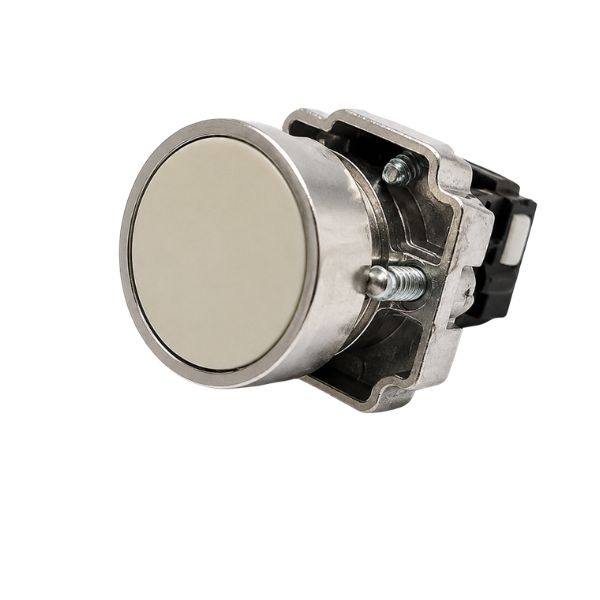

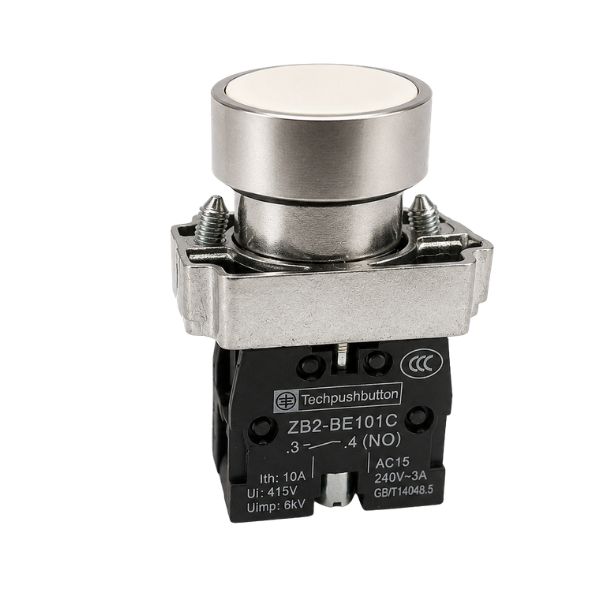

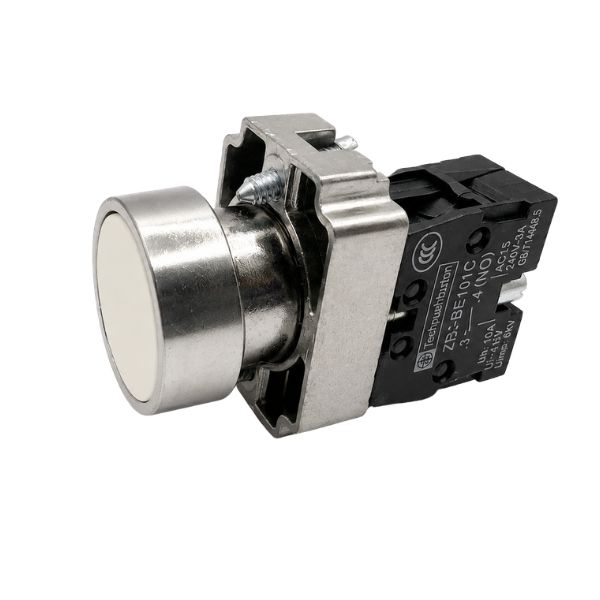

Elevator Button - White 1 X No (Metal)

Elevator Button - White 1 x NO (Metal)

Looking for reliable spare parts for the machines in your workshop? We present the metal control button in white with 1 x NO (Normally Open) contact. This high-quality component is designed, among others, for for car lifts, tire changers, wheel balancers and other professional devices from the offer of azwarsztat.pl.

A solid metal collar and a precisely made mechanism guarantee reliability, long life and resistance to the rigors of intensive, everyday work in a workshop environment.

The Techpushbutton ZB2-BE101C series button was manufactured in accordance with the GB/T14048.5 standard. It has the following electrical characteristics:

• Contact Configuration: 1 x NO (.3 - .4 Normally Open)

• Rated Thermal Current (Ith): 10A

• Rated Insulation Voltage (Ui): 415V

• Rated Impulse Withstand Voltage (Uimp): 6kV

• Utilization Category (AC15): 240V ~ 3A

• Button Element Color: White

• Body type: Metal (damage-resistant)

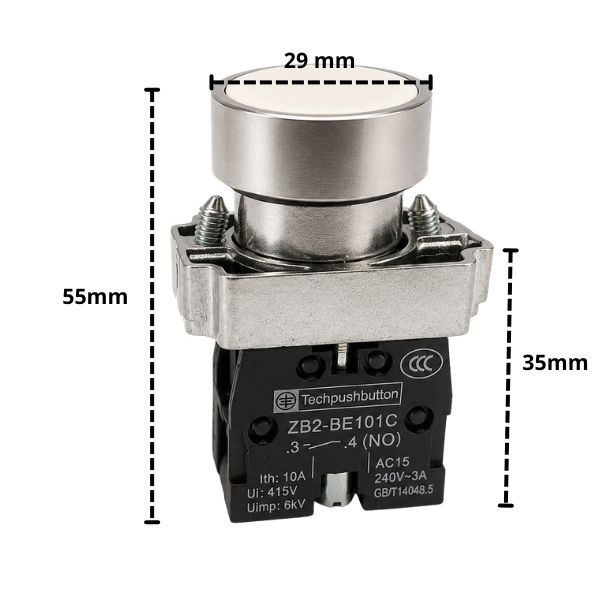

Dimensions (as per attached diagram)

• Total button height: 55 mm

• Control head diameter: 29 mm

• Body height with contacts: 35 mm

By choosing this product, you are investing in the safety and continuity of operation of your tire or mechanical service. Trust our many years of experience and equip your machinery with the best spare parts!
