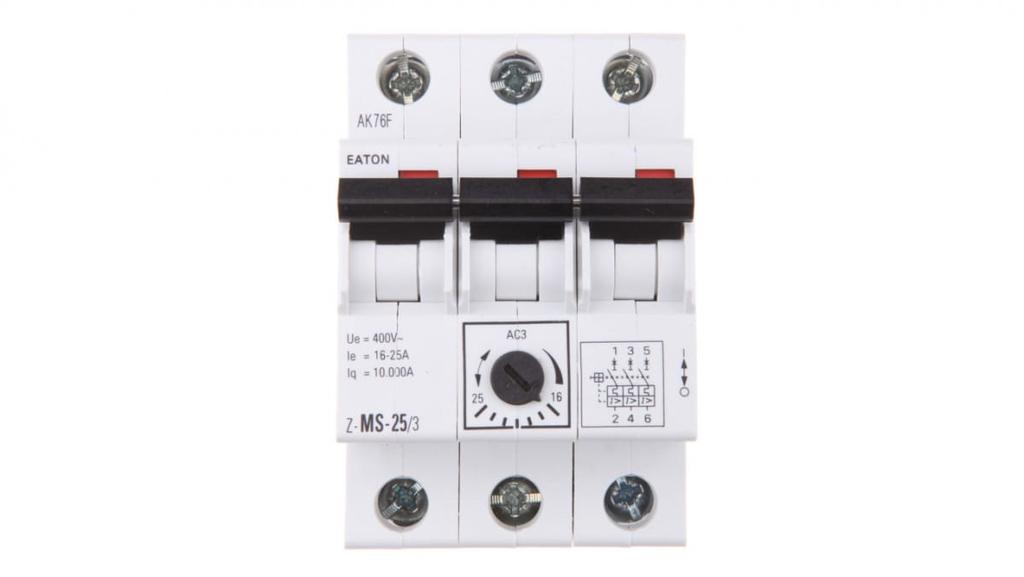

Motor Circuit Breaker 3P 11Kw 16-25A Z-Ms-25/3 248413

series: Z-MS

Protection degree (IP): IP20

Setting range of the instantaneous short-circuit release [A] to: 325

Setting range of the instantaneous short-circuit release [A] from: 250

Setting range of the overload release [A] to: 25

Setting range of the overload release [A] from: 16

Rated operating power at AC-3, 230 V [kW]: 0

Rated operating power at AC-3, 400 V [kW]: 11

Rated short-circuit breaking capacity Icu at 400 V, AC: 10

Rated continuous current Iu [A]: 20

CN: 85362010 Phase loss sensitivity: No Length: 90 EAN: 4015082484132 Manufacturer index: 248413 Number of poles: 3 PKWiU: 27.12.22.0 Type of main circuit connection: Screw connection Trigger method: Thermomagnetic Width: 80 Weight: 0.3800 Height: 60 With integrated auxiliary contact: No With integrated undervoltage release: No
