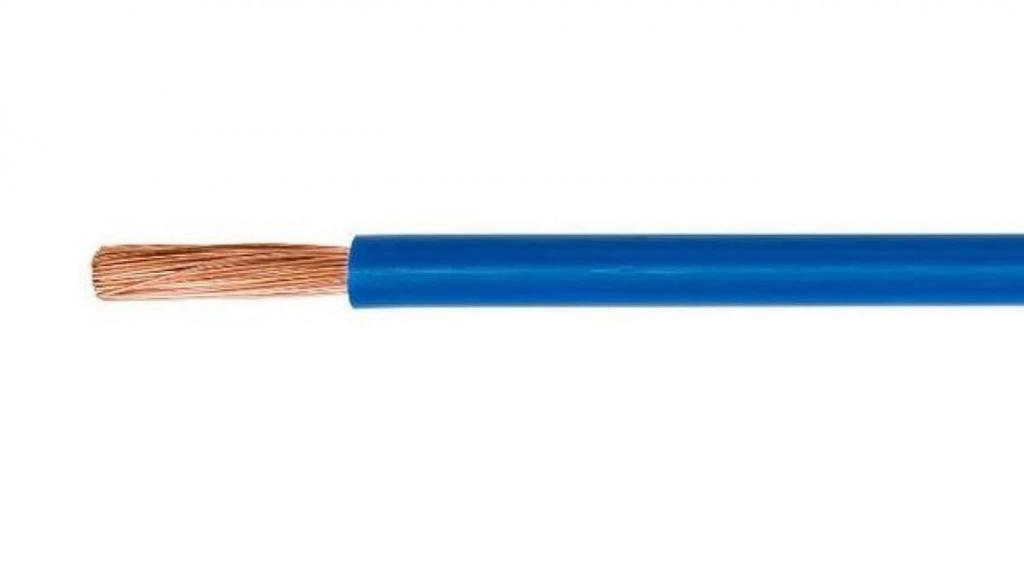

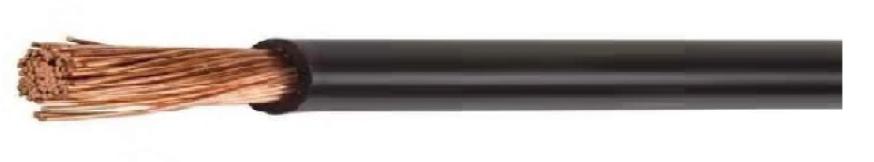

Installation Cable H07V-K (Lgy) 35 /Reel/

Permissible cable temperature for movable connections [°C] d: 70

Permissible cable temperature for movable connections [°C] o: 5

Permissible temperature of permanently installed cable [°C] up to: 80

Permissible temperature of permanently installed cable [°C] from: -30

Manufacturer's index: 4521012

Rated voltage U [V]: 750

Rated voltage U0 [V]: 450

Approximate outer diameter [mm]: 11.7000

Approximate cable weight [kg/km]: 399

Nominal conductor cross-section [mm2]: 35

CN: 85444995 Length: 100 Core insulation: PVC Core class: Class 5 = flexible Flame retardant: According to EN 60332-1-2 Series: H07V-K Width: 100 Height: 100
