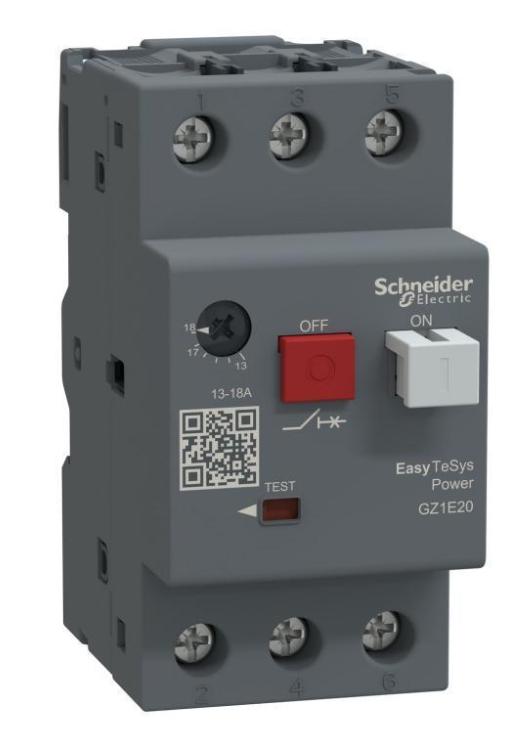

Motor Circuit Breaker 3P 7.5Kw 13-18A Easytesys Power, Pushbutton Drive, Box Terminals Gz1E20

Manufacturer's index: GZ1E20

series: Easy TeSys

Degree of protection (IP): IP20

Setting range of the instantaneous short-circuit release [A] to: 234

Setting range of the instantaneous short-circuit release [A] from: 234

Setting range of the overload release [A] to: 18

Setting range of the overload release [A] from: 13

Rated operating power at AC-3, 230 V [kW]: 4

Rated operating power at AC-3, 400 V [kW]: 7.5000

Rated short-circuit breaking capacity Icu at 400 V, AC: 10

Rated continuous current Iu [A]: 18

CN: 85362010 Phase loss sensitivity: No Length: 90 EAN: 3606480567889 Number of poles: 3 PKWiU: 27.12.22.0 Type of main circuit connection: Screw connection Triggering method: Thermomagnetic Width: 85 Weight: 0.0900 Height: 45 With integrated auxiliary contact: No With integrated undervoltage release: No
