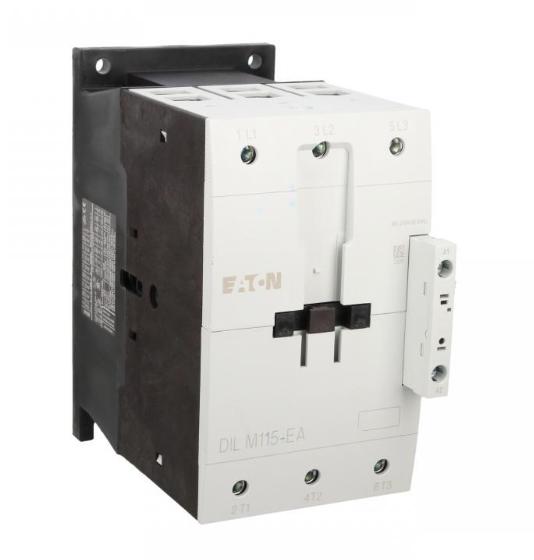

Power Contactor 115A 3P 230V Ac 0Z 0R Dilm115-Ea(Rac240) 189925

Manufacturer's index: 189925

series: DILM

Rated operating power at AC-3, 400 V [kW]: 55

Rated control voltage Us for AC 50 Hz [V] up to: 230

Rated control voltage Us for AC 50 Hz [V] from: 230

Rated control voltage Us for AC 60 Hz [V] up to: 230

Rated control voltage Us for AC 60 Hz [V] from: 230

Rated operational current Ie for AC-1, 400 V [A]: 160

Rated operational current Ie at AC-3, 400 V [A]: 115

CN: 85364900 Length: 185 EAN: 4015081879212 Number of main break contacts: 0 Number of main make contacts: 3 Number of auxiliary break contacts: 0 Number of auxiliary make contacts: 0 PKWiU: 27.12.24.0 Type of control voltage: AC Type of main circuit connection: Connection screw Width: 175 Weight: 2.3600 Modular version: No Height: 100
