ANENJI 51.2V 100AH LiFePo4 Battery A Grade Cells 5KWH BMS 6.2KW 48V Hybrid Solar Inverter AC 220VAC Pure Sine 120A PV 60-500VDC

The actual shipment is the ANJ-6200W-48V-W model, which is an upgraded version of ANJ-6200W-48V-WIFI. The maximum PV input can reach 9000W and comes with 2 AC output interfaces.

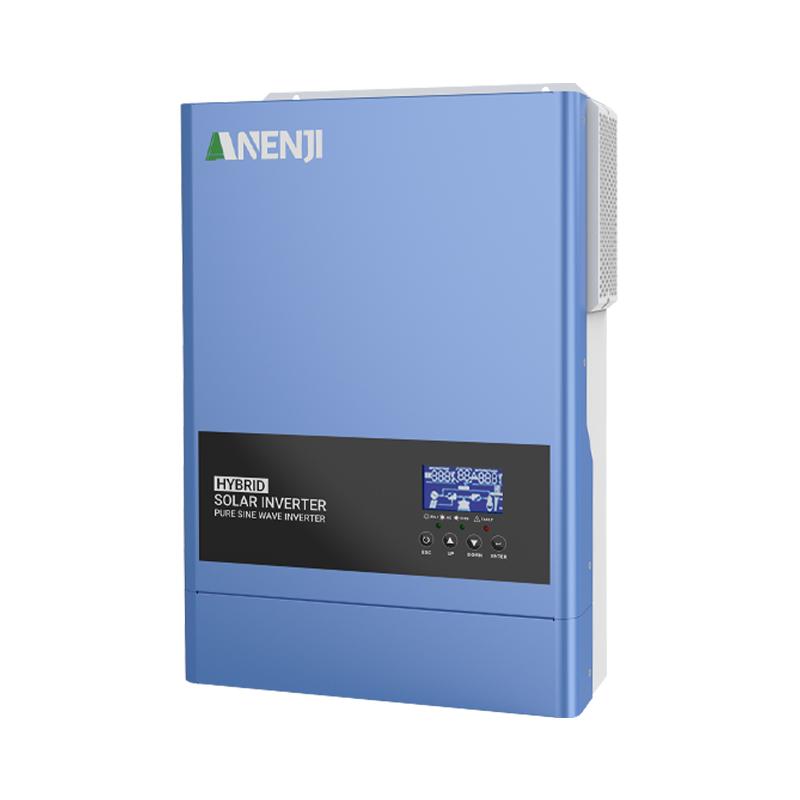

ANJ-6200W-48V-W:

Features:

1.Support works without battery

2.Support lithium battery activation function

3.PV input voltage 60-500VDC

4.120A MPPT solar charge controller

5.With WiFi APP controller

6.RS485 Communication interface

7.Support PACE PYLON Growwatt communication protocols BMS

8.built-in WiFi module

9.on grid+off grid

Package:

solar inverter*1

manual*1

ANJ-51.2V-100AH Features：

1.LCD monitor the energy storage power data and operating status.

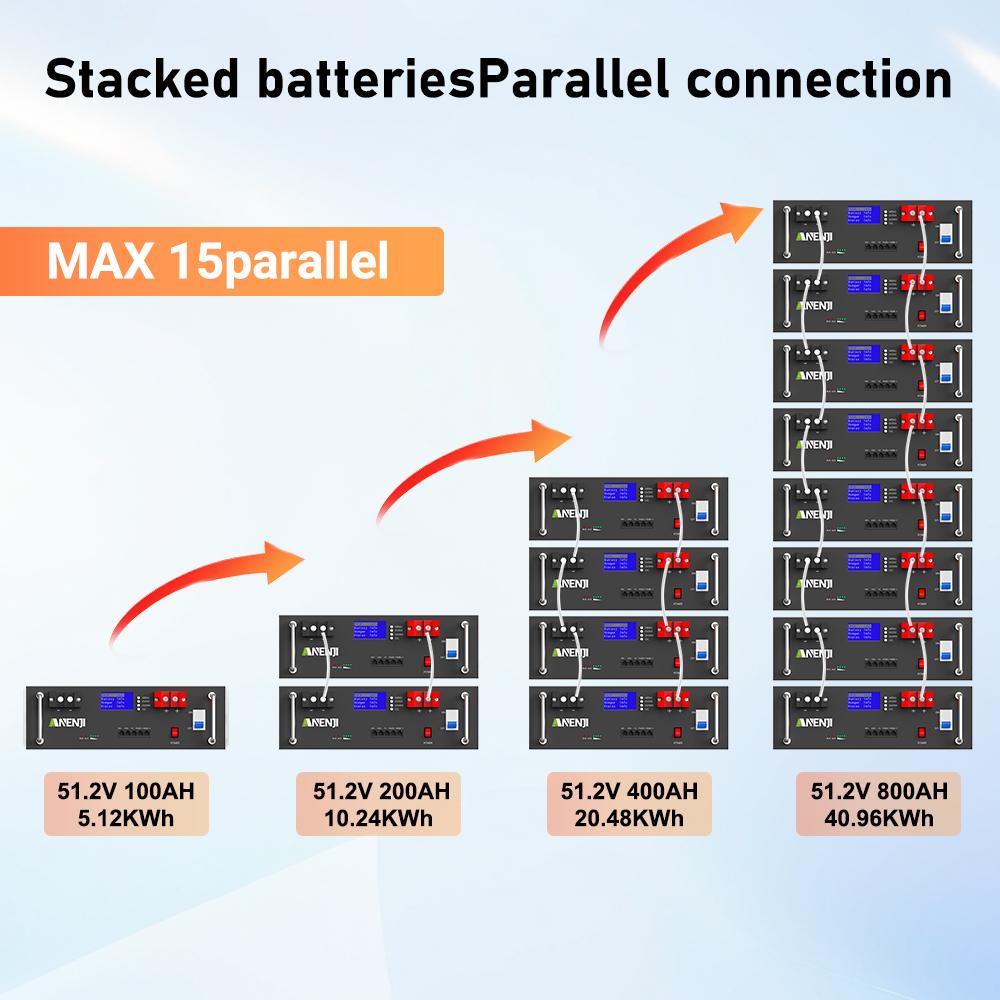

2.High-quality LiFePO4 battery, safety, deep cycle and long lifespan. 3.Product round edge be more safe, avoid accident collision. 4.External main switch to reduce product power consumption and improve safety. 5.Wall brackets, which can meet the installation and use of different place. 6.BMS built inside, over-voltage, over-load, over-temperature protection, etc. 7.Compatible, can be connected to different types of loads within the voltage range. 8.Support up to 15 modules in parallel

Maximum charge current: 120A Maximum PV Array Open Circuit Voltage: 500VDC Storage Temprature: -15℃-60℃ Surge Power: 6500VA communication interface: RS485/WIFI Brand Name: ANENJI Rated Power: 6500VA/6200W Overcharge Protection: 61VDC Operation Temperature: -10℃-55℃ Output Frequency: 50/60Hz Acceptable Voltage Range: 170-280VAC(For personal Computer);90-280VAC(For Home Appliances) Frequency Range: 50/60HZ Auto sensing Humidity: Humidity 5% to 95% Relative Humidity (Non-condensing) Is Smart Device: Yes Output AC Voltage Regulati: 230VAC±5% Wave Form: Pure sine wave Dimension,D*W*H: 438x295x105mm Features: Supports working without batteries Maximum PV Array Power: 6500W MPPT Range operation Voltage: 60-500VDC Net Weight: 10kg Certification: CE Size: 43.8X29.5X10.5CM Output Current: 120A Model Number: ANJ-6200W-48V-W Transfer Time: 10ms (For Personal Computers) Battery Voltage: 45VDC Maximum Efficiency: 98% EU LVD Voltage: High voltage: Above 50Vac or 75Vdc Output Type: SINGLE Input Voltage: 230VAC Floating Charge Voltage: 54VDC Maximum Solar Charge Current: 120A Origin: Mainland China Weight: 10.5KG
