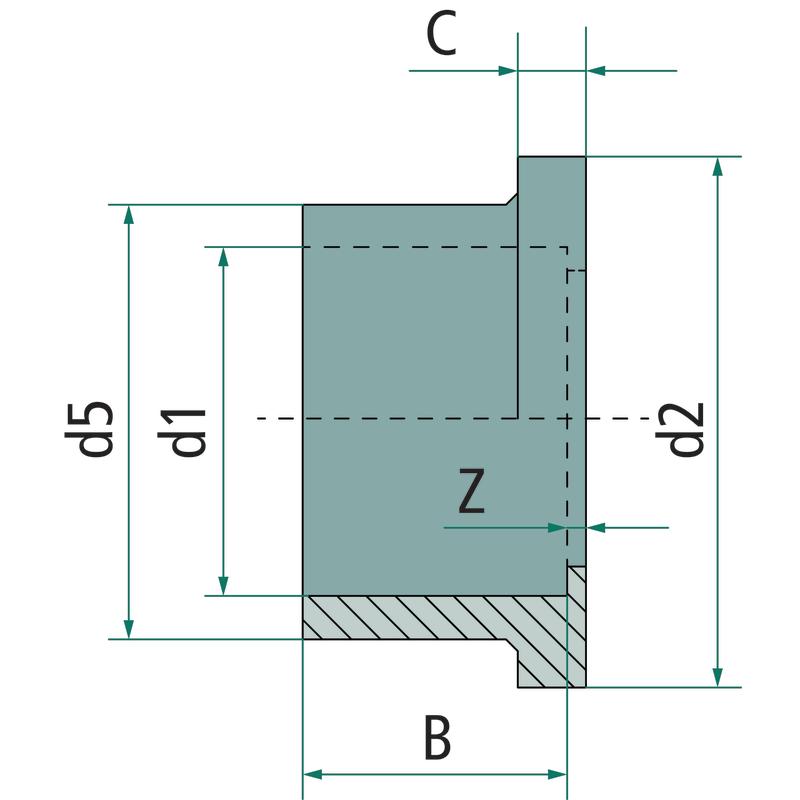

Sleeve with flange DN 200 outer diameter 230 inner diameter 200 for drip line

B (mm): 106

C (mm): 19

d1 (mm): 200

d2 (mm): 248

d5 (mm): 232

DN (mm): 200

Z (mm): 7

Flange diameter (mm): 248

Inner diameter (mm): 200

Article number: 40504050529 Comparison number: 04050529,4050529 Size: 230 mm
