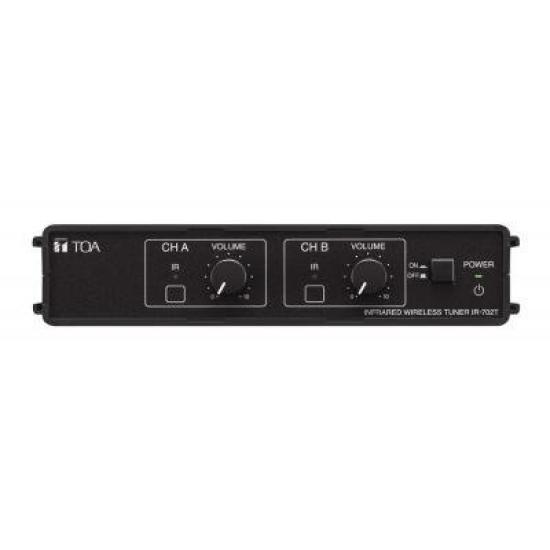

TOA Infrared Tuner 2ch IR-702T

This is a stationary infrared tuner with a fixed frequency that can receive two channels. It can be mounted in an EIA-compliant rack using separately sold rack mounting brackets. ●Manufacturer: TOA ●Model number: IR-702T ●Product name: Infrared tuner 2ch ●Power supply: AC100V 50/60Hz (uses AC adapter (included)) ●Power consumption: 15W or less ●Receiving frequency: Channel A: 3.100MHz / Channel B: 3.350MHz ●Receiving sensitivity: S/N ratio of 50dB or higher (40dBμV input, 1kHz modulation, ±4.8kHz deviation) ●S/N ratio: 61dB or higher (60dBμV input, ±4.8kHz deviation, A-curve ) ● Tone squelch frequency: 32.768kHz ●Receiver input: 75Ω BNC jack x 2 (Infrared receiver power supply DC24V, 2 terminals, total maximum 220mA) ●Output: Channels A & B: -10dB* (±4.8kHz deviation, maximum volume control) 600Ω ●Output: Electronically balanced 3-pole horn jack *Channel A can be switched to a mixing output. ●Frequency response: 100Hz~12kHz ●Operating temperature range: -10℃ to +50℃ ● Operating humidity range: 30%~85%RH ●Finish: Case: ABS resin, black (approximate Munsell N1.0 color) ●Dimensions: 210(W) x 44(H) x 210.9(D) mm ●Weight: 630g (main unit only) ●Accessories: AC adapter (cord length: DC side 1.8m)...1, power cord (2m)...1, cord with horn plug (1m)...1, color markers (6 colors)...1, rubber feet...4 ●Optional accessories: Rack mount bracket set: MB-WT3, MB-WT4 (for rack mounting in combination with IR-700D (sold separately))
