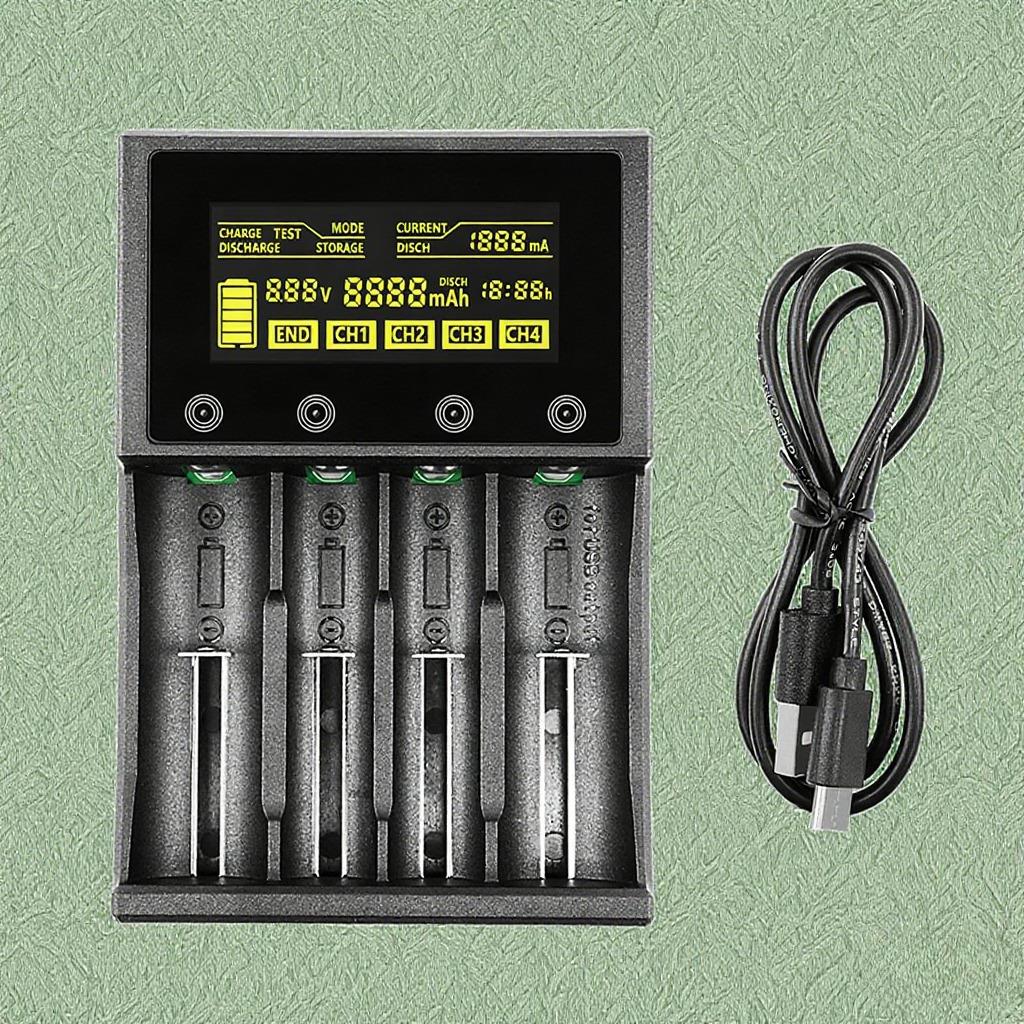

lii-M4S 4 Slots 18650 Battery Smart Charger LCD Display Battery Charger Touch Control for 18650 18490 18350 17670 17500 16340 14500 10440 AA AAA C 26

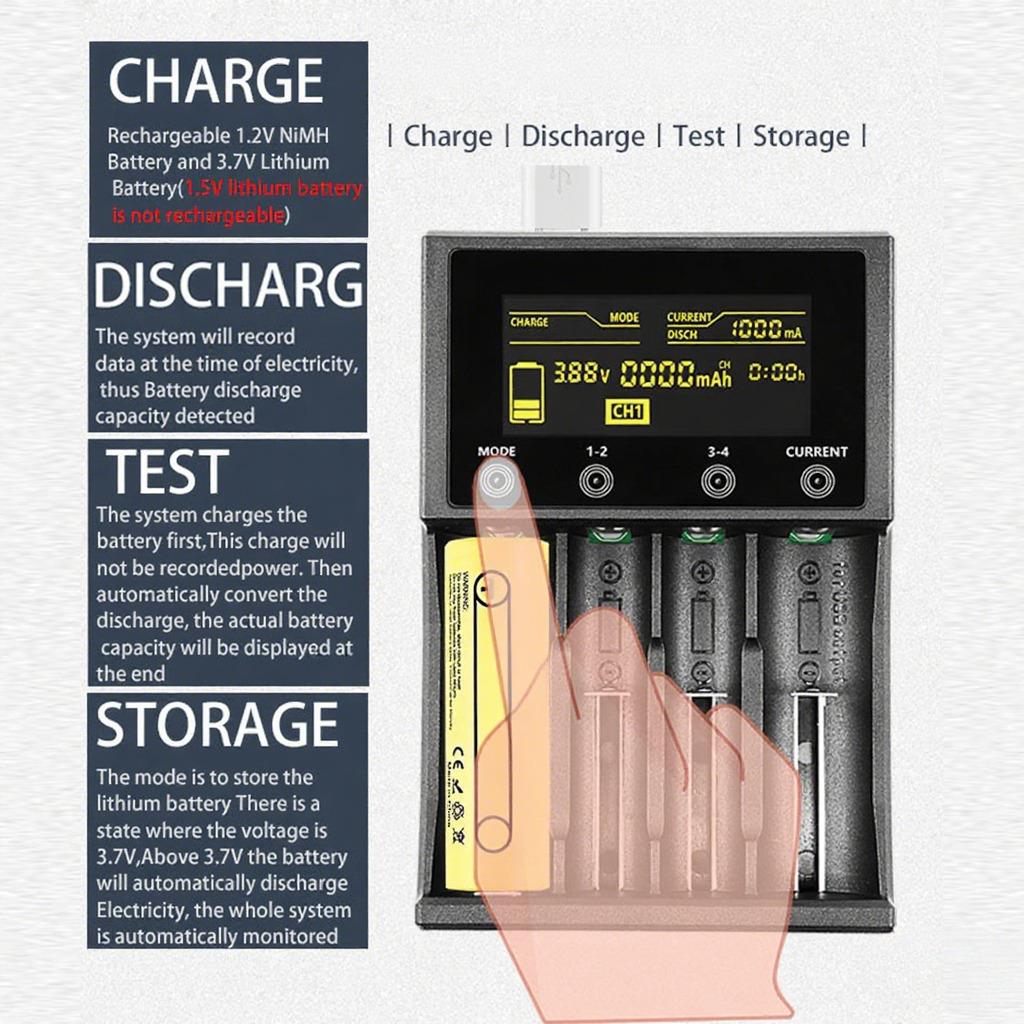

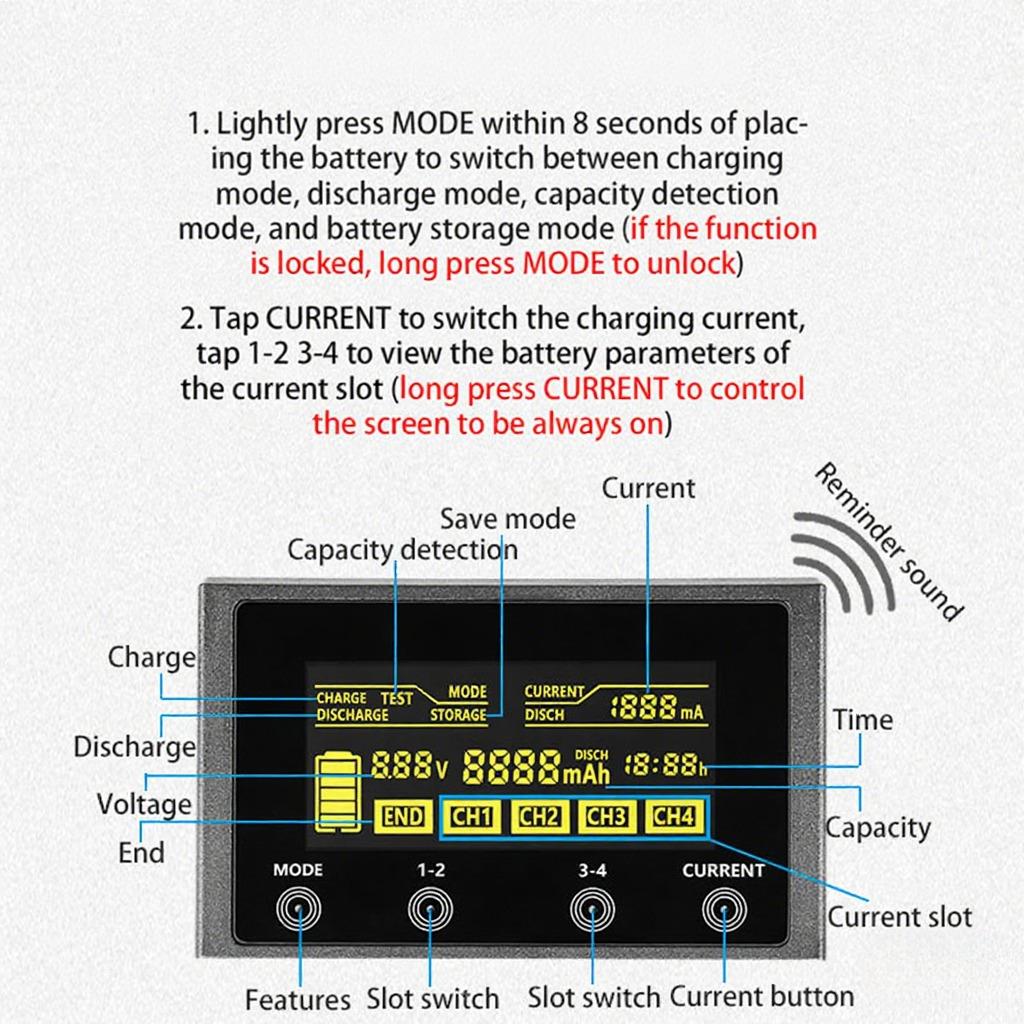

lii-M4S 4 Slots 18650 Battery Smart Charger LCD Display Battery Charger Touch Control for 18650 18490 18350 17670 17500 16340 14500 10440 AA AAA C 26 4 Working Modes: 4 working modes include CHARGE charging mode, DISCHARGE discharging mode, TEST capacity detection mode, STORAGE battery storage mode, can work in separate channels at the same time. Usually, long press the MODE touch point and then short press to switch between these 4 modes. Touch Control Function: The charger has 4 touch points, mode selection point (MODE), channel 1-2 query point (1-2), channel 3-4 query point (3-4), current size selection point (CURRENT), this The 4 touch points have the function of lighting the LCD backlight at the same time, which is simple and convenient to use. Current Selection: It supports 4 optional charging current - 300mA*4/500mA*4/700mA*2/1000mA*2; and 2 discharge current - 250mA*4/500mA*4. The charger can change independent charging or different current selection according to the corresponding touch point function, as well as mixed charging of different batteries, which is easy to operate. Compatibility: Suitable for Li-ion/Ni-MH batteries - 18650, 18490, 18350, 17670, 17500, 16340, 14500, 10440, AA, AAA, C, 26650, 26350, 25500, 21700. Adopts TYPE-C interface DC5.0V input, and supports standard 5V/1000 mA USB output function (only available in channel 4). Multiple Protections: A variety of protection functions included over-charge protection, over-discharge protection, short circuit protection, 0V voltage activation function, 1.65V-2.2V can not charge function, intelligent identification of bad battery and reverse battery detection protection. mode;Usually, long press the MODE touch point to switch between these four modes: first tap the 1-2 or 3-4 touch point to select the channel, then long press MODE to change the original mode, tap MODE to select the desired mode, press CURRENT The touch point changes the current size, and it enters the working state without any action for 8 seconds after selection, which is easy to operate; 2. 1-2 touch points: corresponding to the 1st and 2nd channels; continuous touch can take turns to select and view the 1st and 2nd channel data; 3. 3-4 touch points: corresponding to the 3rd and 4th channels; continuous touch can take turns to select and view the 3rd and 4th channel data; 4. CURRENT touch point: current selection; a total of four gears: 300mA/500mA/700mA/1000mA; long touch this point can control the LCD screen to display normally;In the working state, you can tap(1-2, 3-4) touch points to view the corresponding channel current(mA)/Capacity(mAh)/Voltage(V)/Time(h) and other data reference values. Specifications:Brand Name: Model Number: Lii-M4S Type: Battery Charger Input Voltage: DC 5V/2A Lithium Battery Charging Current: 4.20V 300mA*4/ 500mA*4/ 700mA*2/ 1000m A*2NiMH Battery Charging Current: 1.48V 300mA*4/ 500mA*4/ 700mA*2/ 1000m A*2USB Output: 5V---1000mA Note: The higher voltage lithium battery must be connected to the 4th channel, the USB output will be effective, and the 5V electronic products can be powered at this time. TEST Discharge Current: 500mA Termination Mode: Intelligent voltage monitoring Color: Black Main Item Size: approx. 14.6*10*3.3cm/5.74*3.93*1.30in Main Item Weight: 203g/7.16oz Package Size: 15.8*12.8*4.4cm/6.22*5.04*1.73in Package Weight: 269g/9.48oz Package List:1* Battery Charger1* USB Cable1* User Manual(Chinese&English&Russia)
