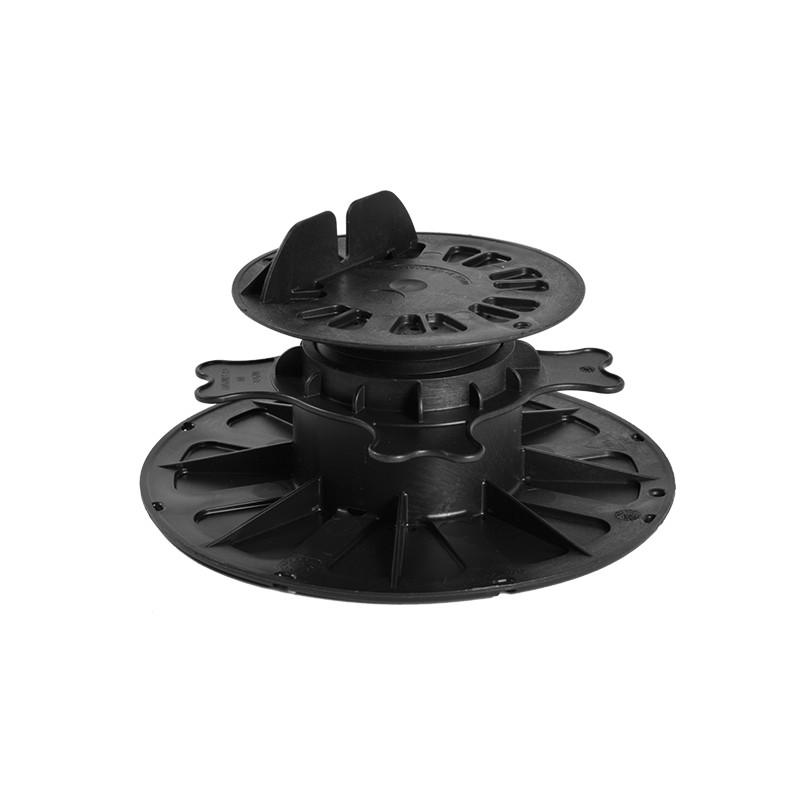

Adjustable bracket for joists, terraces IPS 70-120 SLBA70120

Terrace bracket for joists, adjustable 70-120 mm Description Support with smooth height adjustment of 70-120 mm for wooden structures, terrace boards, aluminum. The support can be used directly, without additional pads, on naturally or mechanically hardened substrates, compacted aggregate, and on various types of insulating coatings and roofing membranes.

The lower foot of the support has a diameter of 200 mm. It is 100% enclosed and has a hole cut in the center. Thanks to these advantages, the support does not sink into the substrate and does not damage the insulating coatings.

The top plate has a diameter of 130 mm. Dimensions: Foot diameter: 200 mm Top plate diameter: 130 mm Minimum support height: 70 mm Maximum support height: 120 mm Support height adjustment range: 50 mm Leaf height: 25 mm ​​ DESCRIPTION ART.

NO. PACKAGING PALLET Height adjustment in mm pcs. Weight / kg width/length/height in cm packaging type pcs. 70 – 120 SLBA70120 36 13.7 60/40/50 cardboard 576 Benefits of using adjustable supports: quick, simple and cheap assembly of the supporting structure easy floor leveling can be used on surfaces with an inclination of up to 7% smooth adjustment of the support height (11-15 mm) possibility of running installations under the floor reduced floor weight free water drainage constant air circulation protection against frost resistance to weather conditions Technical information: load capacity 1-1.2 t / bracket material: reinforced polypropylene (PP) resistance to acids and alkalis UV resistance temperature resistance from -35*C to +60*C high resistance to impacts and cracks optimal pressure distribution 100% recyclable material

Color: nan Size: 120 mm
