Klimas Wkręt-Met Concrete Plugs 8 X 60 8 Pcs

Expansion plug with countersunk head screw - KRX

Original product of the renowned Klimas Wkręt-Met® brand!

• Plug size: 8 x 50 mm

• Screw size:5 x 60 mm

• Quantity in the package: 8 pcs (blister)

• Index:BKR-085060

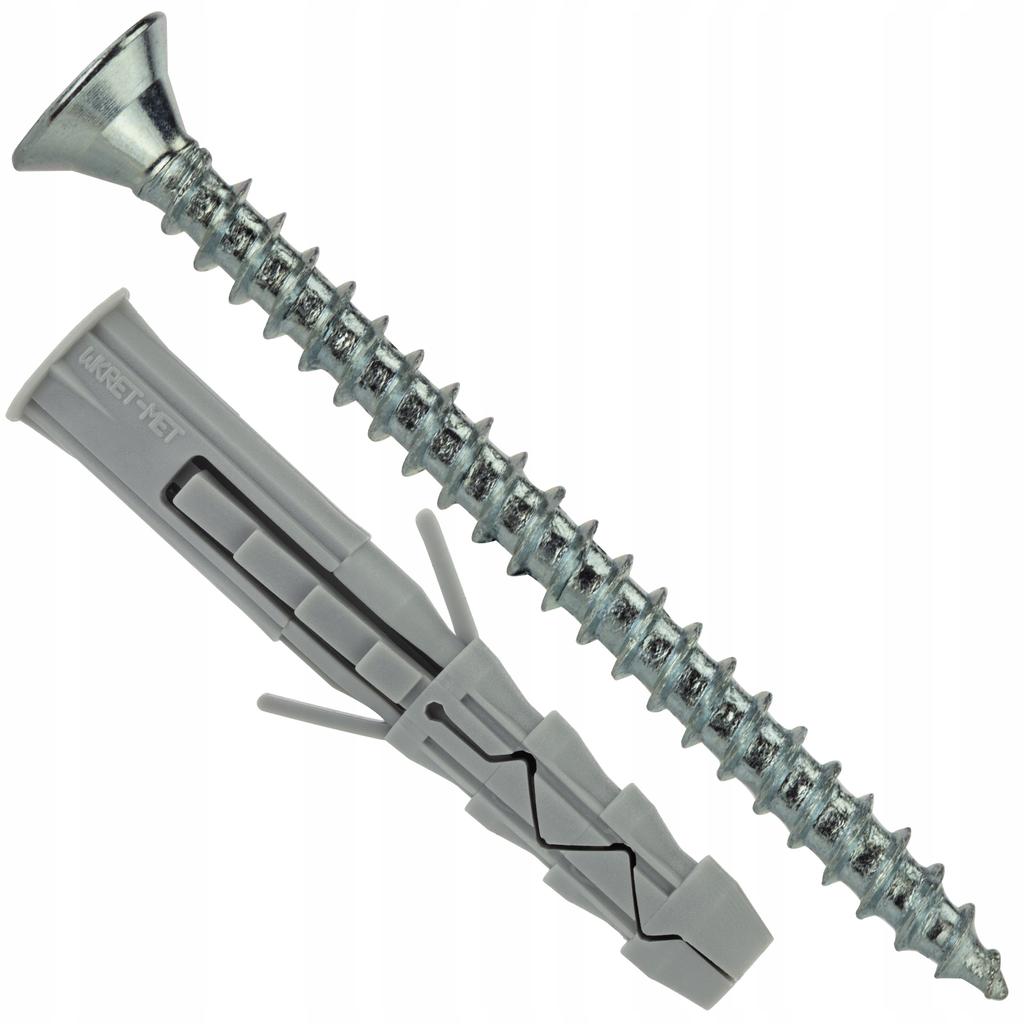

The KRX expansion plug consists of a polypropylene sleeve and a steel screw with a countersunk head covered with a protective zinc layer.

It is intended for installation of lightweight interior finishing elements, wooden elements, lightweight installation elements, and mounting brackets in solid building substrates.

The inner part of the plug has guide strips along its entire length, which ensure reliable screw guidance during installation.

• Plug diameter and length [dk x Lk]: 8.0 x 50 mm

• Screw diameter and length [dw x Lw]: 5.0 x 60 mm

• Max. usable length: [tfix]: 10 mm

• Socket type: PZ-2

• Hole/drill diameter [d0]: 8 mm

• Effective anchorage depth [heff]: 40 mm

• Hole depth [h0]: 50 mm

• Sheath material: polypropylene PP

• Screw material: galvanized steel

• Min. substrate thickness [hmin]: 75 mm

• Min. distance from the edge [cmin]: 100 mm

• Min. Axial distance [Los]: 100/150 mm

• National Technical Assessment: KOT-2018/0528

• Quantity in package:8 pcs

• ordinary concrete

• cellular concrete

• solid ceramic brick

• solid silicate brick

• The guide strips in the inner part of the sleeve guarantee centric screw guidance.

• Electro-galvanized - optimal anti-corrosion protection for interior applications.

• The PZ socket allows the screw to be screwed in with many available tools.

1. Before installation, identify the substrate in which the plug will be installed and compare the loads that the plug will carry with the load-bearing capacities specified in the Safety Data Sheet or in the National Assessment of Technical.

2. The appropriate length of the plug should be selected so that the expansion zone is located in the wall construction material (the thickness of the fastened element corresponds to the maximum usable length of the plug - tfix).

3. The appropriate drilling method should be used depending on the type of substrate (holes in aerated concrete masonry should be drilled with a drill without impact).

4. The diameter of the drilled holes should be consistent with the diameter of the plugs used.

5. Holes in substrates made of solid materials should be min. 10mm from the anchorage depth of the plug.

6. Holes in solid materials should be cleaned of drill cuttings using a reciprocating drilling motion at reduced speed.

7. The plug is inserted into the drilled hole, and the screw is driven through the fastener until it is fully embedded in the sleeve (pre-assembly).

The presented products were manufactured entirely in Poland. The highest quality materials were used in the production process, and the final product was subjected to demanding quality control.

The level of workmanship is unrivaled compared to goods imported from China or Taiwan.

KLIMAS Wkręt-met ®

A leading Polish manufacturer of the highest quality fastening techniques. The company has four production plants equipped with the most innovative injection molding hall in Europe, a central warehouse, and an advanced laboratory.

The manufacturer is systematically expanding on the domestic and export markets. Currently, its products reach over 60 countries worldwide. Thanks to the experience of high-class specialists, cooperation with manufacturers from various industries, new investments and dialogue with customers, the Klimas Wkręt-met brand has been synonymous with the highest quality fasteners used in the construction industry for 30 years.

Color: nan Size: 60 mm
