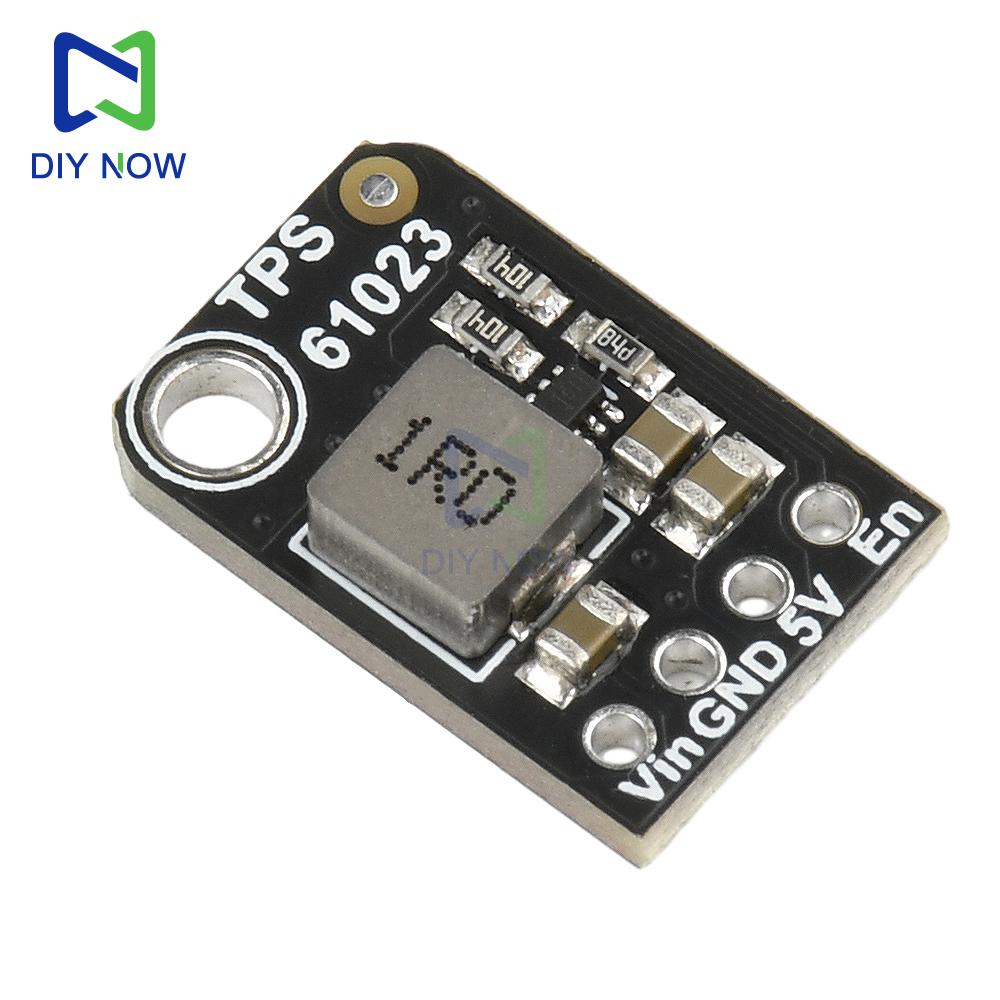

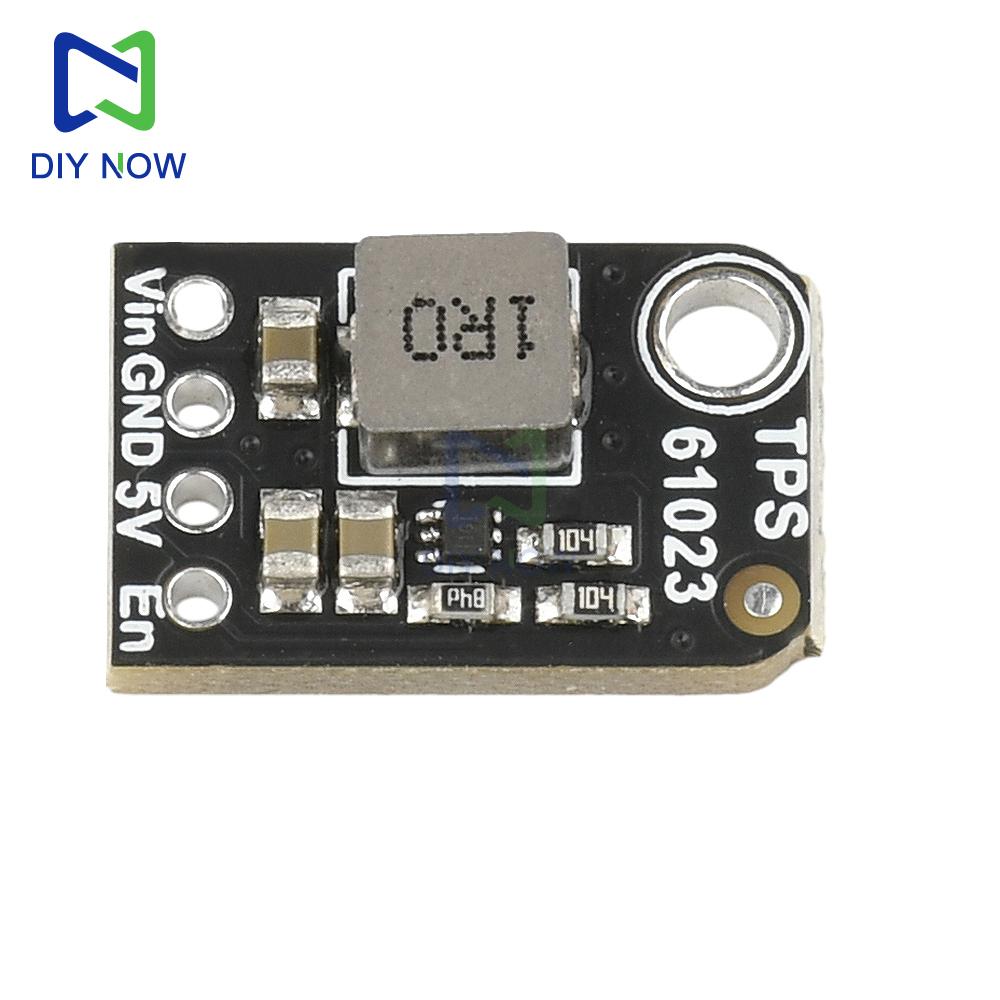

TPS61023 Mini Boost Module 5V 1A Boost Regulator Voltage from 2-5V DC to 5V Boost Module Board Boost Module Protection Function

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : 0.5 - 5.5V Type : Module Brand Name : DIY NOW Operating Temperature : -40°C - +125°C Origin : Mainland China Condition : New

Features: 1. Adopting high efficiency tps61023 chip, integrated dual 3a mosfet switch, excellent performance 2. Over-voltage thermal shutdown protection prevents over-voltage and high temperature damage and ensures long-lasting performance 3. Light load automatic PFM mode to optimize efficiency and extend battery life 4. VIN>VOUT pass-through mode to maintain stable performance and uninterrupted power operation 5. Inputs and outputs are truly disconnected during shutdown, providing complete isolation and ensuring safety

Parameter: Product Name：TPS61023 Booster Module Input Voltage Range：0.5~ 5.5V Minimum Startup Input Voltage: 1.8V Output voltage: 5V (actual output 5.2V) Maximum output current: 1A Battery Type: 2-3 alkaline or single lithium batteries MOSFET Parameters: Two 47mΩ (LS) / 68mΩ (HS) MOSFETs Valley switching current limit: 3.7A Switching frequency: 1MHz for VIN > 1.5V, 0.5MHz for VIN < 1V Shutdown Current: Typical shutdown current of 0.1μA at Vin and SW Reference voltage accuracy: ±2.5% (-40°C to +125°C range) Operating modes: Automatic PFM operation at light loads Pass-through mode: when VIN > VOUT Protection: Output overvoltage and thermal shutdown protection, output short circuit protection Product dimensions: 17.8x11.3x5.6mm

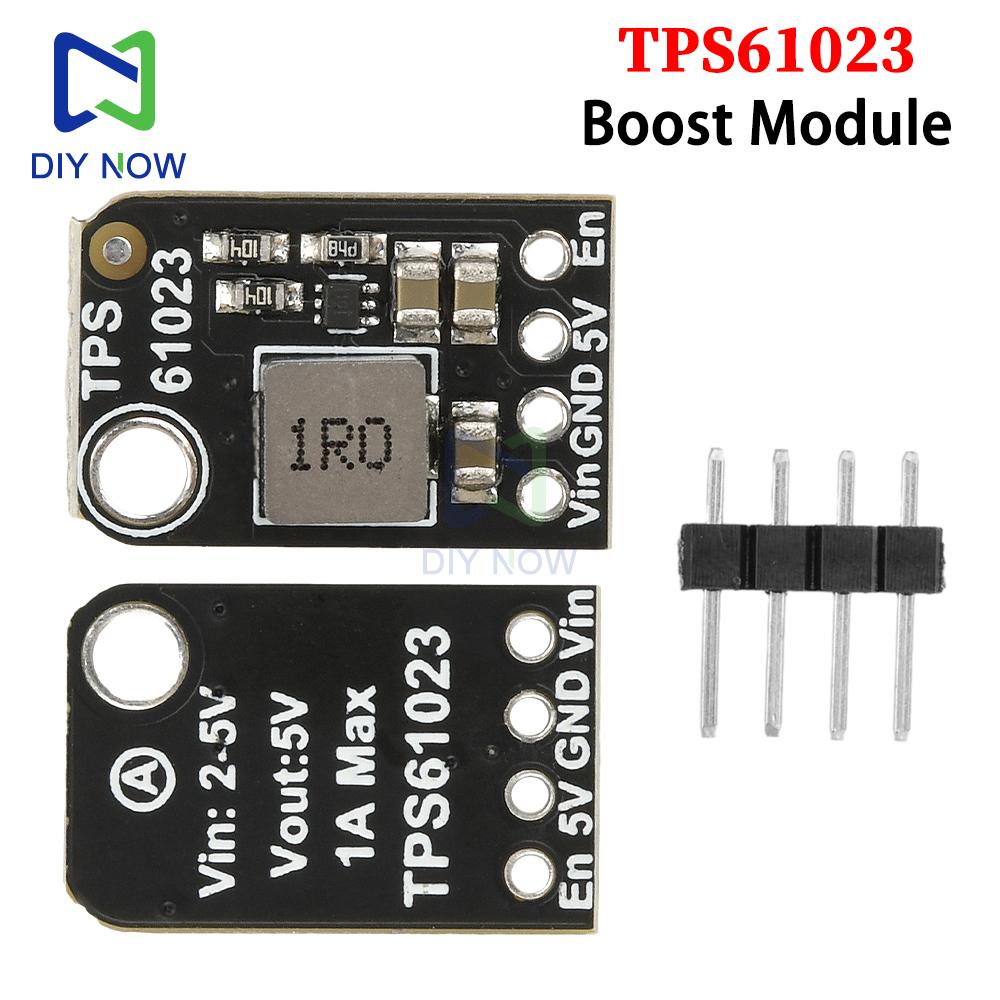

Description: This mini boost module is extremely useful when you need a large amount of 5V power. It is comparable in size to a linear regulator, but powerful enough to provide 5V at 2-5VDC input and up to 1A output. It is suitable for projects powered by 2-3 alkaline batteries or a single lithium battery.The module utilizes TI's highly efficient TPS61023 chip with integrated dual 3A MOSFET switches.Feedback resistors are set to 5.2V output to compensate for cable voltage drop. Package include: Module x 1 Pin x 1
