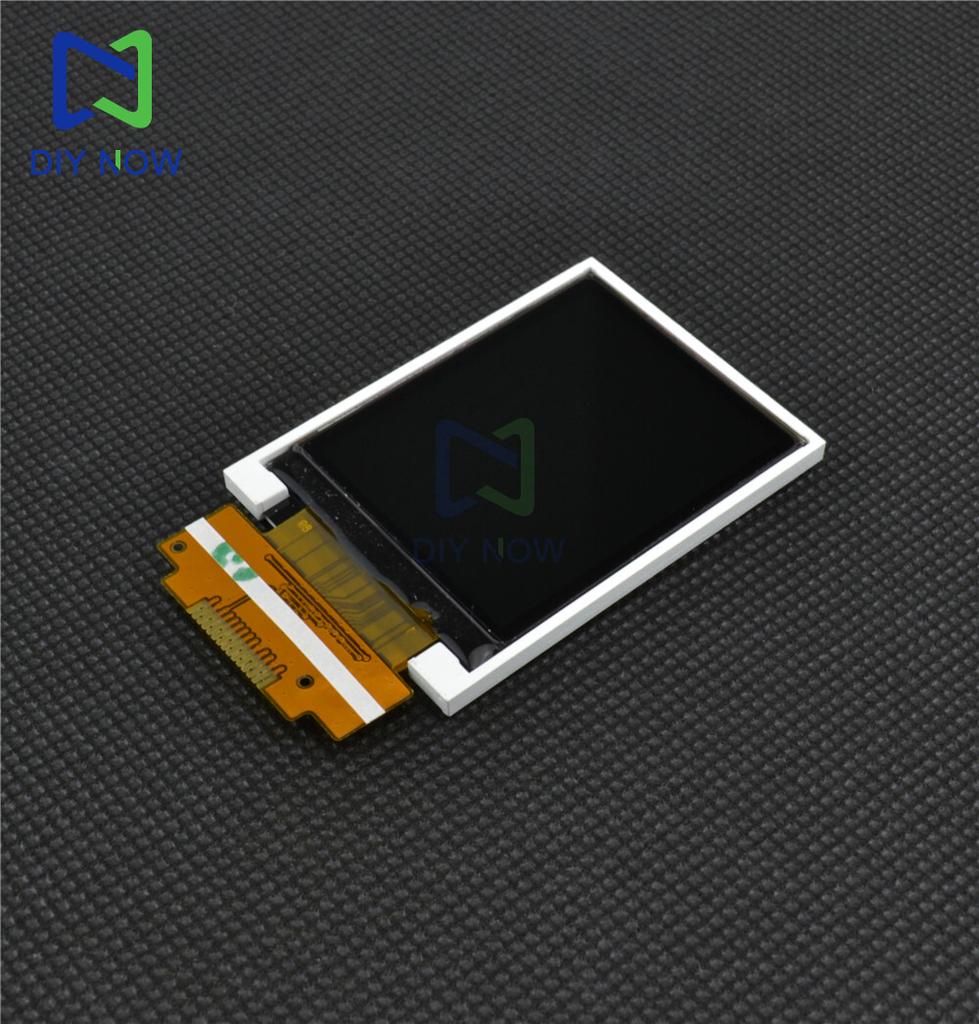

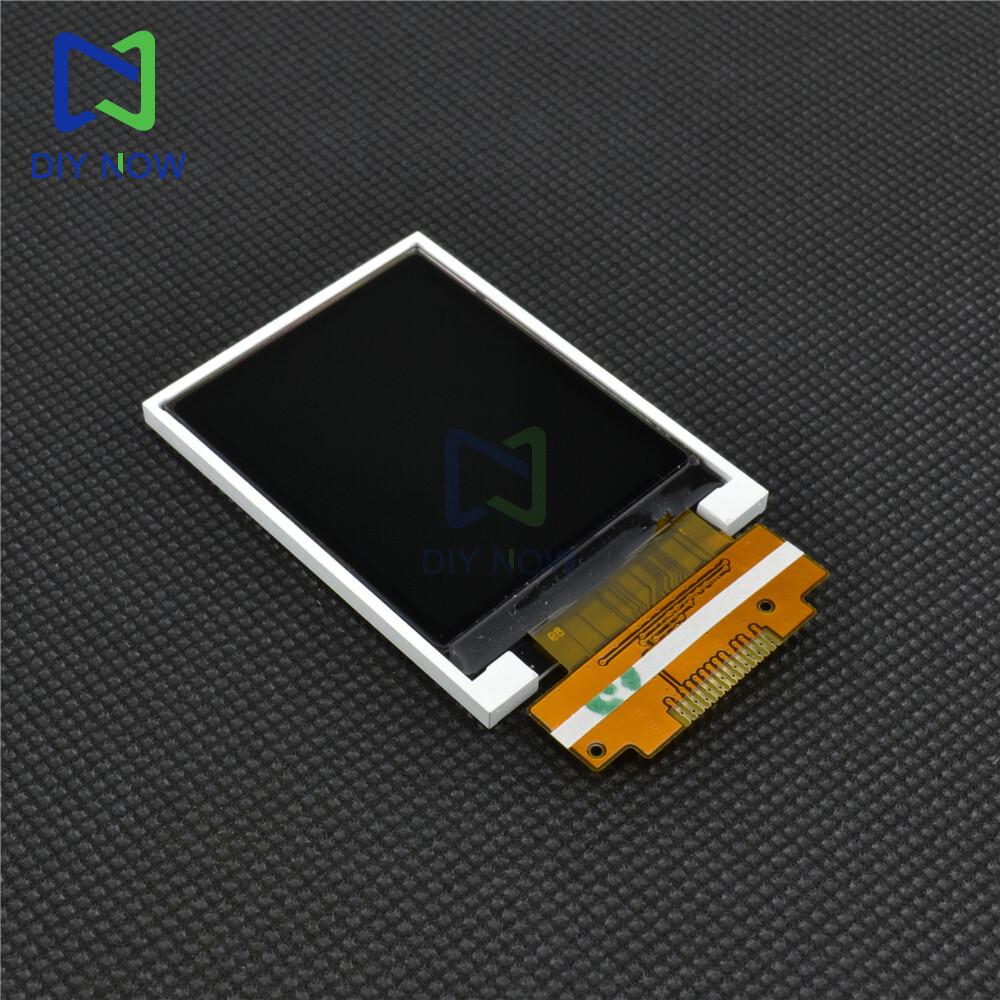

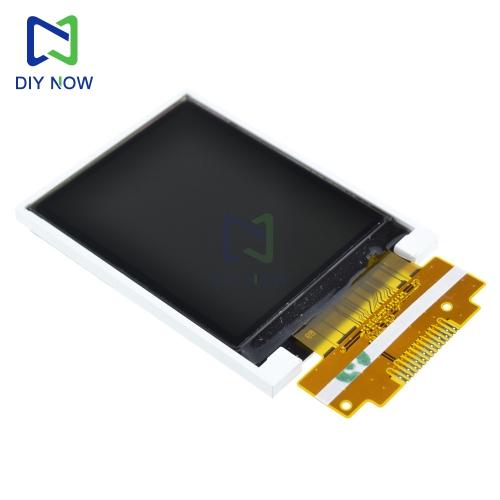

1.8 inch TFT LCD With 65K RGB Color 128x160 Resolution Driver Chip ST77355 SPI Support SD Card Slot Serial Port Display

High-concerned chemical : none Display Mode : other Model Number : TFT LCD color screen Type : TFT Brand Name : DIY NOW Origin : Mainland China Resolution : 128*160

Product Highlights: 8-inch color screen, supports 16-bit RGB 65K colors, providing rich colors 128 x 160 resolution, providing clear display Using the SPI serial bus, only a few I/O ports are needed to activate the display Equipped with an SD card slot for convenient experimental expansion Provides a wealth of sample programs Military-grade process standards, ensuring long-term stability Provides low-level driver technology support

Product Parameters: Display colors: RGB 65K colors Dimensions: 1.8 inches Type: TFT Driver chip: ST7735S Resolution: 128 x 160 pixels Module interface: 4-wire SPI interface Active display area (AA area): 28.03 x 35.04 mm Module PCB dimensions: 34.5 x 58.0 mm Operating temperature: -20°C to 60°C Storage temperature: -30°C to 70°C VCC supply voltage: 3.3V to 5V Logic I/O voltage: 3.3V (TTL) label:yes
