Quantity : 1
High-concerned chemical : none
Package : SOP
is_d : Yes
Supply Voltage : 3.0-3.6 V
Type : Module
Brand Name : DIY NOW
Origin : Mainland China
Condition : New
Operating Temperature : -40 - 85 ℃

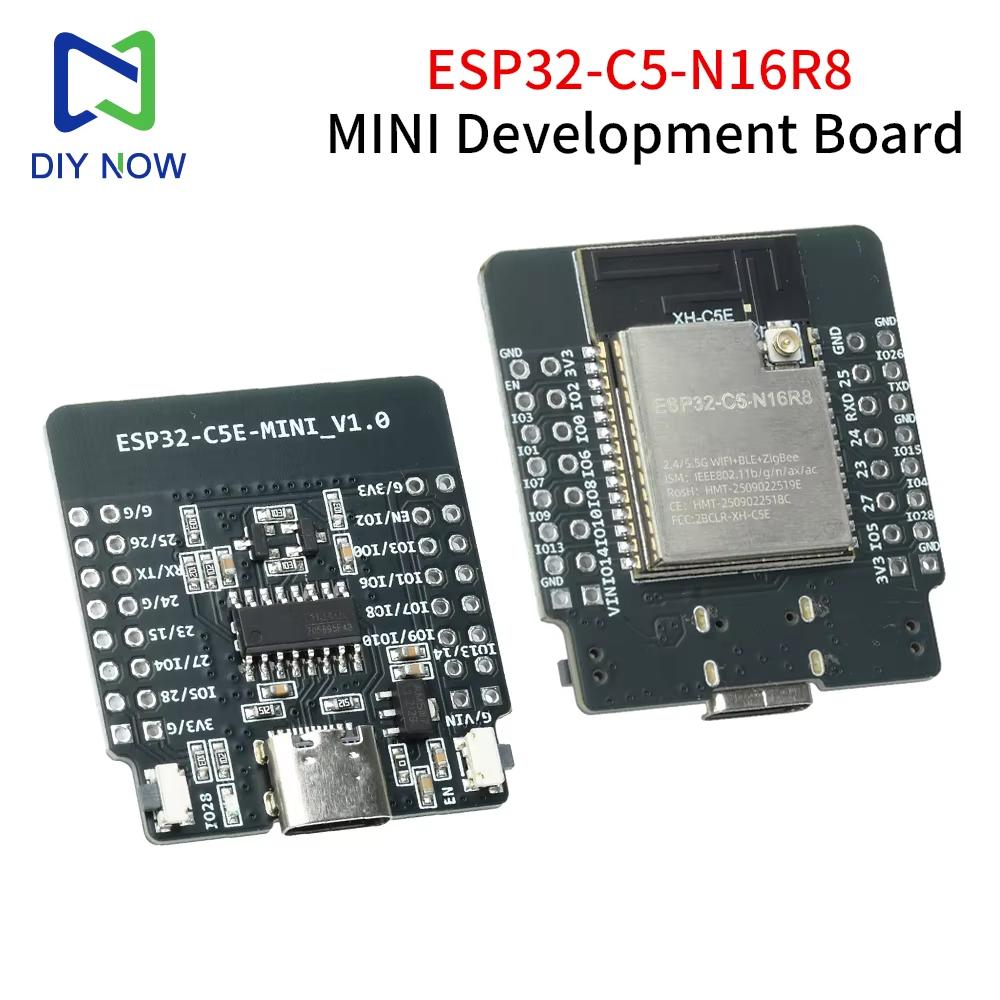

Product Introduction: The ESP32-C5-N16R8 MINI is a high-performance IoT development core board, equipped with the ESP32-C5 chip. It supports 2.4G/5GHz dual-band WiFi 6, adopts a RISC-V single-core architecture with a maximum clock speed of 240MHz, and features 16MB Flash + 8MB PSRAM. It boasts strong RF performance, balancing high-speed transmission and long-range communication. Its compact MINI form factor is ideal for rapid prototyping and product verification. It also supports a 2 Mbps PHY to improve transmission rates and data throughput, facilitating the construction of IoT devices with wider coverage and stronger RF performance.
Application Scenarios: Smart gateways, smart home central control systems, wireless sensors, IoT nodes, multi-protocol bridging devices, product prototyping, etc.
Product Features:

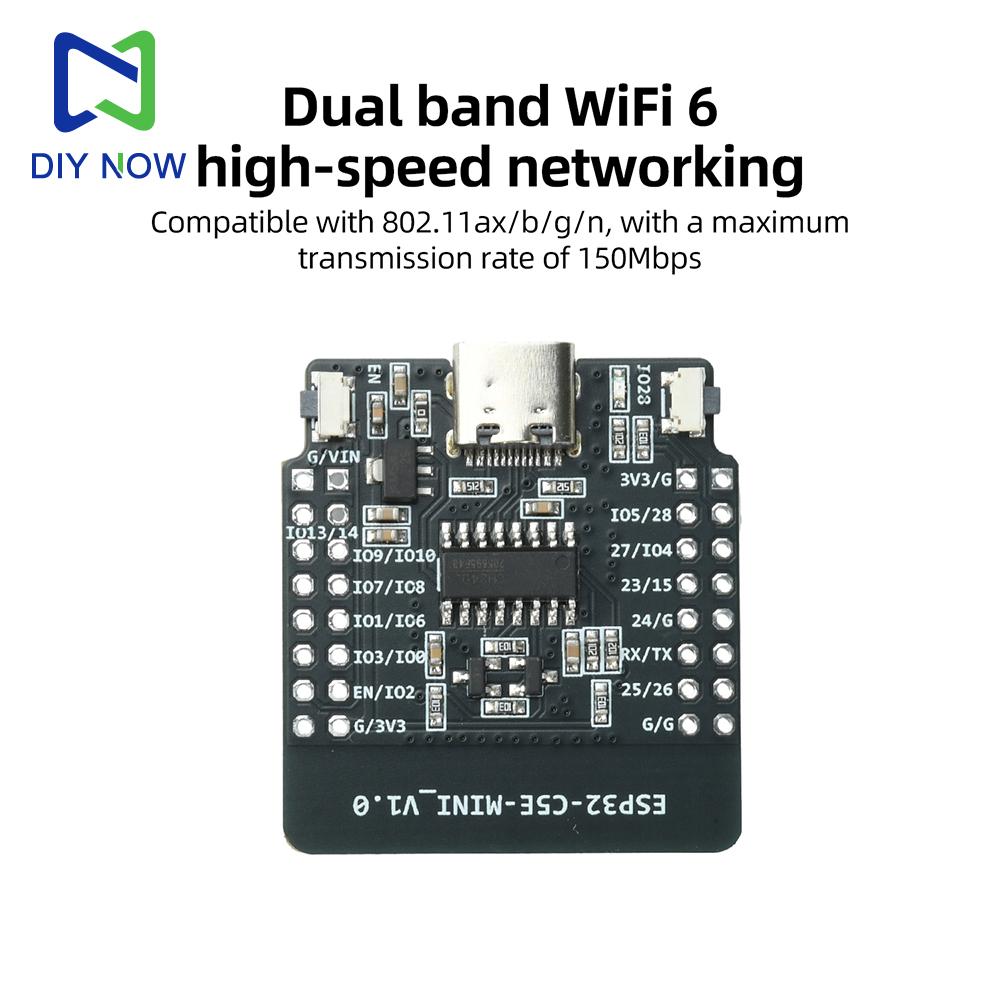

1. Dual-band WiFi 6 high-speed networking, compatible with 802.11ax/b/g/n, with a maximum transmission rate of 150Mbps.
2. Multi-protocol wireless integration, adaptable to smart home gateway development.
3. High-performance RISC-V core, supporting clock frequencies up to 240 MHz, providing powerful computing capabilities.
4. Support for 2Mbps facilitates the construction of IoT devices with wider coverage and stronger RF performance.
5. Industrial-grade wide-temperature stable operation, suitable for industrial and outdoor IoT projects
Product Specifications:
* Built-in ESP32-C5 chip, RISC-V 32-bit single-core processor, supports clock frequencies up to 240 MHz
* ROM: 320 KB
* HP SRAM: 384 KB
* LP SRAM: 16 KB
* Flash: 16 MB (Quad SPI)
* PSRAM: 8 MB (Quad SPI)
Wi-Fi:
* Operates in 2.4 & 5 GHz dual-band, 1T1R
* Operating channel center frequency range: 2412 ~ 2484 MHz, 5160 ~ 5885 MHz
* Compatible with IEEE 802.11ax protocol
* Fully compatible with IEEE 802.11b/g/n protocols:
- Supports 20 MHz and 40 MHz bandwidth
- Data rate up to 150 Mbps
- Wireless Multimedia (WMM)
- Frame Aggregation (TX/RX A-MPDU, TX/RX A-MSDU)
- Immediate Block Acknowledgment (Immediate Block ACK)
Bluetooth:
• Bluetooth Low Energy (Bluetooth LE): Bluetooth 6.0
• Bluetooth Mesh 1.1
• High Power Mode (20 dBm Transmit Power)
Operating Conditions:
• Operating Voltage/Supply Voltage: 3.0 ~ 3.6 V
• Operating Ambient Temperature: -40 ~ 85 ℃
Product Dimensions: 36.5mm * 33mm

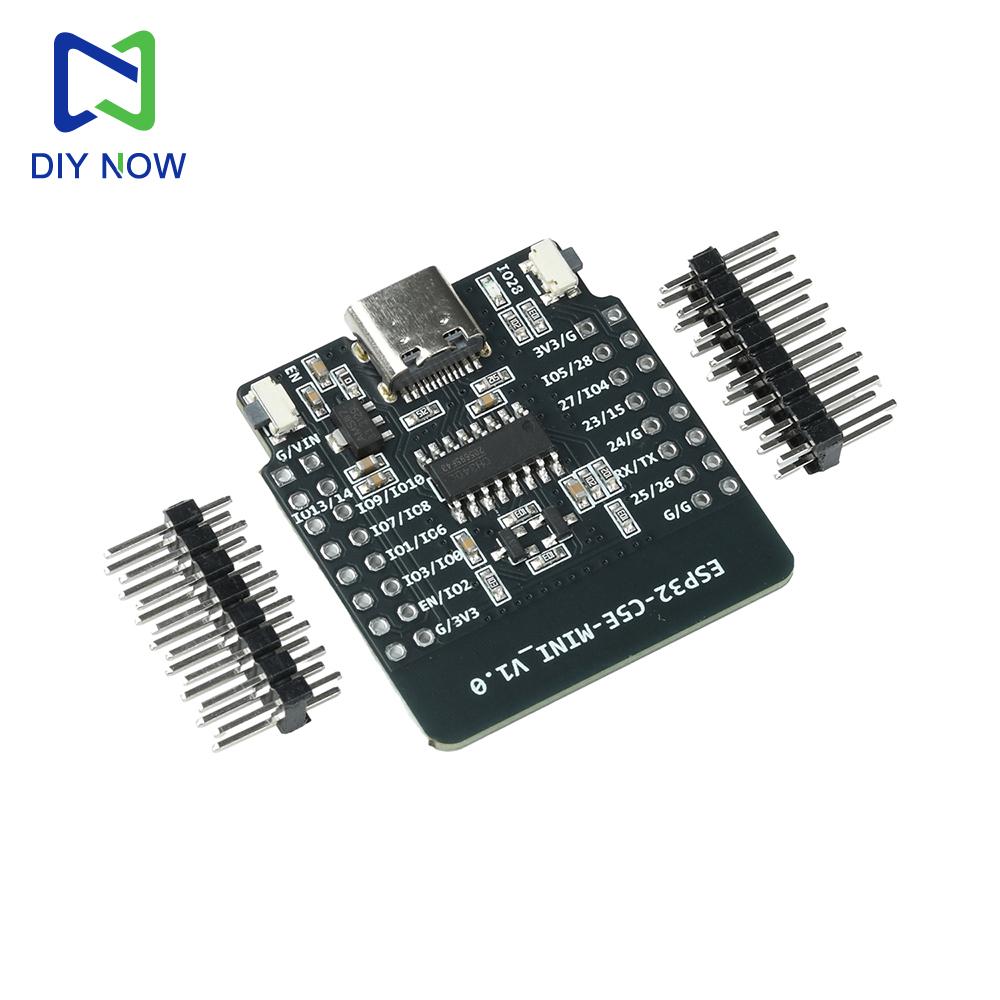

Product List:
1 Development Board
2 Pin Headers
label:yes
