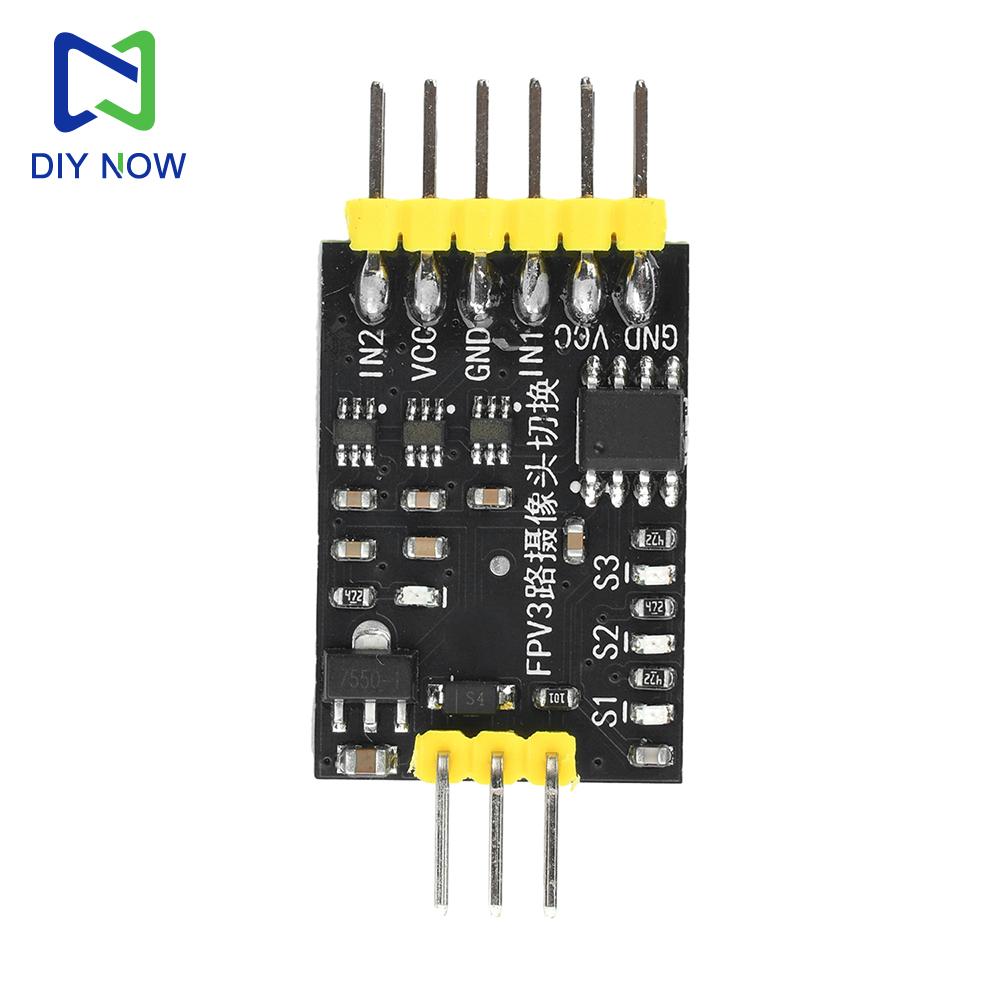

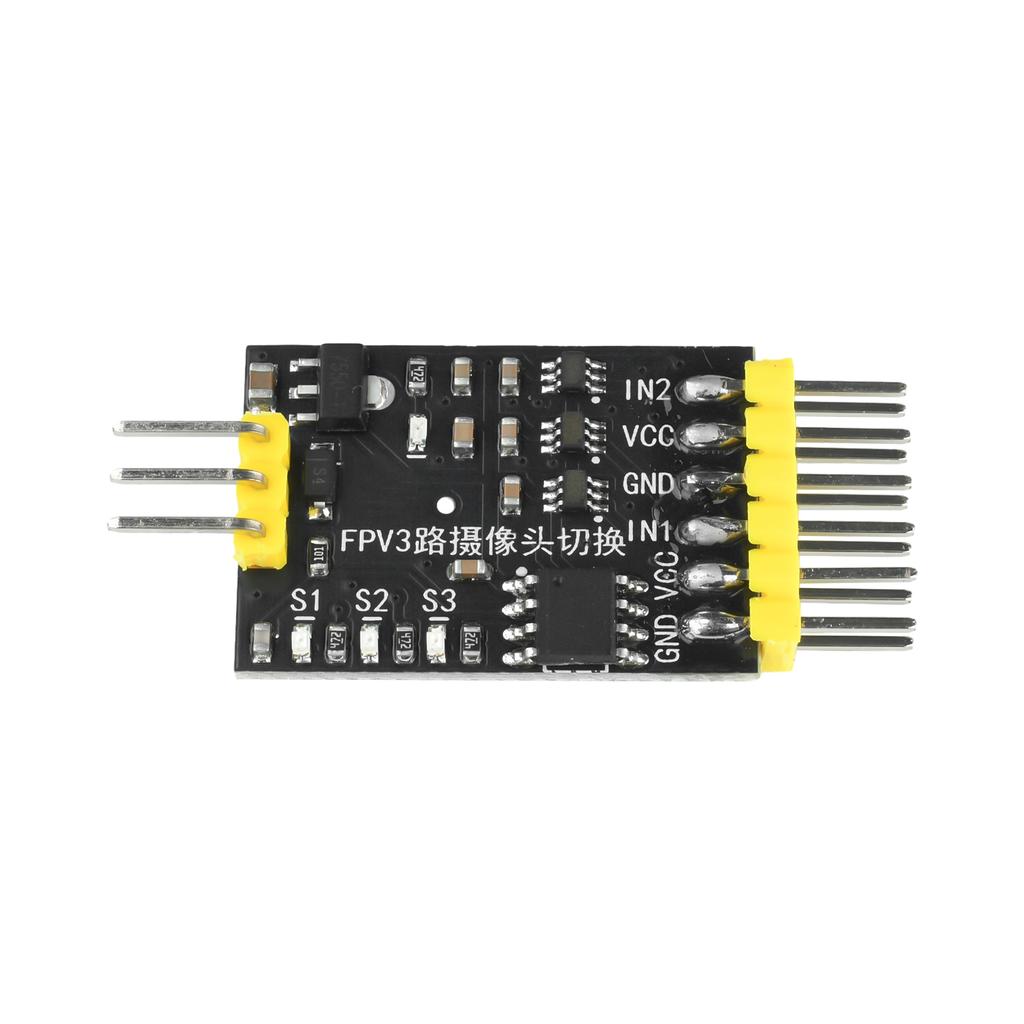

DC 5-12V 3-Channel Video Switcher Module FPV 3-way Camera Switch PWM Control Suitable for RC Aircraft and FPV Drones Monitoring

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : DC 5-12V Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New

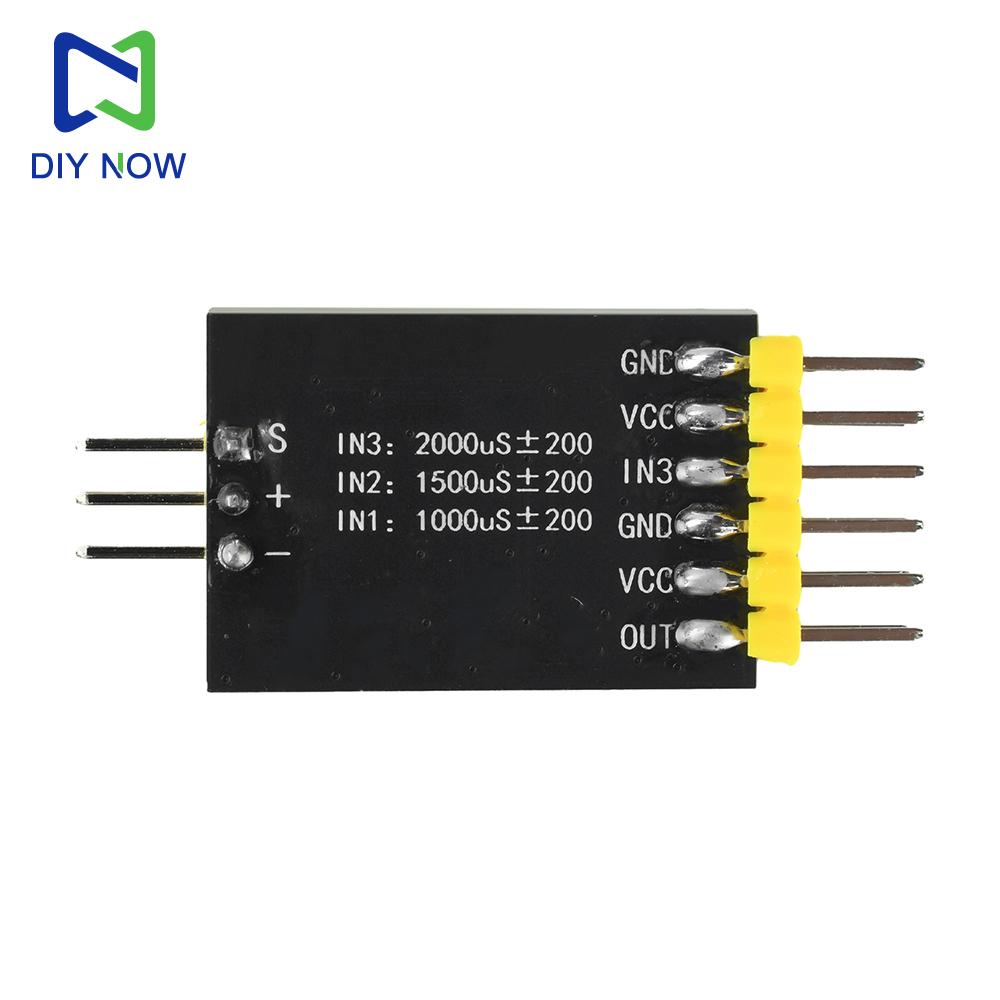

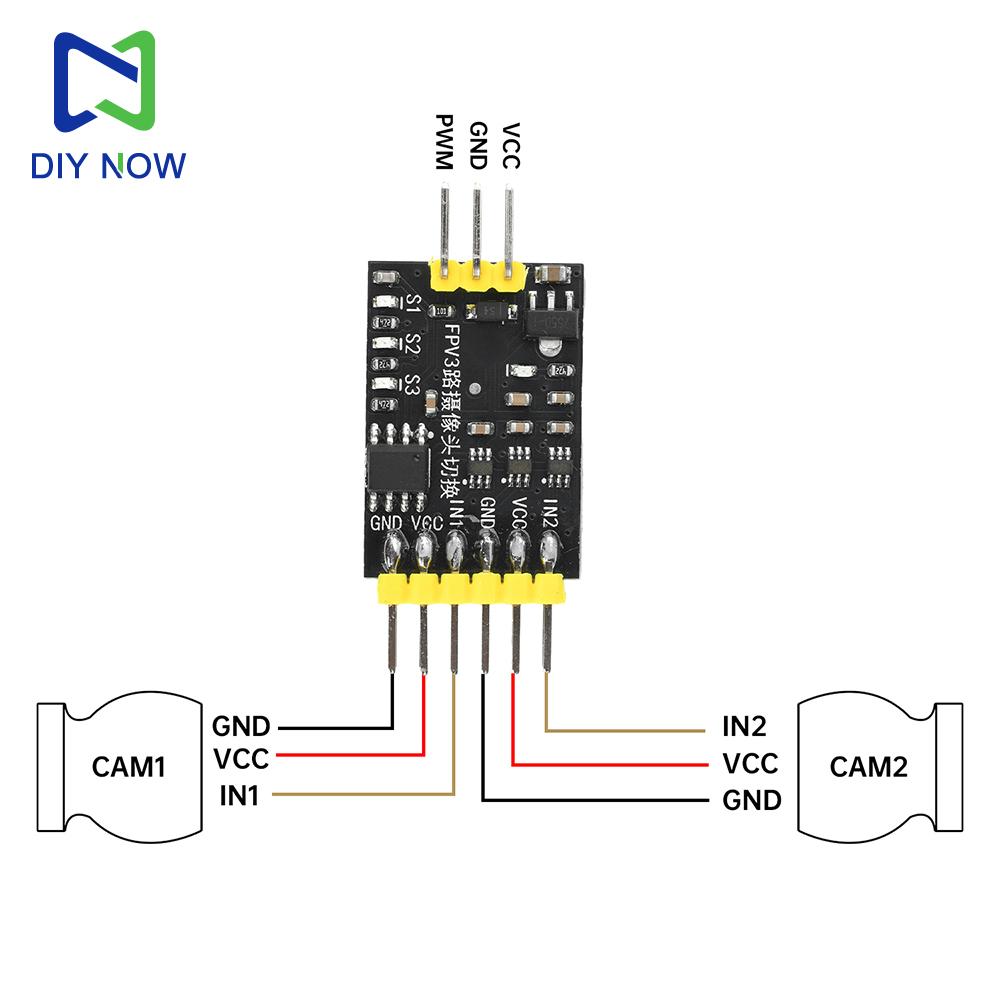

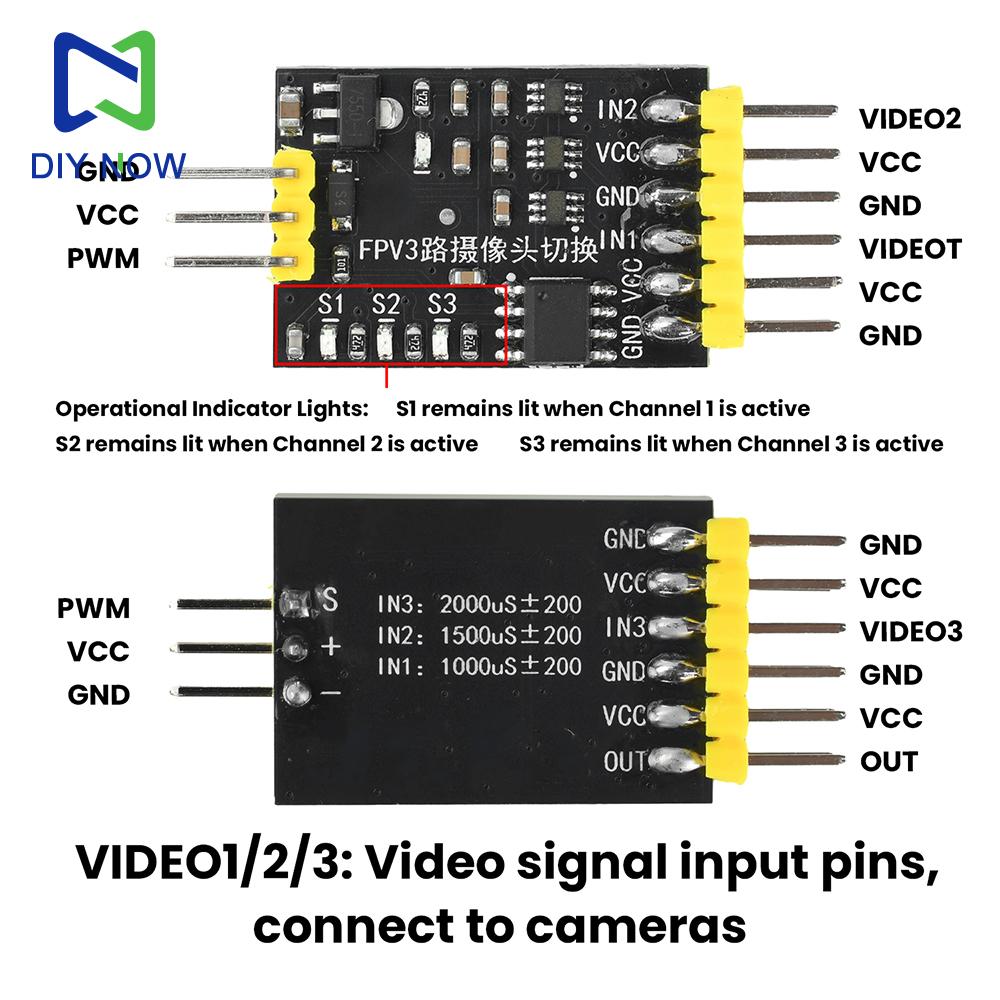

Features 1. DC5-12V wide voltage supply for effortless, energy-efficient monitoring of multiple devices with flexible usage 2. PWM precision switching enables instantaneous, seamless switching between three cameras with zero latency 3. Rapid multi-angle switching for FPV drones/UAVs, with real-time visuals enhancing precise control 4. Professional chip processing delivers strong anti-interference capabilities, eliminating blackouts and screen flickers to ensure flight safety 5. Visualized operational status with real-time channel visibility for efficient wiring and debugging 6. Modular interfaces compatible with mainstream devices for quick system integration without complex setup Parameter Power Supply Voltage: DC 5-12V Control Signal: PWM (800μs-2200μs) Channel Specifications: 3 video inputs (IN1/IN2/IN3) + 1 video output (OUT) Input Signal Range: IN1 (800μs-1200μs), IN2 (1300μs-1700μs), IN3 (1800μs-2200μs) Interface Functions: S is the PWM control switching signal input interface, VCC is the camera power supply interface, GND is the power supply negative terminal Applicable Scenarios: Multi-camera device systems such as FPV RC models, drones, and home security cameras Product Description DC 5-12V wide voltage adaptation supports broad voltage power supply without requiring additional power adapters. Compatible with power supply needs of various devices like RC models and surveillance systems for greater flexibility. Equipped with a high-performance video processing chip for precise signal analysis, eliminating screen flickering and stuttering to ensure long-term stable operation and suitability for high-intensity usage scenarios. 3-channel video switching with rapid response and zero-latency image transmission for real-time synchronization of camera feeds. Supports 2/3-channel input switching, perfectly matching multi-camera devices like FPV drones, UAVs, and home surveillance systems. Package include Switching Module*1
