Quantity : 1
High-concerned chemical : none
Package : TQFP
Type : Module
Brand Name : DIY NOW
Origin : Mainland China
Condition : New
Features:
1. High performance processor: equipped with ESP32-S3 dual core 32-bit LX7 processor, with a clock speed of 240MHz.
2. High resolution display screen: There are two screen specifications to choose from: 2.8-inch 240 × 320 resolution and 480 × 640 resolution, with/without touch version available.
3. Enrich peripheral interfaces: Introduce UART, I2C, GPIO and other interfaces, support expanding multiple devices, integrate USB serial port, flexible and versatile.
4. Multi touch experience: Supports 5-point capacitive touch (with touch version only), controlled through I2C, smooth operation, and more flexible UI interaction.
5. Powerful expansion features: onboard speaker, six axis sensor, RTC clock, Micro SD card holder, and battery charging management to meet diverse needs.
Performance characteristics:

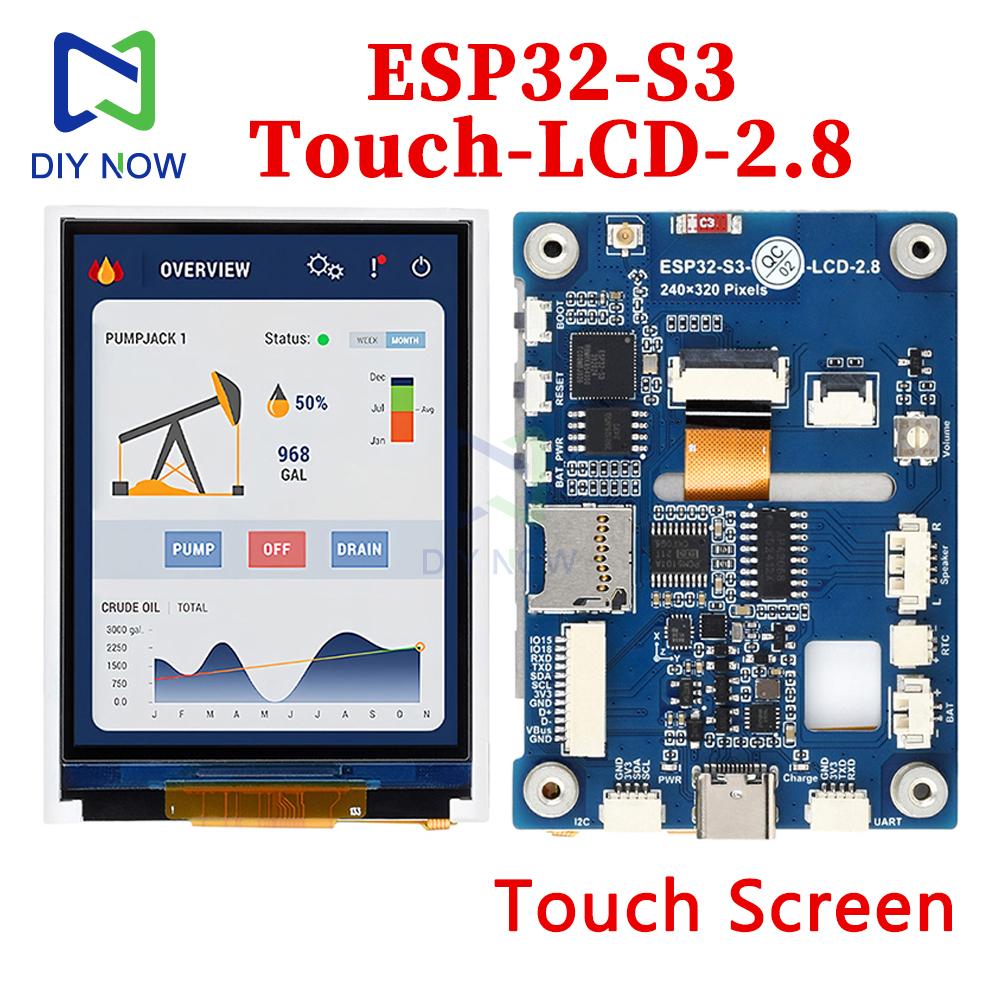

Style 1: ESP32-S3-LCD-2.8/ESP32-S3-Touch-LCD-2.8：
This product is a microcontroller development board that supports 2.4GHz Wi Fi and BT BLE 5. Integrated with large capacity Flash and PSRAM, onboard 2.8-inch LCD screen (optional without touch version/with touch version), can smoothly run GUI interface programs such as LVGL; By combining multiple peripheral interfaces, it is possible to quickly develop HMI and other applications for ESP32-S3.
Equipped with high-performance Xtensa 32-bit LX7 dual core processor, with a clock speed of up to 240MHz
Supports 2.4 GHz Wi Fi (802.11 b/g/n) and BT 5 (LE), onboard antenna
On board 512KB SRAM and 384KB ROM, stacked 16MB Flash and 8MB PSRAM
Onboard 2.8-inch LCD screen, 240 × 320 resolution, 262K color
Supports I2C interface to control capacitive touch, 5-point touch, and interrupts (only with touch version)
Introduce UART, I2C, and some IO interfaces, integrate full speed USB serial port
Onboard speaker, QMI8658 six axis sensor, RTC clock sensor, Micro SD card holder, battery charging management module, etc
Supports accurate control of flexible clocks, multiple power modes, etc., achieving low-power modes in multiple scenarios
Product size:
Without touch version: 69.2mm * 50mm
Touch version: 73.06mm * 50.54mm
Style 2: ESP32-S3-LCD-2.8B/ESP32-S3-Touch-LCD-2.8B：
This product is a microcontroller development board that supports 2.4GHz Wi Fi and BT BLE 5. Integrated with large capacity Flash and PSRAM, with an onboard 2.8-inch screen (optional without touch version/with touch version), it can smoothly run GUI interface programs such as LVGL. By combining multiple peripheral interfaces, it is possible to quickly develop HMI and other applications for ESP32-S3.
Equipped with high-performance Xtensa 32-bit LX7 dual core processor, with a clock speed of up to 240MHz
Supports 2.4GHz Wi Fi (802.11 b/g/n) and BT 5 (LE), onboard antenna
On board 512KB SRAM, 384KB ROM, 8MB PSRAM, and 16MB Flash
Onboard 2.8-inch touch screen, 480 × 640 resolution
Supports I2C interface control touch and interrupts (only with touch version)
Introduce UART, I2C, and some IO interfaces, integrate full speed USB serial port
Onboard QMI8658 six axis sensor, RTC clock sensor, Micro SD card slot, and battery charging management module, etc
Supports accurate control of flexible clocks, multiple power modes, etc., achieving low-power modes in multiple scenarios
LCD screen parameters:
Display panel: IPS LCD
Display size: 2.8 inches
Display resolution: 480 × 640
Display color: 65K
Communication interface: SPI + RGB
Driver IC: ST7701
Touch: Only supports touch version
Touch IC: GT911
Product size:
Without touch version: 65.2mm * 45.9mm
Touch version: 71.36mm * 52.9mm
Package Include:
Style 1: ESP32-S3-LCD-2.8/ESP32-S3-Touch-LCD-2.8：
ESP32-S3-2.8 development board x 1
SH1.0 12PIN connection cable approximately 100mm x 1
SH1.0 4PIN connection wire approximately 100mm (2pcs) x 1
2030 speaker x 1
Style 2: ESP32-S3-LCD-2.8B/ESP32-S3-Touch-LCD-2.8B：
ESP32-S3-LCD-2.8B development board x 1
SH1.0 4PIN connection wire approximately 100mm x 2
label:yes
