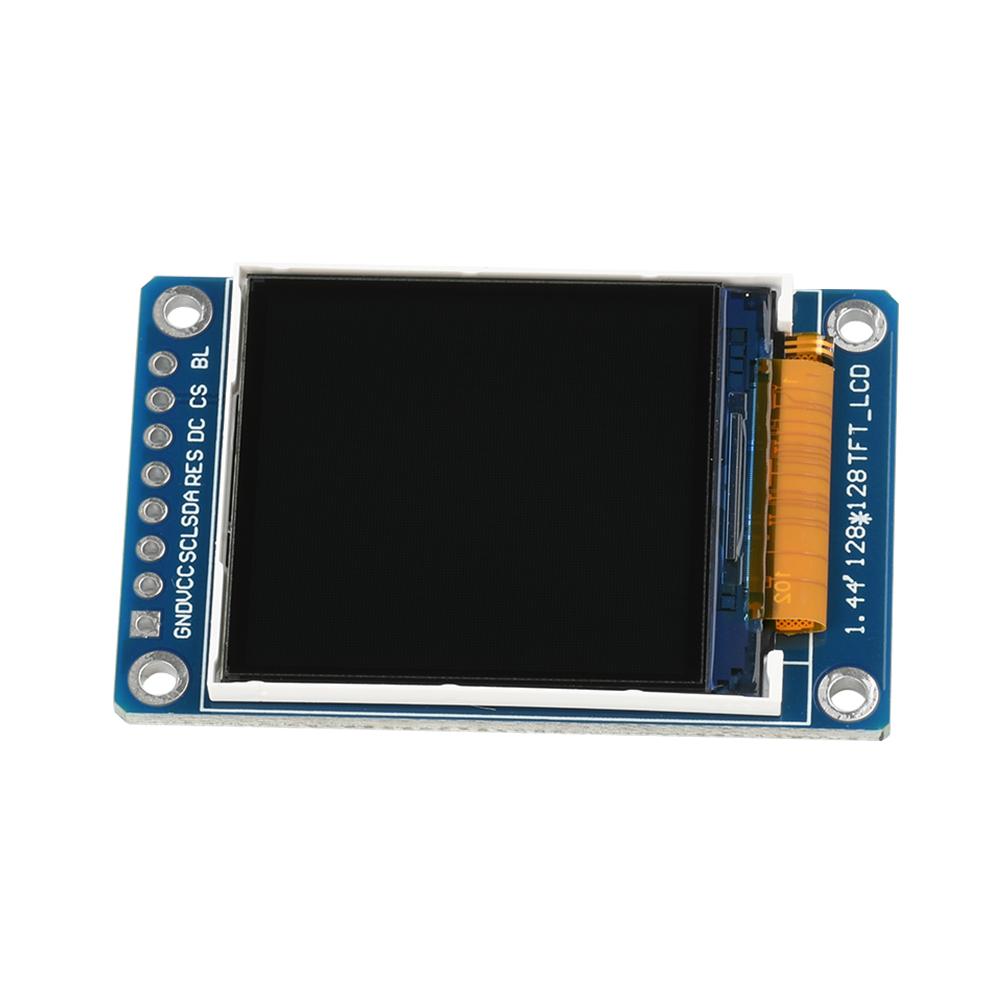

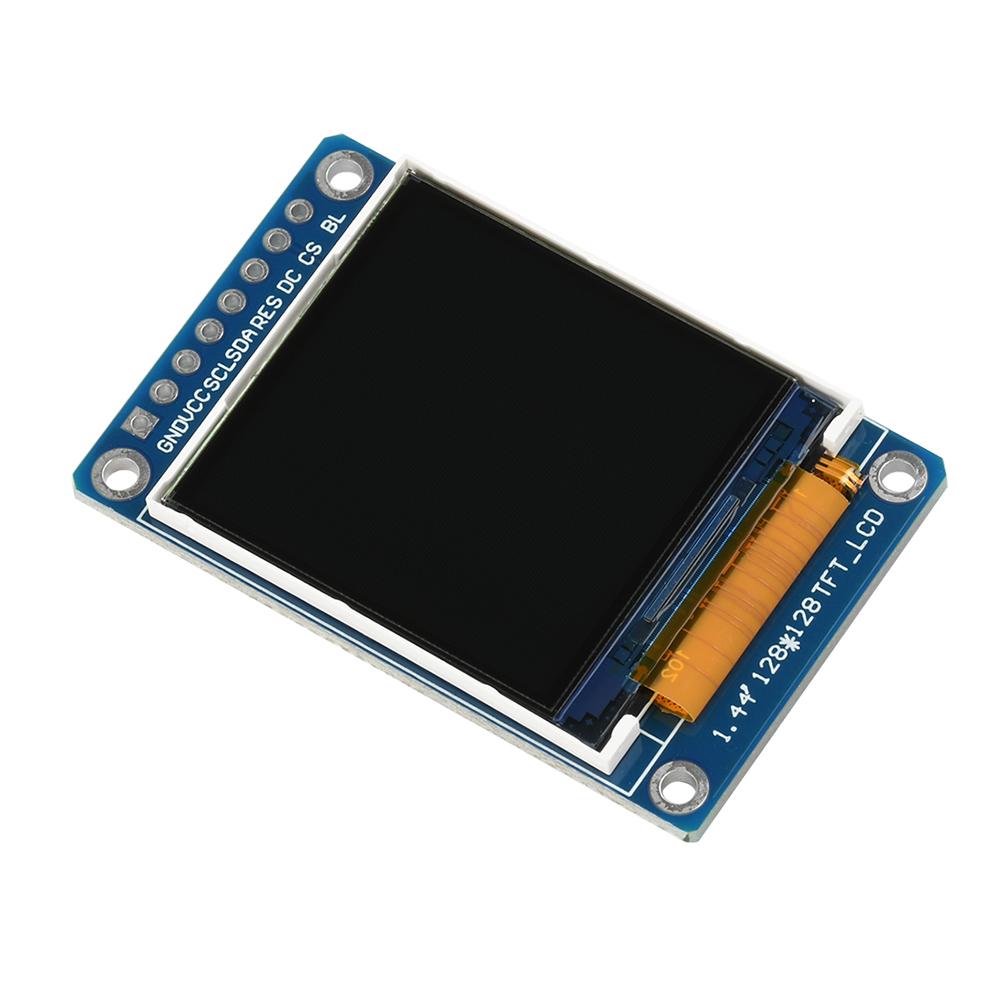

3-5.5V 1.44 inch 128*128 SPI interface HD Full Color TFT IPS LCD Display Module Board Replace OLED ST7735

High-concerned chemical : none Display Mode : 1.44 inch LCD Display Module is_d : Yes Model Number : 1.44 inch LCD Display Module Type : TFT Brand Name : Gaqqee Origin : Mainland China Resolution : 128*128

Product features: 1. High quality materials, sturdy and durable 2. Small size, easy to carry 3. Control chip: ST7735， stable performance 4. Backlight control, default can be suspended, low level turn off backlight 5. With pin silk screen printing, convenient to use.

features: Display screen size: 1.44 inches Material: High definition TFT LCD Resolution: 128 * 128 display Control chip: ST7735 Display area: 25.5x26.5 millimeters Physical dimensions: 30.0x46.5 millimeters Interface type: SPI interface Needle count: 8PIN Working voltage: 3-5.5V Working temperature:- 20°C-70°C

Interface definition: 1. Ground wire: power supply ground 2. VCC: Power supply 3-5.5V input 3. SCL SPI clock cable 4. SDA SPI data cable 5. RES restart 6. DC data/command selection pin 7. CS chip selection signal, low level effective 8. Black backlight control, default can be suspended, low level turn off backlight.

The packaging includes: 1 x 1.44-inch TFT LCD SPI serial port module label:yes
