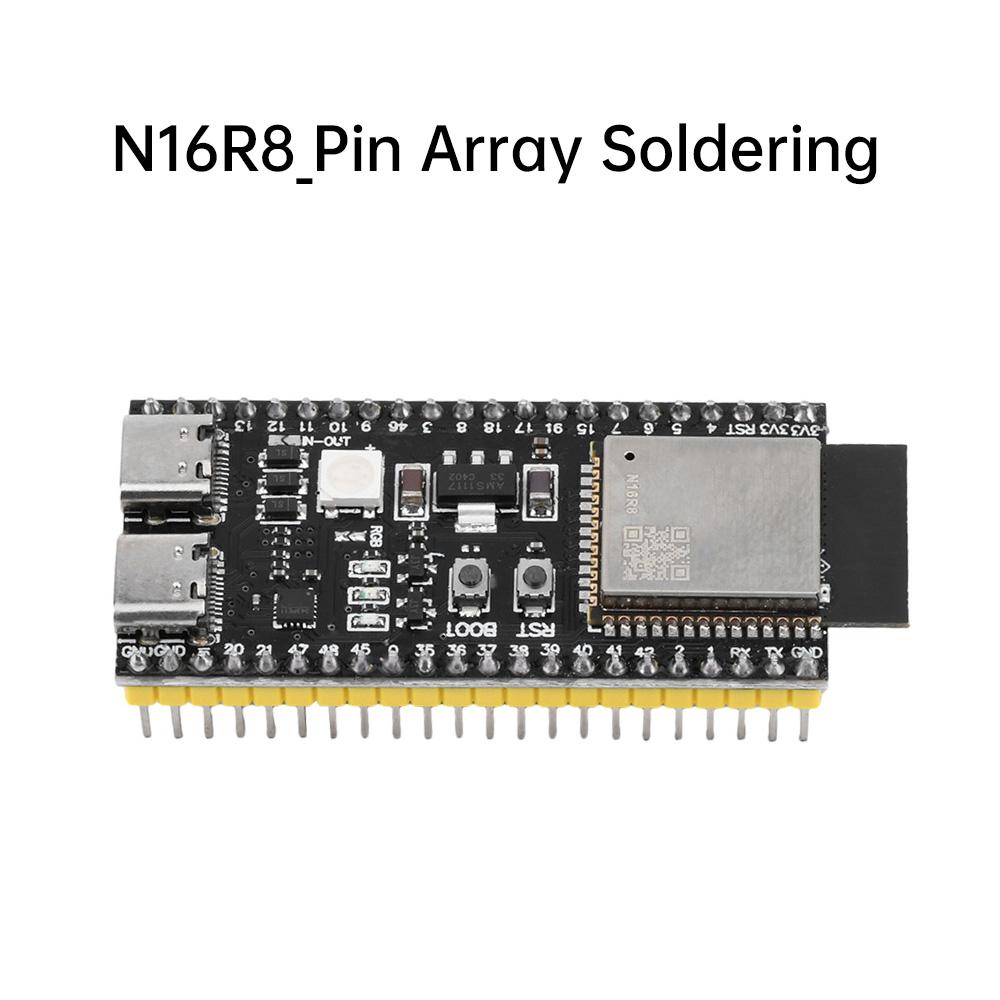

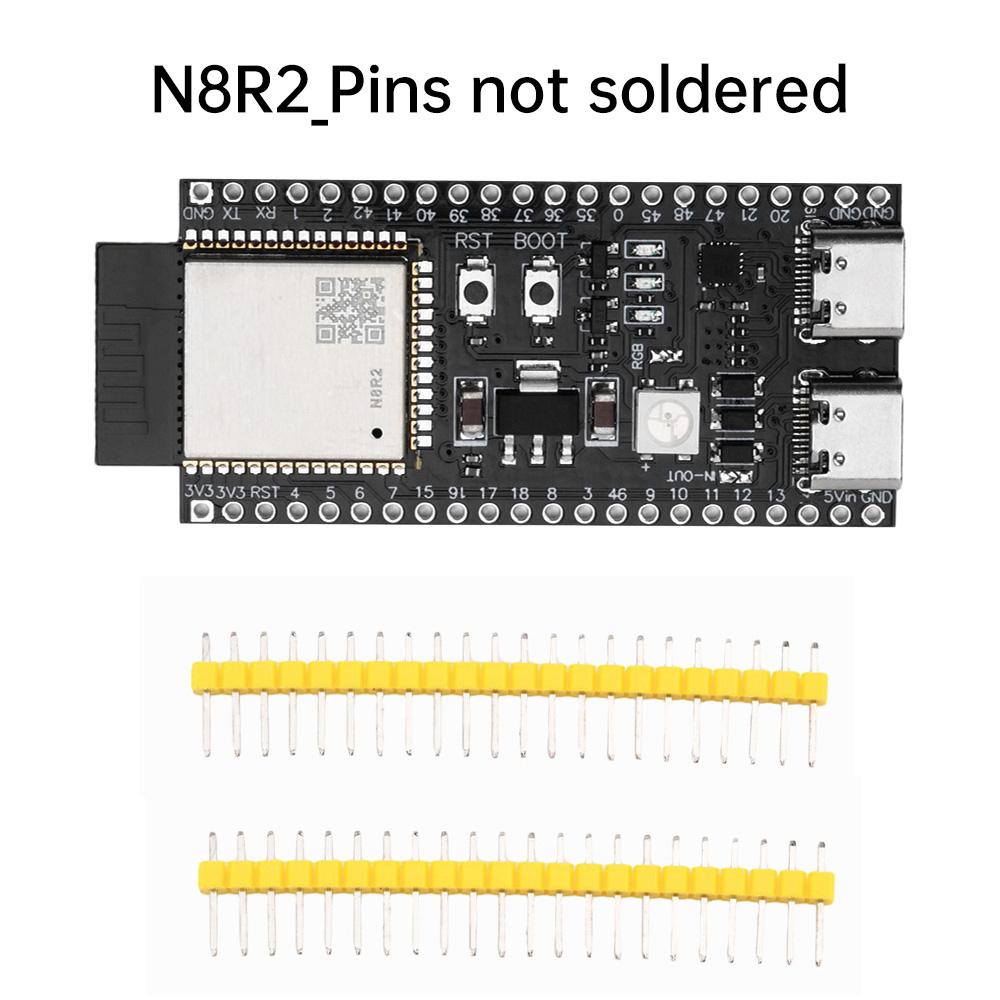

ESP32 S3 Development Board ESP32 S3 N16R8/N8R2 BT 2.4G Wifi Module for Arduino 8MB PSRAM 16MB FLASH Dual Type-C

Quantity : 1 High-concerned chemical : none Package : TQFP is_d : Yes Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New

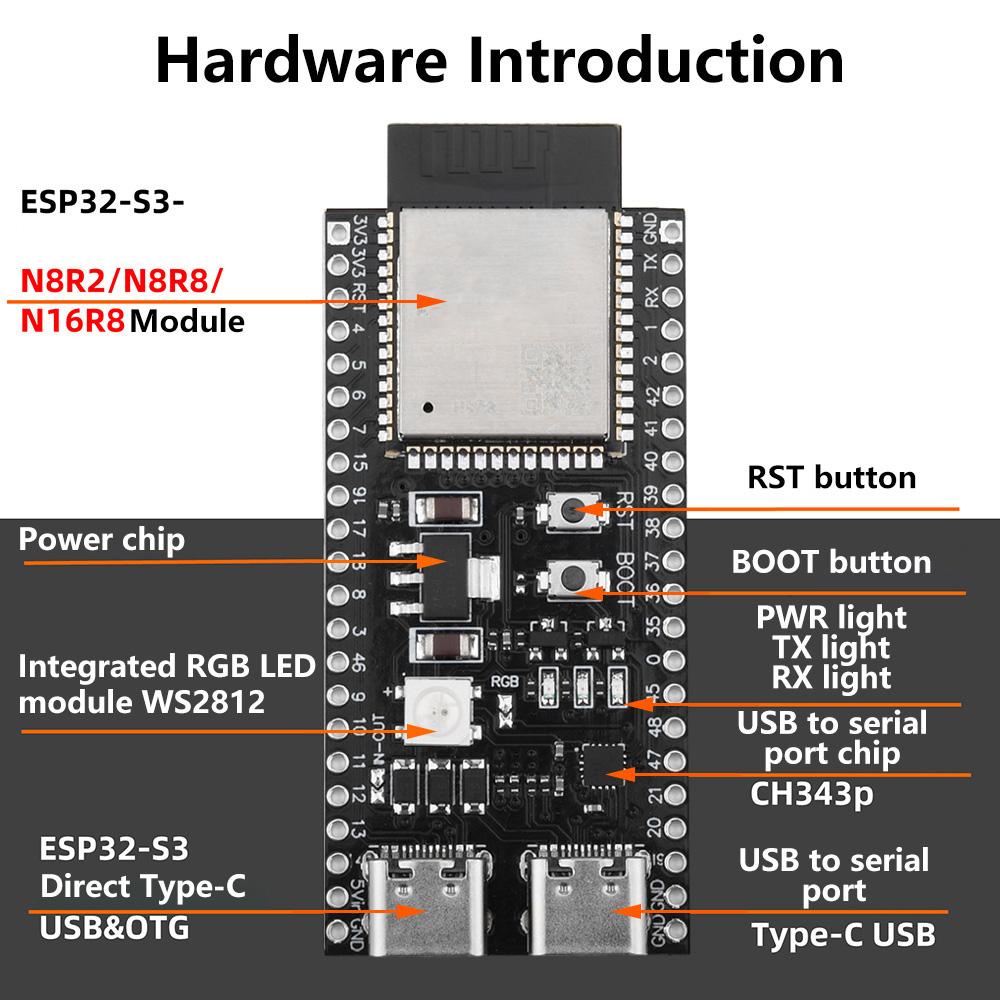

ESP32-S3 Dual Type-C Development Board CORE Board Onboard Esp32 S3 N16R8 N8R2 Module ESP32-S3-DevKitC-1 With Antenna BaseFeatures: 1.ESP32-S3 supports 2.4 GHz Wi Fi and BT 5 (LE) with powerful AI computing power and secure encryption mechanism 2.N16R8 (16M external expansion flash/8M PSRAM)/AI IOT/dual Type-C USB port/W2812 rgb/high-speed USB to serial port 3.This link can select N8R2/R16R8 products. This series is Backward compatibility in turn. Module programs with small storage specifications can be directly run on higher specifications without modification 4.ESP32-S3 is an MCU chip that integrates 2.4 GHz Wi Fi and BT 5 (LE), supporting Long Range mode. The ESP32-S3 is equipped with an XtensaR32 bit LX7 dual core processor, with a main frequency of up to 240 MHz, built-in 512 KB SRAM (TCM), 45 programmable GPIO pins, and rich communication interfaces. 5.ESP32-S3 supports larger capacity high-speed Octal SPL flash and off chip RAM, and supports user configured data caching and instruction caching.

Parameter: Regarding the storage situation of the ESP32-S3-1 module: ESP32-S3-1-N8R2: Built in sram: 512K Built in rom: 384K External expansion PSRAM: 2M External expansion flash: 8M ESP32-S3-1-N16R8: Built in sram: 512K Built in rom: 384K External expansion PSRAM: 8M External expansion flash: 16M This link can select N8R2/R16R8 products. This series is Backward compatibility in turn. All module programs with small storage specifications can be directly run on a higher specification storage module without modification. For example, N4 programs can run on N8 and N16, and module programs with an external extension prom of 0 can run on the psram module with an external extension of 2M and 8M. About ESP32-S3 Hardware Resources ESP32-S3 is a low-power MCU system level chip (SoC) that integrates 2.4 GHz Wi Fi and low-power Bluetooth（ BT@LE ）Dual mode wireless communication. ESP32-S3 has a complete Wi Fi subsystem and low-power Bluetooth subsystem, with industry-leading low-power and RF performance. Supports multiple low-power working states and can meet the power consumption requirements of various application scenarios. The ESP32-S3 chip provides rich peripheral interfaces and has various unique hardware security mechanisms. A comprehensive security mechanism enables chips to meet strict security requirements.

Parameter Function Description: WiFi: Supports IEEE 802.11 b/g/n protocol Supports 20 MHz and 40 MHz bandwidth in the 2.4 GHz frequency band Supports 1T1R mode, data rate Up to 150 Mbps Wireless Multimedia (WMM) Frame aggregation (TX/RX A-MPDU, TX/RXA-MSDu) Immediate Block ACK Fragmentation and recombination (Fragmentation/fragmentation) - Beacon automatic monitoring (hardware TSF). 4 × Virtual Wi Fi interface At the same time, it supports the Station mode, SoftAP mode and Station+SoftAP Promiscuous mode of infrastructure BSS Please note that when ESP32-S3 is scanned in Station mode, the SoftAP channel will change simultaneously Antenna diversity 802.11 mc FTM · support for external power amplifiers Bluetooth Low power Bluetooth (BT LE): BT5, Bluetooth mesh High power mode (20 dBm, sharing PA with Wi Fi) Supports speeds of 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps · Advertising Extensions Multiple Advertisement Sets Channel Selection Algorithm # 2 Wi Fi coexists with Bluetooth, sharing the same antenna Advanced peripheral interfaces and sensors forty-five × GPIO port

Digital interface: -4 x SPI -1 x LCD interface (8-16 bit parallel RGB, l8080, MOTO6800), supporting mutual conversion between RGB565, YUV422, YUV420, YUV411 -1 × DVP 8-16 bit camera interface -3 × UART -2 × 12C -2xl2S -1 × RMT (TX/RX) -1 × Pulse counter -LED PWM controller with up to 8 channels -1 × Full speed USB OTG -1 × USB Serial/JTAG controller -2xMCPWM -1 x SDIO host interface with 2 card slots -General DMA controller (GDMA) with 5 receiving channels and 5 sending channels -1 × TWAIR controller, compatible with IS011898-1 (CAN specification 2.0)

Analog interface: -2 × 12 bit SAR ADC with up to 20 channels -1 × temperature sensor -14 × Capacitive sensing GPIO Timer: -4 × 54 bit universal timer -1 × 52 bit system timer -3 × Watchdog timer Low power management -Power management unit, five power consumption modes -Ultra Low Power Co processor (ULP): -ULP-RISC-V Coprocessor -ULP-FSM Coprocessor Security Mechanism -Safe start -Flash encryption -4096 OTPs with up to 1652 available to users Encryption Hardware Accelerator: -AES-128/256 (FIPS PUB197) -Hash (FIPS PUB 180-4) -RSA – Random Number Generator (RNG) - HMAC -Digital signature

How to download ESP32-S3: The ESP32-S3 download and write program files (firmware) can be downloaded through the ESP32 direct USB interface or through the hardware USB to serial port on the board. In short, both TYPE-C USB ports on the board can download the program. In the Windows environment, you can use the official flash_ Download_ Tool_ Download xxx software, please note that these two USB port modes are called USB mode and UART mode. WROOM
