Quantity : 1
High-concerned chemical : none
Package : SOP
is_d : Yes
Supply Voltage : 12-72V
Type : Module
Brand Name : DIY NOW
Origin : Mainland China
Condition : New
Product Features

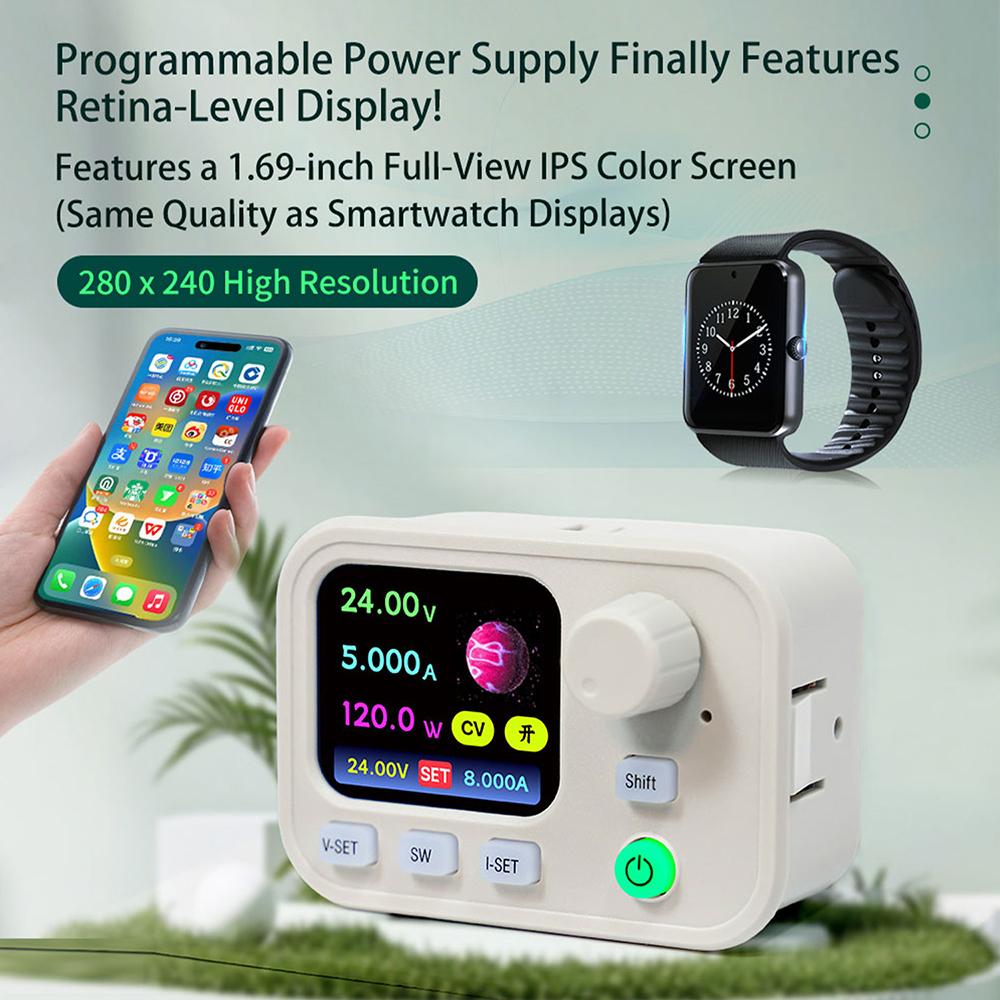

1. 1.69-inch vibrant IPS display with 280×240 high-definition resolution, delivering rich and detailed colors.
2. Supports firmware upgrades, MPPT solar charging, and serial communication.
3. Customizable power system interface colors, allowing for free selection across the full 360° color spectrum.

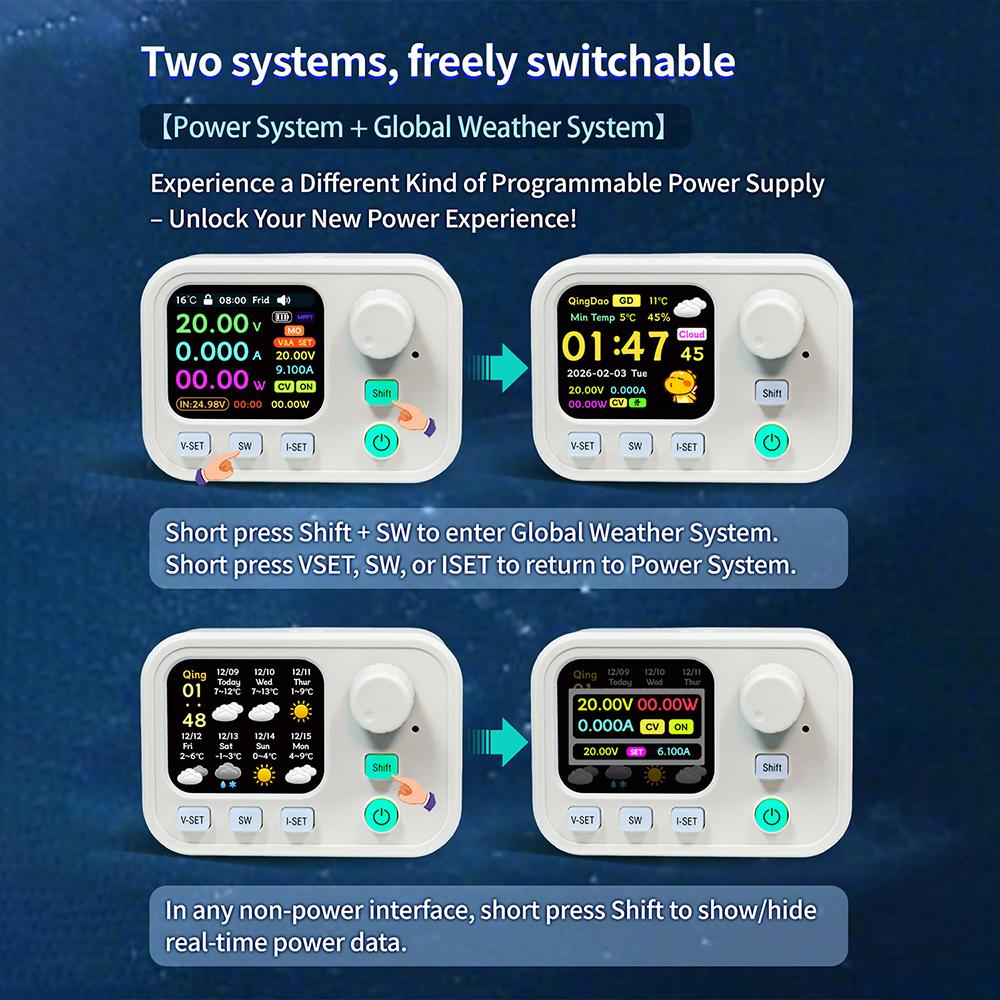

4. Dual-system functionality—seamlessly switch between the digitally controlled power supply interface and the global weather display for a versatile user experience.
5. Multiple interface options (standard, weather, and clock) with animated transitions.

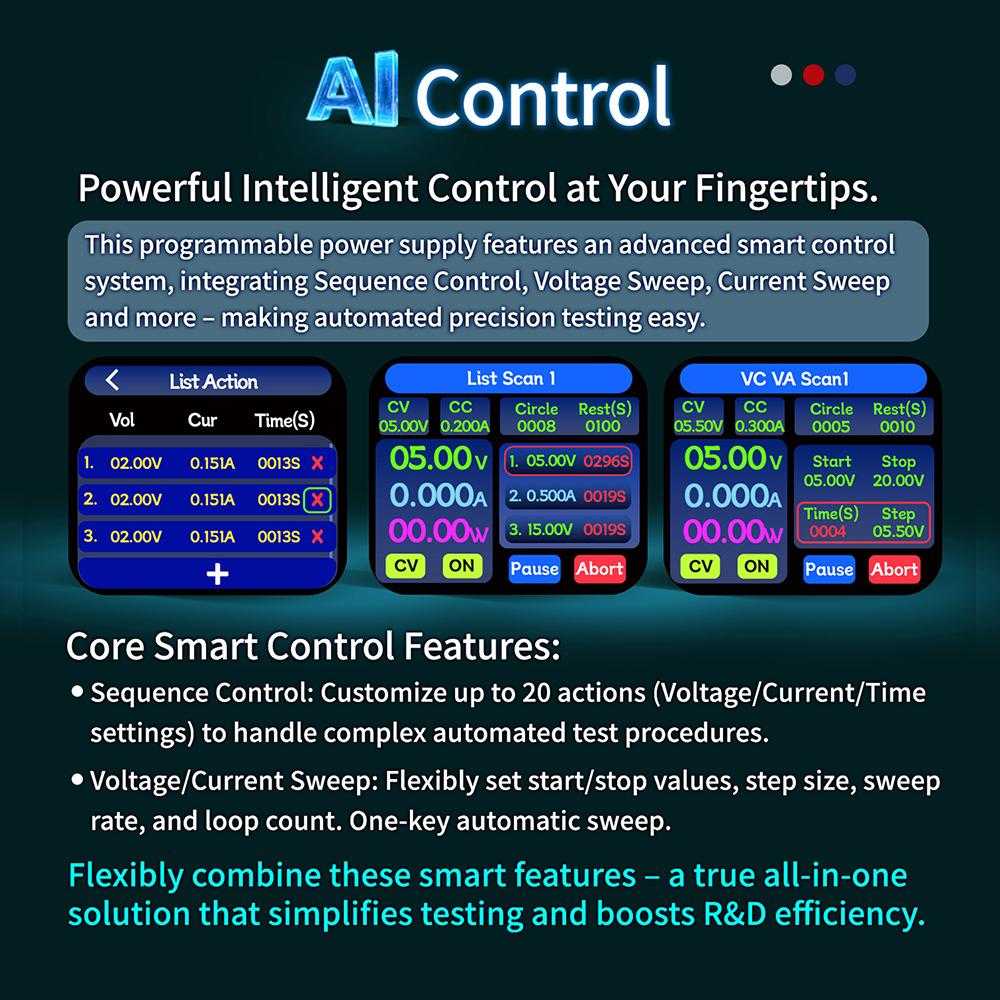

6. Sequence control combined with voltage/current scanning; intelligent control capabilities enable automated testing within a single unit.
Smart Connectivity & Control
Bluetooth Point-to-Point Control: Direct, short-range connection via smartphone or tablet; simple and convenient operation, ideal for on-site laboratory debugging.
UDP LAN Control: Real-time control of multiple devices within the same local network; fast response times, suitable for collaborative work or automated system integration.
Wi-Fi Remote Control: Supports remote operation via the internet; monitor and adjust settings anytime, anywhere using a smartphone or computer, offering exceptional flexibility. Product Specifications

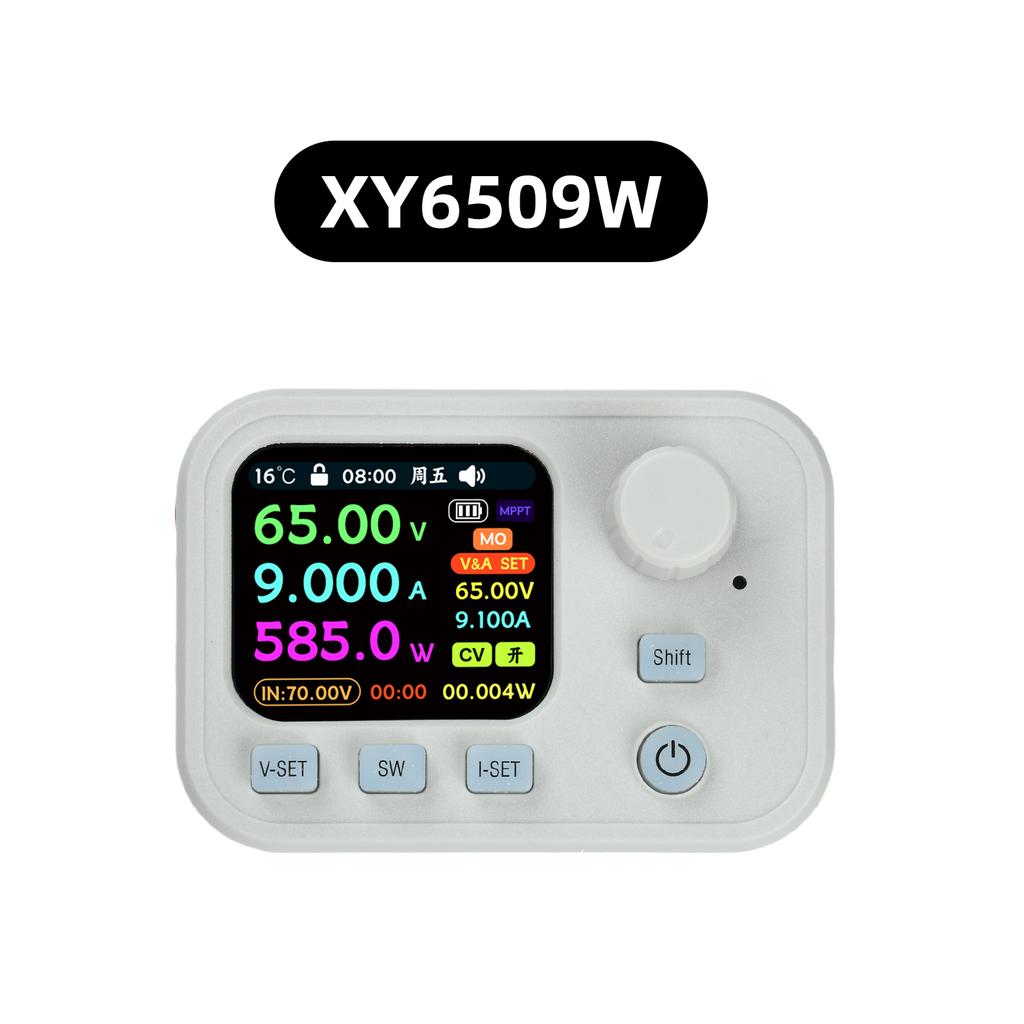

XY6509W
Input Voltage: 12–72V
Output Current: 0–9.000A
Output Power: 585W
XY6506W
Input Voltage: 12–72V
Output Current: 0–6.000A
Output Power: 390W
Voltage Resolution: 0.01V
Conversion Efficiency: ~96%
Output Voltage: 0–65V
Voltage Accuracy: ±0.5% + 1 digit
Current Accuracy: ±0.5% + 3 digits
Current Resolution: 0.001A
Data Storage Groups: 10 groups
MPPT Function: Supports MPPT solar charging
Buzzer: Yes
Soft Start: Yes
Protection Mechanisms
Input Reverse Polarity Protection: Yes
Output Backflow Protection: Yes
Input Undervoltage Protection: Adjustable 10–75V (default 10V)
Output Overvoltage Protection: Adjustable 0–67V (default 67V)
Output Overcurrent Protection:
6509W: Adjustable 0–9.2A (default 9.2A)
6506W: Adjustable 0–6.2A (default 6.2A)
Output Overpower Protection:
6509W: Adjustable 0–650W (default 600W)
6506W: Adjustable 0–420W (default 400W)
Overtemperature Protection: Adjustable 60–110°C (default 110°C)
Timeout Protection: 1 minute – 99 hours 59 minutes (default OFF)
Over-capacity Protection: Adjustable 0–9999Ah (default OFF)
Over-energy Protection: Adjustable 0–4200kWh (default OFF)
Probe High-temperature Protection: Adjustable 0–110°C (default OFF)
Packing List
Step-down Power Supply ×1
label:yes
