High-concerned chemical : none
Display Mode : other
is_d : Yes
Model Number : ESP32 WIFI + BT Display
Type : OLED
Brand Name : DIY NOW
Origin : Mainland China
Resolution : 320*240
Product name : ESP32 WIFI + BT dual-mode development board displa
Display colour : RGB 65K colour
Size : 2.8 inch
Driver chip : ILI9341
Resolution : 320x240
Viewing area : 43.2x57.6mm
Bluetooth : Bluetooth 4.2BR/EDR and BLE standard

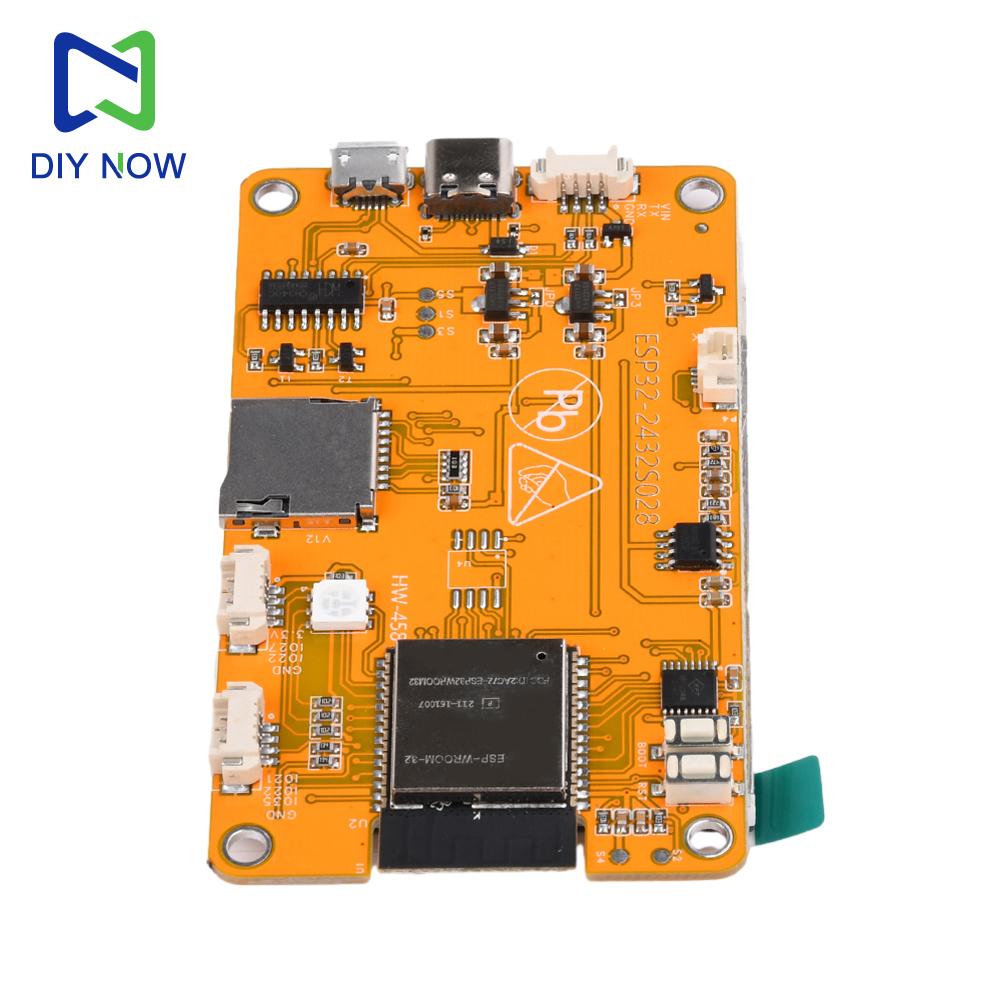

Product Features1.Low power consumption dual-core 32-bit CPU, can be used as application processor.
2. Main frequency up to 240MHz, computing power up to 600DMIPS
3. Built-in 520KB SRAM
4. Support UART/SPI/PWM/DAC/ADC interfaces.
5. With TF card slot, easy to expand storage

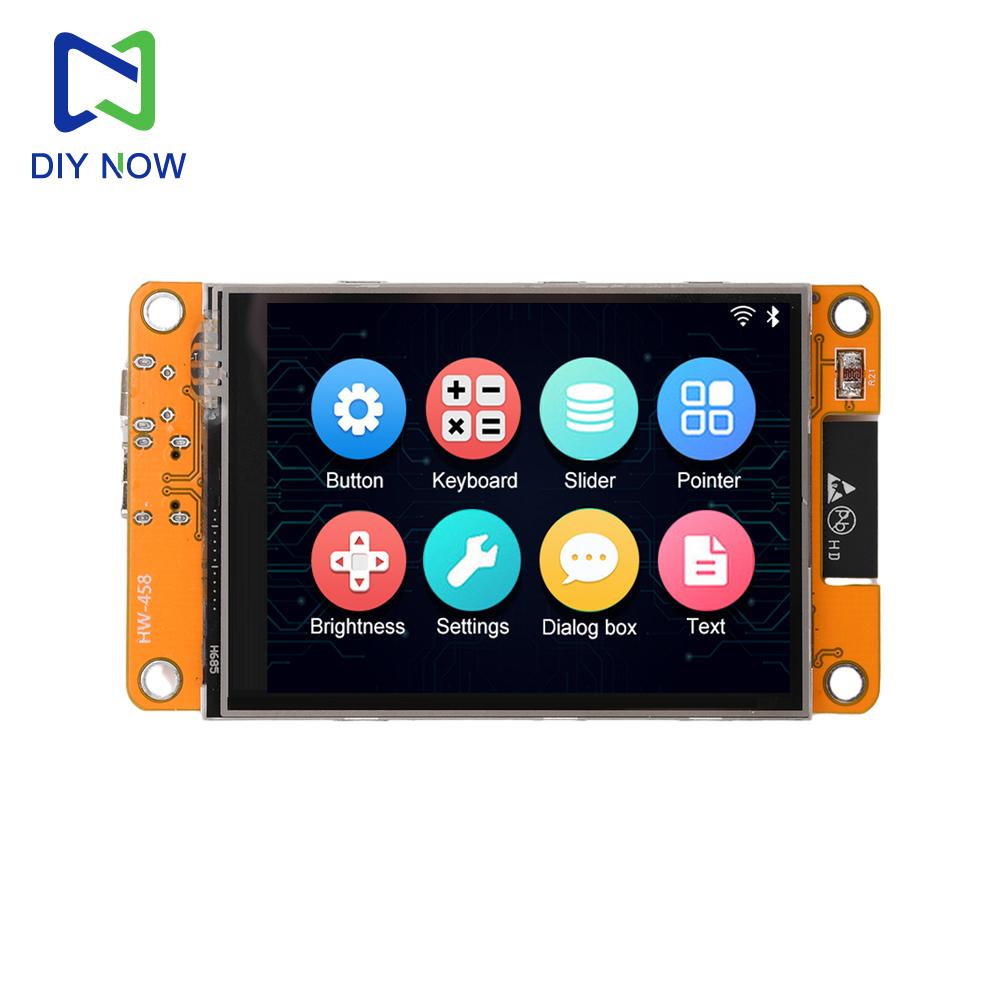

6.2.8-inch colour screen, support for 16-bit RGB 65K colour display
7.Support Smart Config/Airkiss one-key networking
Product Parameter

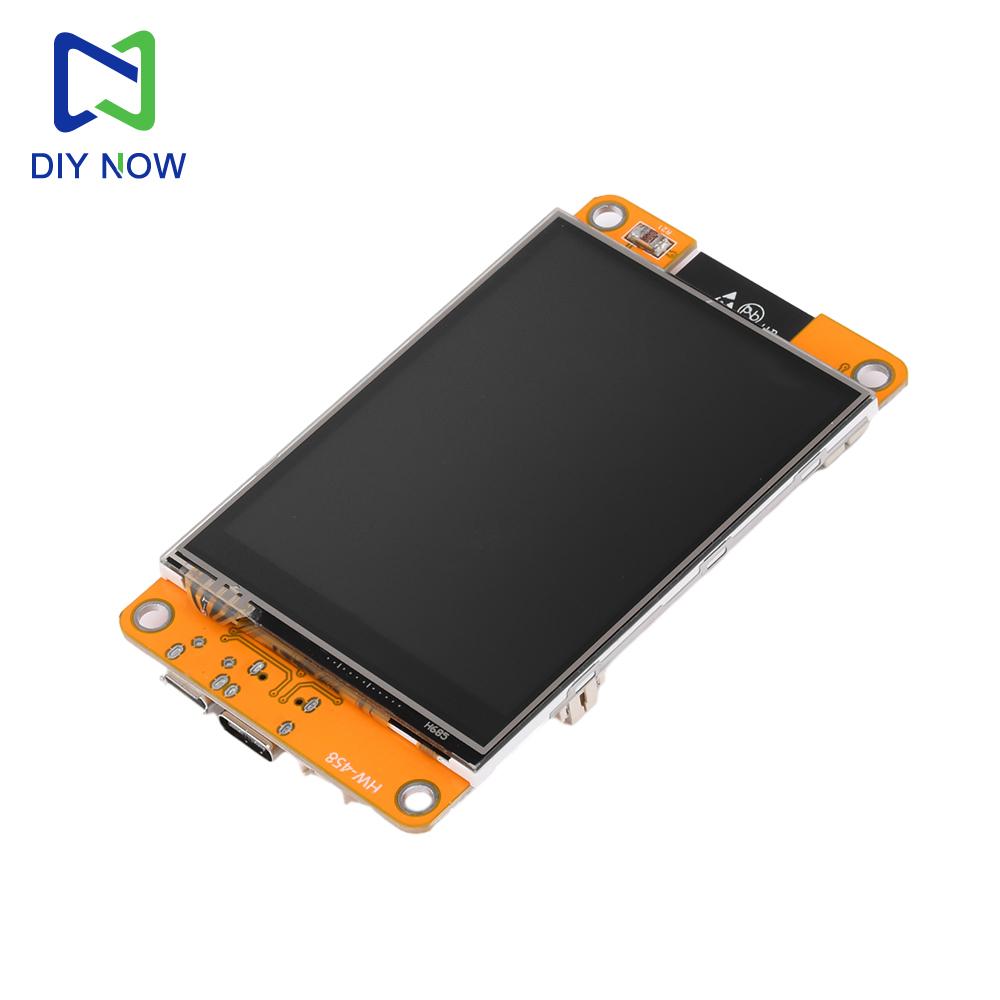

Product name: ESP32 WIFI + BT dual-mode development board display
Display colour: RGB 65K colour
Size: 2.8 inch
Type: TFT
Driver chip：ILI9341
Resolution: 320*240
Viewing area: 43.2*57.6mm
Viewing Angle：＞60°
Operating Temperature: -20~70°C
Operating voltage: 5V
Power consumption: 115mA
Bluetooth: Bluetooth 4.2BR/EDR and BLE standard
WIFI: 802.11b/g/n/
Support interface: UART, SPI, SDIO, I2C, IR, ADC, DAC, PWM
IO port: 22
Serial port rate: default 115200bps
Spectrum range: 2412~2484MHZ
Antenna Format: On-board PCB antenna with 2dBi gain
Security: WPA/WPA2/WPA2-Enterprise/WPS
Transmit Power: 802.11b:17±2dBm(@11Mbps) /802.11b:14±2dBm(@54Mbps) /802.11b:13±2dBm(@MC57)
Interface Sensitivity:
CCK,1Mbps:-90dBm
CCK,11Mbps:-85dBm
6Mbps(1/2BPSK):-88dBm
54Mbps(3/464-QAM):-70dBm
MCS7(65Mbps,72.2Mbps)-67dBm

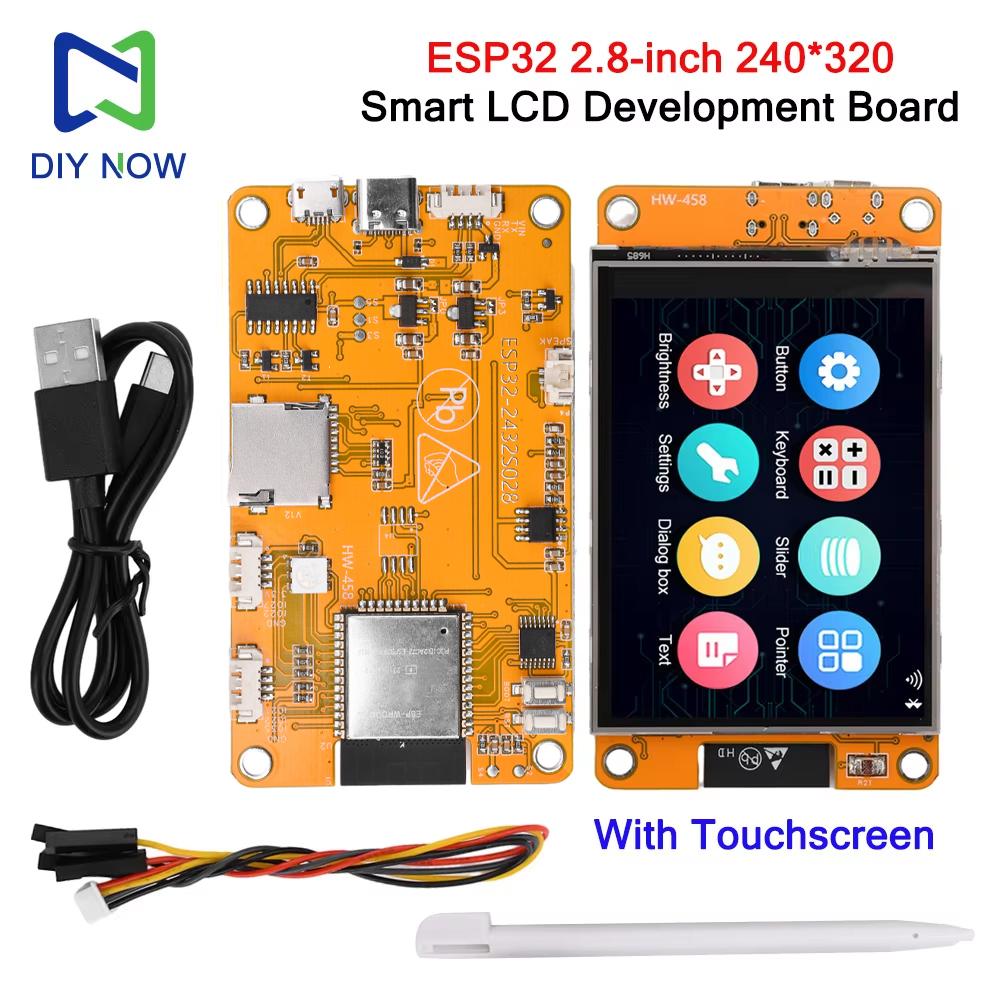

Shipping List
Display*1
Touch pen*1
TYPE-C cable*1
4P terminal to Dupont cable*1
label:yes
