Quantity : 1
High-concerned chemical : none
Package : TQFP
Type : Module
Brand Name : DIY NOW
Origin : Mainland China
Condition : New

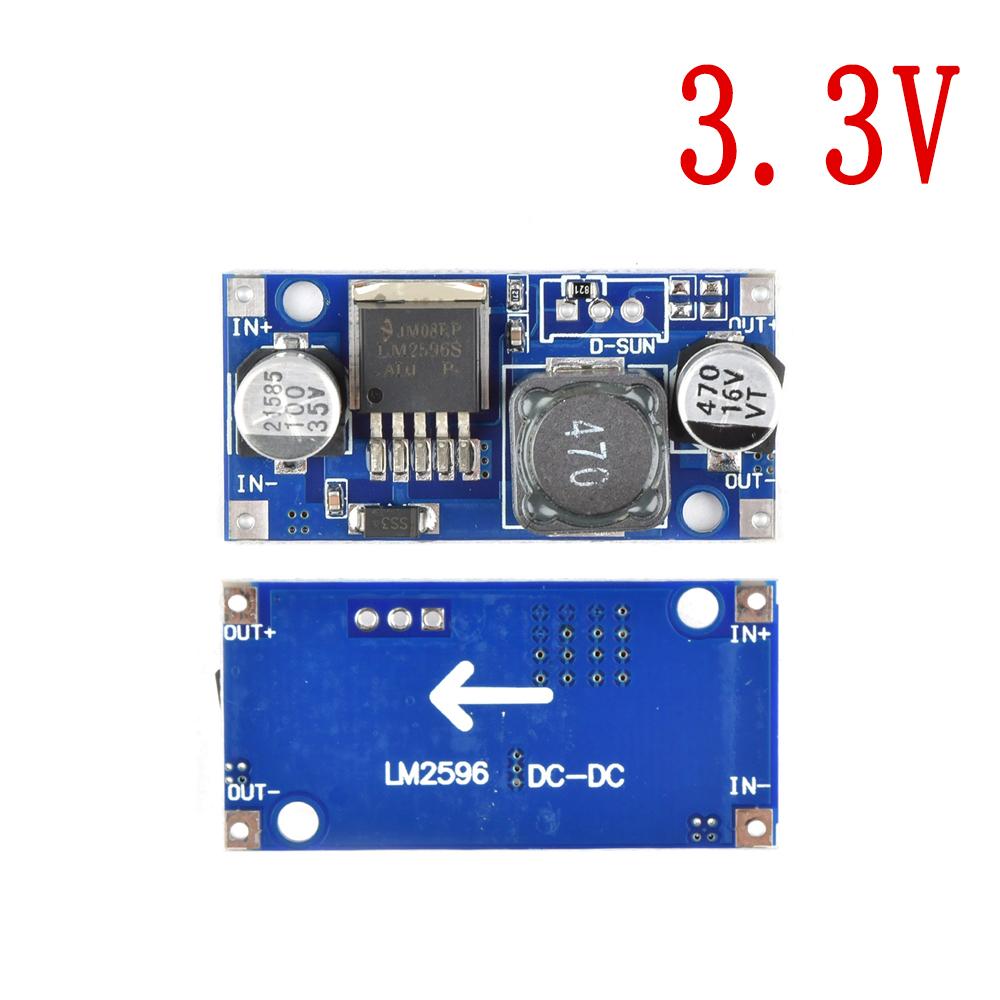

3.3V output product parameters:
Input voltage: 3.2V~40V
Output voltage: 3.3V
Output current: 3A (not more than) using actual test within 2A for long-distance running
Conversion efficiency: 92% (not exceeding)
Output ripple: <30mV
Switching frequency: 65KHz
Working temperature: -45℃~ +85℃

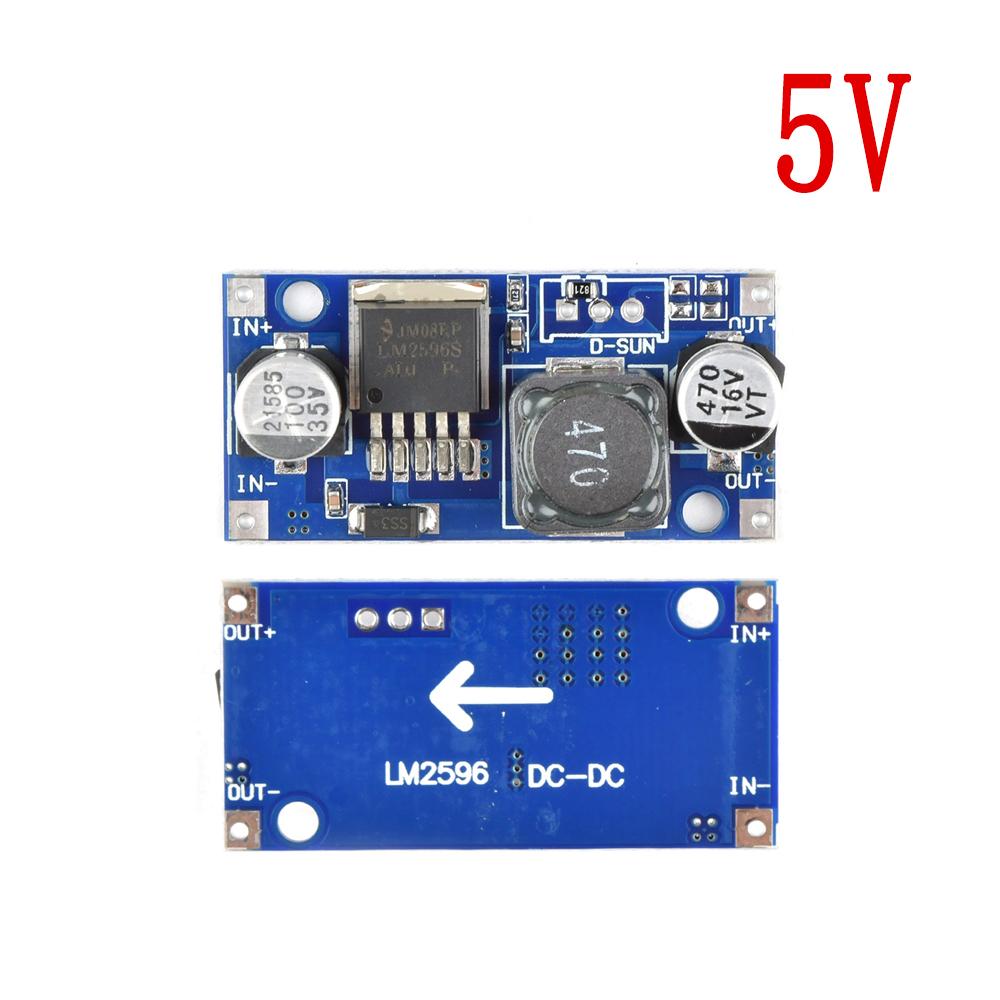

5V output product parameters:
Input voltage: 3.2V~40V
Output voltage: 5V
Output current: 3A (not more than) using actual test within 2A for long-distance running
Conversion efficiency: 92% (not exceeding)
Output ripple: <30mV
Switching frequency: 65KHz
Working temperature: -45℃~ +85℃
12V output product parameters:
Input voltage: 3.2V~40V
Output voltage: 12V
Output current: 3A (not more than) using actual test within 2A for long-distance running
Conversion efficiency: 92% (not exceeding)
Output ripple: <30mV
Switching frequency: 65KHz
Working temperature: -45℃~ +85℃

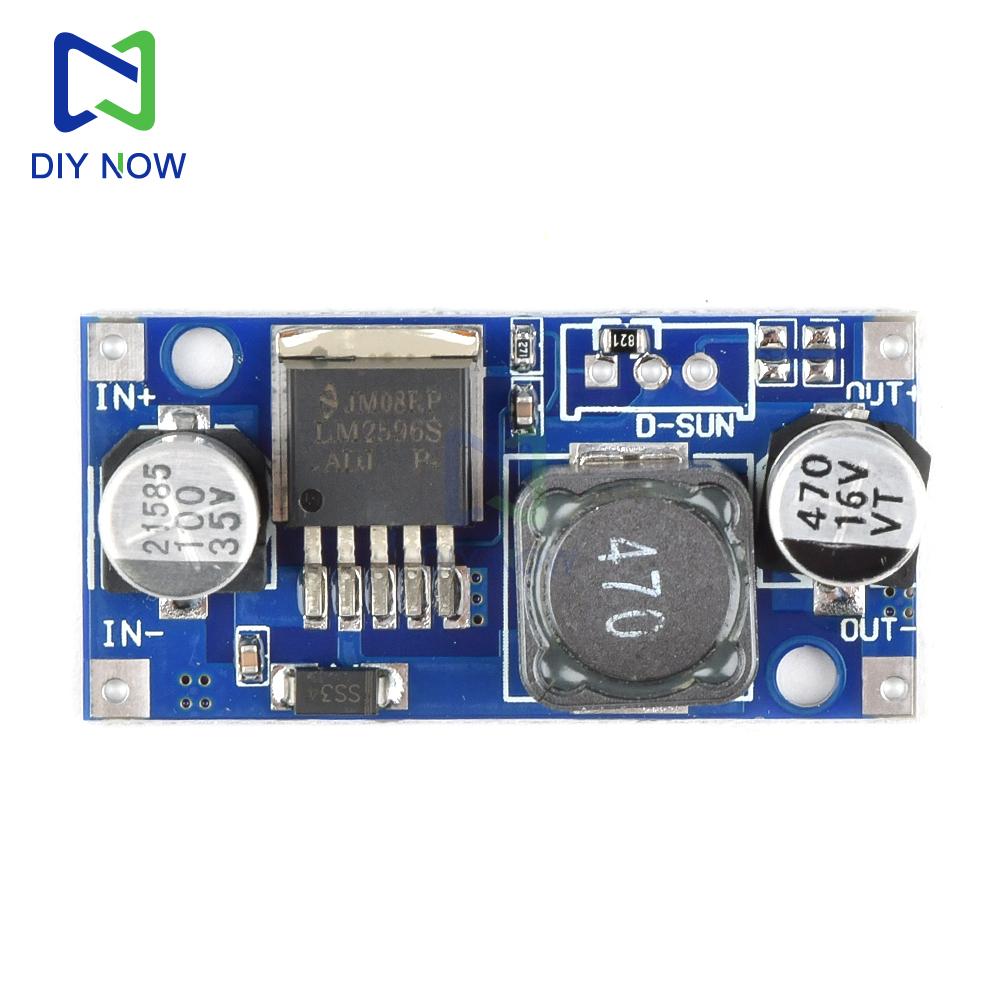

Wiring port:
IN+ input positive IN- input negative
OUT+ output positive OUT- output negative
Input voltage range: DC 3.2V to 40V (the input voltage must be more than 1.5V higher than the output voltage, and cannot be boosted)
Output voltage range: DC 3.3V or 5V fixed voltage output, high efficiency (maximum 92%), maximum output current is 3A, (no-load debugging is recommended)
The measured load regulation rate is less than 1% when 12V input and 5V output current are 1A
Note: This is a step-down module, the input voltage must be higher than the output voltage, the output below 2A can be used for a long time without adding a heat sink, the output current is greater than 2.5A or the output power is greater than 10W, please add a heat sink for long-term work
Turn it counterclockwise to reduce the pressure, it doesn't reflect at first, and it starts to change after 10-20 laps.
Package includes:
Module X1
label:yes
