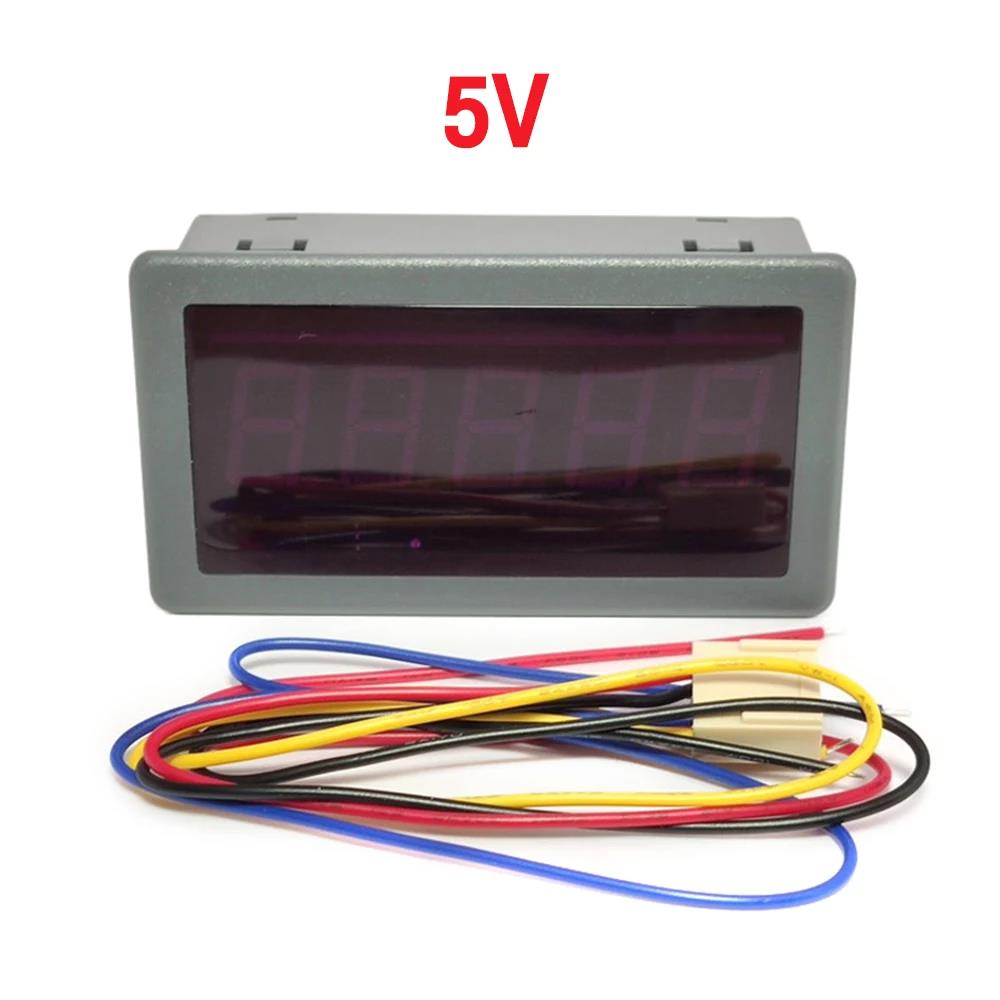

Features: 1.Fast response to meter/count input, without missing a pulse 2.Special algorithms make meter counting more reliable and accurate 3.Beautiful appearance, excellent craftsmanship, and convenient use 4.You can press the key to modify different display units and step coefficient units 5.Featuring high reliability, strong anti-interference ability, wide measurement range, and high measurement accuracy

Description: The YM5135RT-H series reversible meter counter uses a high-performance microprocessor from Microchip Corporation in the United States as the central processing unit. It has the characteristics of high reliability, strong anti-interference ability, wide measurement range, and high measurement accuracy. The use of software compensation correction method reduces the deviation of meter counting, enabling the instrument to achieve a qualitative leap in measurement accuracy. Multiple ranges are available for users to choose from, making it easy to use. Therefore, this series of instruments can be widely used in various industries that require high-precision measurement.

Specifications: Parameter items: meter counting and counting (parameter set to 0 1 1, step coefficient set to 100.00) Display digits: 5-digit LED Nixie tube (0.56 inch) Measurement display range: adjustable from 9.9999 mm to 99999 meters. The display unit can be adjusted in meters, centimeters, and millimeters. X. The decimal point positions of XXXX, XX.XXX, XXX.XX, XXXX.X, and XXXXX are adjustable. Step coefficient range Note: Each positive or negative signal The cumulative or decreasing value of the number 000.01 micrometers to 999.99 centimeters. The step coefficient can be set in centimeters, millimeters, and micrometers, with a value of XXX.XX. Signal input frequency range: 0-10KHZ (dual pulse, duty cycle 50%, signal amplitude 5V measurement) Input signal description: Reversible meter counting requires signals provided by A and B dual signal encoders and dual output sensor sensors in order to be used. Single output sensors can also be combined into dual outputs for use, but it is necessary to ensure the integrity and correctness of the signal in order to use it correctly. Input signal type/amplitude: dry contact (not recommended), PNP, NPN, pulse (recommended)/3-30V (special customizable) Input resistance: 100K Ω/resistive Power supply: DC5V, 7-12V, 12-24V optional, with a current of about 30mA (special power supply can be customized) Withstand voltage: AC2000V 1min between external terminals and housing Vibration resistance: 1-100HZ, acceleration of 50m/s2, 5minX10 in X, Y, and Z directions Operating environment (temperature: -35 ℃ -+60 ℃ without condensation Operating environment (humidity): relative humidity 10-90%, no condensation Storage temperature: -35 ℃ -+60 ℃ without condensation Boundary dimension (mm): 79X43X25 (length × wide × High) Installation opening size (mm): 75X39.5 (length × Width (reference value, actual value needs to be determined based on the thickness of the box)

Method of Use: Example of meter counting: meter wheel circumference 200 mm, encoder 400 lines, need to display unit of meter, keep 3 decimal places. First set the step factor to the theoretical value of 200/400 = 0.5 mm = 500.00 microns. Parameter 2 is set to 500.00, parameter 1 is set to 3-1-3. At this time, the measurement can be carried out for the first time, because the theoretical and actual circumference gap of the meter wheel, different friction coefficients, different stretching degrees of the measured object, etc. will cause a difference between the value displayed in the measurement and the actual value, at this time, according to the ratio relationship adjustment, for example, the table shows 10.000 meters, the actual 10.580 meters, that step coefficient is modified to (10.58/10)*500 (the calculated step coefficient value set in front) = 529.00.

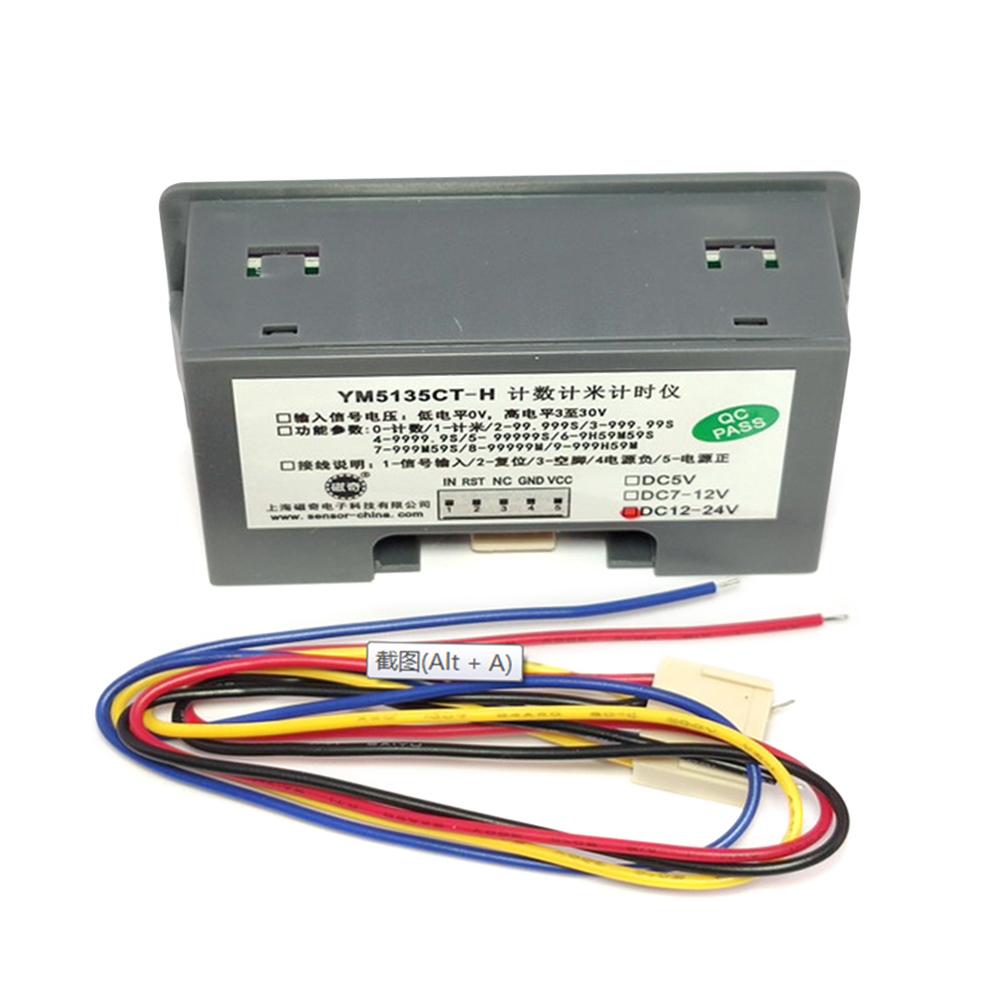

Terminal Description: 1:Signal input A 2:Signal input B 3:Clear zero (low valid) 4:Power ground 5:Power supply positive (according to the back sticker instructions voltage access) Input connection: (the diagram is only marked A channel input signal, B channel input and A the same o two signals to meet the conditions)

Note: 1.It should be used in the normal operating environment of this instrument. 2.Choose the correct working mode and set the correct parameters according to the actual usage requirements. 3.The input signal should meet the requirements of impedance matching, and impedance transformation should be performed on signals with high internal resistance.

Package Included: 1 * Counter
