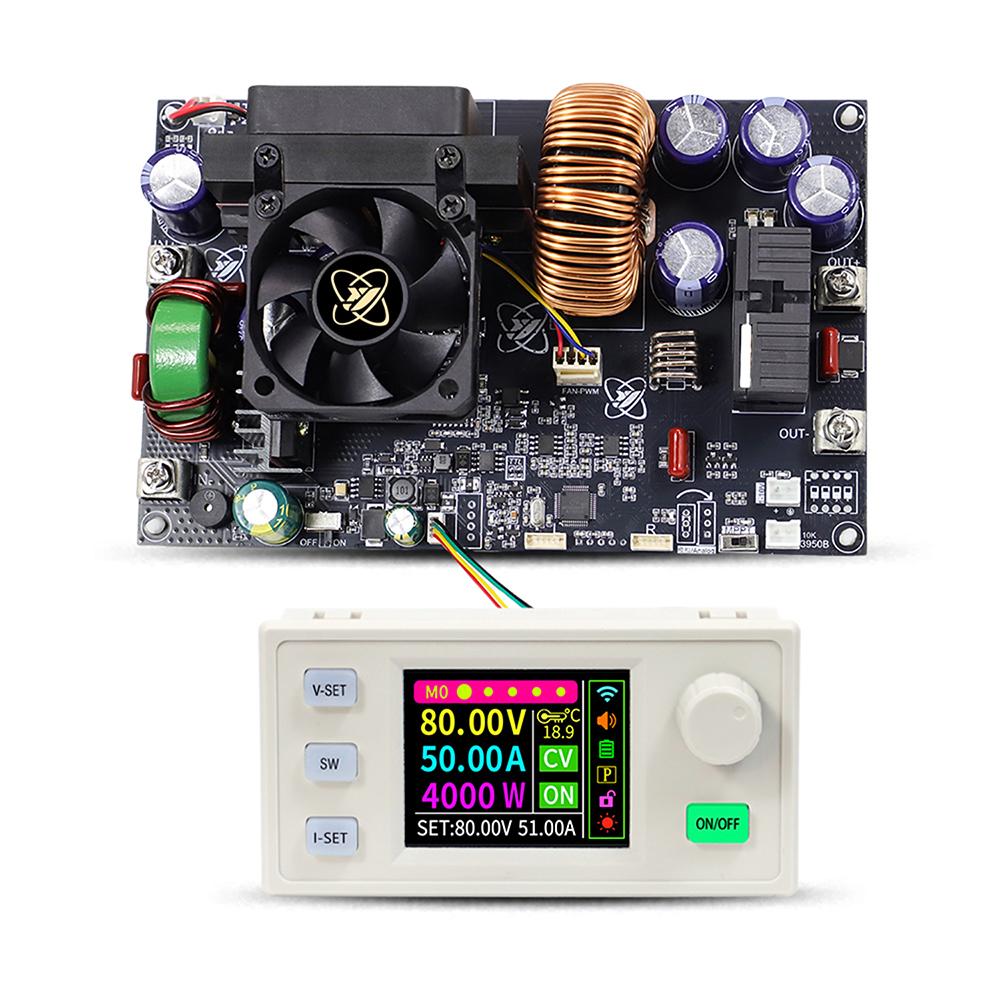

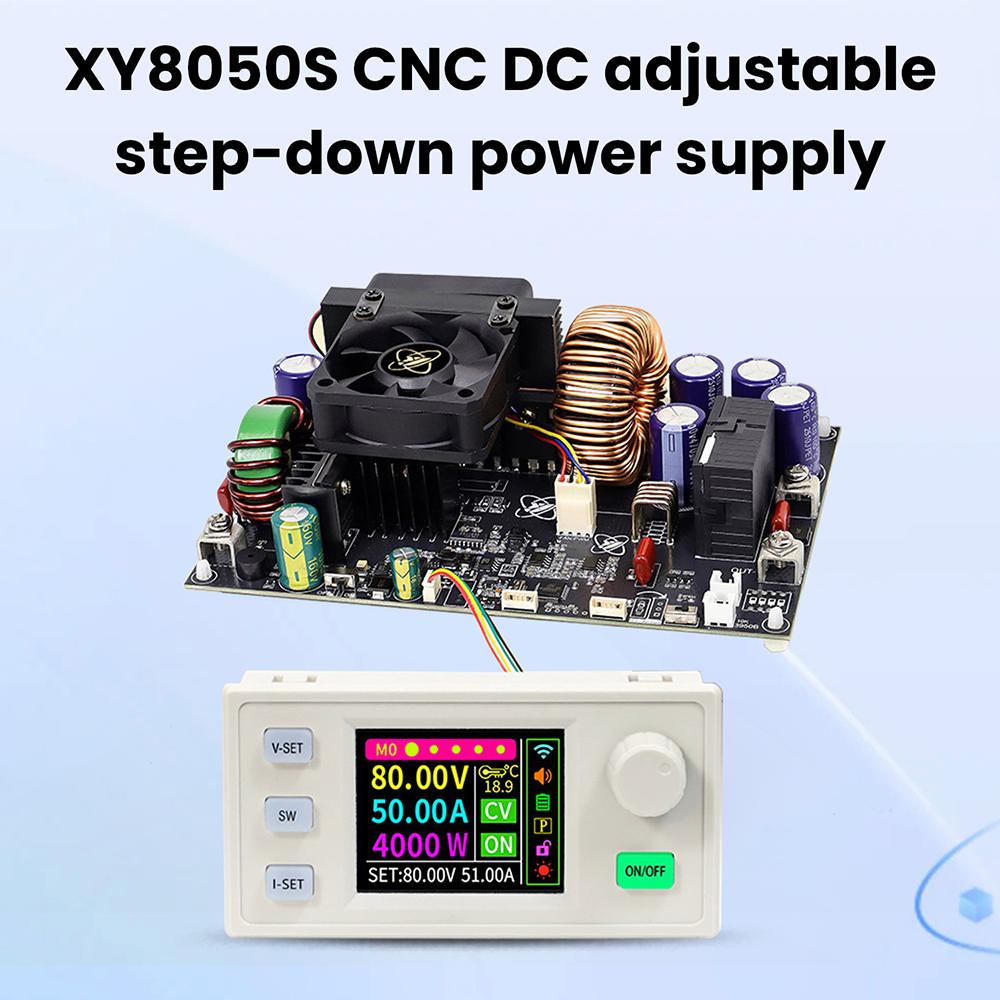

XY8050S CNC DC Adjustable Step-Down Power Supply Module 50A/4000W Constant Voltage Current Module Input Voltage DC12-140V

High-concerned chemical : none Type : Module Brand Name : Aideepen Origin : Mainland China Condition : New

Description: 1. Supports firmware upgrades, MPPT solar charging, and serial communication 2. Full-view 1.8-inch high-brightness true-color LCD screen with customizable color schemes and four-way rotation 3. Features input reverse polarity protection and output backflow protection for comprehensive functionality and safeguards 4. Display board employs gold-plated design for oxidation resistance, enhanced conductivity, and durability 5. Two intelligent temperature-controlled PWM stepless speed fans with low noise + large-area heat sinks 6. Input employs common-mode choke to significantly reduce input power ripple impact, achieving low-ripple output

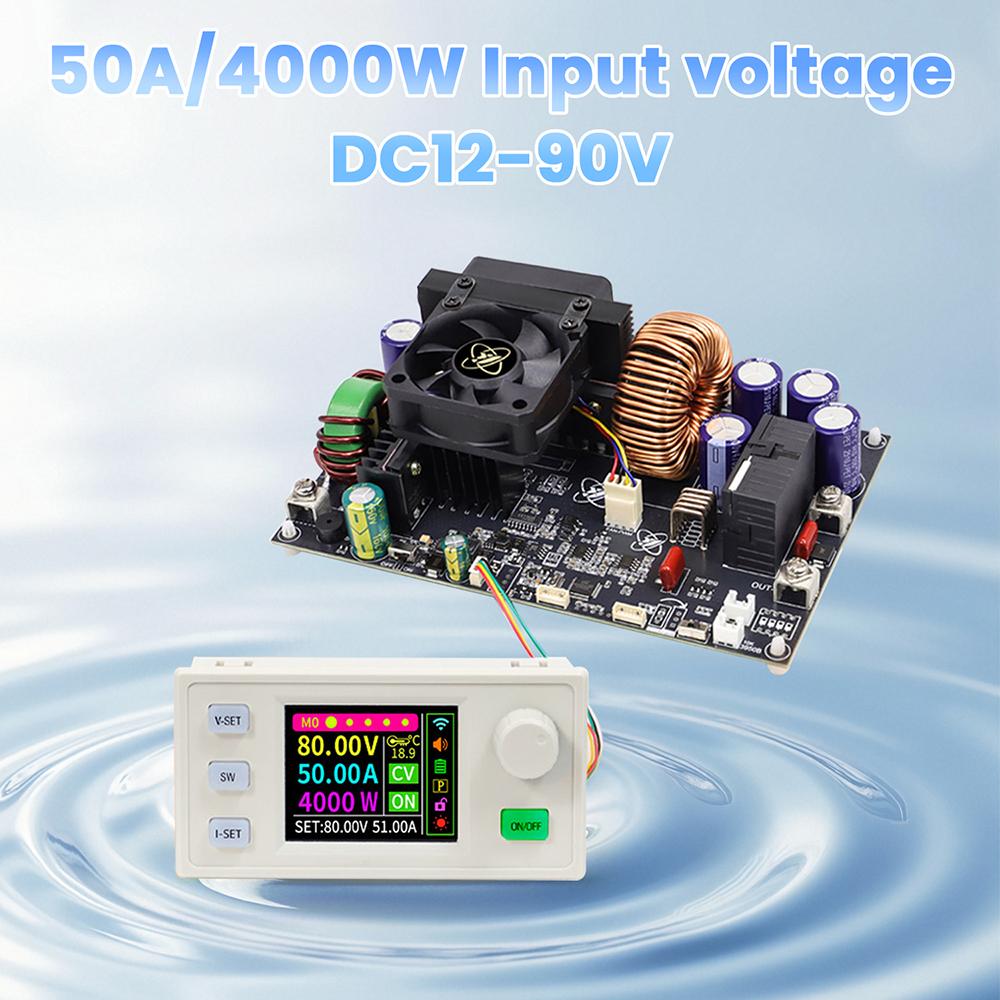

Product Specifications: Product Name: Digital DC Step-Down Power Supply Input Voltage: 12.00~90.0V Output Voltage: 0~80.00V Output Current: 0~50.00A Output Power: 4000W Voltage Resolution: 0.01V Stored Data Sets: 10 sets Conversion Efficiency: Approx. 95% Supports MPPT Solar Charging

Precautions: 1. Input must not be connected to AC power, especially not to 220V mains electricity. 2. This is a step-down power supply; maximum output voltage = input voltage × 0.945.

Package Contents: Package A: Adjustable Power Supply ×1 + Meter Head ×1 + Cables ×2 Package B: Adjustable Power Supply ×1 (Base plate usable independently) label:yes
