High-concerned chemical : none
Is Electric : No battery
Wheelbase : Bottom Plate
Is it battery/power supply : N
Is it charger/adapter : N
Is Batteries Included : No
Size : 10cm
Technical parameters : value 3
Model Number : Balanced charging line
For Vehicle Type : Cars
Tool Supplies : Assembled class
Four-wheel Drive Attributes : Battery
Remote Control Peripherals/Devices : Battery
Upgrade Parts/Accessories : Adapter
RC Parts & Accs : Connectors/Wiring
Material : POLYESTER
Origin : Mainland China
Recommend Age : 14+y
Use : Vehicles & Remote Control Toys

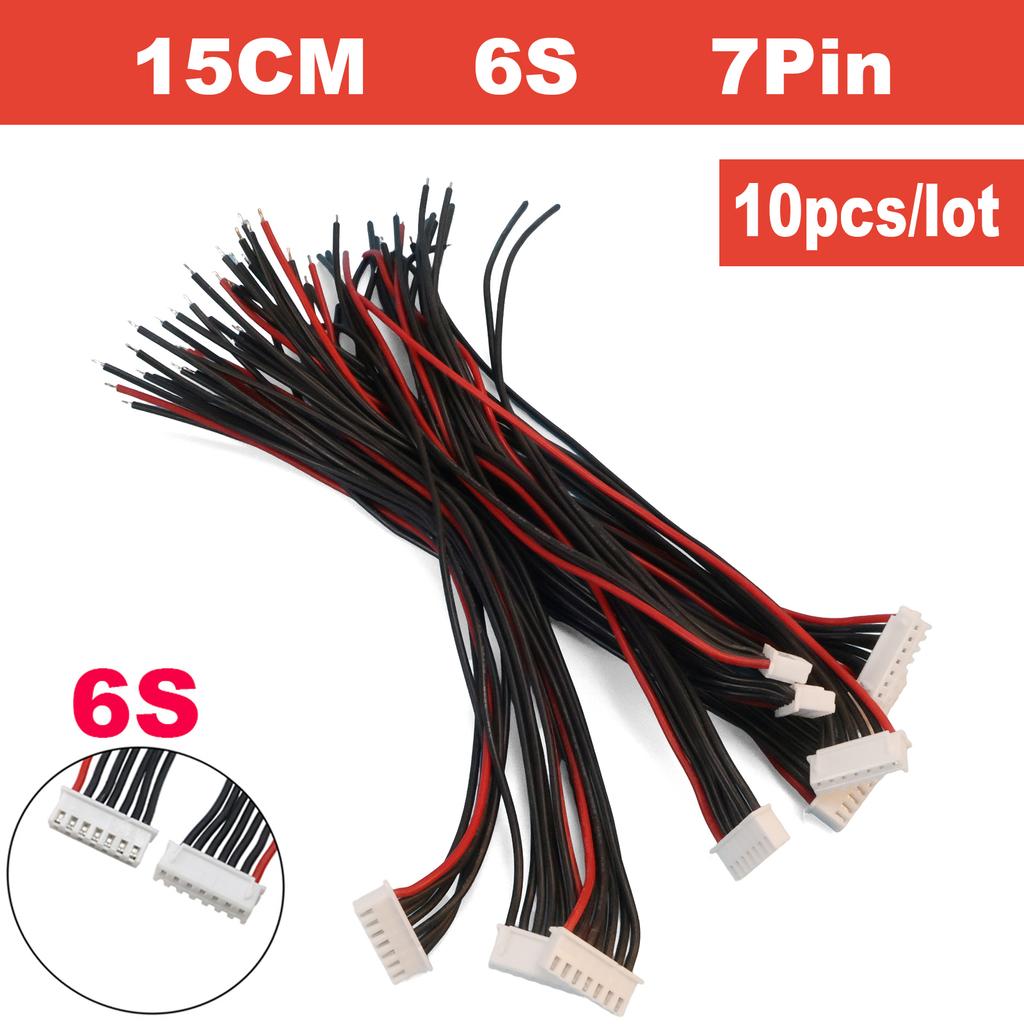

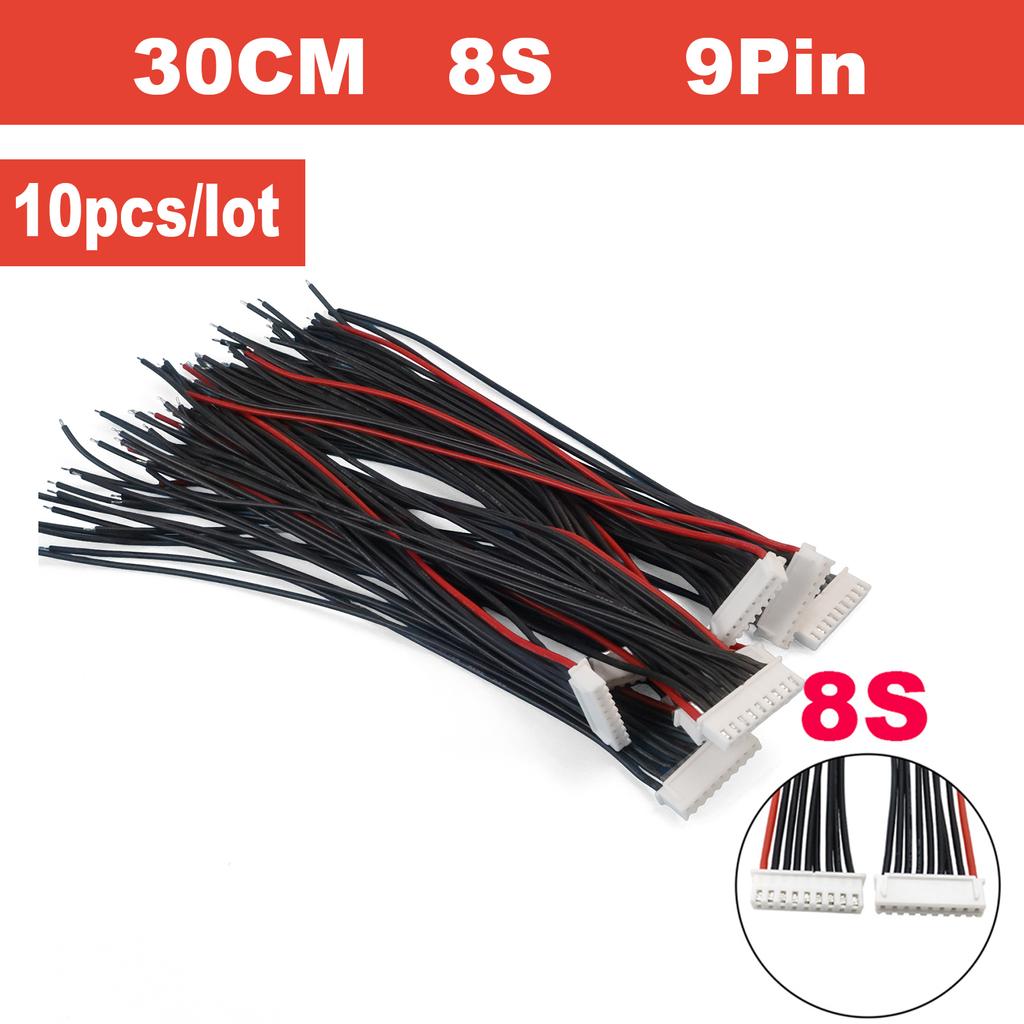

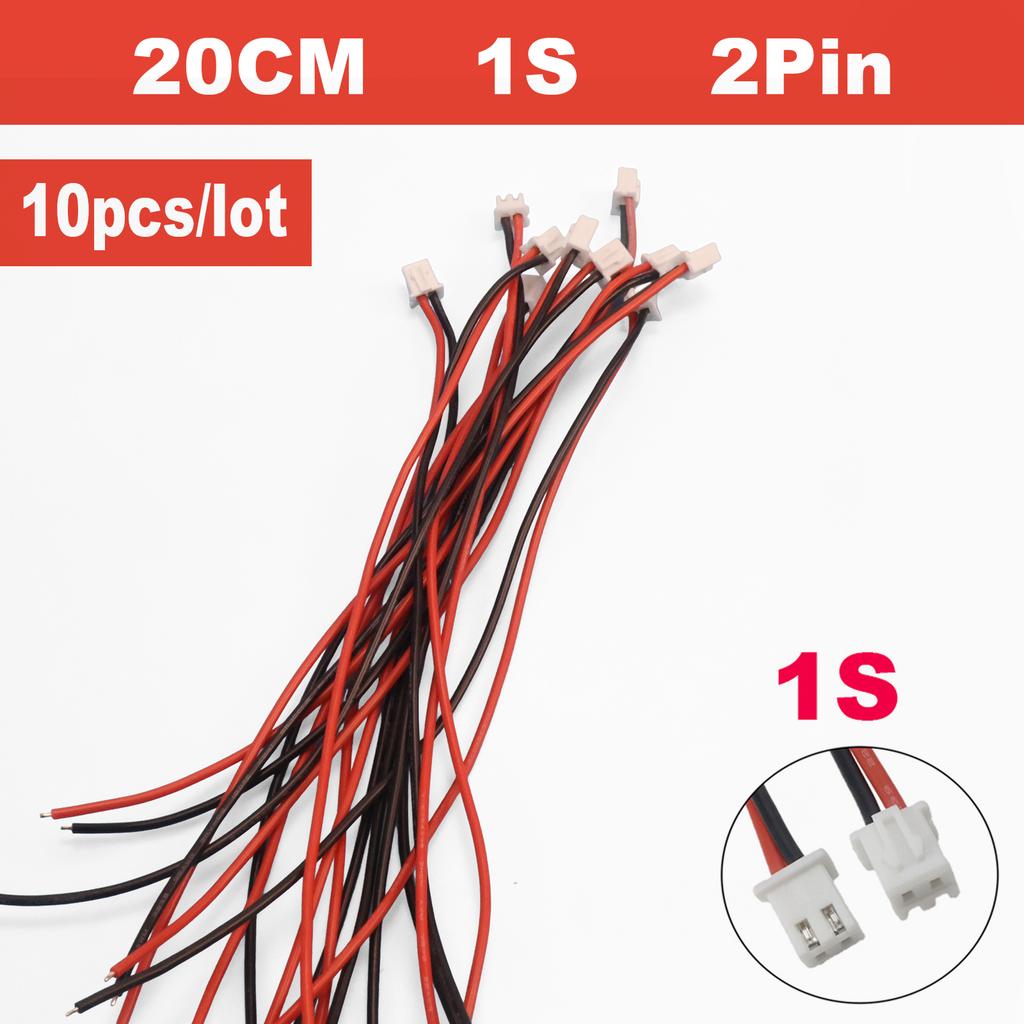

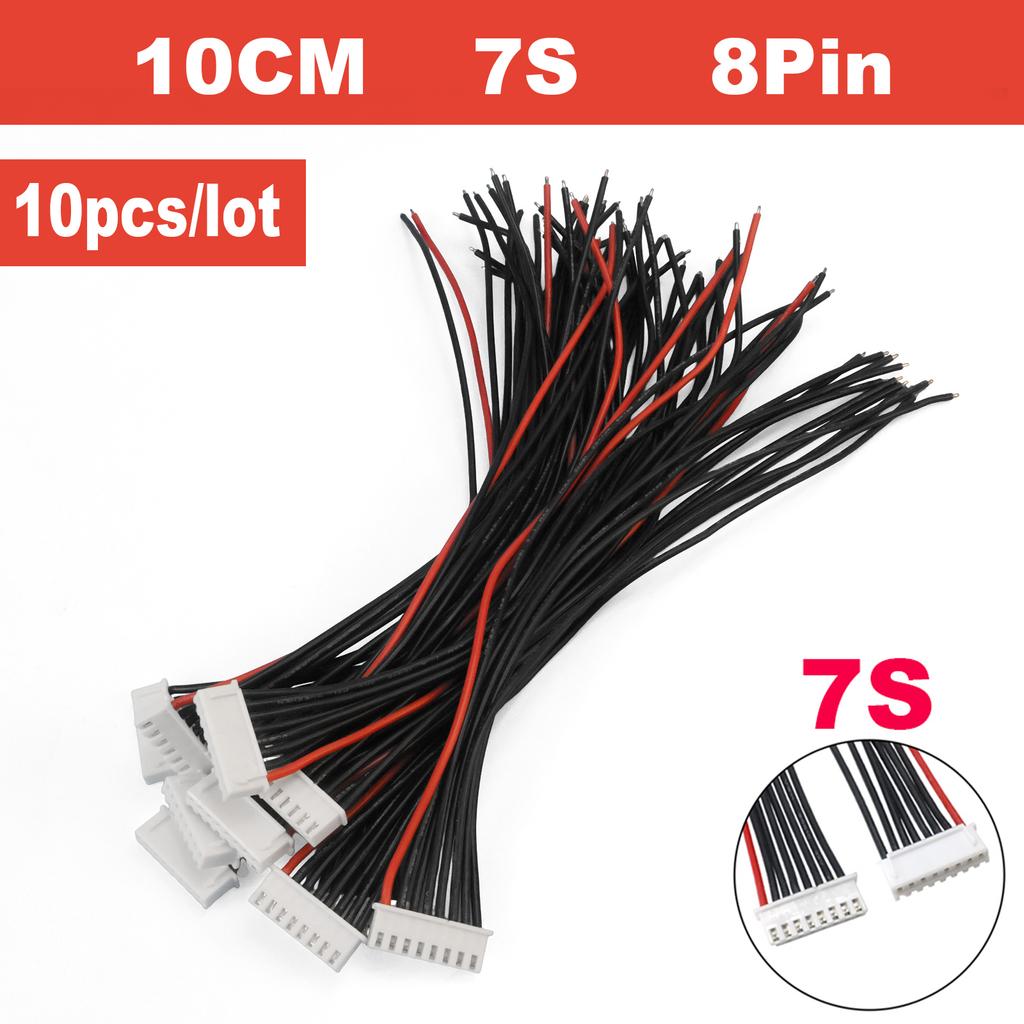

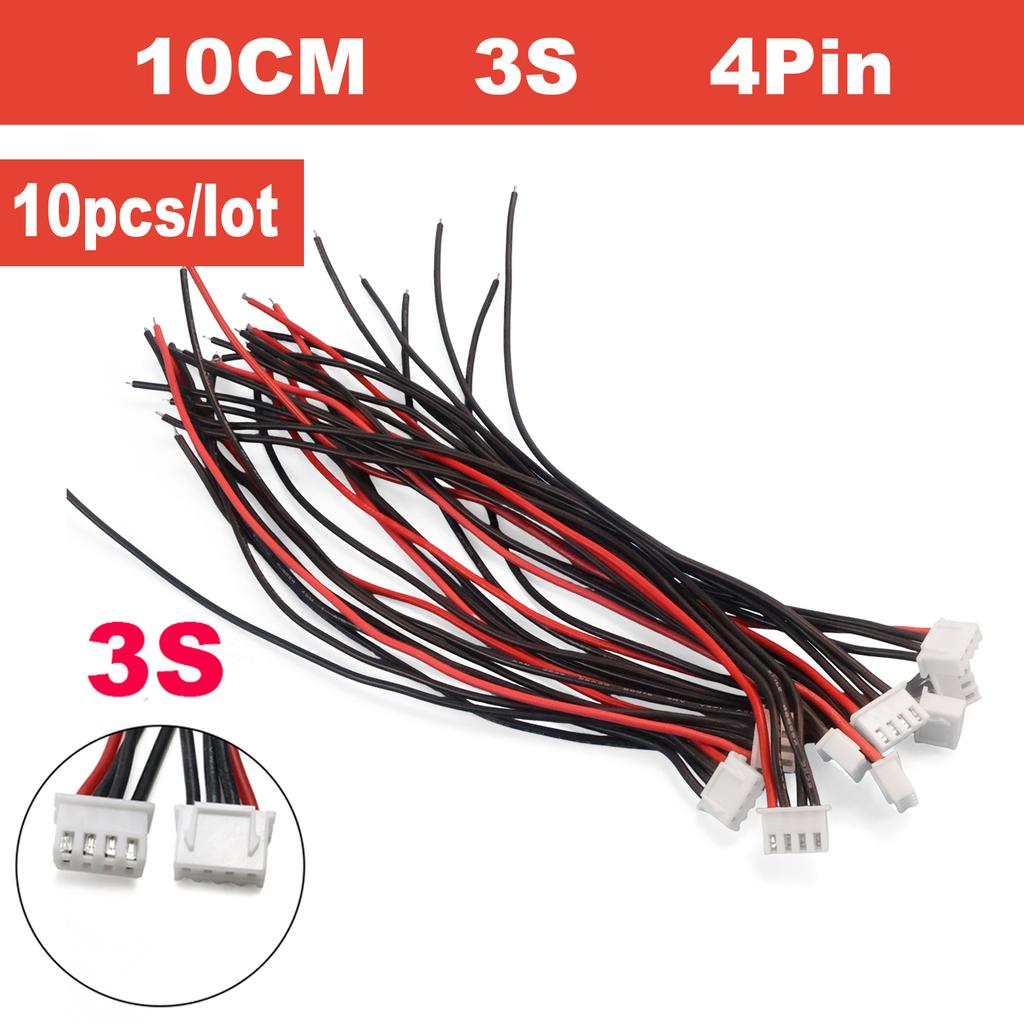

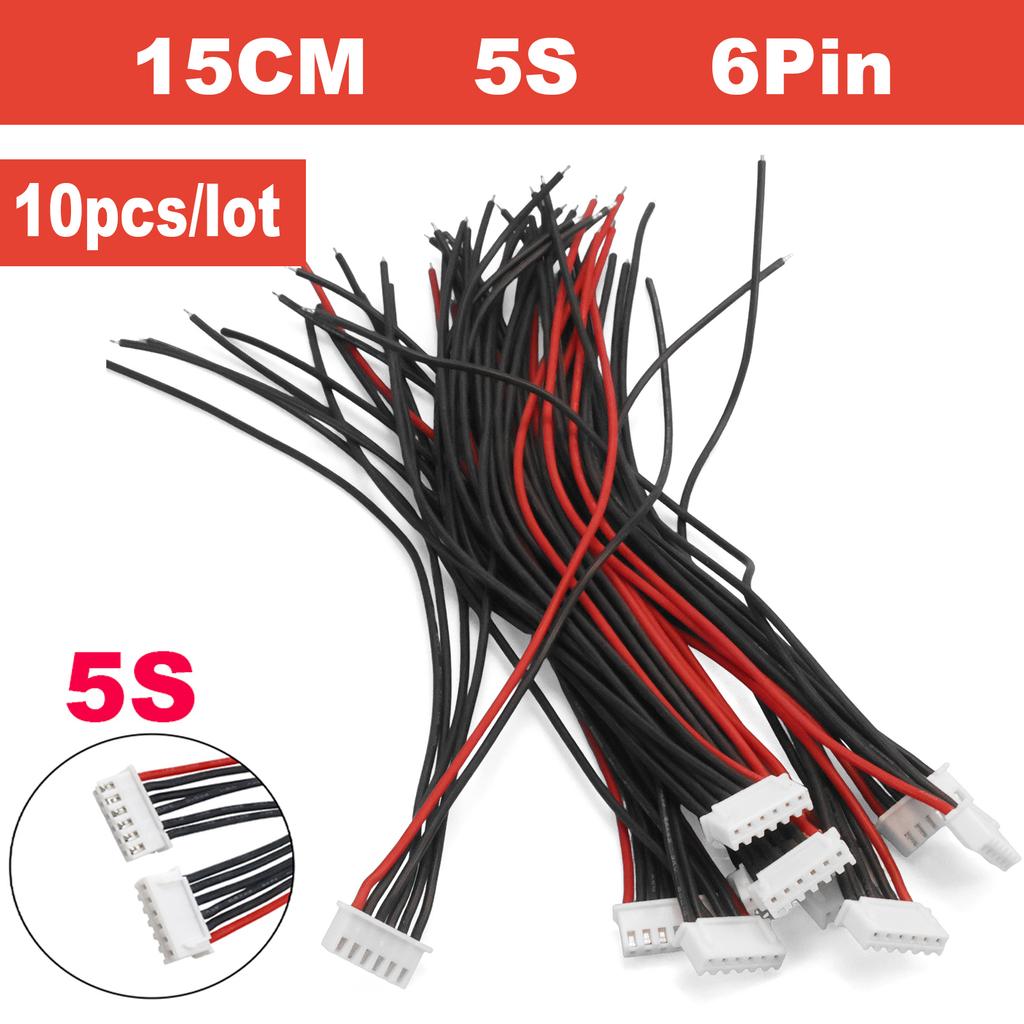

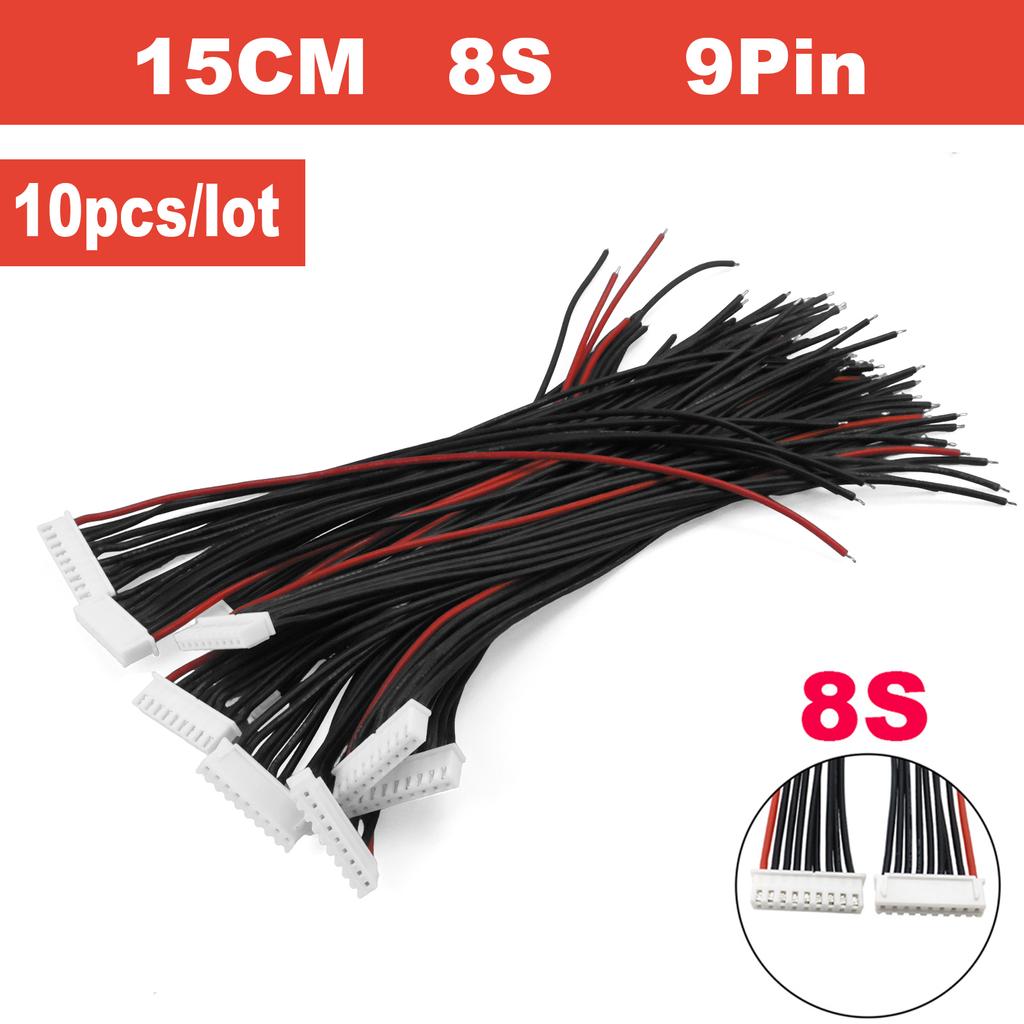

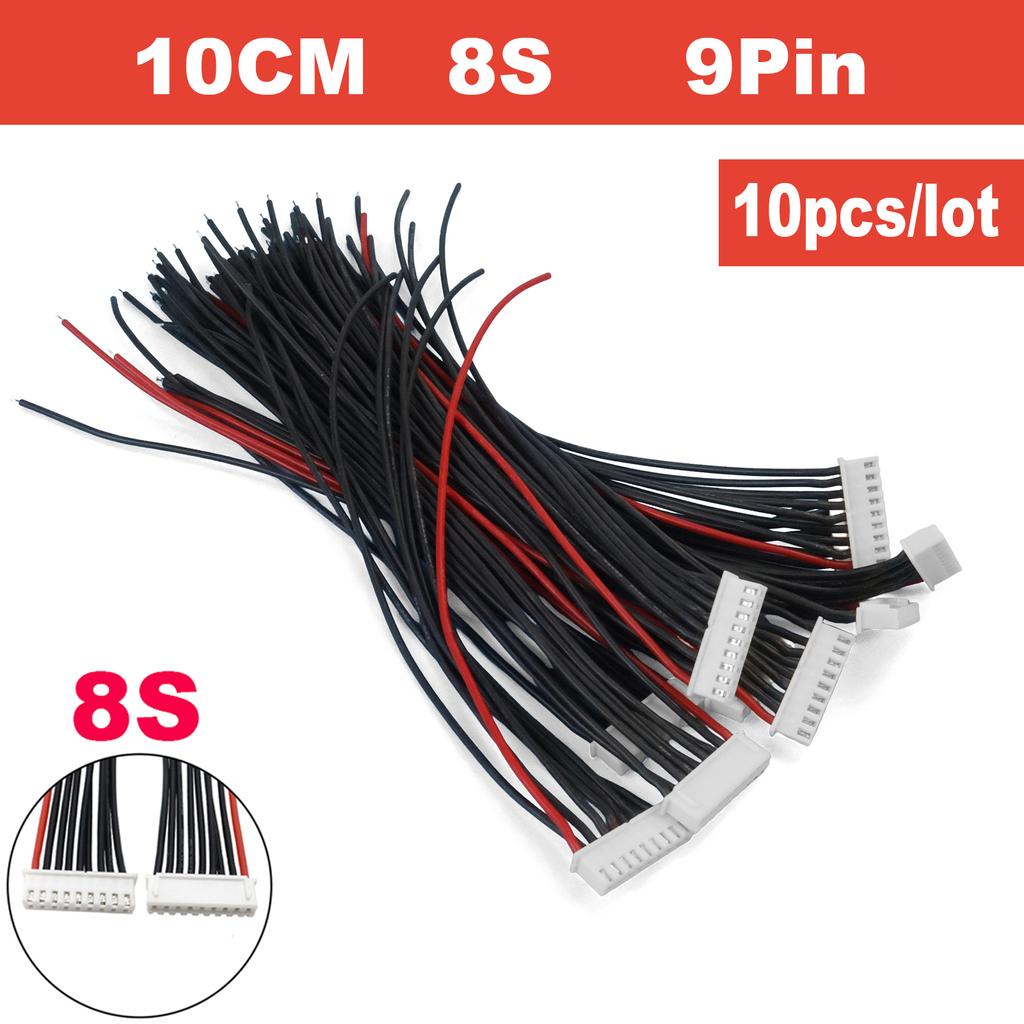

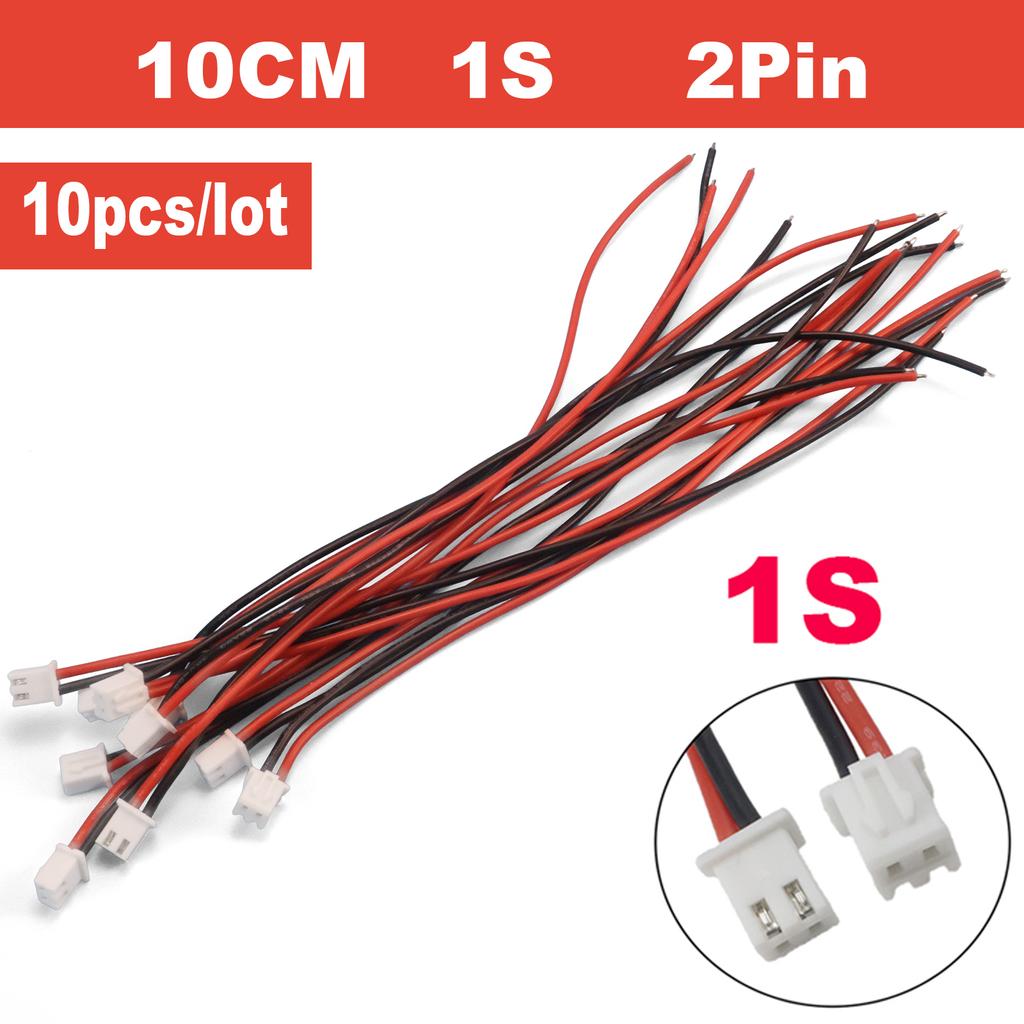

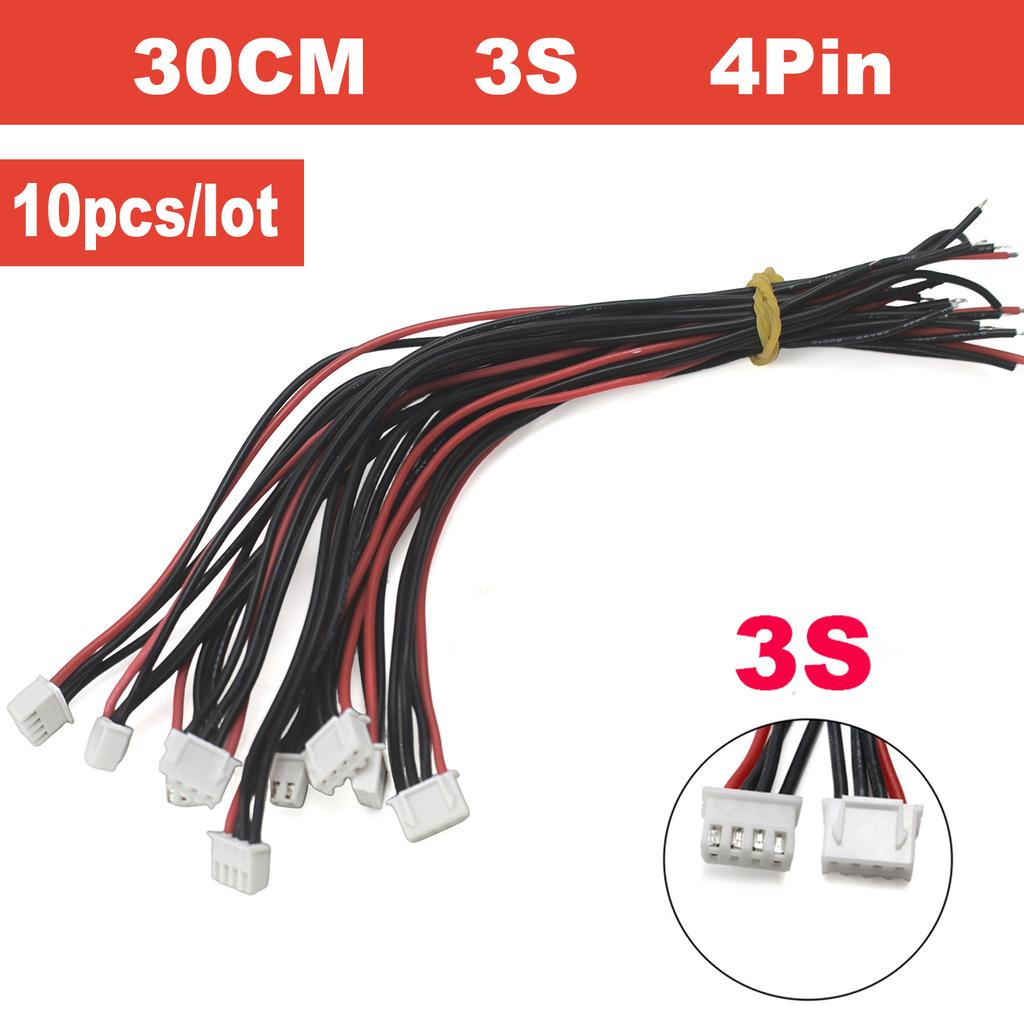

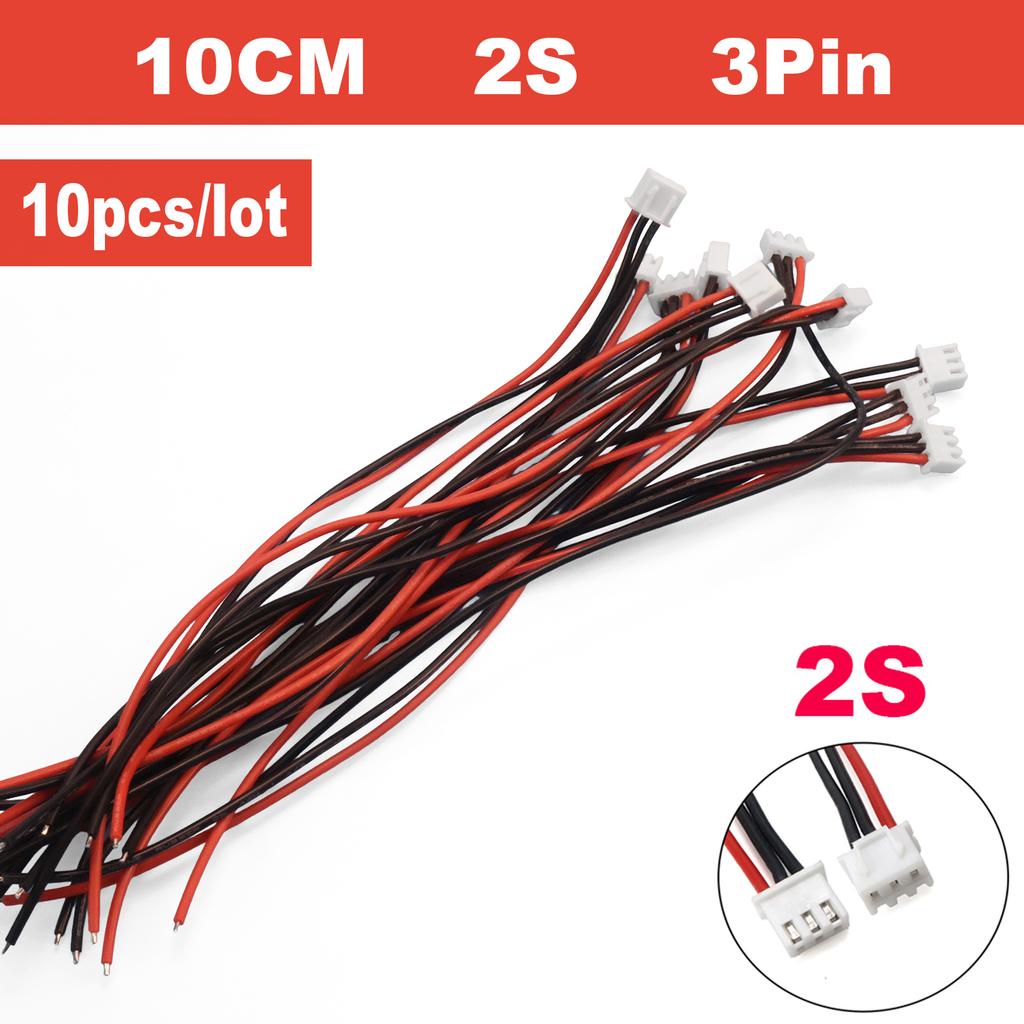

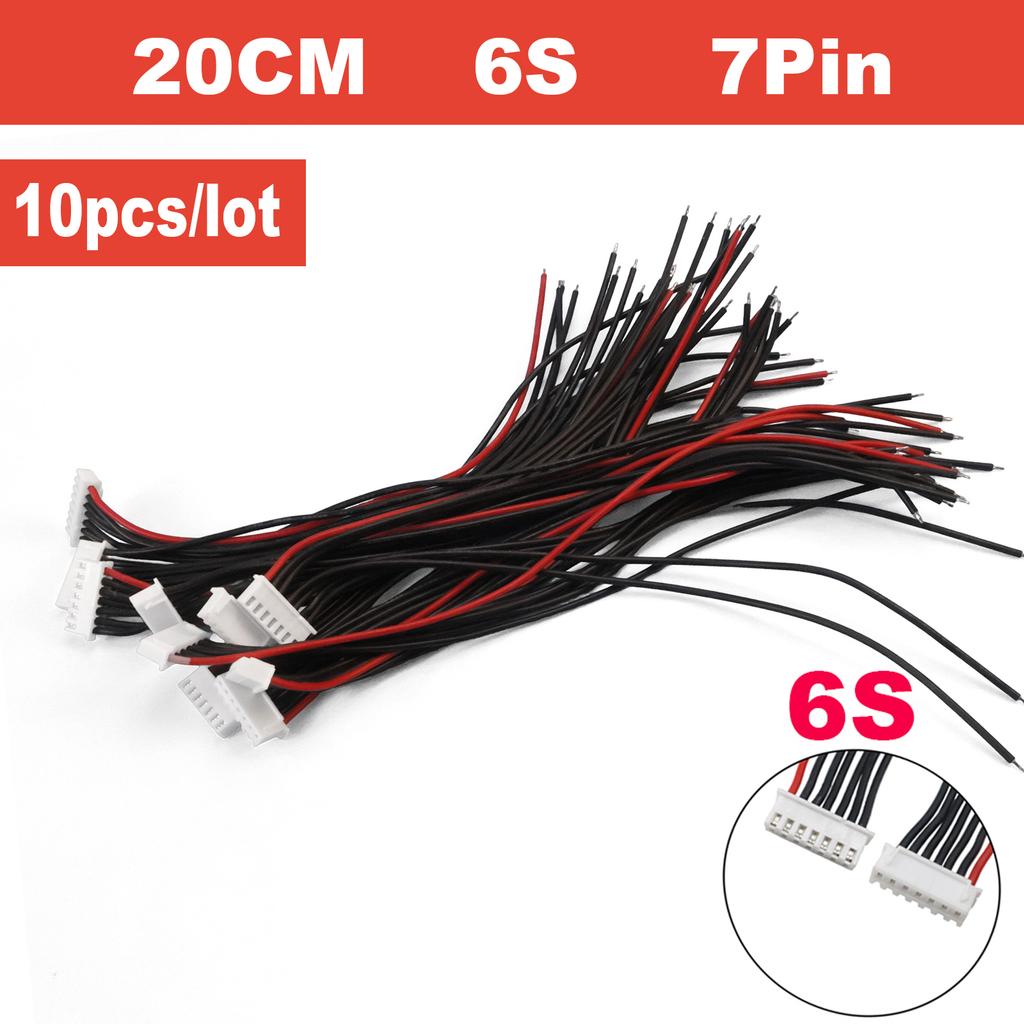

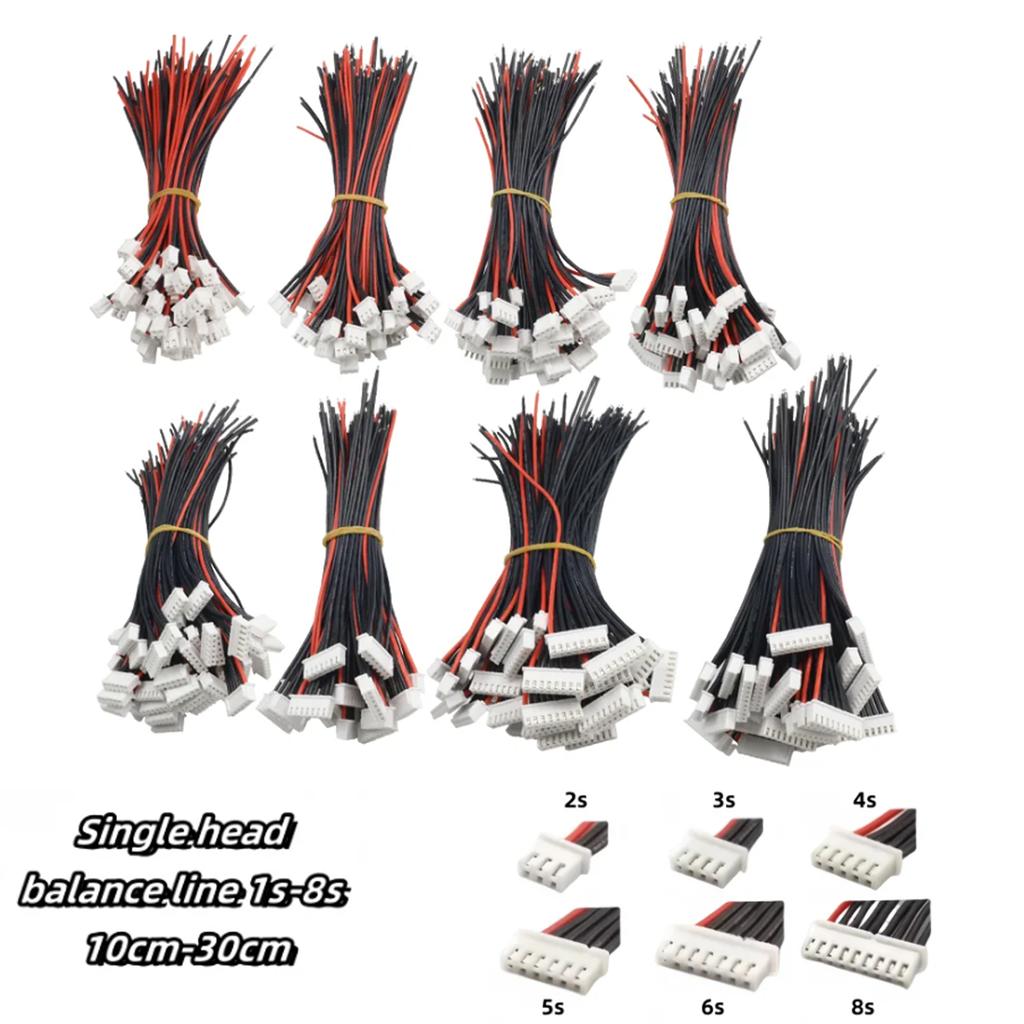

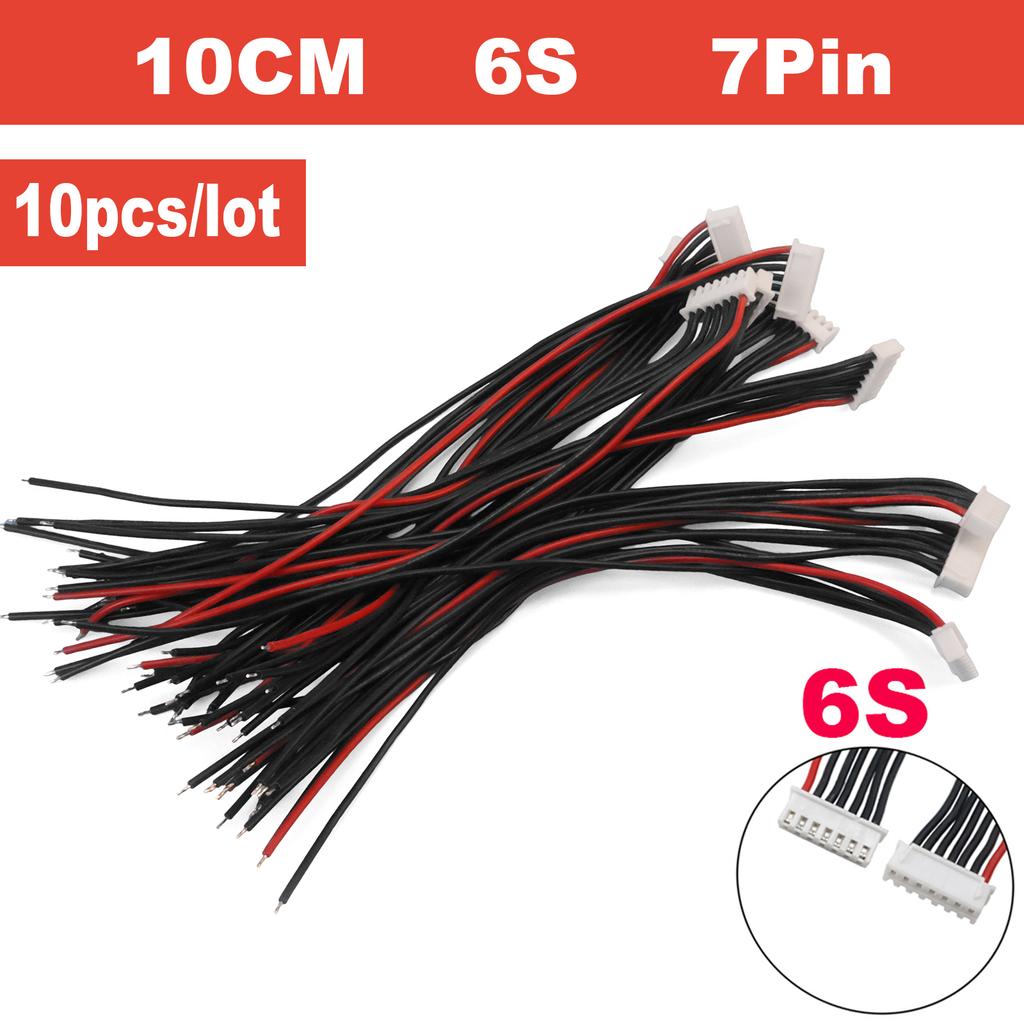

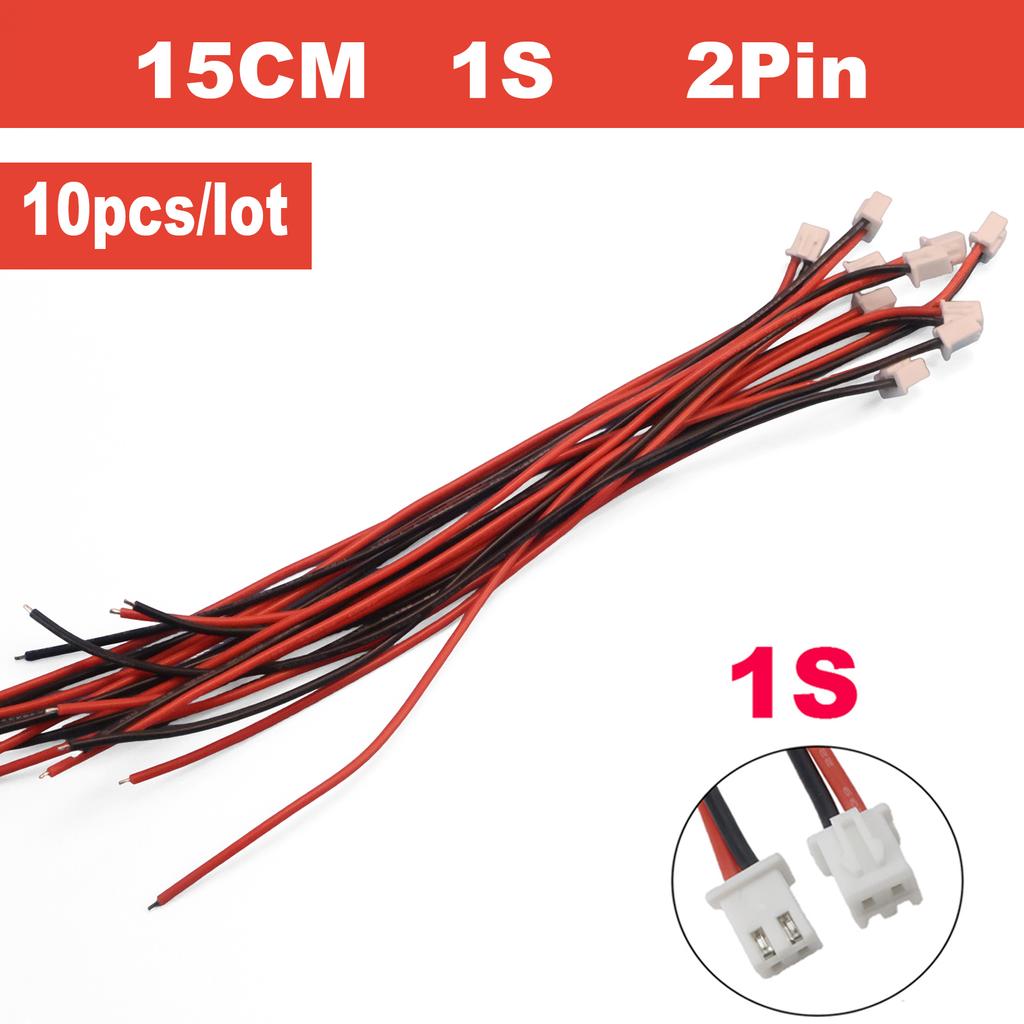

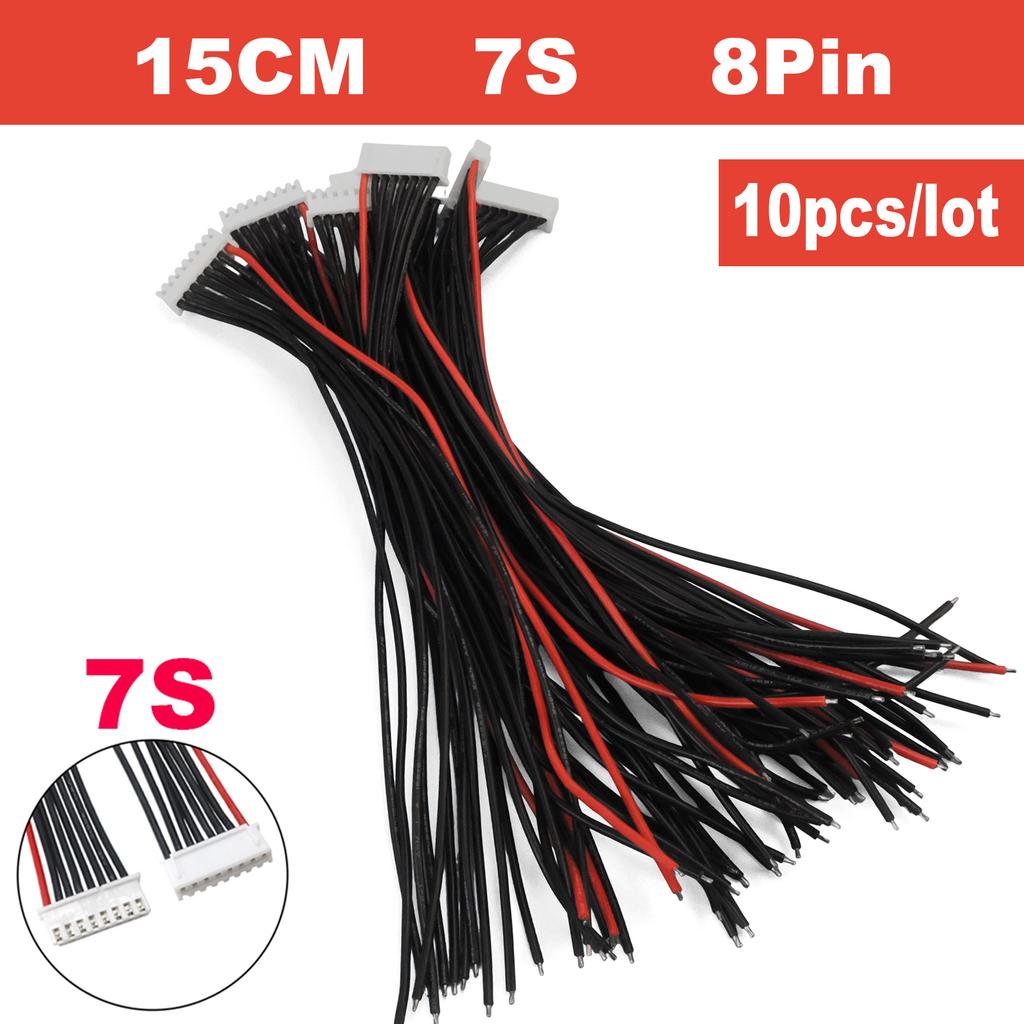

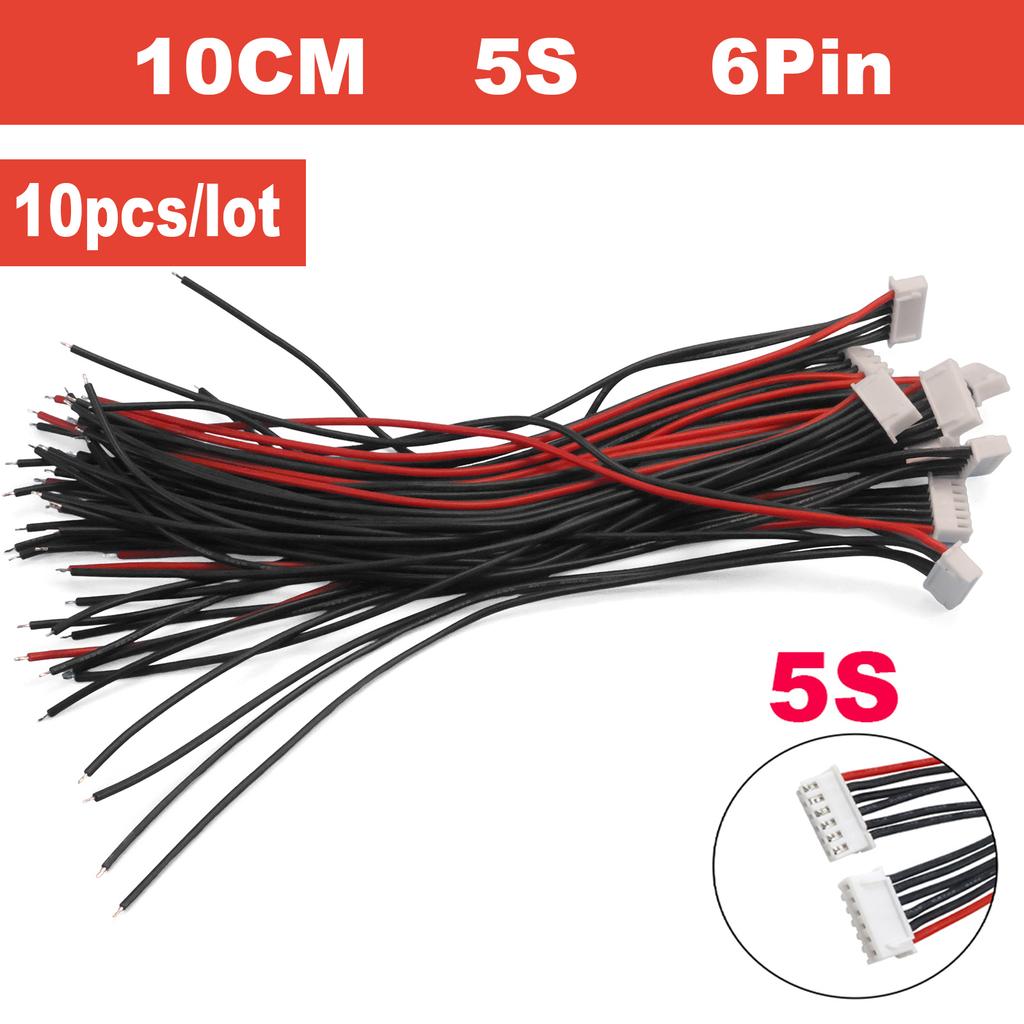

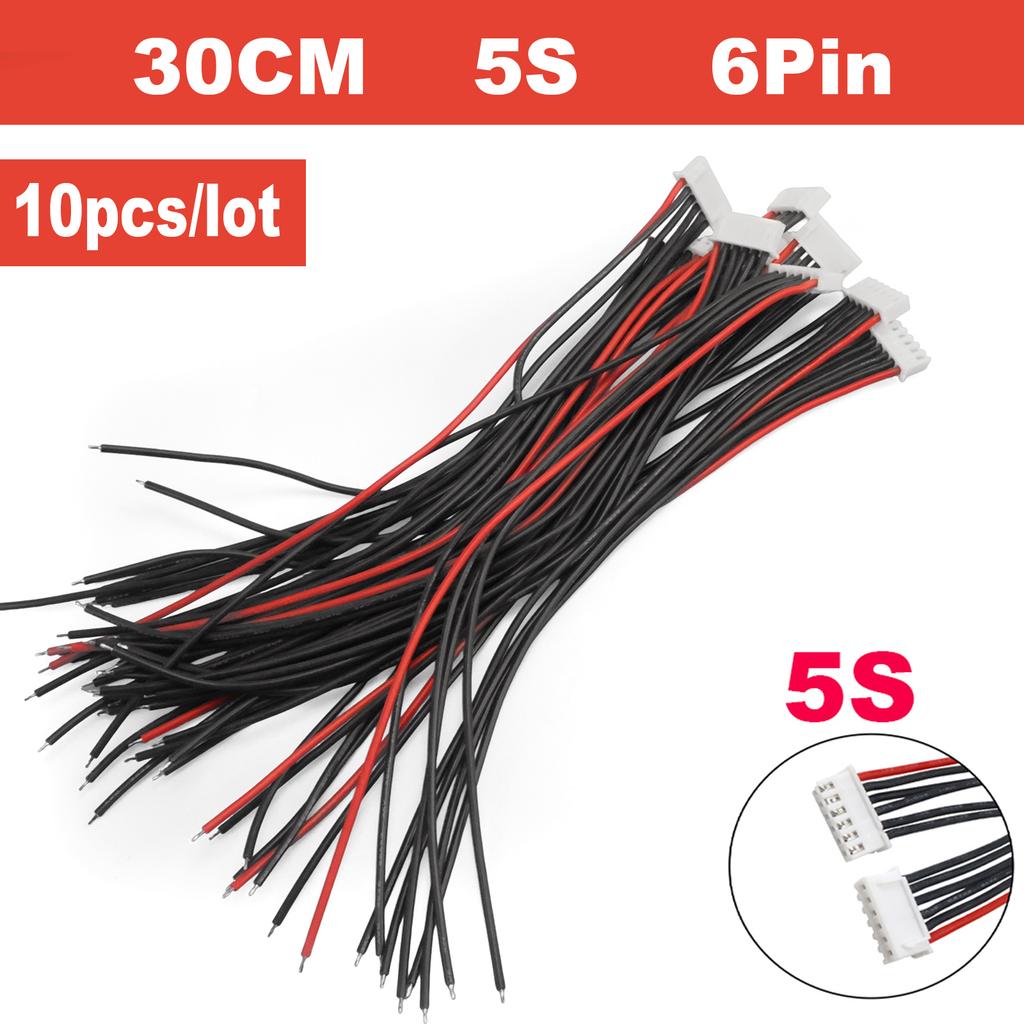

10-Pack JST-XH Single-Head Balance Charging Cable 1S-8S 22AWG Silicone Wire 10/15/20/30cm. Pre-tinned for DIY LiPo Assembly & IMAX B6 Wholesale.
Key Features & Benefits
4 Lengths & All Series Available: Choose from 1S-8S and 10/15/20/30cm lengths. Perfectly tailored from tiny whoop packs to large 6S+ setups.
Pre-tinned Single Head, Solder-Ready: Female JST-XH plug pre-crimped, tail end pre-soldered. Just heat and attach to your battery tabs—no stripping or tinning needed.

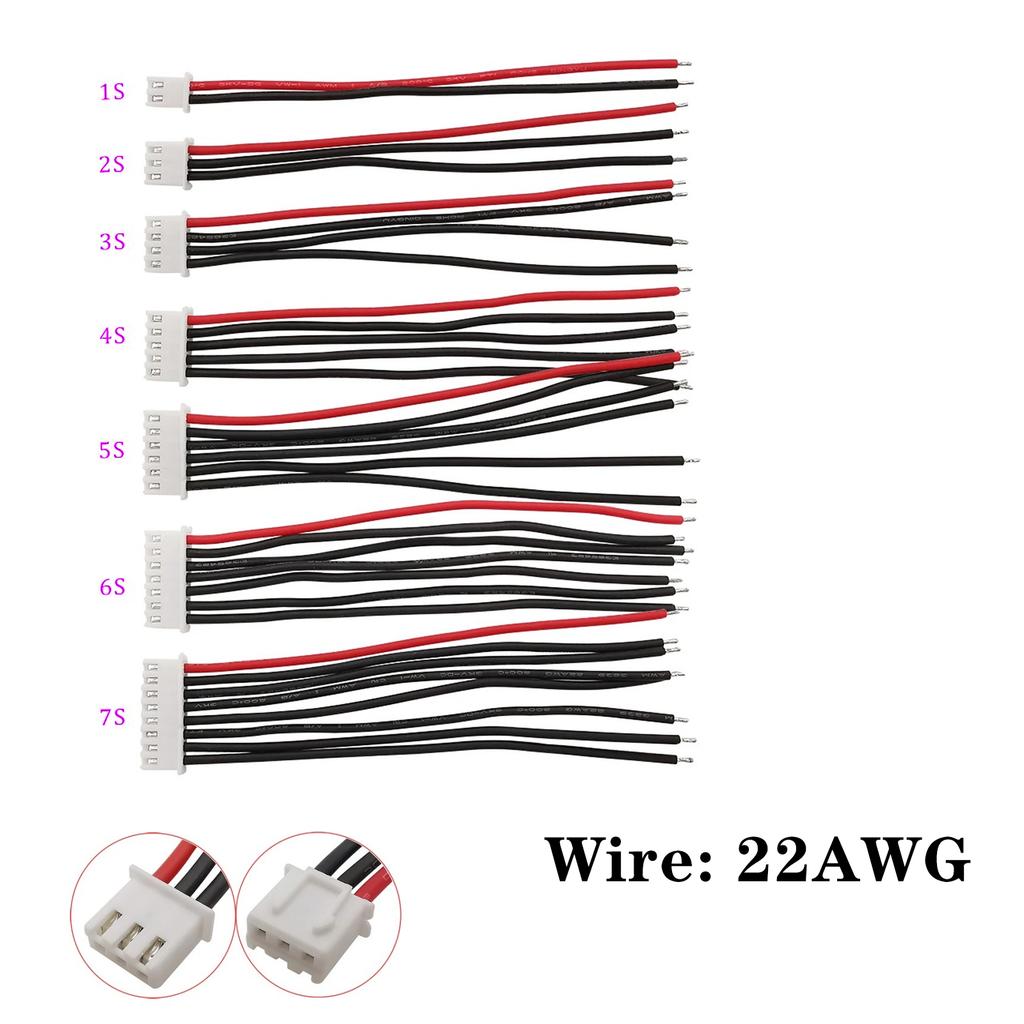

Premium 22AWG Silicone Wire: Tinned copper strands, 200°C heat resistance, super flexible, never shrinks back when soldering. Far superior to standard PVC wire.
Low Resistance, Accurate Sensing: Pure copper tinned core ensures precise voltage reading for your balance charger.
Bulk 10-Pack Value: Enough for multiple builds or repairs. Consistent quality in every wire.
Product Description
Building or repairing your own LiPo packs? This JST-XH single-head balance lead is designed for you. It features premium 22AWG ultra-soft silicone wire that handles 200°C without melting or hardening. The connector comes pre-crimped with a standard 2.54mm JST-XH housing, while the tail is pre-tinned with solder—your soldering job becomes incredibly fast and clean. Choose your exact Series (1S to 8S) and wire length (10, 15, 20, or 30cm) from the listing variations. Ideal for hobbyists and professional battery assemblers alike. 10 pieces per pack keep your workshop stocked.
Quick Start Guide & Important Tips
What It Is & What To Verify
This is: A JST-XH (2.54mm) single-head balance lead. Female plug on one end, pre-tinned bare wires on the other for soldering.
This is NOT: A double-headed extension cable. It cannot directly connect battery to charger without soldering.
Before Ordering:
S-Count: Match exactly to your battery's series. E.g., 4S pack = 4S cable (5-pin plug).
Length: 10cm for tight builds, 15cm for general use, 20cm for extra routing, 30cm for large packs.
Usage Cautions
1.Critical Wire Sequence: Red = Total Positive (B+). Outer dark wire = Total Negative (B-). Middle wires are cell taps (B1, B2...). Verify with a multimeter before soldering! Reversing polarity can cause fire or destroy equipment.
2.Soldering: Pre-tinned ends flow instantly. Use a ~350°C iron, 2-3 seconds per joint. Insulate every connection with heat shrink.
3.Inspect: Ensure no solder bridges between adjacent pads or wires.
Common Questions
Single-head or double-head?
Single-head: one plug, one bare wire end for soldering.
Which wire is positive?
Red is always main positive (B+). The opposite end's dark wire is main negative (B-).
How to choose length?
For compact battery bays, pick 10cm. For general repair, 15cm is standard. For routing in large models, pick 20cm or 30cm.
Specifications
Note: All dimensions are measured manually, please allow ±1cm tolerance. Due to monitor differences, actual product color may vary slightly. Please refer to the physical item.
Package Includes
10-Pack: 10 × JST-XH Single-Head Balance Charging Cables (Selected S-Count & Length)
label:yes
Connector type: type-c
GaN support: no
Number of ports: 1 port
Quick charge: Yes
