Model Number : 22.5W
Item Type : pcb board
Brand Name : occkic
Origin : Mainland China
Product Features
1. Fully compatible with PD/QC, adapts to mainstream fast charging
2. High-definition digital display screen, real-time visibility of remaining battery power
3. IP5356 main control chip, highly integrated, low power consumption, and more stable
4. Compatible with 3.7V lithium batteries, the preferred solution for DIY power banks
5. Modular design, simple to use and requires no complicated debugging
Product Parameters
Fast Charging Chip: IP5356
Power: 22.5W SuperCharge/PD20W Bidirectional Fast Charging

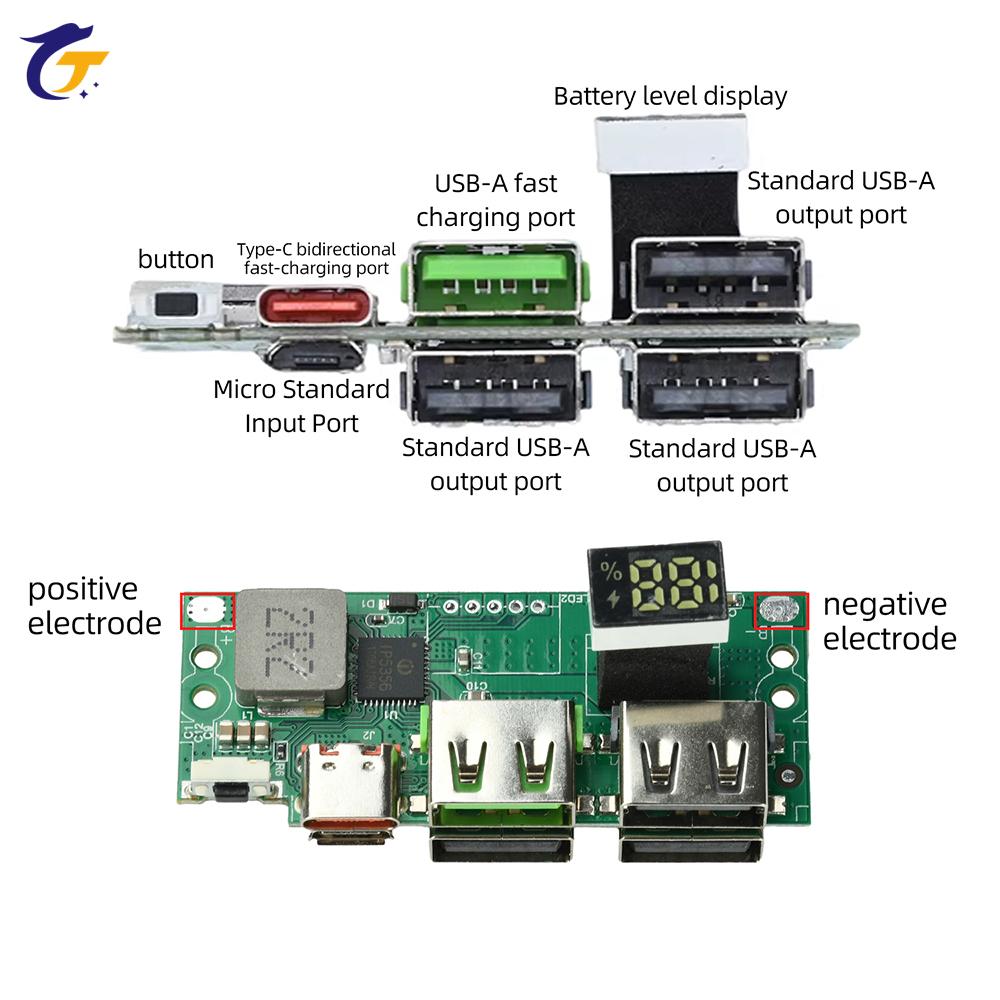

Interfaces: 4 USB output ports + 1 Type-C port Bidirectional fast charging port + 1 Micro Input Port
Input parameters: 5V2A/5V3A/9V2.2A/12V1.6A
Output parameters: 5V2A/5V3A/9V2.2A/12V1.6A/10V2.25A
Comprehensive motherboard protection: Includes overcharge/over-discharge/overvoltage/overheat protection, etc.
High conversion efficiency, stable current and voltage.
Battery connection is a 3.7V lithium battery connected in parallel; no battery protection board is needed. B+ is positive, B- is negative.
Instructions for use:
1. Regarding activating fast charging, there are public and proprietary fast charging protocols. This motherboard uses a smart fast charging chip, compatible with mainstream public fast charging protocols, meeting the fast charging needs of different s of mobile phones. Please confirm your phone's compatibility with public protocols before ordering to avoid failure to trigger fast charging!
2. Regarding the motherboard overheating issue during charging, when the power bank is working, current flows through the motherboard and chips, resulting in energy conversion losses. These losses are dissipated as heat. During fast charging, the higher power output causes more noticeable heat generation; this is a normal physical phenomenon.
3. The digital display of the battery level may be inaccurate immediately after connecting the battery. The fuel gauge supports a battery capacity self-learning function and will return to normal after a few charge/discharge cycles.
Package Contents:
Fast charging module *1
label:yes
Battery capacity: 43200
Charge indicator: No
Number of ports: 1 port
